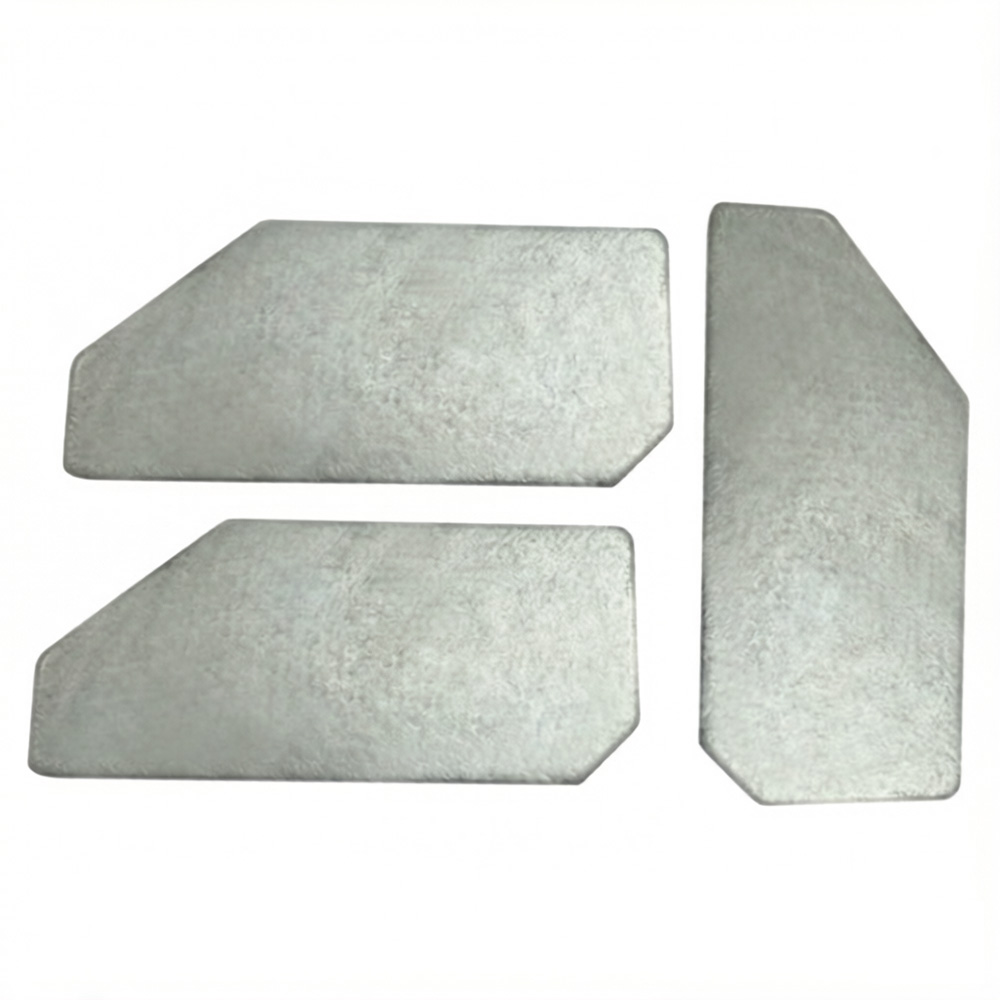

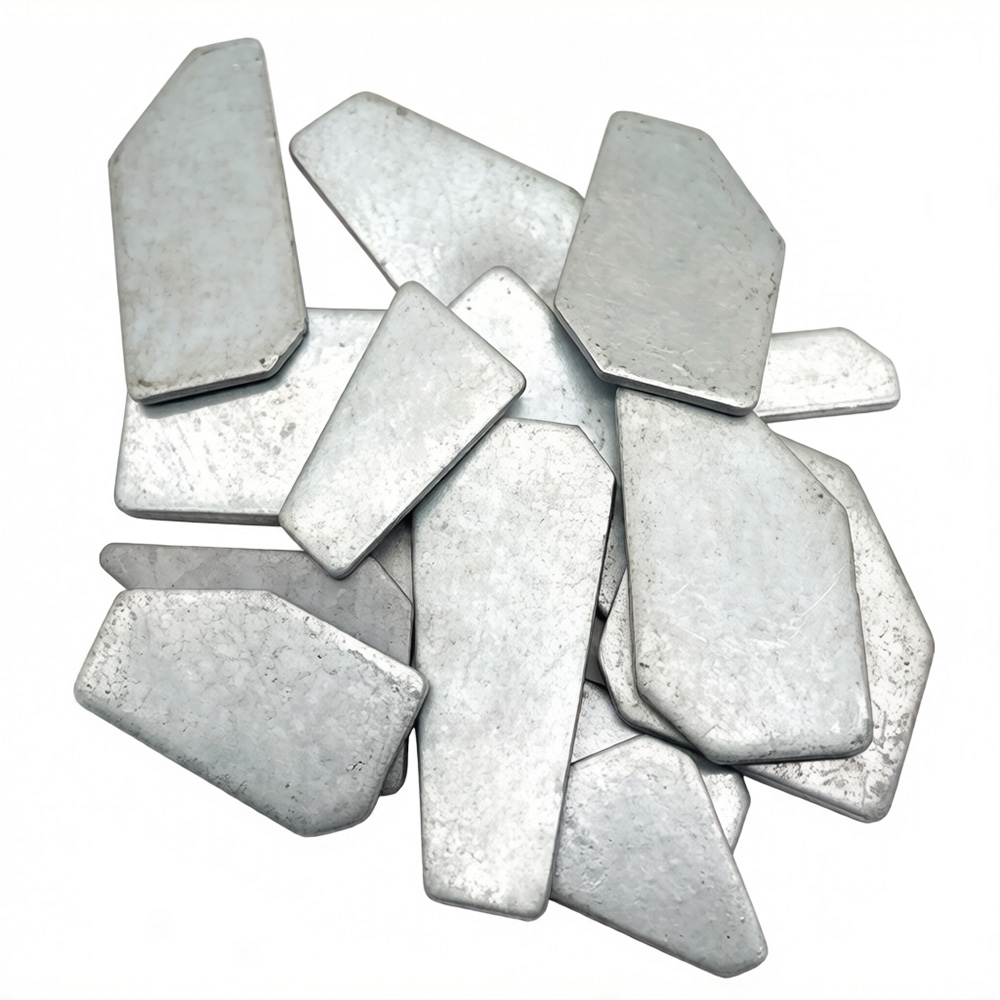

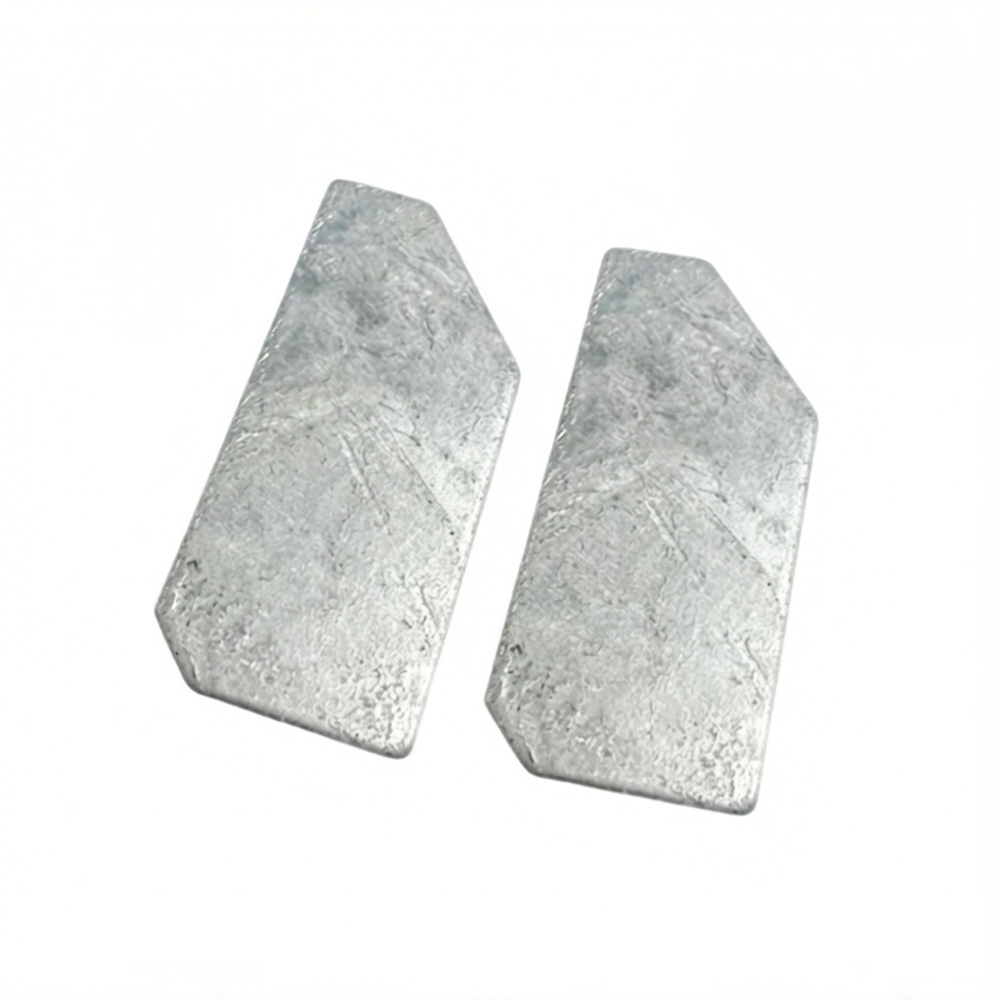

Heavy-Duty Carbon Steel Stiffener Plates for PV Mounting Systems
Advanced Structural Reinforcement for High-Load Solars
In large-scale solar installations, joint nodes and connection points bear the brunt of dynamic environmental forces. The Solar Stiffener Plate serves as an indispensable reinforcement element, strengthening these critical intersections. By multiplying the section modulus and stiffness of standard purlins, columns, or beams, our gusset/stiffener plates prevent structural fatigue and twisting, ensuring the solar racking network remains perfectly aligned for its 25+ year lifespan.
Mitigating Stress Concentration and Preventing Deformation
Under intense wind uplifts or massive snow blankets, unreinforced structural joints can suffer from localized stress concentration, leading to catastrophic micro-cracking or bending. Our carbon steel stiffener plates act as load-sharing bridges. They absorb high structural stresses and redistribute them smoothly across the broader framework, keeping structural deformation well within safe engineering tolerances.
High-Precision Customization for Seamless Integration
Every solar racking design features unique angles and load challenges. We manufacture our stiffener plates utilizing advanced CNC cutting and precision stamping technologies. This allows us to deliver customized plate shapes, specific thicknesses, and precise hole layouts that line up perfectly with your existing mounting profiles. No on-site modification or welding is required, guaranteeing a swift and clean bolt-on installation.
Technical Specifications (Customizable)
Component Feature | Details & Options |
Product Name | Solar Stiffener Plate / PVC Reinforcement Plate |
Material Base | High-Grade Structural Carbon Steel ( e.g., Q235B, Q355B, or equivalent) |
Surface Finish | Hot-Dip Galvanized (HDG) to meet strict outdoor anti-corrosion standards |
Primary Function | Structural Rigidification, Node Reinforcement Preventing Material Flex |
Surface Treatment Options | Hot-Dip Galvanized (HDG), Electro-Galvanized, or Specialized Anti-Rust Coating |
Applicable systems | Ground Mounting PVC Arrays , Solar Carports , Commercial Rooftop Racking |
Customized Option | Customized geometry thickness (3mm-10mm+) , and bespoke hole patterns |
Essential Applications in Modern Solar Racking
High-Wind & Heavy-Snow Zones: Acts as a mandatory reinforcing component for utility projects situated in extreme environments.
Long-Span Solar Carports: Strengthens the joints between main columns and overhead beams to support wide, pillar-free vehicle clearances.
Tracker System Foundations: Provides critical torsional rigidity near motor drives and bearing housings on single-axis solar trackers.
Why Choose Our Industrial-Grade Stiffener Plates?
We specialize in supplying heavy-duty, high-tolerance structural steel accessories to global EPC contractors and solar racking manufacturers. By combining high-tensile carbon steel with rigorous hot-dip galvanization, our stiffener plates deliver the ultimate combination of structural toughness and weather-proofing.
Enhance the structural safety of your next solar project. Contact our engineering desk today to submit your blueprints and receive a factory-direct wholesale quote!
