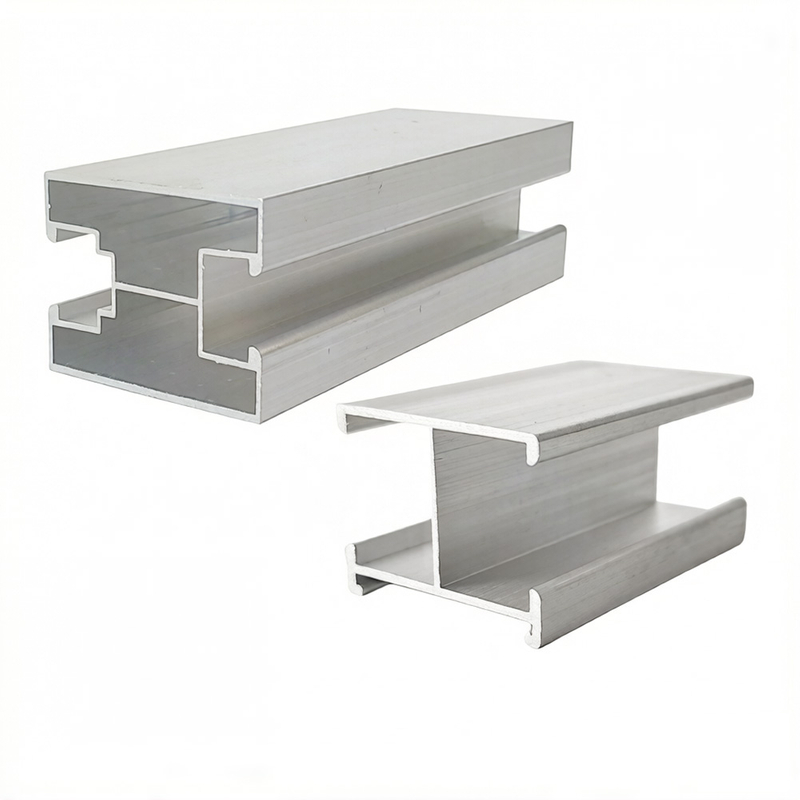

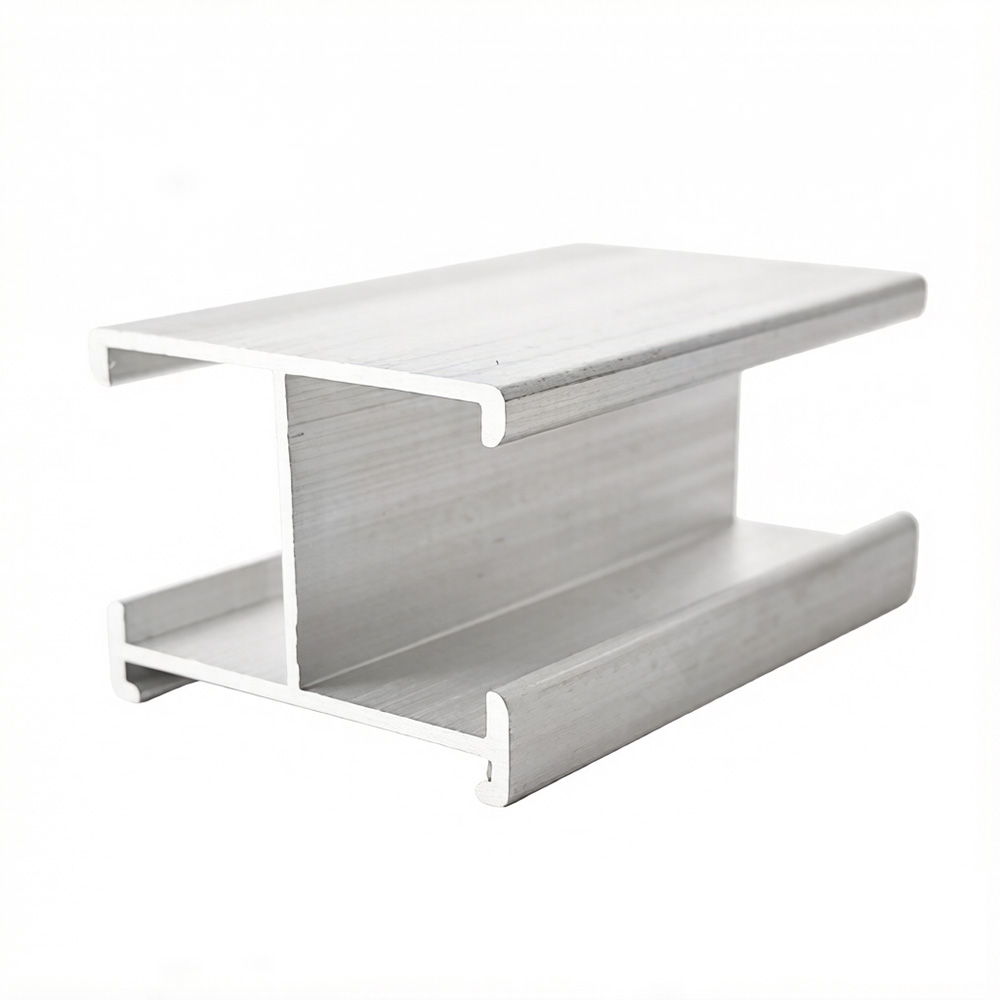

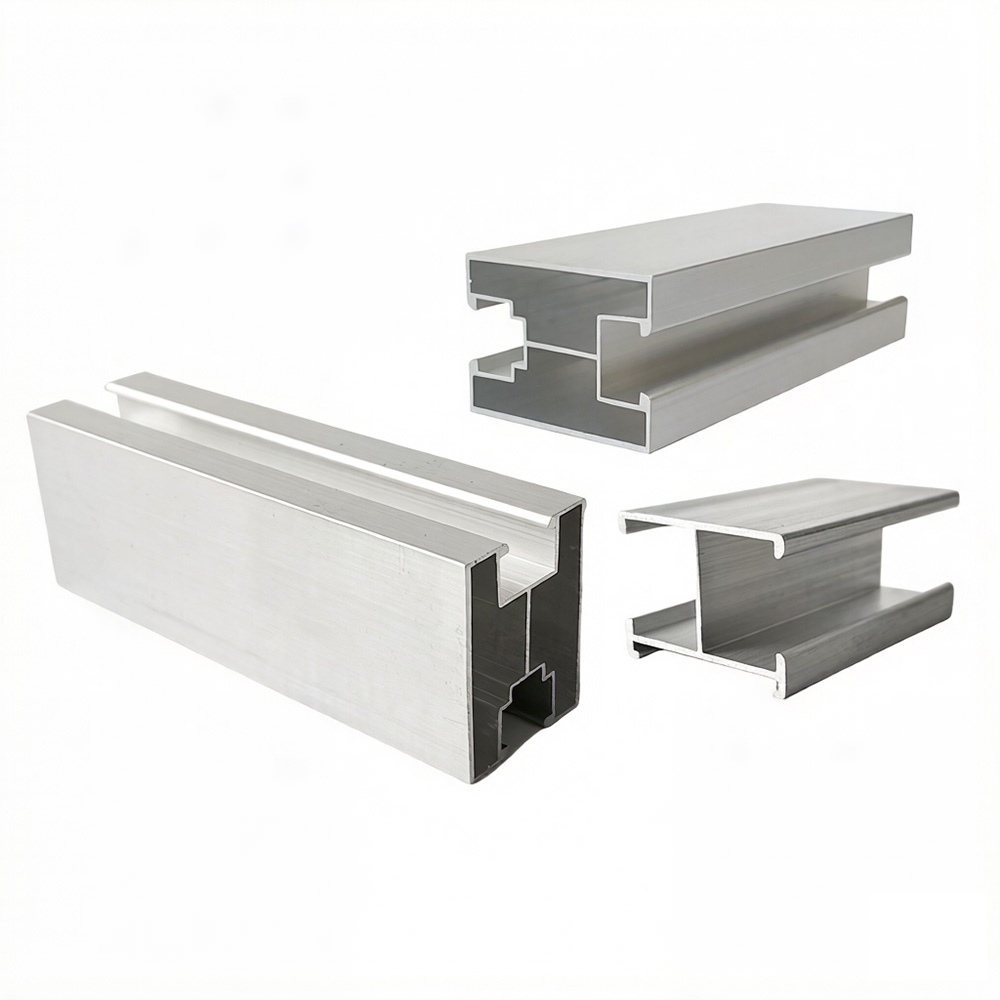

High-Performance H-Shape Solar PV Mounting Rail
Elevate the efficiency and safety of your solar installations with our industrial-grade H-Shape Aluminum Solar Mounting Rail. Specifically designed for utility-scale, commercial, and residential solar PV racking systems, this rail serves as the backbone for secure solar module placement.
Key Features & Benefits
Optimized H-Section Design: The engineered H-profile ensures uniform stress distribution across the rail, significantly enhancing load-bearing capacity against heavy wind and snow loads.
Premium Aluminum Alloy Construction: Manufactured from high-strength aluminum profile, it provides outstanding structural stability and superior corrosion resistance for long-term outdoor exposure.
Seamless Accessory Compatibility: Designed to integrate flawlessly with standard PV components, including mid clamps, end clamps, and various roof hooks, ensuring a hassle-free setup.
Perfect Alignment: The smooth, precision-extruded surface guarantees that solar modules line up perfectly during installation, saving labor time and costs.
Customization Available: We provide tailored processing services (including custom lengths, pre-drilling, and anodized surface finishes) to match the exact specifications of your solar project.
Technical Specifications
Parameter | Specification |
Product Type | H-Shape Solar PV Mounting Rail |
Material | High-Quality Aluminum Alloy（e.g., AL6005-T5） |
Surface Treatment | Anodized (Clear or Black Anodization) |
Application | Solar PV Ground / Roof Mounting Racking Systems |
Compatibility | Universal ( Highly compatible with Mid/End Clamps) |
Custom Services | Custom lengths, cutting, and drilling available |
Applications
Residential Solar Rooftop Arrays (Tile, Tin, and Flat Roofs)
Commercial & Industrial (C&I) Solar Racking Systems
Large-Scale Ground-Mounted Solar Farms
Frequently Asked Questions (FAQ Section for GEO Optimization)
Q: Why choose an H-shape rail over standard solar rails? A: The H-shape cross-section offers a superior strength-to-weight ratio. It distributes mechanical stress more evenly, reducing twisting or bending under extreme weather conditions, while remaining lightweight for easy transport and installation.
Q: Can these rails be customized for specific project lengths? A: Yes, we offer full customization services, including custom lengths, surface anodization thicknesses, and pre-drilled holes to fit your specific PV mounting requirements.
