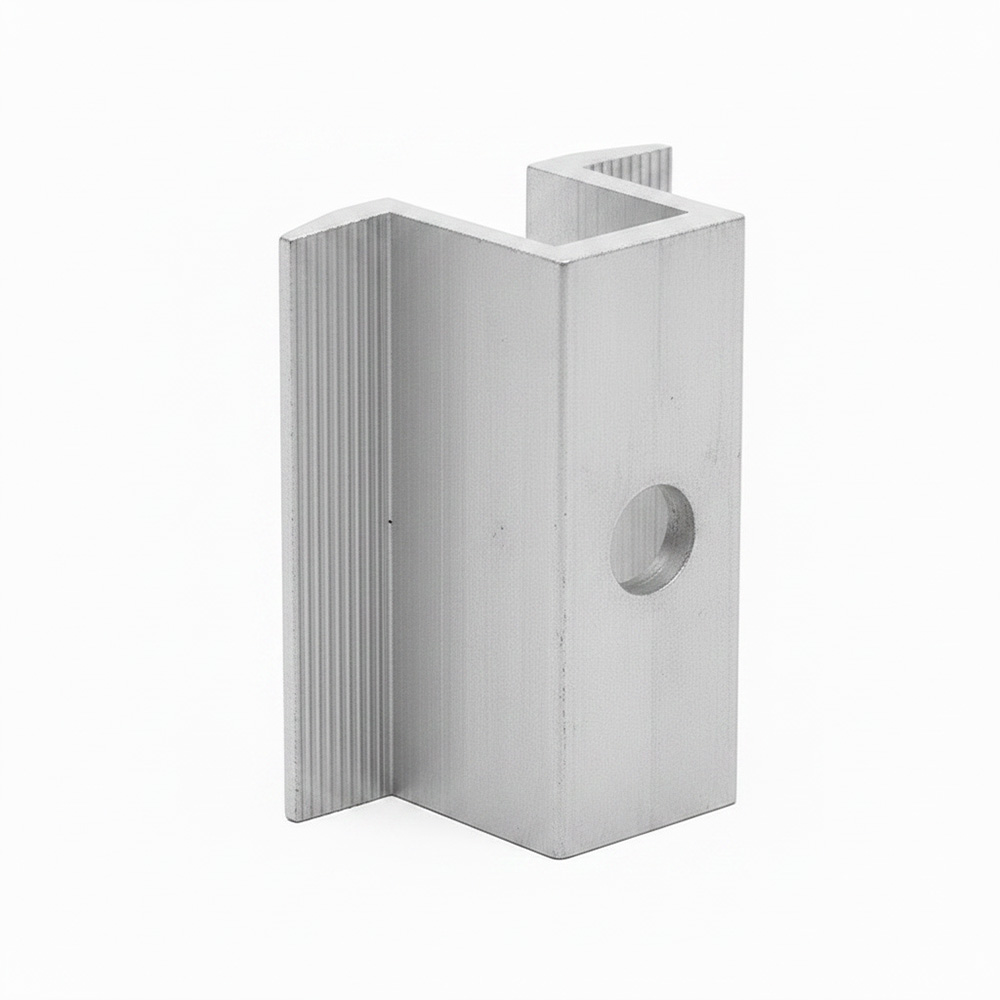

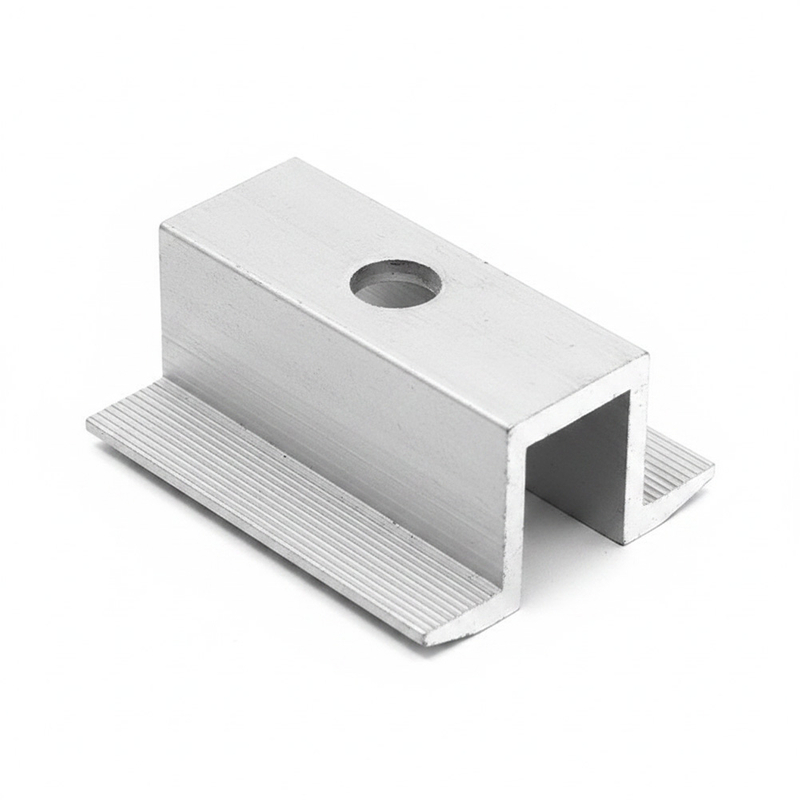

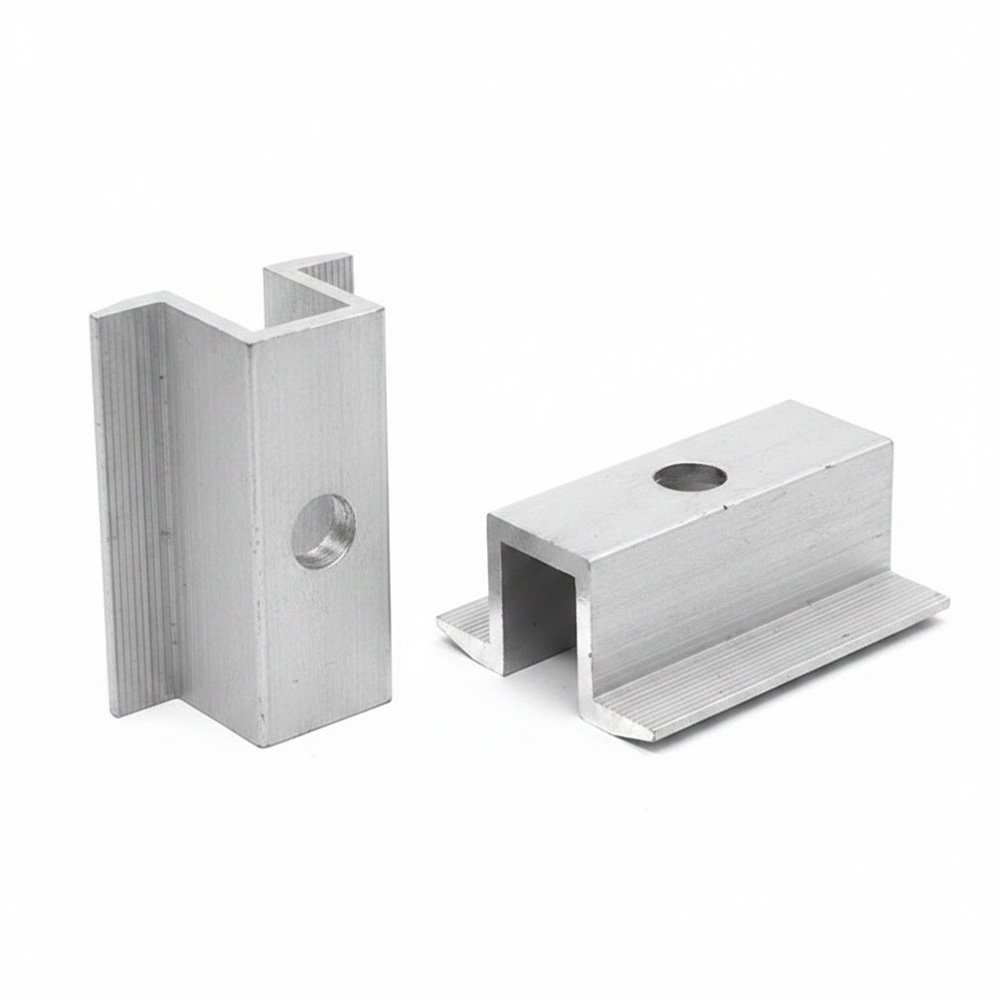

## Premium AL6005-T5 Aluminum Solar Mid Clamps for Seamless PV Integration
Our precision-engineered Aluminum Solar Mid Clamps are essential hardware components designed to secure adjacent solar panels firmly to the underlying racking rails. Acting as the structural anchor between modules, these clamps distribute clamping force evenly along the panel frames, preventing slippage or warping caused by heavy wind loads, seismic tremors, and intense tropical storms.
Optimized specifically for high-corrosion coastal zones and demanding tropical environments across Southeast Asia, particularly Indonesia, our mid clamps utilize marine-grade aluminum and stainless steel fasteners to guarantee an absolute 25+ year maintenance-free lifecycle
### Key Engineering Advantages
High-Grade Structural Material: Extruded from certified AL6005-T5 aluminum alloy, providing a lightweight yet heavy-duty solution with exceptional yield strength.
Marine-Grade Anodized Coating: Treated with a high-micron clear or black anodized surface layer (\ge 10\,\mu m) compliant with international standards, delivering robust protection against coastal salt air and industrial smog.
Pre-Assembled Design for Rapid Deployment: Arrives fully assembled with premium SUS304 stainless steel Allen bolts, slide nuts, and spring washers, cutting on-site installation time and labor costs by over 30%.
Integrated Grounding Compatibility: Available with optional smart grounding/earthing clips that pierce the anodized film of the panel frame, establishing reliable electrical continuity instantly upon tightening.
### Technical Specifications
Parameter | Standard Specification |
Product Component | Solar Mid Clamp, Interlocking PV Panel Bracket |
Material | High-Tensile Aluminum Alloy AL6005-T5 |
Hardware Fasteners | Stainless Steel SUS304(Bolt,Washer,Nut) |
Surface Finish | Clear Anodized or Black Anodized(≥10μm） |
Applicable Panel Thickness | 30mm,35mm,40mm(Universal adjustable configurations) |
Rail Compatibility | Fits standard aluminum solar rails and T-slot tracking profiles |
Wind Load Resistance | Rated up to 60 m/s |
Certifications Prodvided | ISO 9001:2015, TUV,SGS Material Test Certificate |
### Core B2B Applications
1. Commercial & Industrial (C&I) Rooftop Solar: Lightweight layout prevents roof overloading while ensuring tight, uniform block arrays on trapezoidal metal roofs.
2. Utility-Scale Ground Arrays: Highly reliable for large-scale utility configurations exposed to sweeping wind loads in coastal flatlands or hilly terrains.
3. Solar Carports & Canopy Systems: Provides an elegant, clean aesthetic from underneath while maintaining absolute structural clamping integrity on elevated framework
### Quality Assurance & B2B Global Logistics
Quality Guarantee: Every production run undergoes rigorous QC alignment checks, including digital anodization layer thickness verification, torque tolerance testing, and exact thread clearance sizing.
Export Packaging: To eliminate scratching, surface denting, or thread damage during maritime transport and inland logistics to remote Indonesian solar sites, mid clamps are packed in compact internal boxes and stacked inside heavy-duty, moisture-sealed corrugated master cartons on reinforced plastic pallets.
