Structural Carbon Steel Base Plates for Solar Mounting Foundations
Engineered Foundation Anchoring and Load Management
The Solar Base Plate is the foundational anchor of any high-performance photovoltaic racking system. By creating a rigid connection between the vertical support pillars and the concrete foundation or roof substructure, this heavy-duty plate ensures that the entire dead load, along with dynamic wind and snow forces, is distributed evenly across the base. This robust load-sharing mechanism prevents structural shifting and safeguards the integrity of the solar array.
Premium Grade Material for Heavy-Duty Performance
Constructed from high-tensile structural carbon steel, our base plates are built to withstand immense compression and shear forces. To ensure a service life that matches the 25+ year lifespan of your solar modules, these steel plates undergo advanced surface treatments (such as Hot-Dip Galvanization) to provide exceptional resistance to soil chemistry, moisture, and outdoor atmospheric corrosion.
Streamlined Installation with Precision Engineering

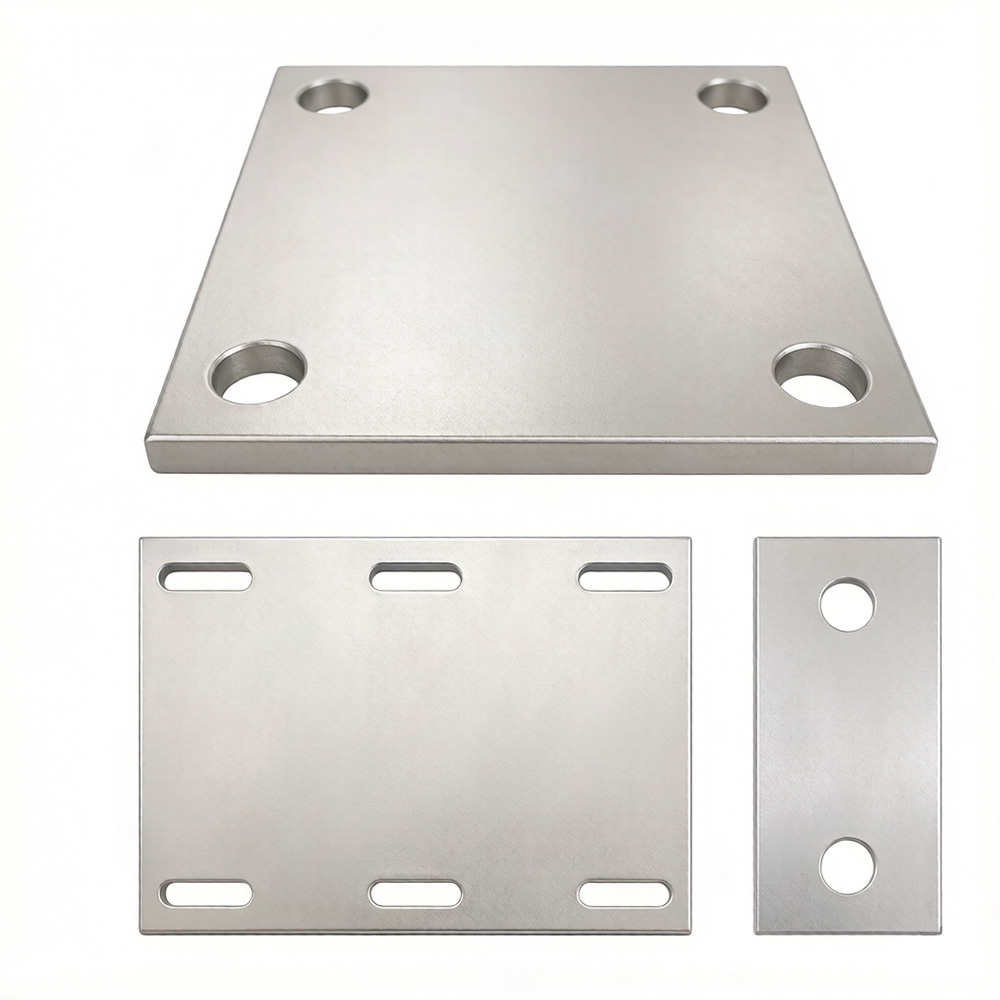

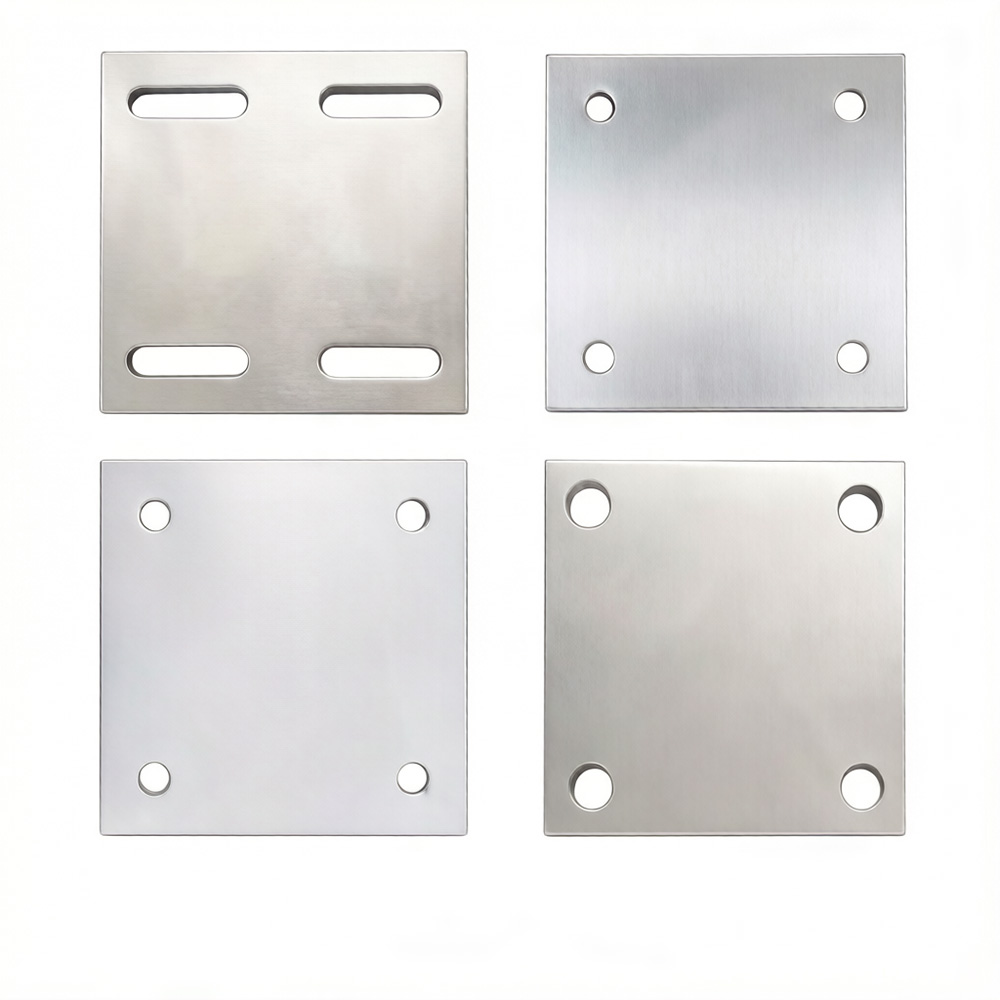

Speed and accuracy are vital for reducing field labor costs. Our carbon steel base plates feature a standardized layout with high-precision slotted or round holes. This allows EPC contractors and installation crews to quickly align the plates with anchor bolts embedded in concrete foundations or steel ground screws, ensuring a seamless setup process even in challenging terrains.
Technical Specifications (Customizable)
Component Feature | Details & OPtions |
Product Name | Solar Base Plate / PV Mounting Foundatio Bracket |
Material | High-Strength Structural Carbon Steel (e.g., Q235B/ Q355B or equivalent ) |
Surface Treatment | Hot-Dip Galvanized (HDG) for superior long-term corrosion protection |
Core Function | Foundation Anchoring ,Load Dispersal , Column-to-Base Connection |
Application Environment | Ground-Mounted PV Arrays, Concrete Foundations , Flat Roof Solar Systems |
Customization Options | Thickness ( e.g., 4mm-12mm+), Width, Length, and Bolt Hole Configurations |
Versatile Adaptation for Global PV Projects
Utility-Scale Ground Arrays: Provides a rock-solid foundation interface for heavy ground-mount steel racks.
Commercial Flat Roofs: Integrates perfectly with concrete ballast blocks to secure rooftop solar canopies without membrane penetration.
Solar Carports & Canopies: Acts as the high-strength footplate for massive structural columns, ensuring public safety below.
Why Partner with Our Manufacturing Facility?
We specialize in producing high-tolerance solar structural components tailored to international engineering codes. Whether your project demands extra-thick base plates for high-wind zones or specialized slotted hole layouts for adjustable alignment on uneven ground, our engineering team can manufacture plates exactly to your blueprints.
Secure your solar assets from the ground up. Contact us today to send your engineering drawings and request a factory-direct wholesale quote!
