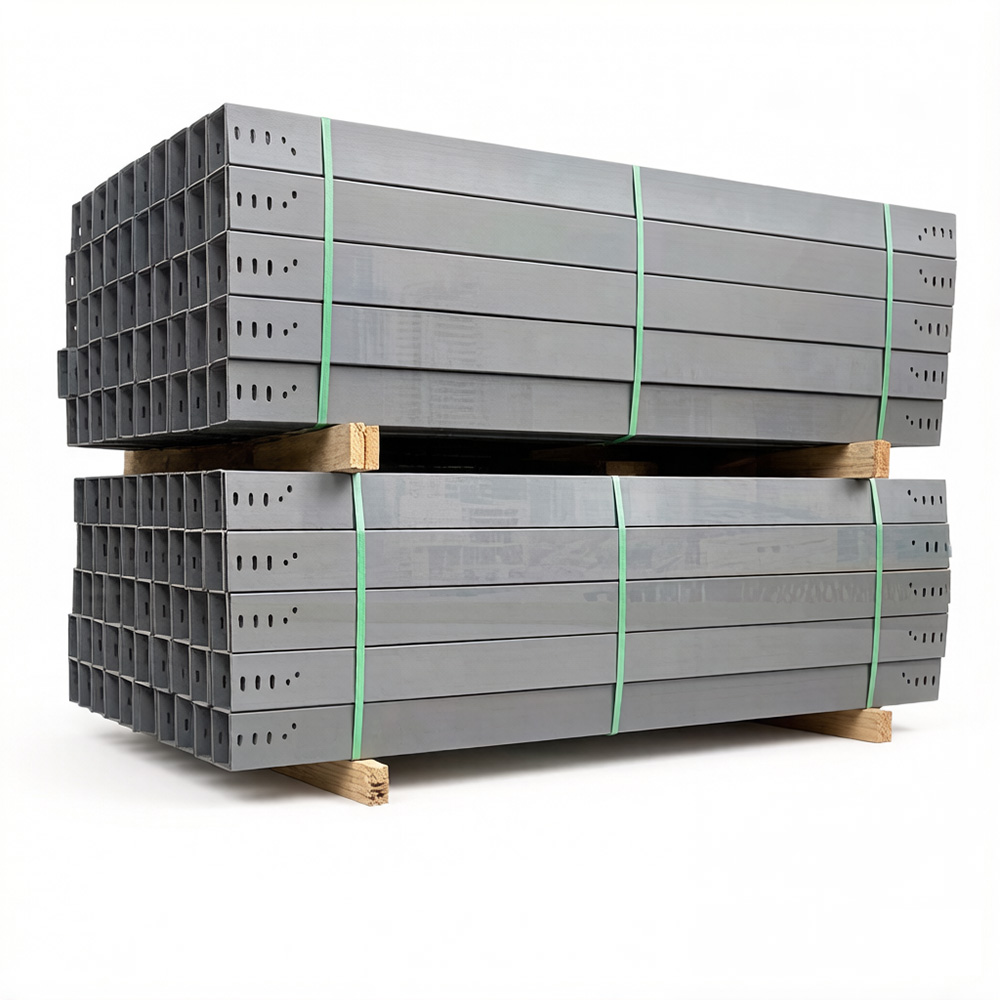

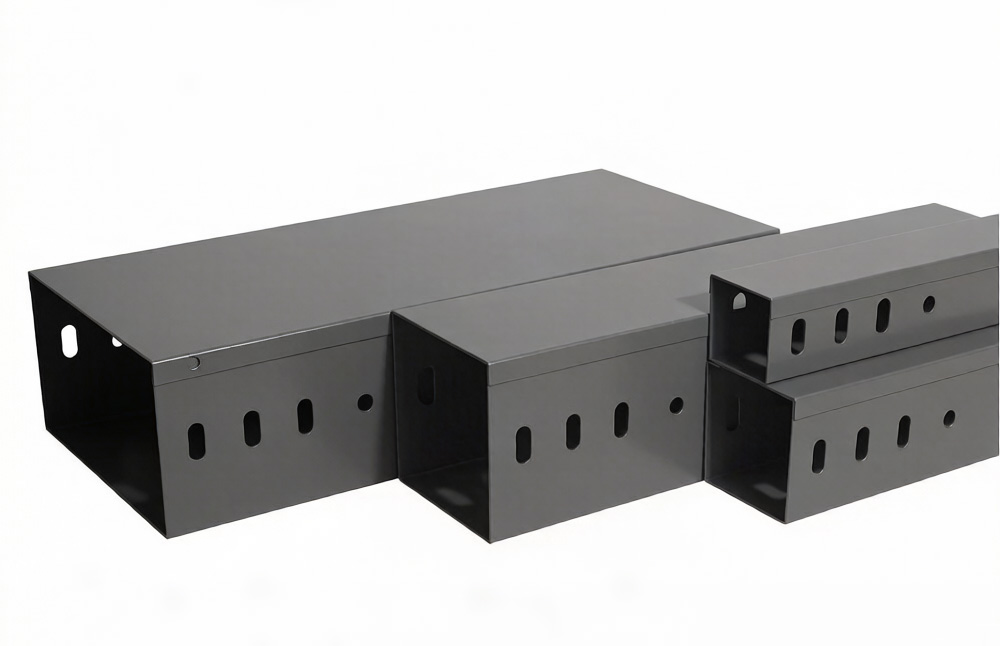

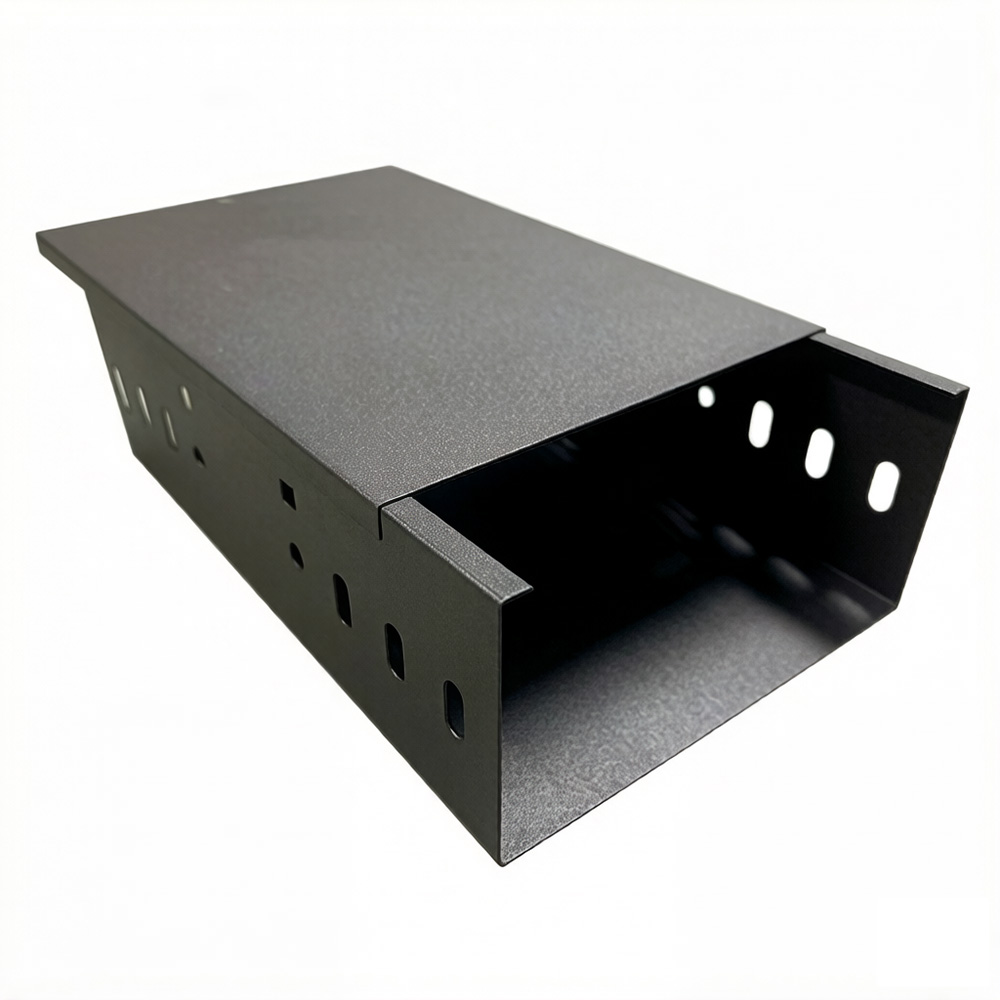

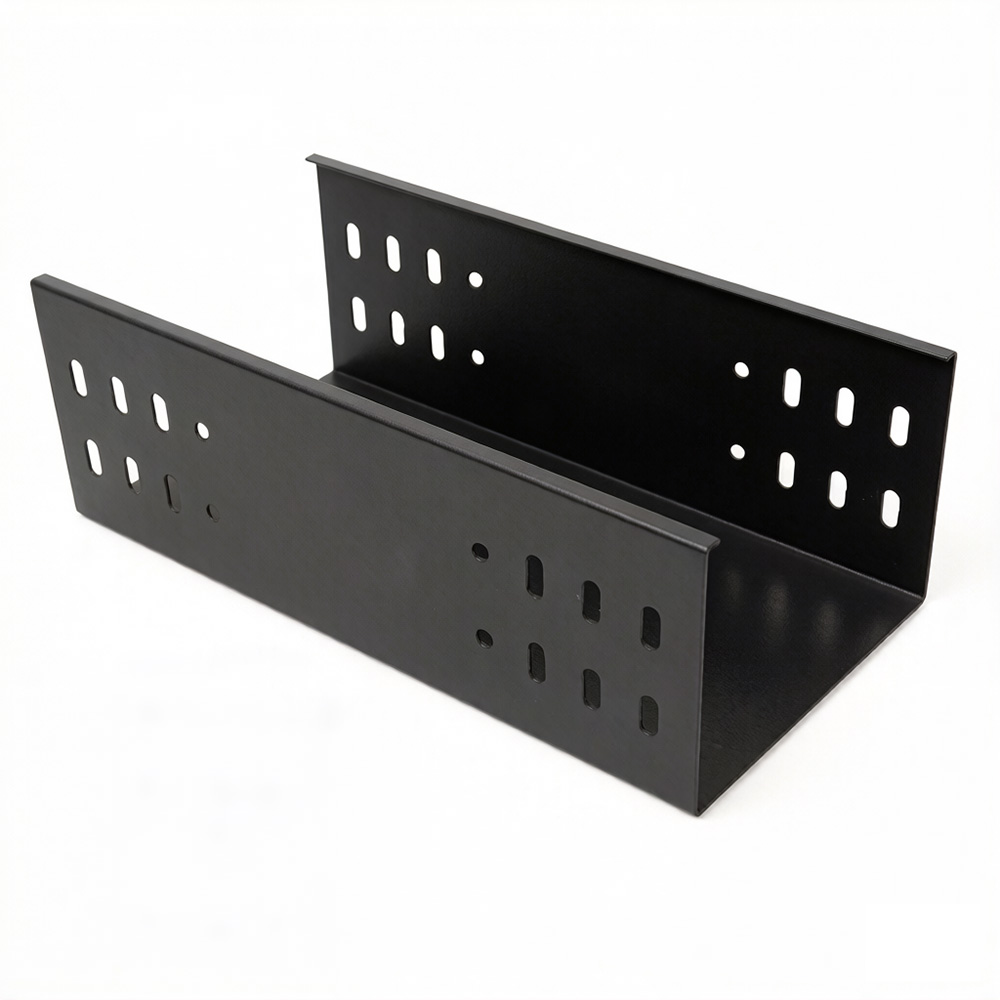

Professional Steel Cable Tray for Solar PV Wire Management & Routing
Ensure the safety, compliance, and longevity of your solar power plants with our premium Solar PV Cable Tray System. As a critical infrastructure component for utility-scale and commercial solar installations, this steel routing solution is engineered to organize, support, and protect high-voltage DC/AC cables throughout the solar racking and inverter network.
Constructed from robust, corrosion-resistant steel, our cable trays provide a highly secure path for wiring, shielding your electrical assets from extreme outdoor environments.
Key Features & Benefits
Maximum Cable Protection: Rigid steel construction shields sensitive solar PV wires from UV exposure, extreme weather, debris, and wildlife damage.
Streamlined Wire Management: The well-engineered structural design allows for centralized cable routing, preventing tangles and significantly simplifying routine troubleshooting and maintenance.
High Load-Bearing Capacity: Built to withstand heavy cable bundles and environmental loads (such as snow and ice), making it perfect for long-term outdoor solar farm environments.
Standardized & Aesthetic Installation: Improves the overall neatness of the site, ensuring your solar project meets strict international engineering standards and looks professional.
Fully Customizable Solutions: Dimensions, loading capacities, and mounting methods can be tailored and engineered to fit your specific ground-mount tracker or fixed-tilt solar project requirements.
Technical Specifications (Customizable)
Parameter | Specification |
Product Type | Solar PV Cable Tray / Cable Trunking System |
Material | High-Strength Carbon Steel / Pre-Galvanized Steel / Hot-Dip Galvanized Steel |
Application | Ground-Mounted Solar Power Plants, Commercial & Industrial (C&I) Roofs |
Function | PV Routing, Wire Management, Mechanical Cable Protection |
Corrosion Resistance | Excellent (Designed for 25+ years of outdoor exposure) |
Customization | Available in custom widths, heights, thicknesses , and lengths |
Primary Application Scenarios
This heavy-duty cable management system is widely deployed in:
1. Utility-Scale Ground Photovoltaic Power Stations: Managing miles of underground and above-ground DC cabling from strings to combiner boxes.
2. Large-Scale Commercial & Industrial (C&I) Solar Roofs: Providing neat, code-compliant elevated cable pathways across expansive commercial roof structures.
3. Solar Tracker Integration: Adapting seamlessly to tracking structures to ensure safe cable movement and strain relief.
