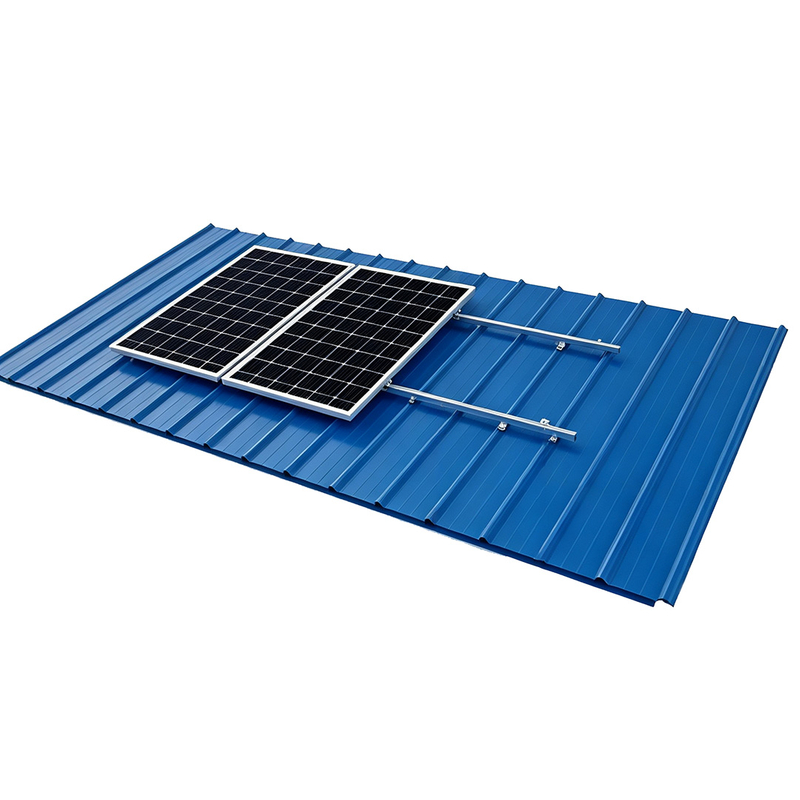

Aluminum Solar Mounting System for Trapezoidal Metal Roofs

The Metal Roof Solar Mounting System is a lightweight, durable, and highly efficient photovoltaic mounting solution engineered for trapezoidal metal roofs and color steel sheet roofing.

Designed for industrial, commercial, and residential rooftop solar projects, the system utilizes specially engineered roof clamps to achieve a secure connection with various metal roof profiles. The flexible design accommodates different rib heights and roof configurations, ensuring excellent compatibility across a wide range of roofing systems.

The mounting structure is manufactured from anodized AL6005-T5 aluminum alloy, providing superior corrosion resistance while significantly reducing structural weight. SUS304 stainless steel fasteners enhance durability and ensure reliable performance even in harsh outdoor environments.

With adjustable installation angles ranging from 0° to 45°, the system supports both framed and frameless photovoltaic modules installed in portrait or landscape orientation. Pre-assembled components simplify installation, reduce labor costs, and shorten project schedules.

Engineered according to international structural standards, the system provides excellent wind resistance, high load-bearing capacity, and a design service life of at least 25 years, making it an ideal solution for modern rooftop solar power plants.

Key Features

• Designed specifically for trapezoidal metal roofs

• Compatible with color steel sheet roofs and tin roofs

• High-strength anodized AL6005-T5 aluminum alloy

• SUS304 stainless steel fasteners

• Lightweight yet structurally strong

• Excellent corrosion and weather resistance

• Adjustable tilt angle from 0°–45°

• Supports framed and frameless PV modules

• Portrait and landscape module installation

• Fast installation with pre-assembled components

• Minimal roof penetration (depending on roof type)

• Long service life with low maintenance

• 10-year warranty

• Design life of 25 years

Technical Specifications

Applications

This solar mounting system is suitable for:

• Industrial factory buildings

• Commercial rooftops

• Warehouses

• Logistics centers

• Agricultural buildings

• Workshops

• Shopping centers

• Residential metal roofs

• Steel structure buildings

• Distribution centers

Why Choose Our Metal Roof Solar Mounting System?

• Professional solar mounting system manufacturer

• Customized clamp solutions for different roof profiles

• OEM & ODM manufacturing services

• Lightweight aluminum structure

• Excellent corrosion resistance

• Fast installation with fewer components

• Strong structural performance

• Worldwide project experience

• Complete engineering and technical support

• Frequently Asked Questions (FAQ)

  What types of metal roofs are compatible with this system?

  The system is designed for trapezoidal metal roofs, color steel roofs, and many other common metal roofing profiles. Customized clamps are available for different roof geometries.

  Does the system require roof penetration?

  Depending on the roof profile and project requirements, clamp-based solutions can minimize or eliminate roof penetration, helping maintain roof waterproofing.

  Which solar panels are supported?

  The system is compatible with both framed and frameless photovoltaic modules and supports portrait or landscape installation.

  What materials are used?

  The mounting structure is manufactured from anodized AL6005-T5 aluminum alloy with SUS304 stainless steel fasteners for superior corrosion resistance and long-term durability.

  Can the tilt angle be customized?

  Yes. Standard installation angles range from 0° to 45°, and customized tilt solutions are available to optimize energy generation for specific project requirements.
