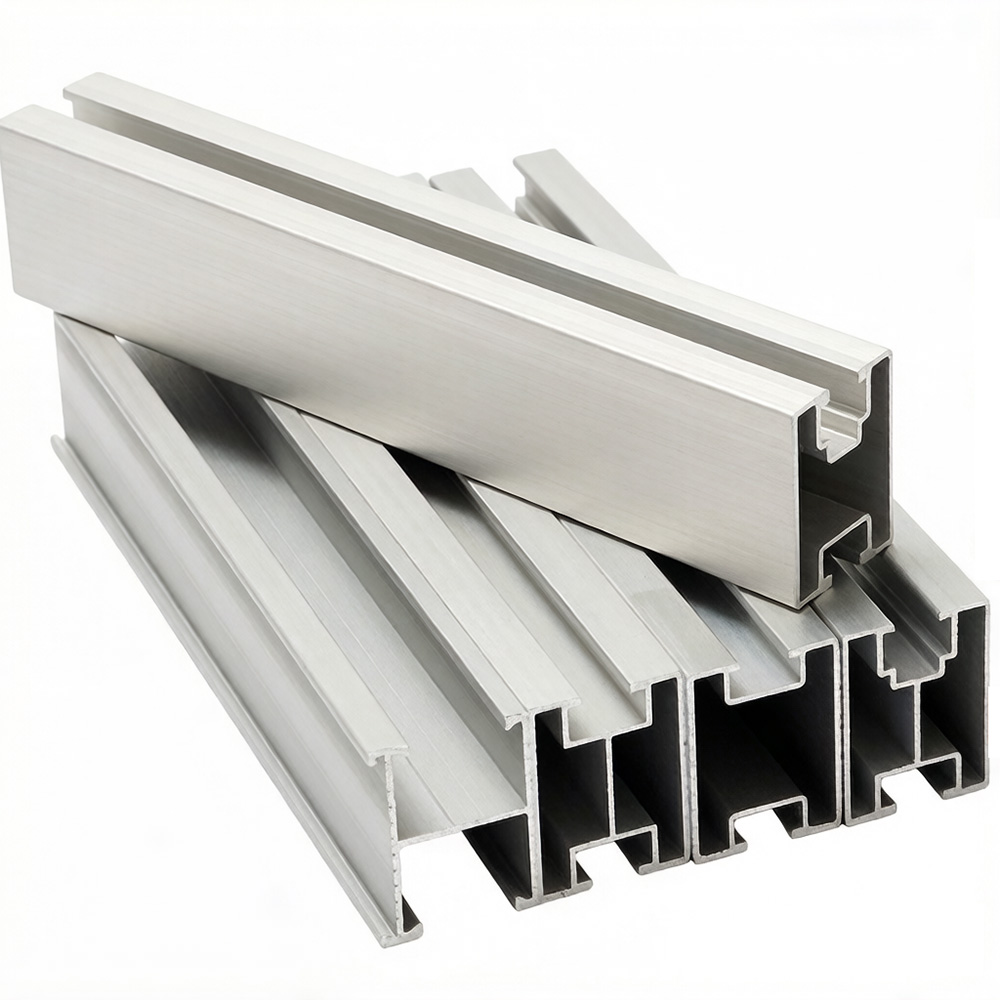

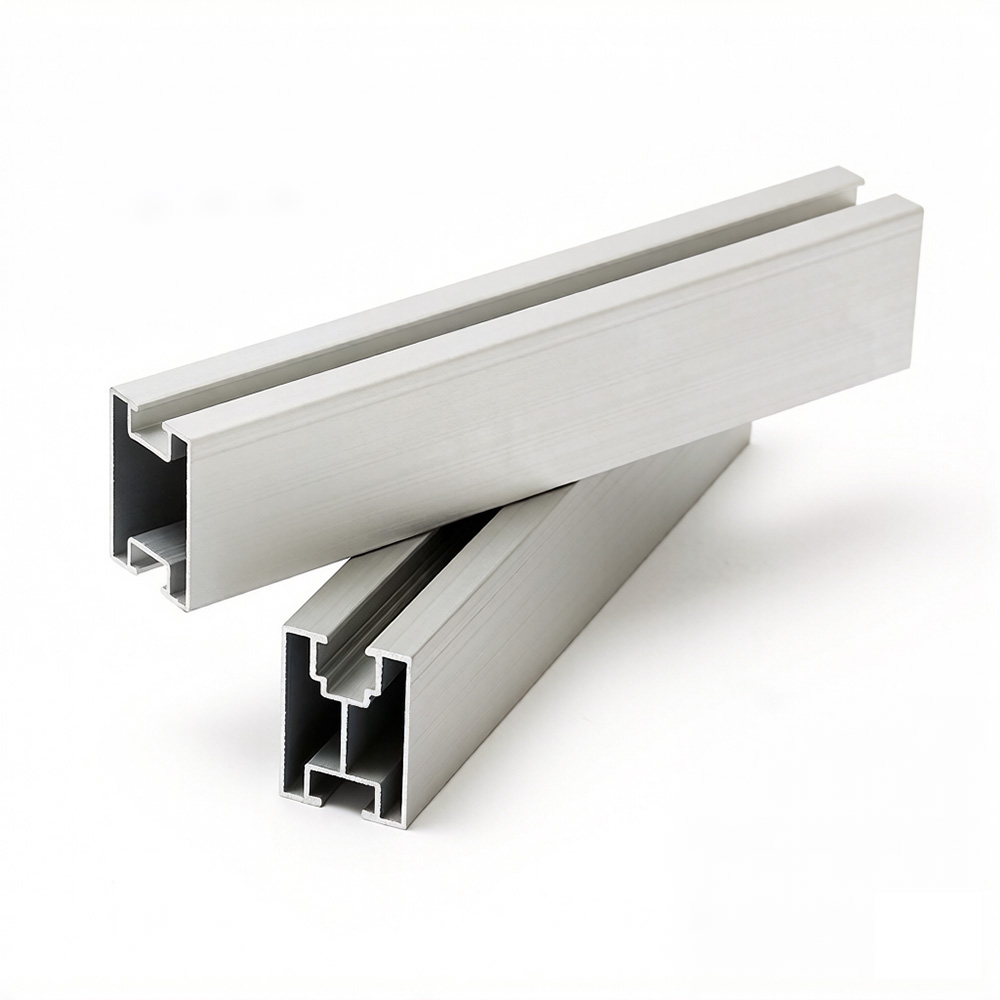

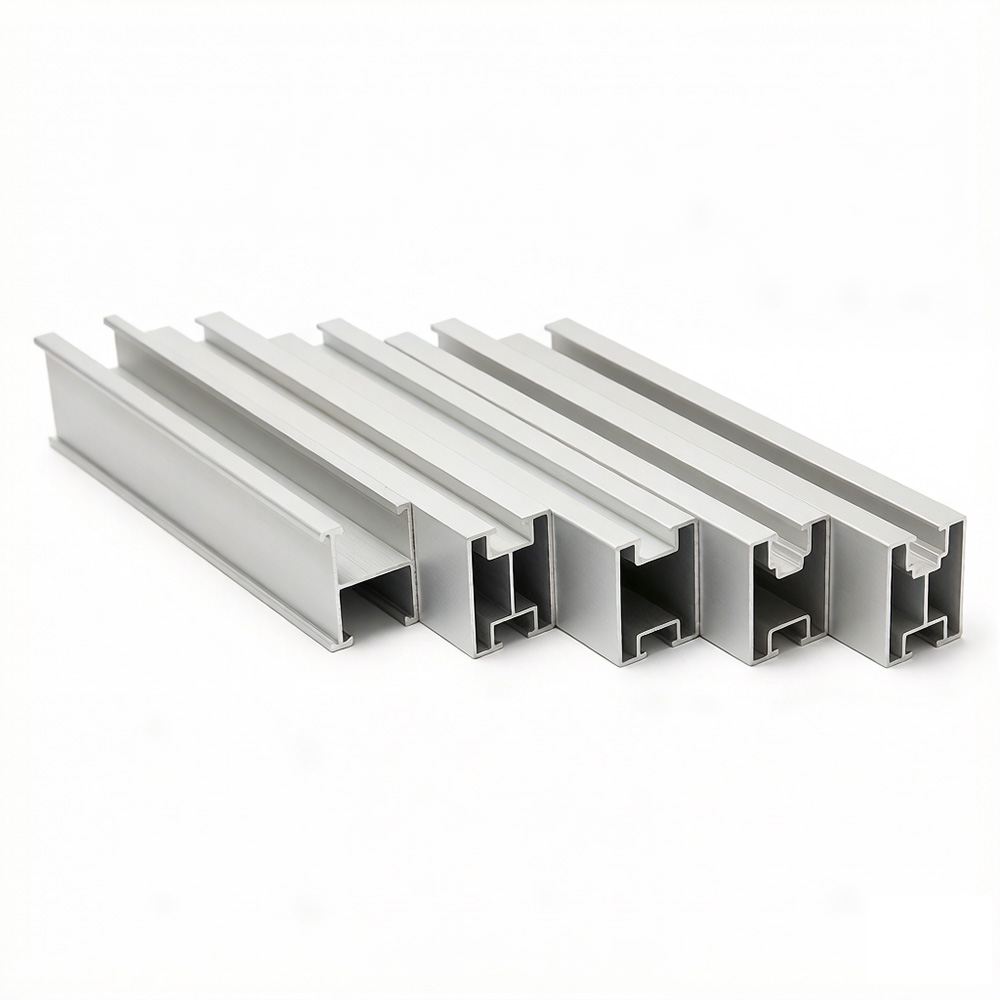

Heavy-Duty Reinforced H-Beam Aluminum Rails for PV Mounting Systems
Advanced Ribbed H-Shape Design for Extreme Load Conditions
The Reinforced H-Shape Solar Rail is the ultimate structural solution for solar arrays facing demanding environmental forces or requiring extended spans between support points. By combining the proven geometric stability of an H-beam with internal reinforcement ribs, this profile effectively counteracts heavy downward snow loads and intense upward wind lift. This specialized internal engineering prevents localized metal fatigue and ensures your solar investment remains secure for its entire operational lifespan.
Lightweight Efficiency with Structural Rigidity
While traditional steel beams add massive weight to roofs and tracking structures, our reinforced H-rails are extruded from premium 6005-T5 or 6063-T6 aluminum alloy. This delivers the high tensile strength required for civil and industrial engineering without the weight penalties. It minimizes the structural dead load on building rooftops and makes on-site manual handling fast, safe, and efficient for installation crews.
Versatile Adaptation and Streamlined Installation
Engineered for rapid deployment, the rail features precision-machined channels compatible with standard solar fasteners and mounting hardware. Whether configuring a commercial rooftop grid, a wide-span solar carport, or a large ground-mounted array, these rails significantly reduce assembly steps. They can be cut to custom lengths at the factory to minimize material waste and eliminate the need for time-consuming on-site drilling or welding.
Technical Specifications (Customizable)
Component Feature | Details & Options |
Product Name | Reinforced H-Shape Guide Rail / Ribbed H-Beam PV Profile |
Material Base | High-Strength Extruded Aluminum Alloy ( AL6005-T5 / AL6063-T6) |
Surface Treatment | Clear Anodized / Black Anodized (Custom Micron Thickness Available ) |
Internal Engineering | Integrated Reinforcement Ribs for Enhanced Section Module |
Compatibility | Universal Fit for Standard Mid / End Clamps and Rail Splices |
Customization Options | Length (up to 6Metal or tailored to container sizing ) , Profile Dimensions, and Slot Sizes |
Primary Applications in Global Solar Projects
Long-Span Solar Carports: Provides the necessary structural rigidity to bridge wide spans between main rafters without mid-way sagging.
High Snow-Load Regions: Acts as a heavy-duty purlin replacement to support PV modules safely under dense winter snow accumulation.
Commercial & Industrial (C&I) Rooftops: Facilitates broader spacing between roof attachments, reducing the number of roof penetrations or ballast blocks needed.
Why Partner with Our Manufacturing Facility?
We utilize state-of-the-art aluminum extrusion technology to ensure every millimeter of our reinforced H-rails conforms to strict structural tolerances. By integrating advanced geometric engineering with premium alloys, we supply global EPC contractors and racking distributors with components that cut installation times and maximize safety margins.
Ready to optimize your solar racking infrastructure? Contact our technical sales desk today to request engineered drawings, custom lengths, and direct wholesale pricing!
