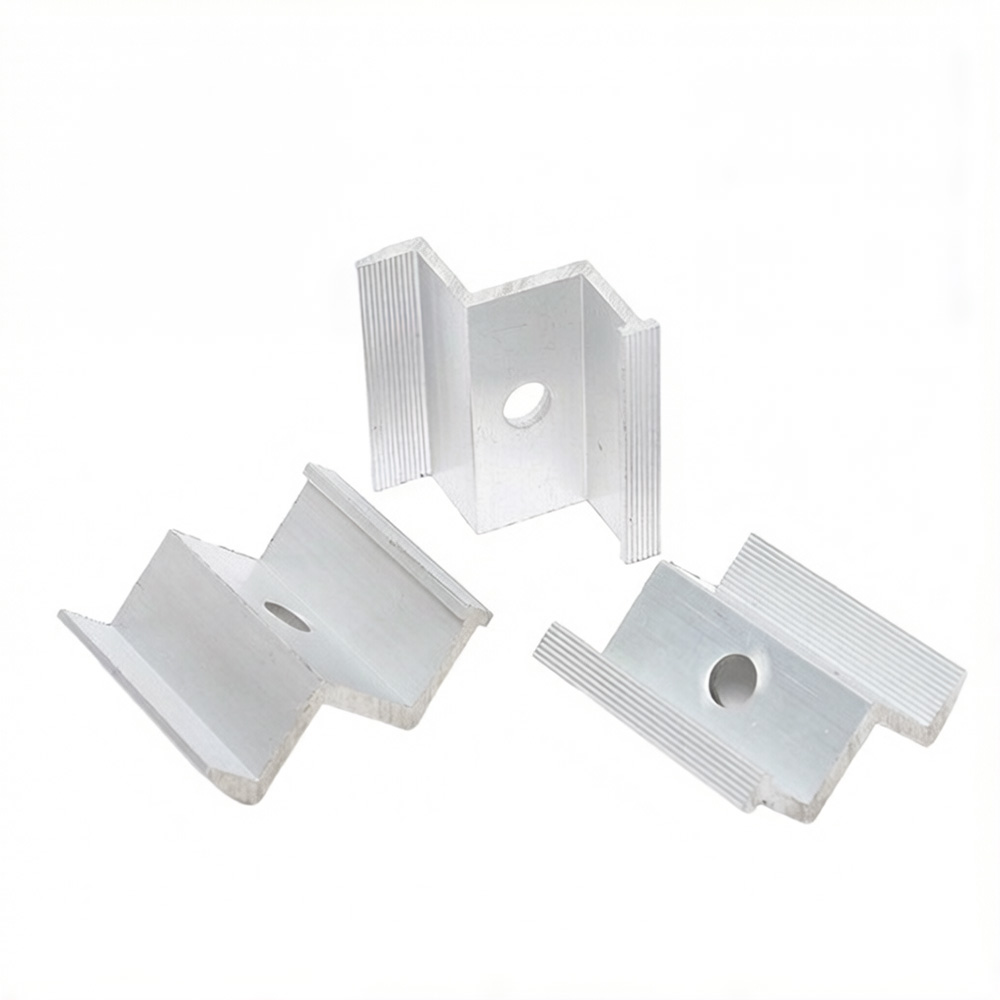

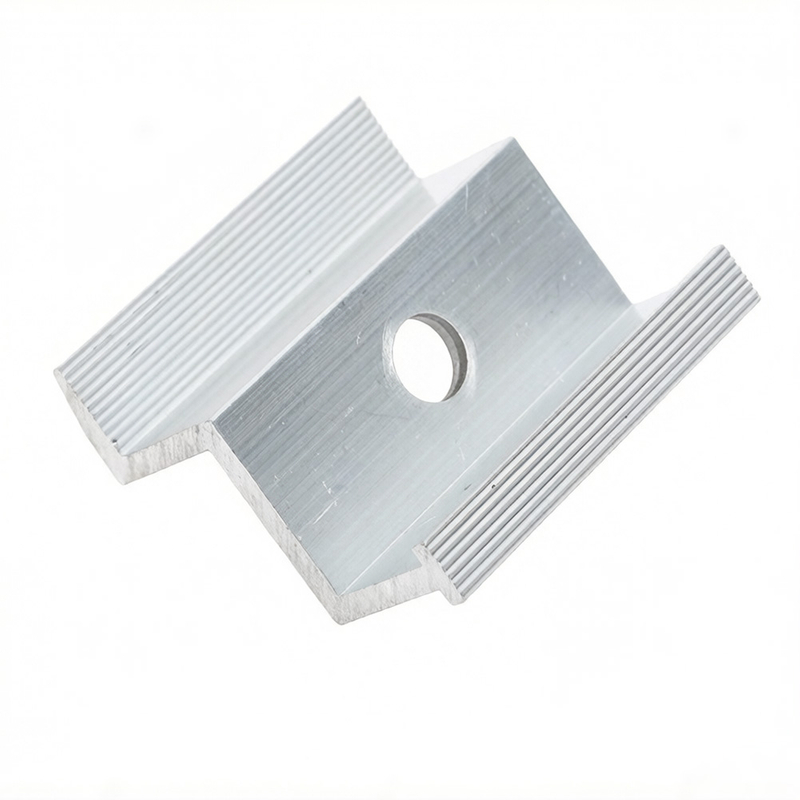

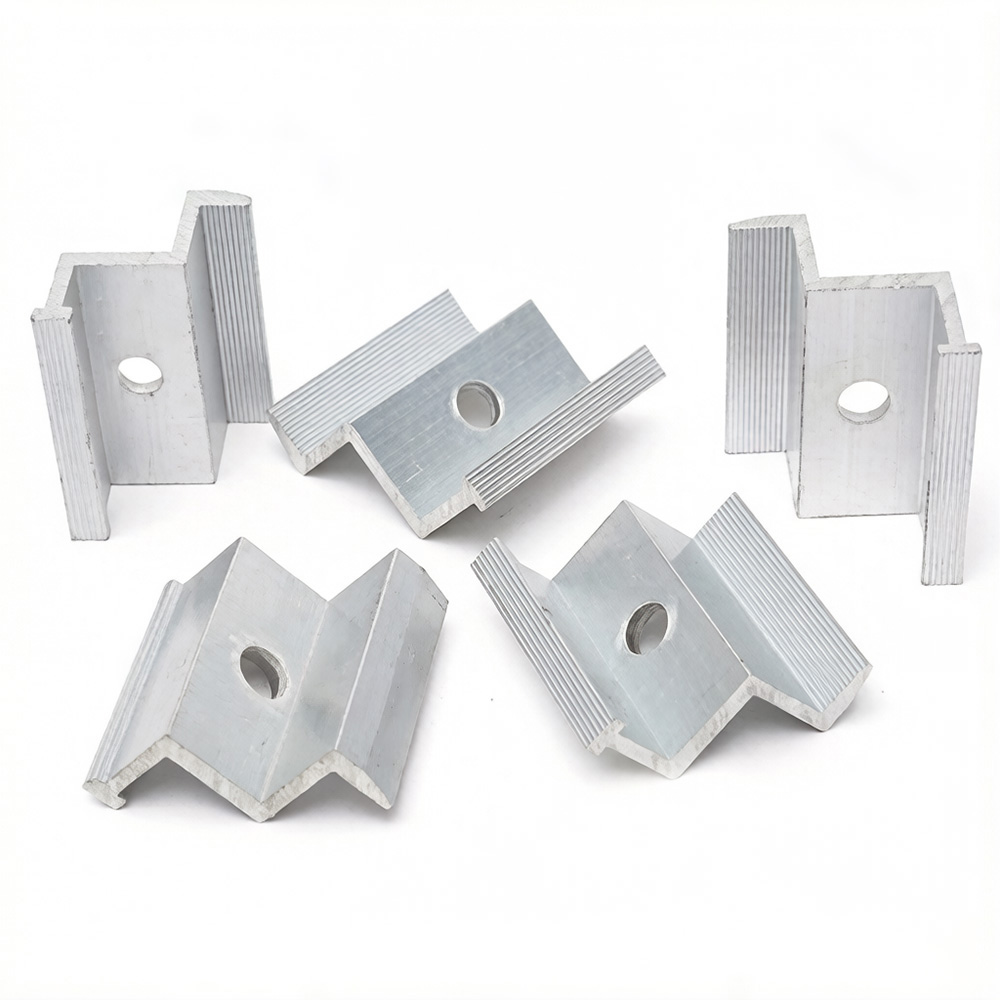

High-Performance AL6005-T5 Aluminum Solar End Clamps & Edge Clips
Our precision-manufactured Aluminum Solar End Clamps (also known as solar edge clamps) are indispensable, standardized structural hardware components designed to firmly lock down the perimeter of framed photovoltaic modules. Positioned at the very ends of panel rows, these edge clips act as the final structural anchor against the underlying rails, preventing localized panel shifting, twisting, or lifting caused by harsh environmental elements like heavy wind uplifts and seasonal tropical storms.
Optimized specifically to withstand intense solar UV radiation, high humidity, and aggressive coastal salt-spray across Southeast Asian infrastructures—particularly throughout Indonesia—our end clamps provide an absolute 25+ year maintenance-free operational lifecycle.
Advanced Structural Benefits
Robust Perimeter Protection: Designed as a specialized exterior anchor to securely tighten the outer frame edges of the PV array, keeping the entire racking layout neat, square, and structurally isolated from shifting forces.
Premium Marine-Grade Aluminum Alloy: Extruded from high-tensile certified AL6005-T5 structural aluminum with a high-thickness clear or black anodized surface layer (\ge 10\,\mu m), making it fully immune to coastal rust, chemical smog, and atmospheric corrosion.
Zero-Damage Frame Clamping: The contact interface is engineered with precise tolerances to provide massive gripping pressure along the panel frame flange without risking micro-cracks, denting, or compromising the manufacturer’s panel warranty.
Fast-Track Modular Assembly: The compact, streamlined configuration combined with high-precision SUS304 stainless steel bolts allows field crews to quickly slide, align, and torque down perimeter modules in seconds, boosting overall installation efficiency.
Technical Specifications
Parameter | Standard Specification |
Product Component | Solar End Clamp, Edge Flixation Clip, PV Perimeter Bracket |
Main Body Material | High-Tensile Structural Aluminum Alloy AL6005-T5 |
Fasteners& Hardware | Marine-Grade Stainless Steel SUS304(Allen Bolt,Slide Nut, Washer) |
Surface Finish Type | Clear Anodized/Architecural Black Anodized (≥10μm） |
Applicable Panel Frames | Universal configurations for 30mm,35mm,40mm framed modules |
Racking Compatibility | Standard T-Slot and side-entry industrial aluminum solar rails |
Max Wind-Load Rating | Engineered up to 60m/s |
Quality Compliance | ISO 9001:2015, CE, TUV, SGS Material Integrity Testing |
Primary B2B Applications
1. Utility-Scale Ground PV Power Plants: An essential standardized component for multi-megawatt arrays deployed on vast flat terrains or coastal fields across industrial sectors like Jakarta and Surabaya, where high edge wind-forces are constantly present.
2. Commercial & Industrial (C&I) Rooftop Arrays: Provides clean, structurally uniform outer array boundaries on elevated metal roofs, ensuring sleek aesthetics and strict mechanical locking.
3. Solar Carport & Awning Canopy Layouts: Secures the exposed outer edges of elevated canopy panels, ensuring long-term structural integrity against wind vectors rushing underneath the structure.
Quality Control & Industrial B2B Logistics
Quality Guarantee: Every production lot undergoes rigorous quality control clearances, including digital anodization thickness verification, thread-clearance calibrations, and torque-tolerance pressure testing under simulated structural stresses.
Export-Ready Packaging: To prevent surface scratching, material indentation, or fastener degradation during long maritime sea freight and local inland logistics to remote Indonesian solar sites, end clamps are packed in compact internal cartons, stacked inside heavy-duty, moisture-sealed master boxes on reinforced pallets.
