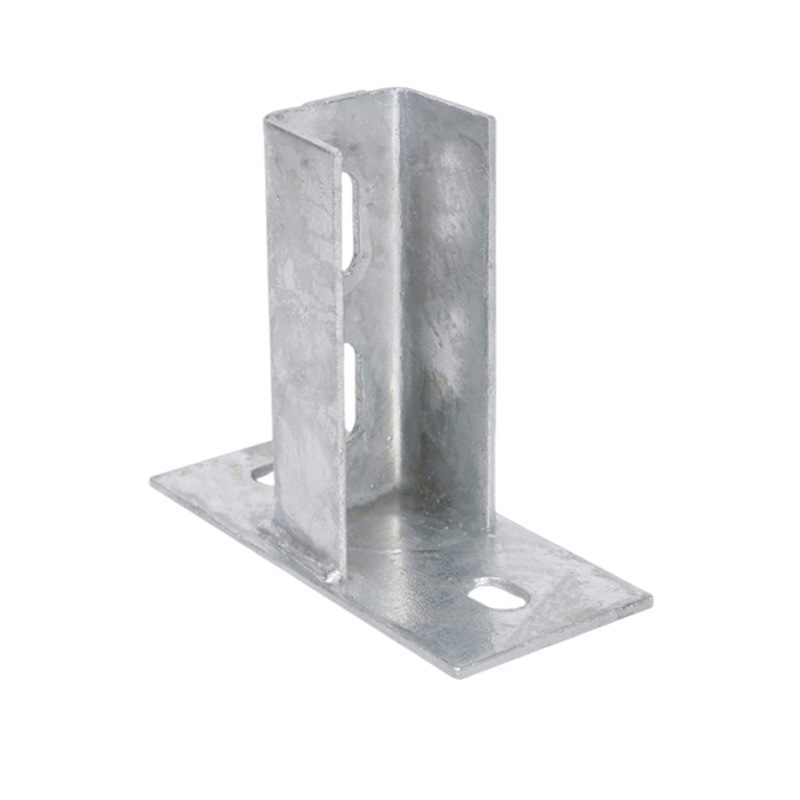

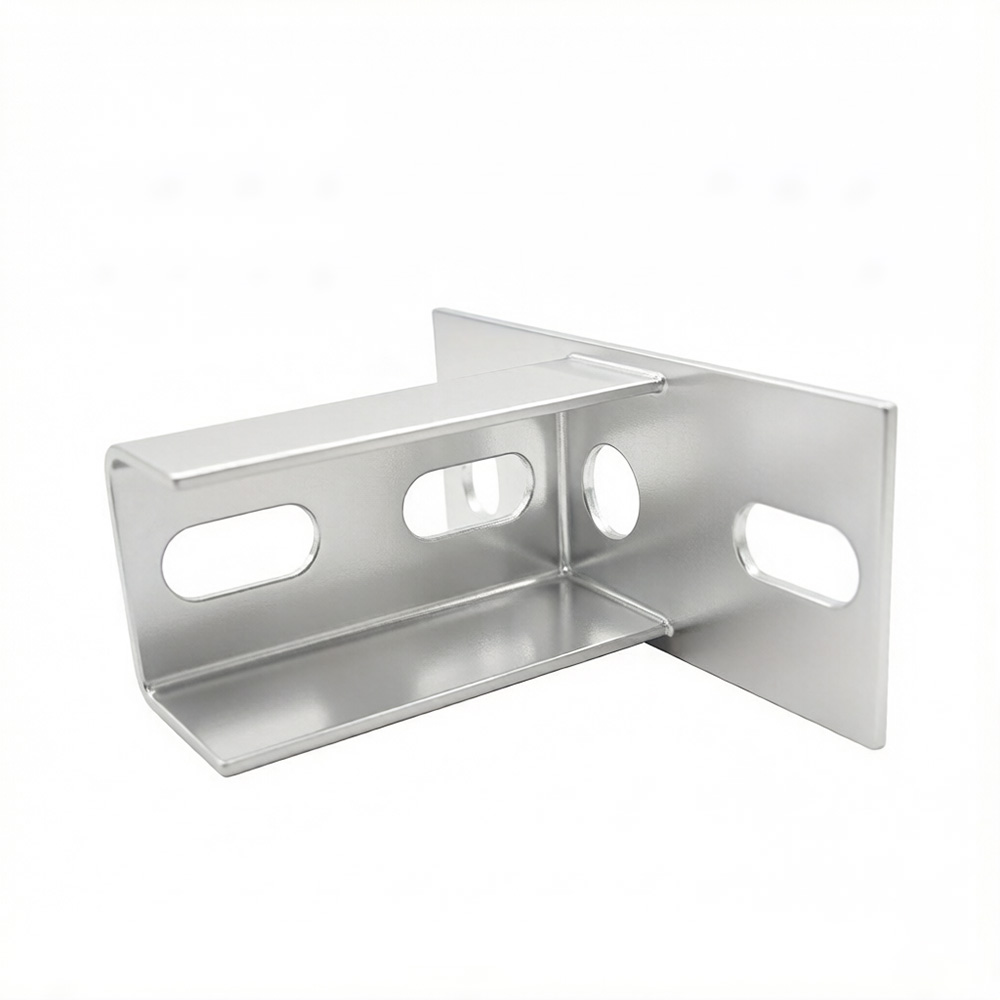

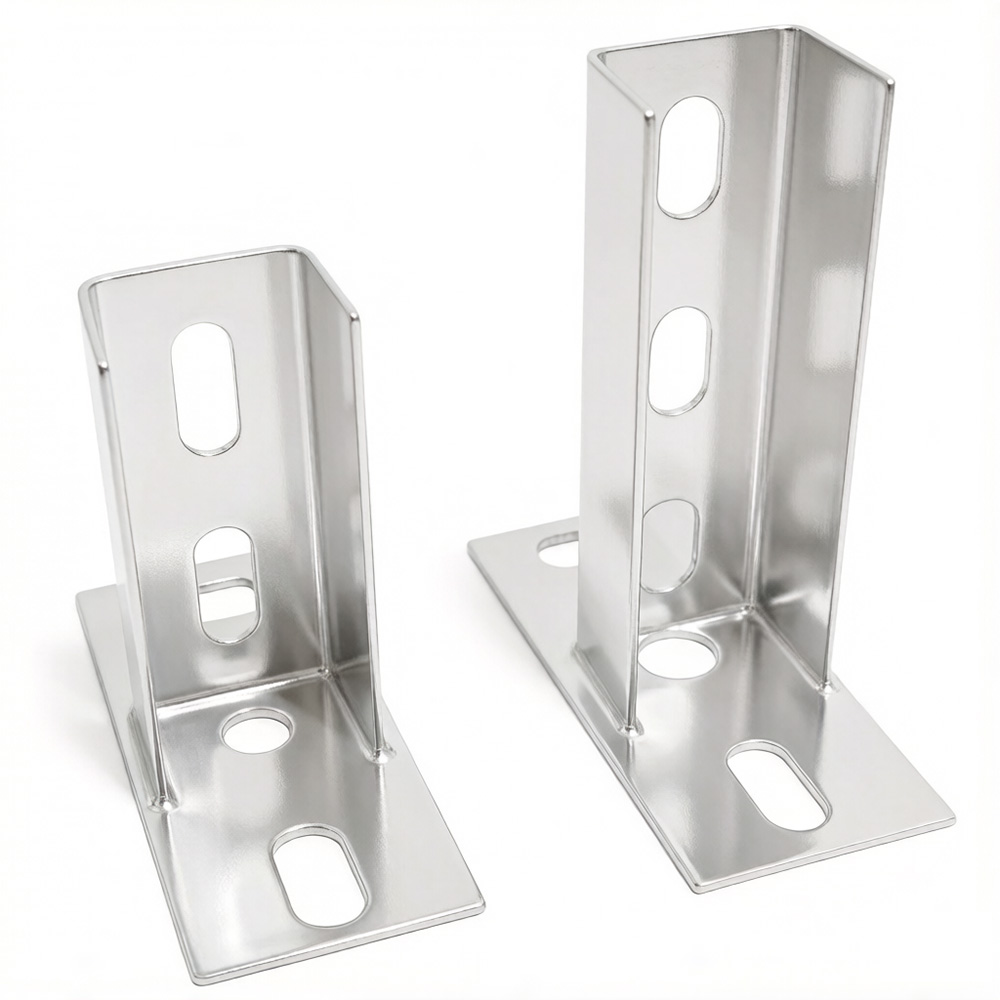

High-Strength Steel Solar Base Plates & Column Anchor Flanges
Our heavy-duty steel solar mounting base plates are critical structural foundation components designed to rigidly bridge vertical support columns with the ground infrastructure. Positioned at the very bottom of the racking system, these anchor flanges play an indispensable role in distributing dead-weight loads and transferring severe dynamic forces—such as wind-uplift and seismic movements—safely down into the ground foundation.
Crafted from premium structural carbon steel and treated with a thick anti-corrosion protective layer, these base components ensure the overall mechanical reliability and alignment consistency of the entire solar racking system
Advanced Structural Benefits
Optimized Load Distribution: The widened surface area of the base plate effectively spreads localized vertical and lateral pressures, avoiding structural stress concentration and ensuring long-term ground stability.
Flexible Foundation Adaptability: Smartly engineered to accommodate multiple field installation methodologies, making them perfectly compatible with poured concrete foundations, ballasted blocks, or pre-embedded anchor bolt setups.
Precision-Punched Bolt Slots: Features factory-calibrated, high-precision hole layouts that allow for minor on-site alignment adjustments, guaranteeing a perfectly flush, tight, and wobble-free connection between the post and the base.
Fully Tailored Engineering: Highly customizable in plate thickness, dimensions, and hole patterns to match your specific engineering drawings, localized soil conditions, and structural load calculations
Technical Specifications
Parameter | Standard Specification |
Product Component | Solar Base Plate,Column Anchor Flange,Post Base Connector |
Material Base | Certified High-Tensile Carbon Steel(Q235B/Q355B) |
Surface Treatment | Premium Hot-Dip Galvanized(HDG）for Marine-Grade Protection |
Foundation Compatibility | Concrete Foundations,Embedded Anchor Bolt Systems,Ground Plates |
Processing Methods | Heavy-Duty Stamping,Precision Laser Cutting,Robotic Welding |
Customization Options | Dimensions, Thickness, Hole Patterns, and Welded Post Sleeves |
Quality Compliance | ISO 9001:2015, Material Test Report(MTR),Mill Test Certificate) |
Primary B2B Applications
1. Utility-Scale Ground PV Farms: Provides a rock-solid structural foundation anchor for large-scale utility arrays deployed on open terrains, coastal flatlands, or rolling hills in regions like Jakarta and Surabaya.
2. Commercial & Industrial (C&I) Elevated Racking: Essential for secure post-to-foundation anchoring on ground-mount industrial arrays or heavy-duty solar carports requiring strict center-of-gravity balance.
3. High-Wind Tracker Frameworks: Serves as a heavy-duty mechanical pivot anchor, safely distributing the constant rotational and dynamic forces generated by single-axis tracking systems.
Quality Control & Industrial B2B Logistics
Quality Guarantee: Every production lot is subject to strict automated QC clearance, including digital zinc coating thickness verification, structural flatness testing, and precise bolt-hole diameter checking to prevent on-site assembly issues.
Export-Ready Packaging: To prevent structural warping, surface scratching, or damage during long ocean freight and rugged inland transit to remote Indonesian PV fields, base plates are stacked securely in heavy-duty steel crates or reinforced wooden boxes wrapped in water-resistant PVC protective film.
