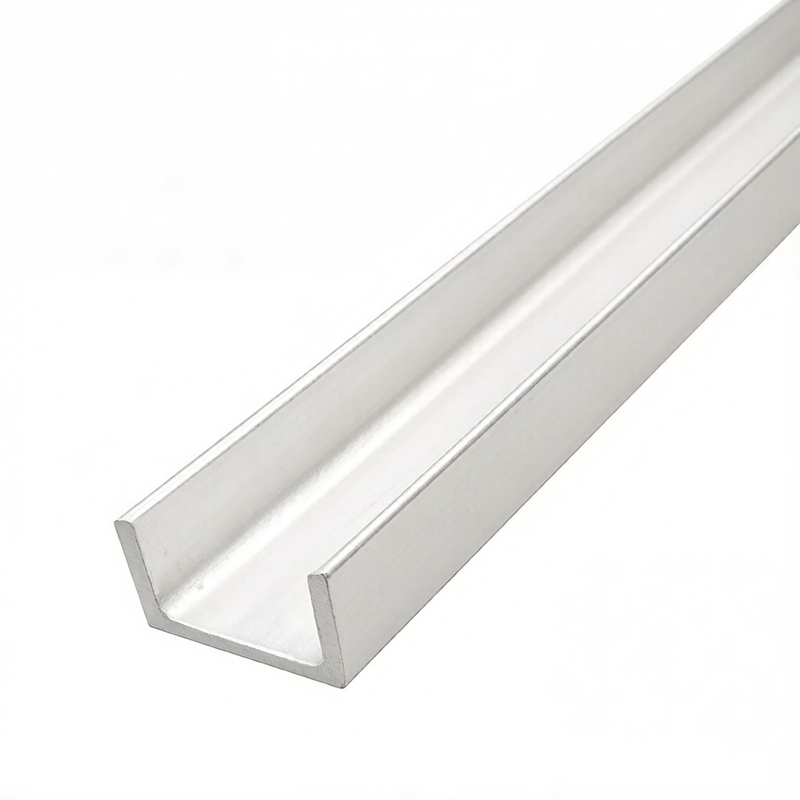

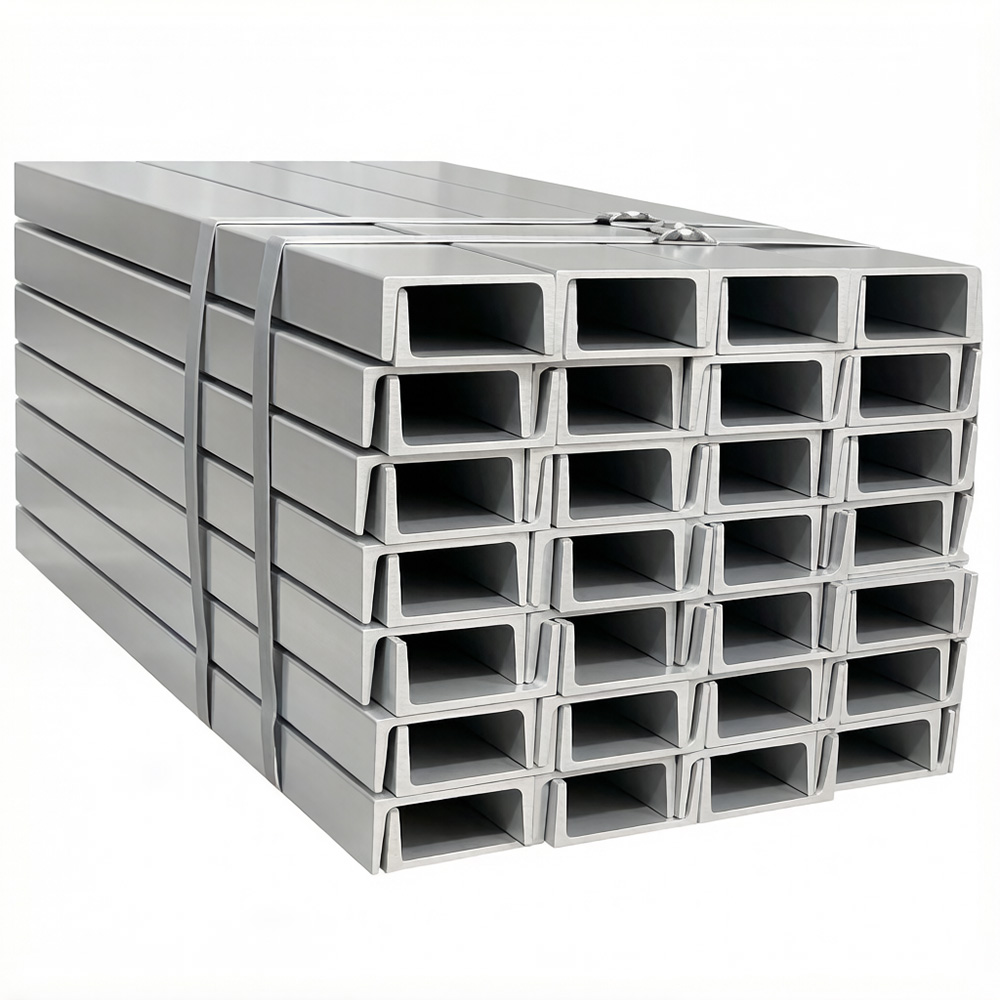

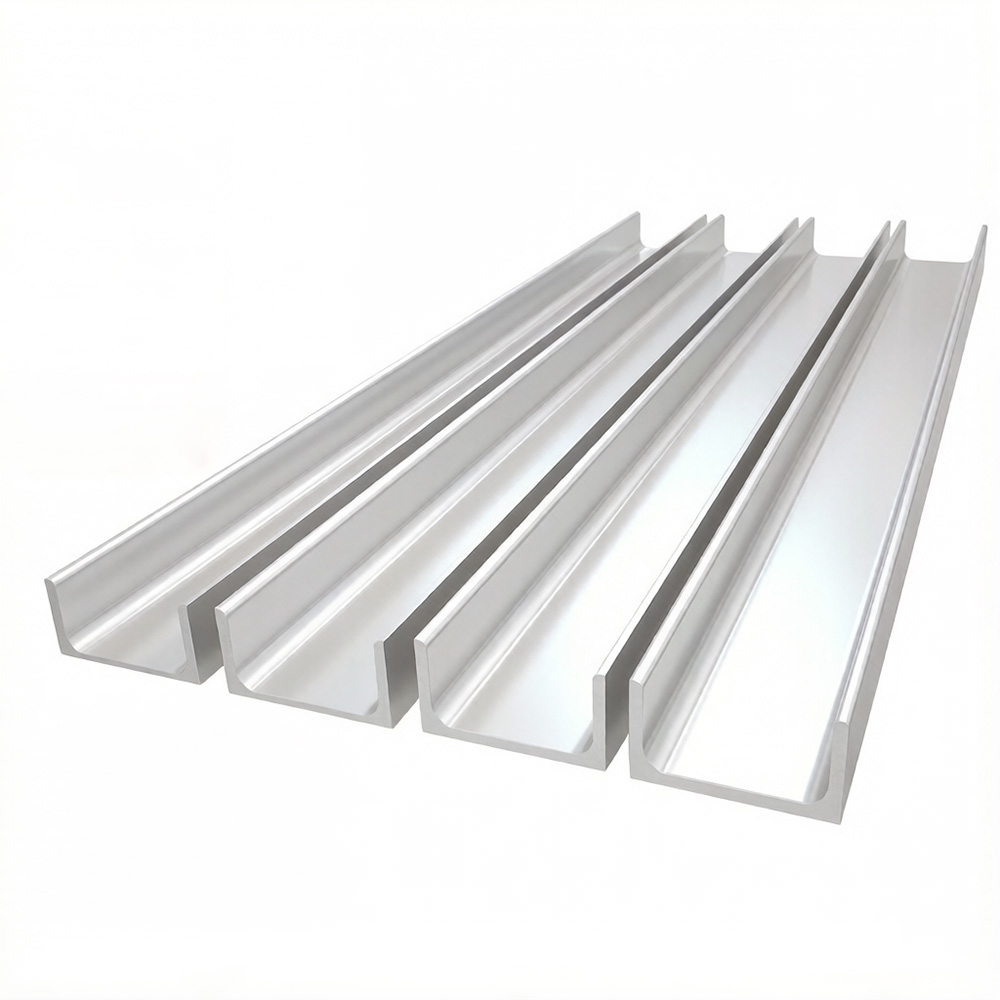

U-shaped Steel

Product Overview

The U-shaped Steel is a foundational structural component engineered specifically for ground-mounted solar photovoltaic (PV) racking systems. It provides the essential load-bearing framework required to build stable upright posts, horizontal beams, and complete support structures for solar arrays.

Key Product Features

Premium Structural Steel: Fabricated using heavy-duty Q235B structural steel (or equivalent high-strength grades) to deliver exceptional load capacity, mechanical strength, and wind/snow load resistance.

Superior Corrosion Protection: Available with premium anti-corrosion surface treatments, including Hot-Dip Galvanization (HDG) or Zinc-Aluminum-Magnesium (ZAM) alloy coatings, ensuring long-term durability in highly corrosive outdoor environments.

High Efficiency & Weld-Free Assembly: The optimized U-shaped cross-section allows for seamless integration with bolts, clamps, and connectors. This modular design eliminates the need for on-site welding, lowering installation labor costs.

Full Customization Options: Specifications, profile dimensions, lengths, and pre-punched hole patterns can be fully customized to match specific solar project layouts and engineering blueprints.

Technical Specifications

Material Grade: Q235B, Q355B, or equivalent structural carbon steel.

Surface Treatment: Hot-Dip Galvanized (HDG coating thickness ≥ 55-85 μm) or Zinc-Aluminum-Magnesium (ZAM).

Profile Shape: U-Channel / U-Section.

Dimensions & Hole Patterns: Fully customized based on project requirements.

Target Applications

• Utility-scale centralized ground-mounted solar power plants.

• Agricultural solar sharing projects (Agrivoltaics).

• Commercial and industrial (C&I) distributed ground PV installations.
