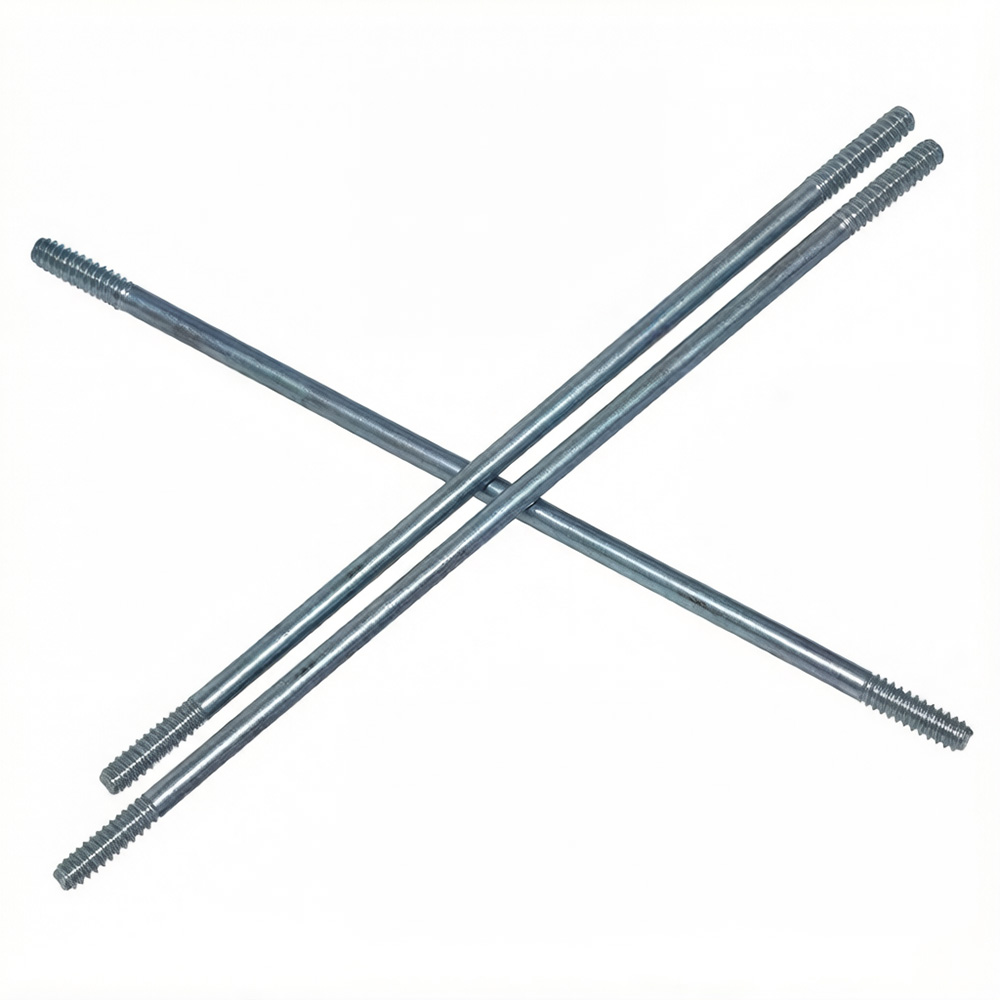

High-Strength Solar Cross Bracing & Diagonal Tie Rods
Our heavy-duty Hot-Dip Galvanized (HDG) solar cross braces (diagonal tie rods) are engineered as critical structural tension elements for utility-scale ground-mounted solar farms and commercial rooftop PV systems. Designed to form a rigid "X-bracing" configuration, these rods drastically minimize structural swaying, absorbing lateral dynamic loads caused by high wind speeds, seismic activity, and tropical storms.
Given the harsh tropical and coastal environments across Southeast Asia, particularly in Indonesia, our solar cross braces undergo a premium hot-dip galvanization process to ensure structural integrity for an operational lifespan exceeding 25 years
Key Structural Advantages
Engineered for High-Wind Load Environments: Provides exceptional cross-bracing structural safety, effectively neutralizing lateral forces on solar racks to prevent column buckling under severe weather conditions.
Marine-Grade Corrosion Resistance (C4/C5): Coated in accordance with ASTM A123 / ISO 1461 standards, featuring a thick zinc layer (\ge 85\,\mu m) capable of resisting salt spray, extreme humidity, and aggressive industrial environments.
High Yield Strength Steel: Fabricated from certified Q235B or high-tensile Q355B carbon steel, ensuring excellent tensile strength and overall structural rigidity.
Flexible Turnkey Options: Available in fully threaded, double-end threaded, or flat-ended with punched holes to match your specific solar mounting engineering drawings. Comes complete with heavy-duty matching nuts, washers, and turnbuckles if required.
Technical Specifications
Parameter | Standard Specification |
Product Component | Solar Cross Brace, Diagonal Tie Rod,X-Bracing Rod |
Material | Q235B,Q355B Structural Carbon Steel |
Surface Treatment | Hot-Dip Galvanized to ISO 1461/ASTM A123 |
Zinc layer Weight/ Thickness | ≥85μm（Customizable up to100μm+foroffshore/coastal sites） |
Diameter Range | M12,M14,M16,M20(Custom diameters supported) |
Length Options | 1,500mm-6000mm(Tailored exactly to client blueprints |
Processing Methods | Precision Threading,Flat-end Punching,Custom Welding |
Certifications Prodvided | ISO 9001:2015, Material Test Report(MTR),Mill Test Certificate |
Core B2B Applications
1 Utility-Scale Ground Solar Farms: Crucial for large-scale projects located in coastal flatlands or mountainous terrain prone to shifting winds and aggressive atmospheric elements.
2 Commercial & Industrial (C&I) Rooftop Solar: Increases the structural rigidness of elevated aluminum or steel ballasted structures without overloading the roof layout.
3 Agrivoltaics & Solar Carports: High-clearance structures that experience heavy wind-uplift require robust diagonal cross braces to maintain center-of-gravity balance.
Strict Quality Control & B2B Logistics
Quality Guarantee: Every production lot is subject to strict quality clearance checks, including a digital magnetic zinc coating thickness test and thread-go/no-go gauge calibration.
Export Packaging: To prevent structural warping and thread friction during maritime shipping and local inland transport to remote Indonesian solar fields, all cross braces are securely bundled in reinforced industrial steel crates, shrink-wrapped in anti-rust PVC protective film.
