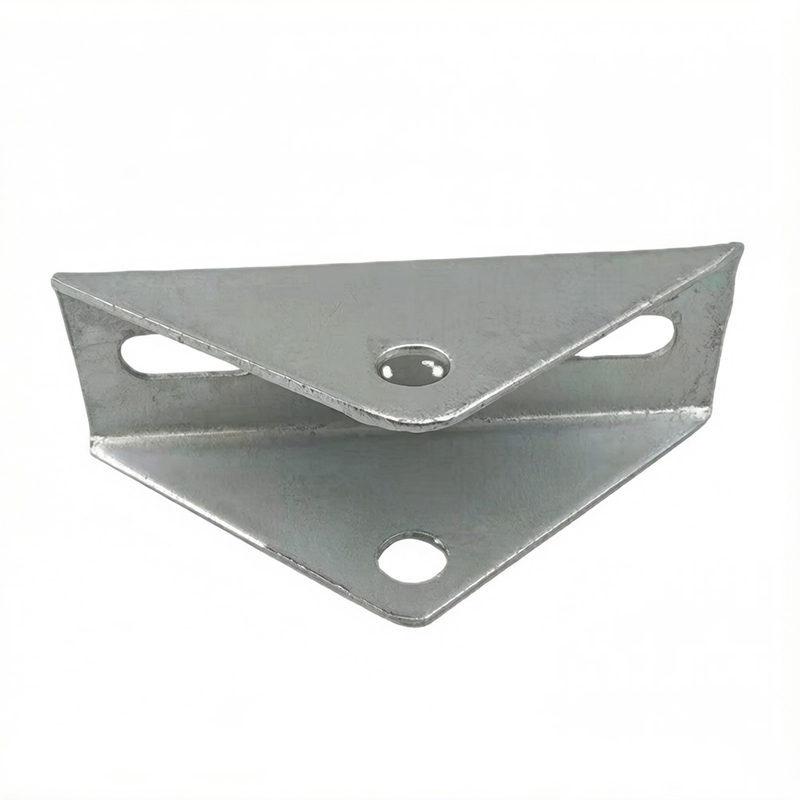

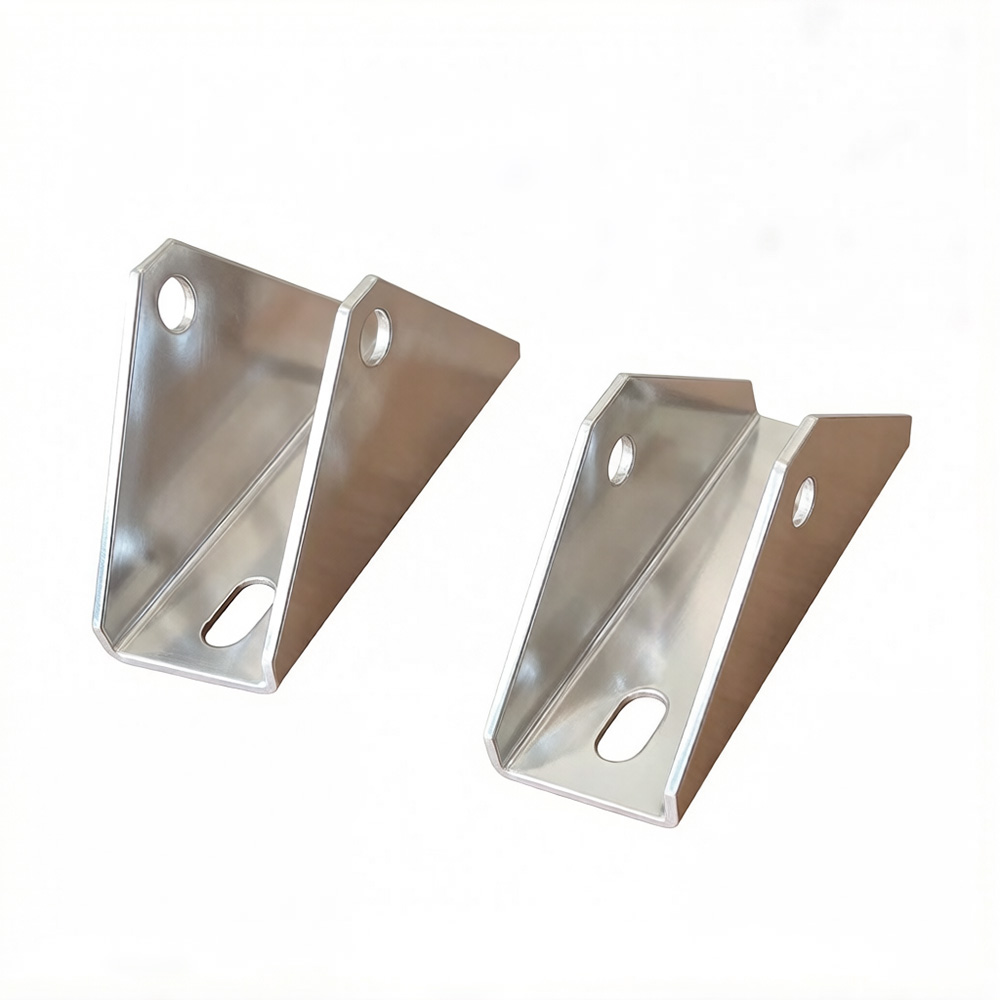

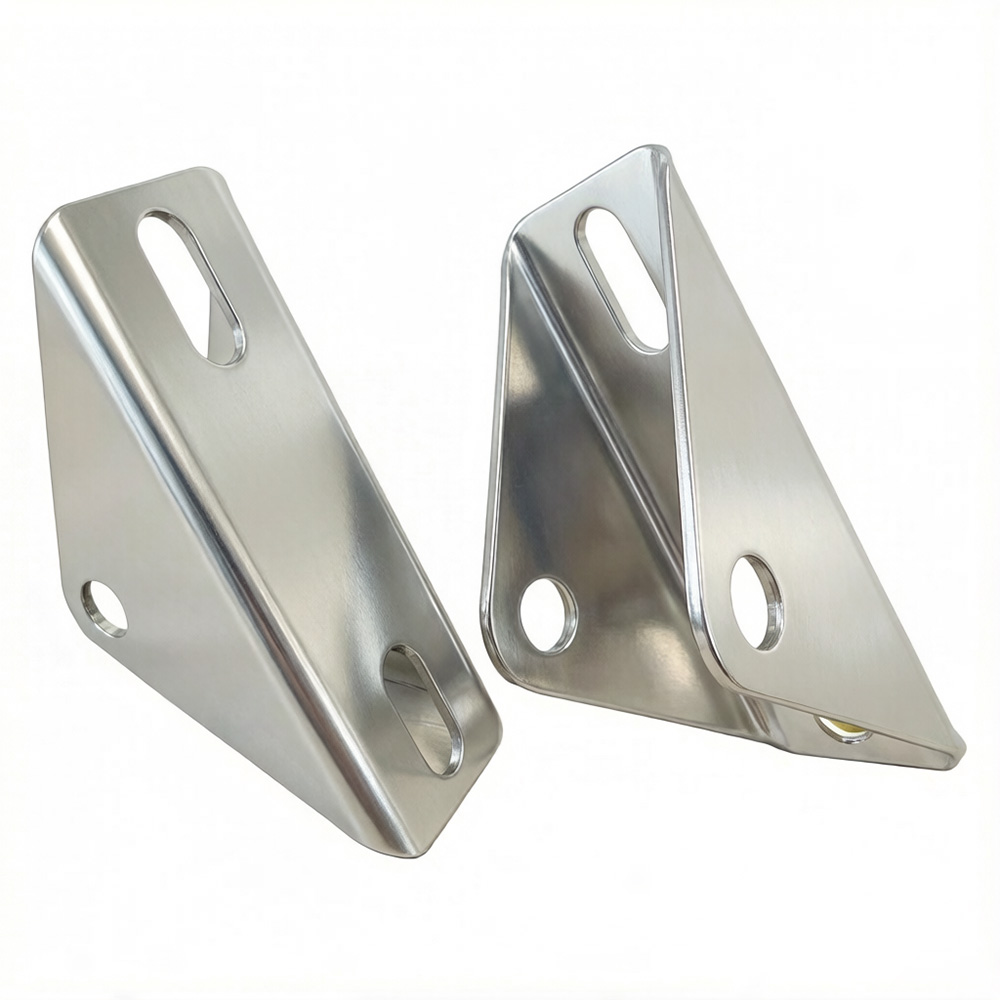

High-Rigidity AL6005-T5 Solar Triangular Brackets & Tilt Connectors
Our heavy-duty Aluminum Solar Triangular Mounting Brackets are highly stable structural components designed to support PV modules at optimized tilt angles on flat concrete roofs, commercial rooftops, and open terrain ground projects. Acting as a sturdy tripod foundation, these triangular connectors absorb dynamic wind forces and dead-load stress, ensuring that the solar panels remain securely locked in place during severe tropical storms and high-velocity wind conditions.
Tailored specifically to withstand the intense humidity, high UV radiation, and coastal salt-spray found throughout Southeast Asia—particularly across Indonesia—our triangular connectors utilize premium marine-grade aluminum
Key Engineering Advantages
Premium Structural Grade Materials: Extruded entirely from certified high-tensile AL6005-T5 aluminum alloy, providing a highly robust structural frame with a massive strength-to-weight ratio.
Excellent Coastal Rust Protection: Features a high-micron clear anodized layer (\ge 10\,\mu m), making it completely resistant to salt-air corrosion, coastal mist, and industrial chemical smog.
Fixed & Adjustable Tilt Configurations: Can be manufactured in fixed angles (e.g., 10°, 15°, 30°) or adjustable styles to maximize solar irradiation and energy yield depending on your project's exact latitude.
Foldable & Pre-Assembled Design: Arrives partially pre-folded and equipped with premium SUS304 stainless steel bolts. This turnkey structure allows installers to simply unfold, align, and lock the units in place, saving up to 40% on localized field labor costs.
Technical Specifications
Parameter | Standard Specification |
Product Component | Solar Triangular Bracket,PV Triangle Connector,Tilt Tripod |
Main Frame Material | High-Strength Aluminum Alloy AL6005-T5 |
Fasteners&Hardware | Marine-Grade Stainless Steel SUS304 |
Surface Finish Type | Clear Anodized or Custom Architectural Coating(≥10μm） |
Available Tilt Angles | Fixed(10°，15°，20°，30°）or Customizable adjustable Ranges |
Foundation Compatibility | Concrete Ballast Blocks,Trapezoidal Metal Roofs,Ground Anchors |
Maximum Wind Load | Engineered up to 60m/s |
Quality Compliance | ISO 9001:2015, CE,SGS Material Structural Loading Test |
Primary B2B Applications
1. Commercial & Industrial (C&I) Flat Concrete Roofs: Ideal for large flat-roof factories and malls in urban centers like Jakarta, utilizing concrete ballast blocks to secure the triangle frames without penetrating the roof's waterproofing layer.
2. Open-Terrain Ground Arrays: Works as a highly stable, cost-efficient modular racking alternative to heavy steel beams on flat plains or hard soil conditions.
3. Trapezoidal & Sheet Metal Elevated Roofs: Allows projects to gain a higher tilt angle over low-slope metal roofs, maximizing seasonal power generation.
Quality Control & Industrial B2B Logistics
Quality Guarantee: Every production lot is subject to strict automated QC checks, including digital anodization thickness profiling, precise angle deflection checking, and torque tolerance calibration under extreme load simulations.
Export-Ready Packaging: To prevent surface scratching, material warping, or component rubbing during long ocean freight and rugged overland transit to remote Indonesian PV sites, the triangular brackets are shipped in flat, space-saving folded configurations, securely bundled in reinforced wooden/steel crates wrapped in water-resistant PVC film.
