Base Connector

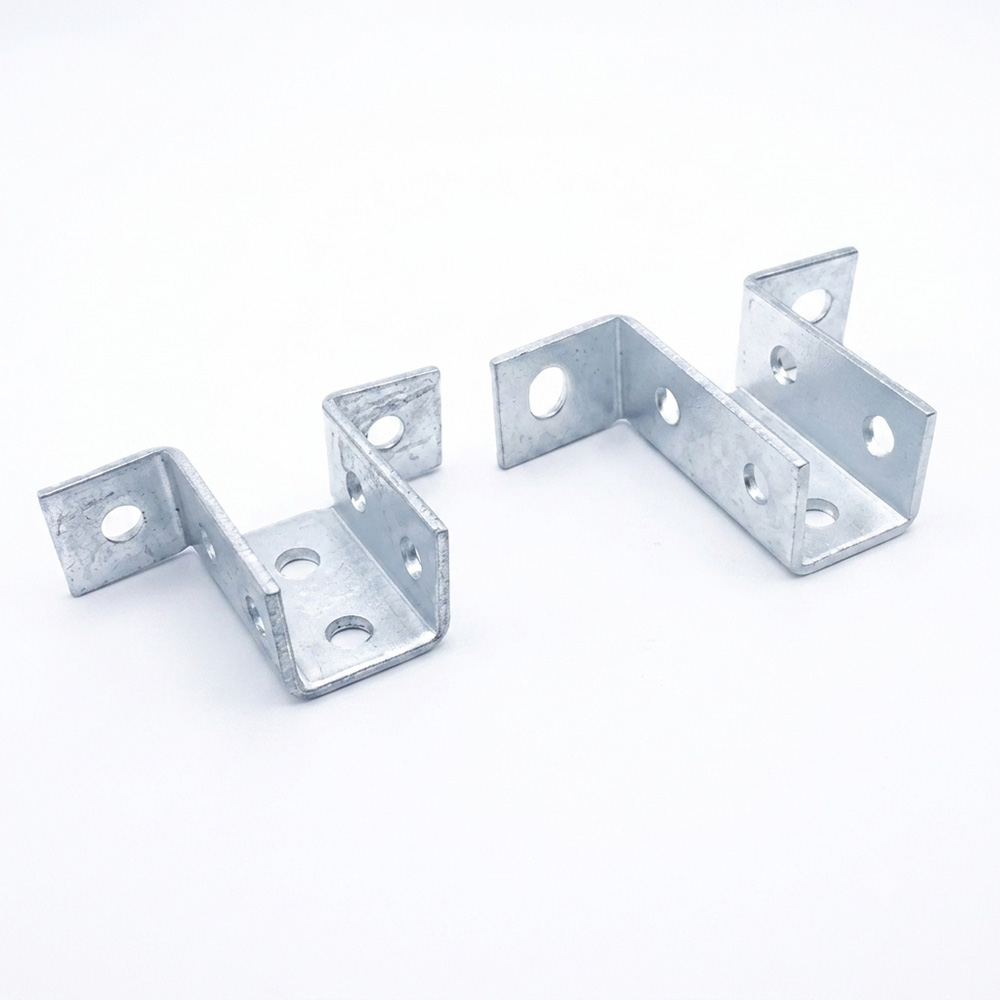

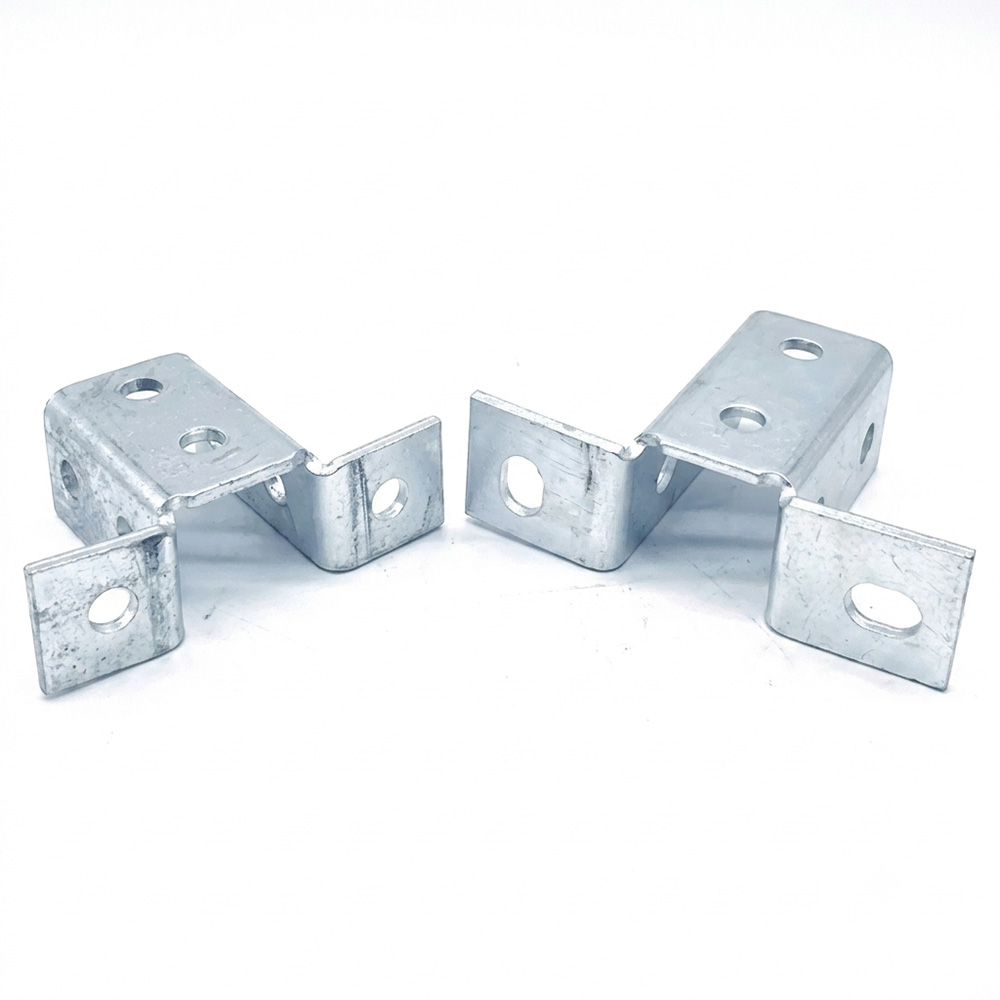

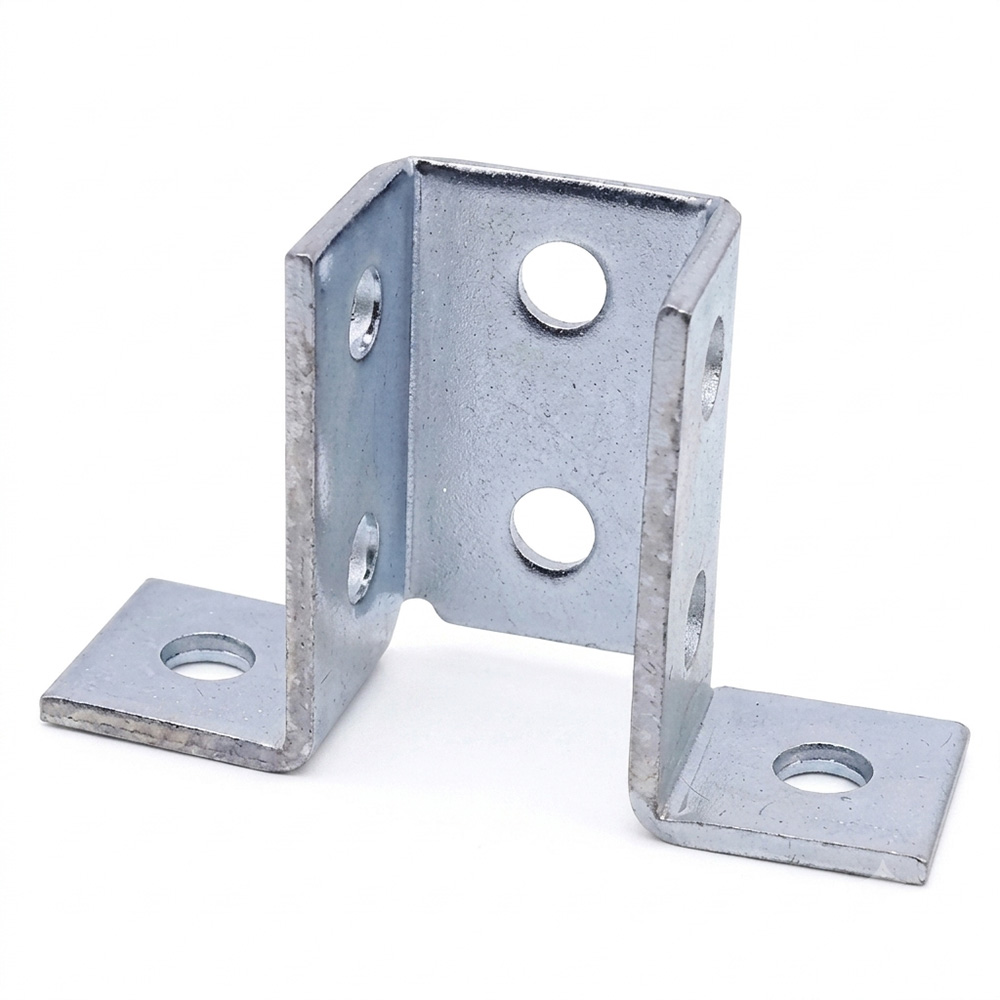

Heavy-Duty Weldless Strut Channel Base Connector: Universal Post Base for Seismic Framing

The Weldless Strut Channel Base Connector (also recognized in the industry as a universal post base, strut shoe, or weldless anchor base) is an indispensable high-strength structural component designed to securely anchor C-channel profiles (strut channels) or square tubes directly to a building’s primary structural substrates. Featuring a fully integrated bolt-on configurations, this hardware eliminates the need for hot-work welding or field drilling, establishing a clean, compliant, and highly adjustable joint for heavy-duty industrial framing and MEP support installations.

Core Engineering Advantages & Structural Benefits

Ultra-Fast Weld-Free Assembly: Features a 100% bolt-on design that completely circumvents the need for onsite welding, eliminating hot-work permits, grinding, and specialized welding labor to drastically compress the project timeline.

Flexible Multi-Axis Adjustability: Allows for hassle-free micro-adjustments, leveling, modular dismantling, and future system reconfigurations without destroying the structural backbone.

Substrate & Coating Protection: Protects the integrity of the building’s primary structures. By eliminating high-heat welding, it safeguards the pre-galvanized anti-corrosion layer of both the strut channel and surrounding materials, preventing toxic fumes and fire hazards on site.

⚙️ Premium Material Specifications & Code Compliance

Structural Integrity: Manufactured from premium carbon steel (Q235B), ensuring remarkable yield strength and high tensile/bending capacity under heavy vertical and lateral dynamic loads.

Harsh-Environment Rust Isolation: Finished with premium Hot-Dip Galvanization (HDG) or Electro-Galvanized (Zinc Plated) shielding, making it exceptionally resilient against rust and corrosion in damp subterranean utility tunnels, outdoor utility zones, or industrial plants.

Standardized Geometry & Fit: Engineered specifically to accommodate international standard C-channels, particularly 41x41mm and 41x21mm series profiles, ensuring a seamless fit across major global strut manufacturing brands.

️ Versatile Engineering Application Scenarios

MEP Seismic Support Root Anchoring: Serves as the high-strength anchor base plate for the roots of both lateral and longitudinal mechanical, electrical, and piping seismic hanger assemblies.

Underground Utility Tunnel Gallery System: Firmly anchors complex piping, cable trays, and structural columns onto concrete slabs, vertical retaining walls, or steel beams.

Solar PV & Data Center Equipment Racks: Acts as the modular load-bearing foundation block for solar photovoltaic array framing and heavy computing server enclosure frameworks.

Technical Specifications

Frequently Asked Questions

Q1: Why is a weldless post base superior to a traditional welded base plate in seismic zones?

Traditional welded connections create heat-affected zones (HAZ) in the steel, which can become brittle and crack under dynamic earthquake tremors. Our weldless strut base connector utilizes premium cold-formed Q235B steel combined with high-tensile hardware. This bolt-on mechanism maintains uniform material flexibility, allowing the joint to absorb and distribute shock seismic stresses much more safely without breaking.

Q2: What anchor bolts are recommended for securing this base plate to concrete?

For standard concrete slab installations within seismic code compliance, we strongly recommend pairing this base connector with heavy-duty Mechanical Wedge Anchors or Chemical Injection Anchor Bolts (M10 to M14 depending on load calculation). Ensure the concrete substrate meets minimum curing depth requirements before applying specified tightening torques.
