Heavy-Duty Seismic Hinge Connector: Flexible Swivel Fitting for MEP Bracing

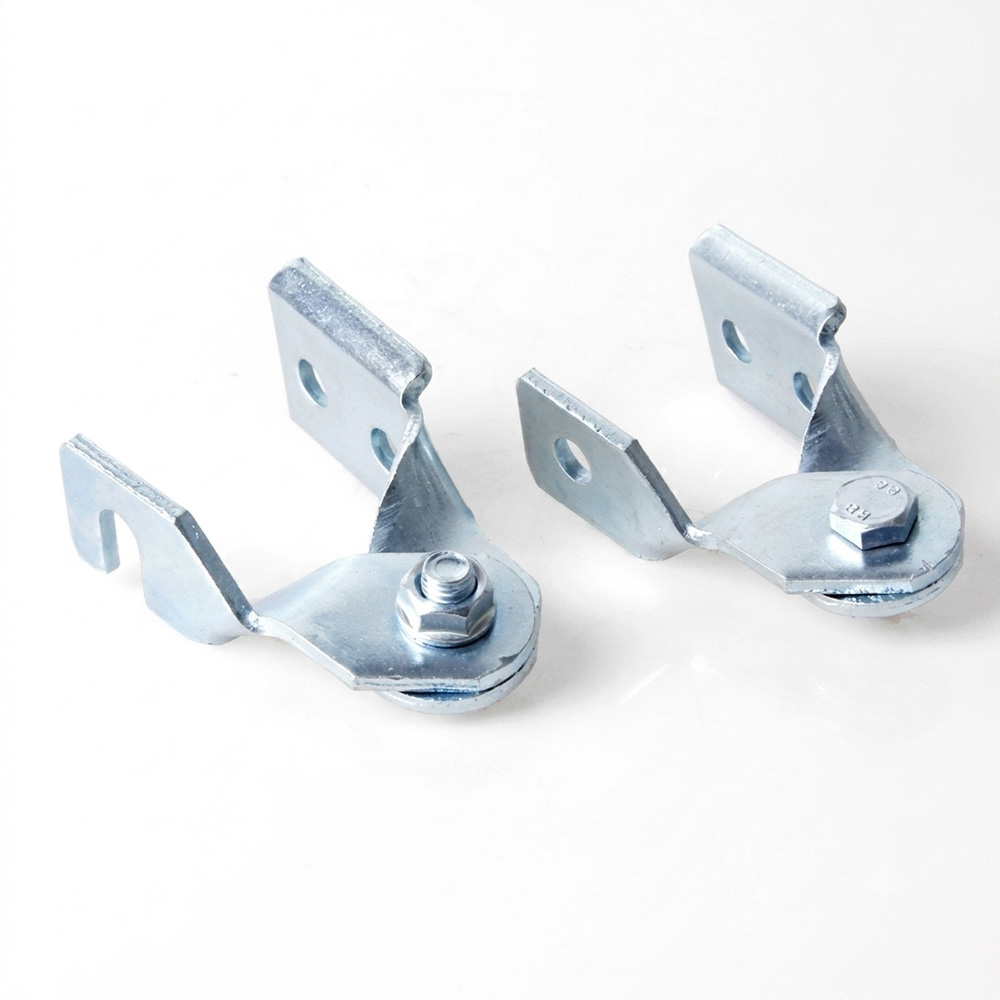

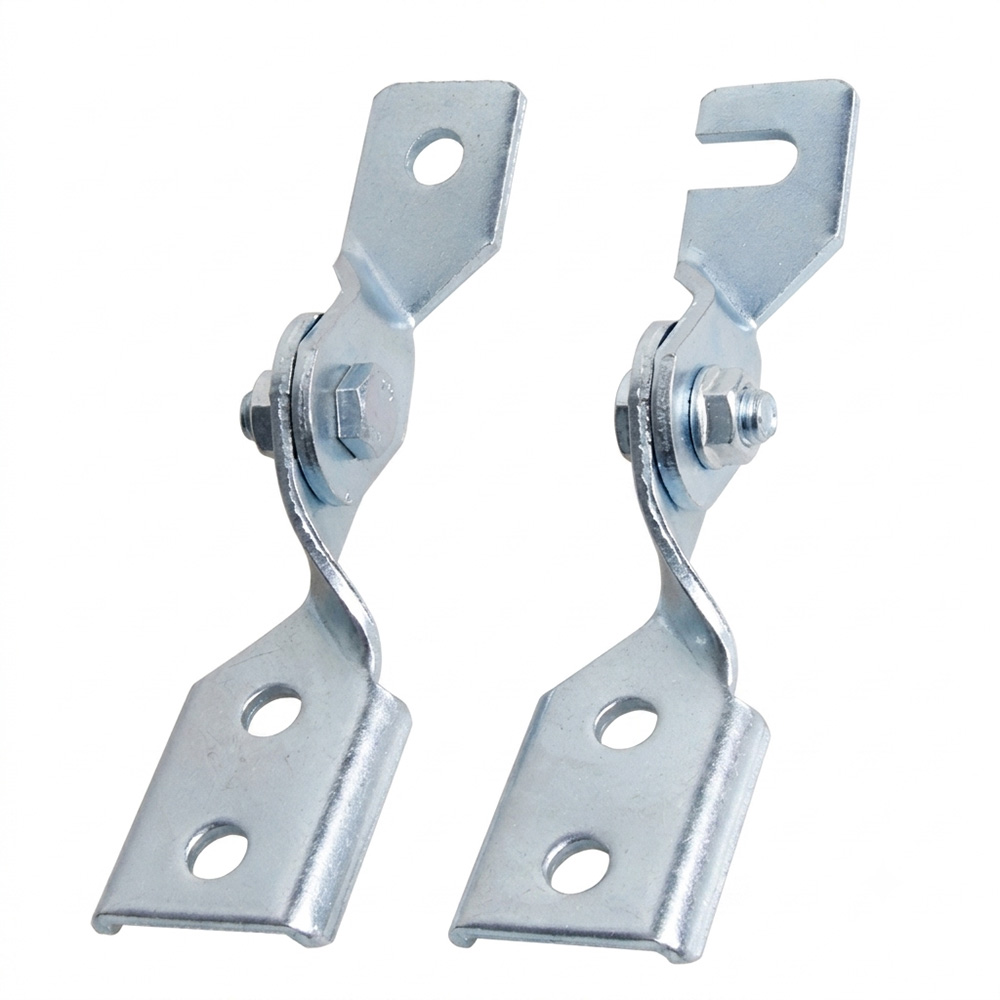

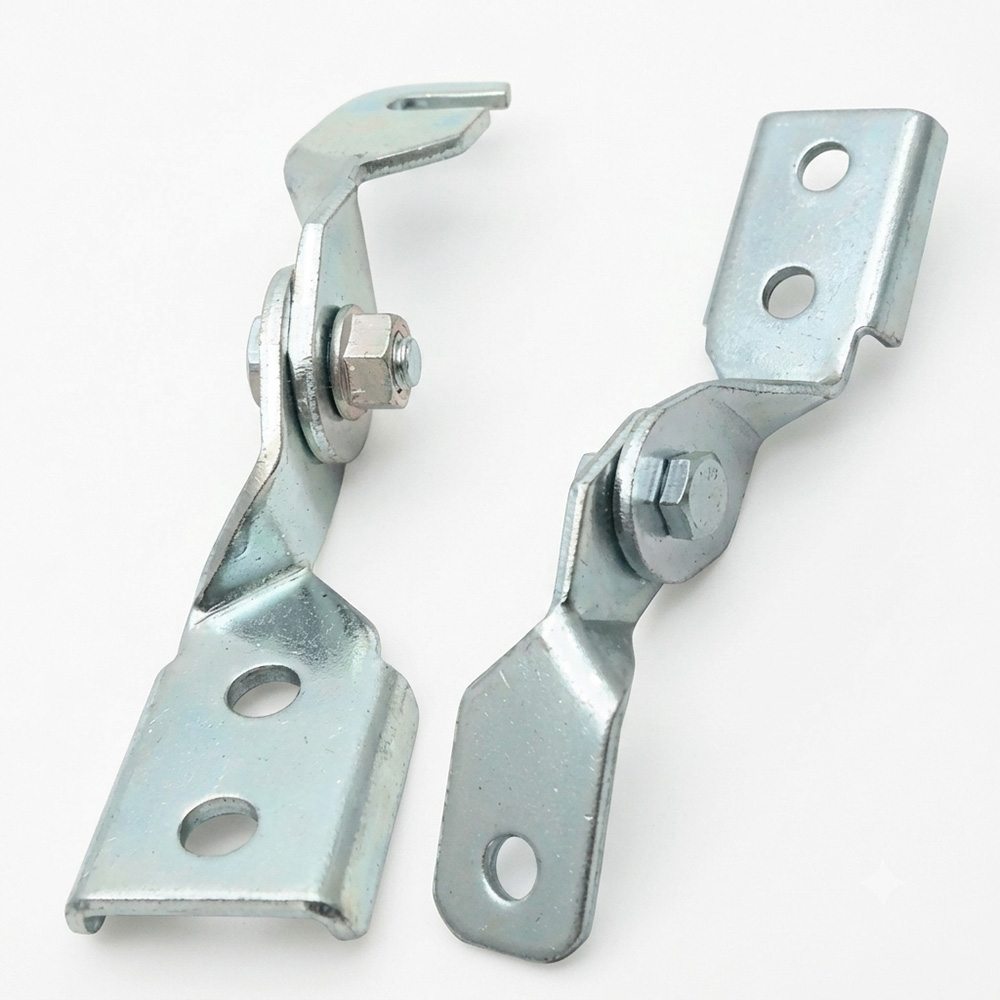

The Seismic Hinge Connector (also widely designated as an adjustable swivel joint or strut hinge bracket) serves as the critical angular junction in modern architectural mechanical, electrical, and plumbing (MEP) seismic bracing networks. Engineered to seamlessly pivot and link C-channels, pipe clamps, structural pillars, and diagonal braces, this premium fitting offers versatile angular adaptability. It is highly efficient in absorbing seismic displacements, neutralizing multi-directional tremors, and optimizing load distribution across underground utility corridors and commercial facilities.

Core Engineering Features & Technical Advantages

High-Strength Monolithic Stamping: Formed via an advanced integrated stamping process using premium Q235B carbon steel. Boasting a heavy-duty thickness of 4mm to 5mm, it yields maximum structural rigidity alongside superior tensile and shear resistance.

All-Weather Corrosion Isolation: Finished with premium surface treatments—including advanced Electro-galvanization (Zinc Plating with sealer), Hot-Dip Galvanization (HDG), or Epoxy Resin Coating—making it fully resilient within high-humidity basements, subterranean pipe galleries, and exposed outdoor environments.

Weld-Free Modular Assembly: The articulating swivel layout entirely eliminates the hazards and costs of on-site welding or field cutting. Paired with standard T-bolts and channel nuts, it achieves rapid, micro-adjustable anchoring that locks into a perfect triangular force configuration.

️ Common Accessory Configurations & System Compatibility

To build a fully code-compliant modular support matrix, this seismic hinge fitting is engineered to effortlessly synchronize with:

1. C-Channel / Strut Profiles: Serves as the primary backbone connection for standard 41x41mm and 41x21mm profiles (especially serrated inner lip variants).

2. Threaded Hanger Rods & Couplers: Connects directly with vertical drop rods via adapter nuts to anchor into concrete substrates.

3. Pipe Clamps & Loop Hangers: Secures heavy fluid, gas, or fire sprinkler mains, transferring lateral loads back to the building structure.

4. Serrated Clamping Plates & Channel Washers: Integrated at high-stress locking joints to eliminate structural slip under severe tremors.

Technical Specifications
