P-Clamp

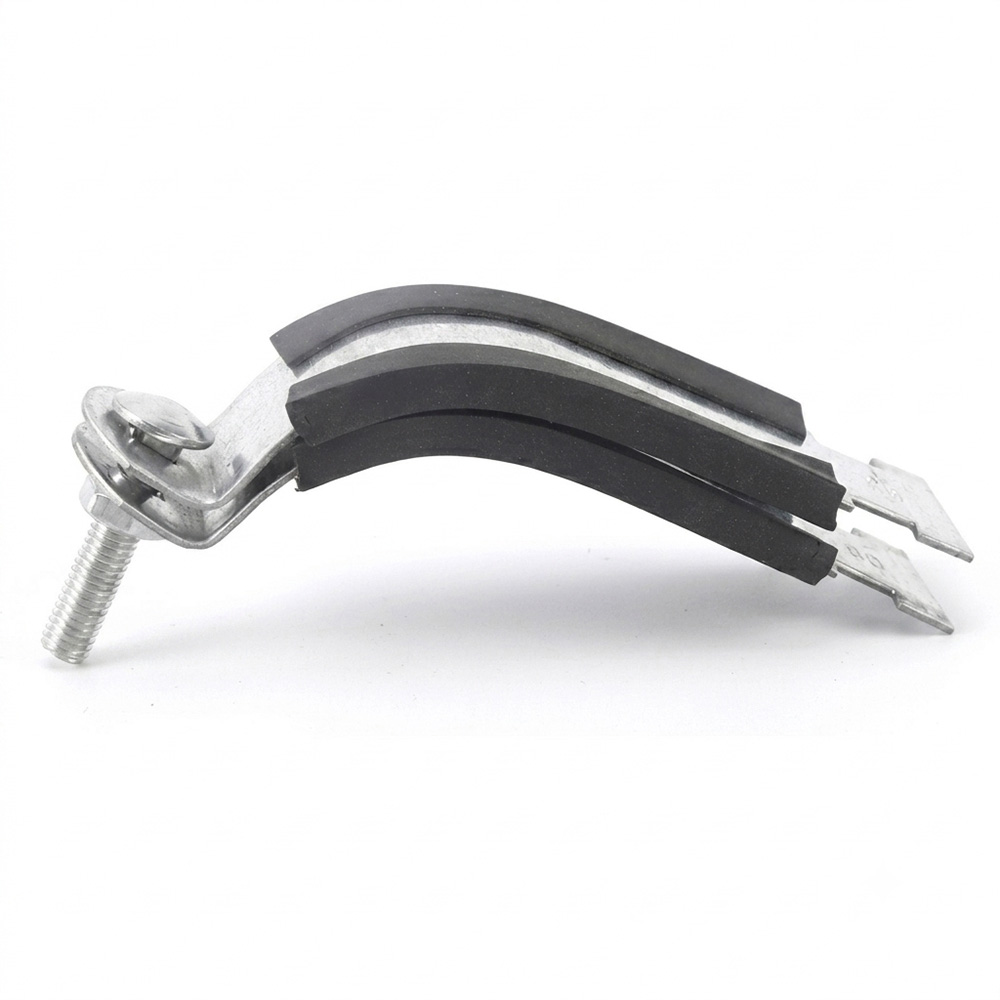

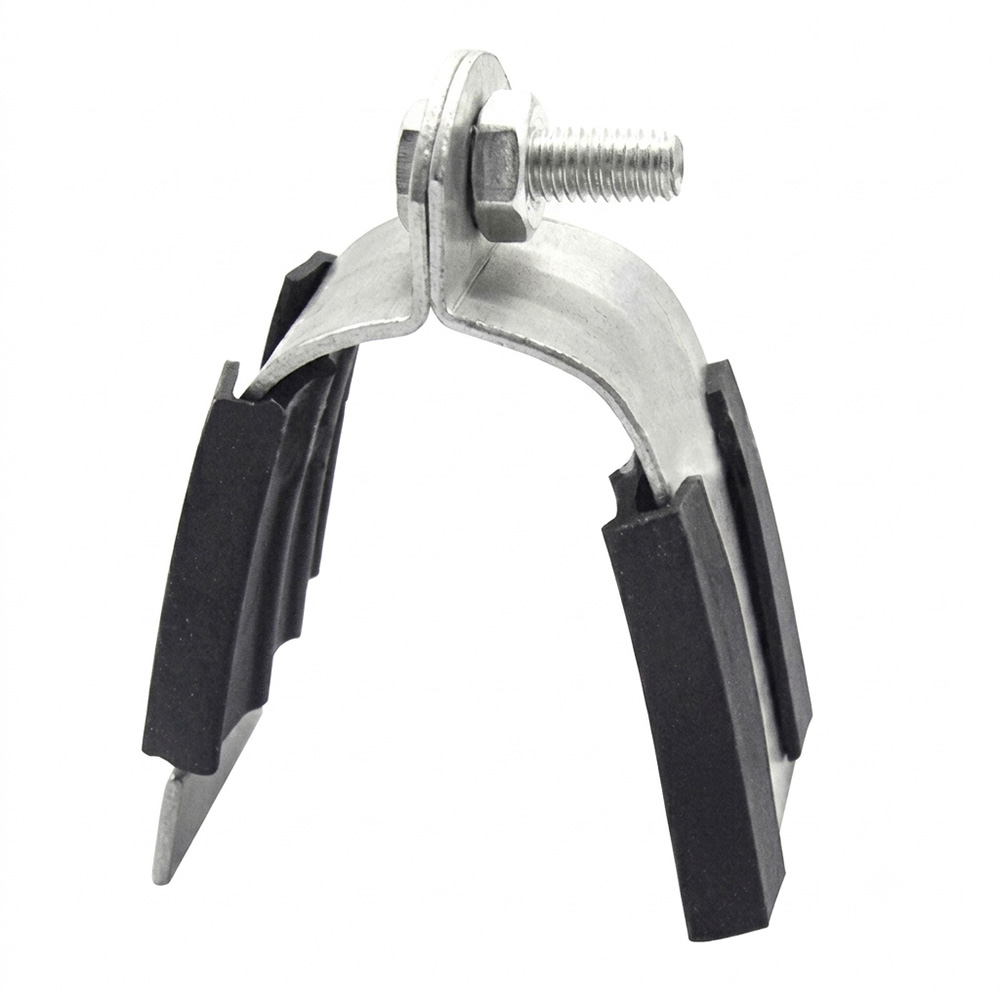

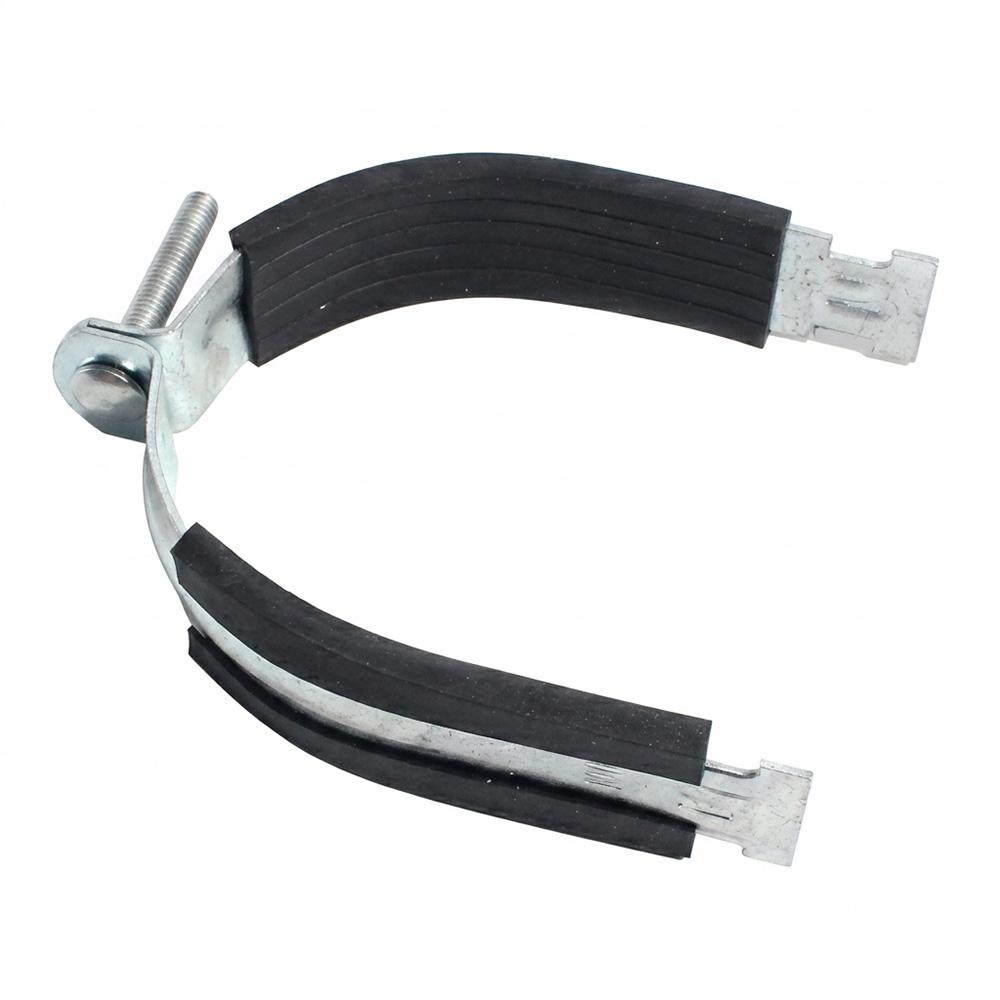

Cushioned P-Clamp with EPDM Rubber Lining: Premium Vibration Isolation Pipe Clamp

The P-Clamp with EPDM Rubber Lining (alternatively classified as a cushioned P-clamp, P-clip, or channel pipe clamp) is a high-performance fastening solution engineered to support, constrain, and guide various industrial and commercial pipelines within MEP seismic bracing networks. Named after its distinct structural "P" profile, this specialized hardware is built to anchor fire protection systems, HVAC water lines, plumbing mains, and electrical conduits directly into standard C-channel strut frameworks, offering a rugged, non-slip hold.

Core Engineering Features & System Protection

Advanced Acoustic & Vibration Isolation: The inner diameter is integrated with a premium EPDM (Ethylene Propylene Diene Monomer) rubber lining. This elastomer cushion acts as an energy absorber that dampens structural vibrations, isolates hydraulic system noises, and counters operational dynamic shock loads.

Elimination of Metal-to-Metal Friction: By introducing a protective rubber barrier, the clamp completely eliminates harsh abrasive metal-on-metal rubbing caused by thermal pipe expansion or earthquake sway, effectively preventing micro-cracking and pipeline failure.

Robust Metallurgical Composition: Fabricated from heavy-duty structural carbon steel or premium stainless steel (SUS304). Carbon steel variants feature reinforced Electro-Galvanized (Zinc Plated) or Hot-Dip Galvanized (HDG) finishes, ensuring excellent defense against rust and oxidative corrosion in high-humidity basement environments.

Seamless Modular Strut Integration: Custom-contoured to slot effortlessly into global standard 41x41mm and 41x21mm C-channels. Tightened securely via a single heavy-duty machine bolt and nut mechanism, it allows rapid adjustment along the channel axis.

 ️ Broad Engineering Application Scenarios

MEP Seismic Bracing Networks: Secures longitudinal and lateral pipe run connections to stabilize vital plumbing, fire protection, and heating/cooling infrastructures during a seismic event.

Industrial Utility Galleries & Infrastructure: Rigidly organizes heavy electrical conduit groups, cable sleeves, and fluid logistics processing lines across concrete floors, structural walls, and rack frames.

Solar PV & Outdoor Support Frameworks: Utilized in external environments to bundle solar cabling and tracking conduits, benefiting from the EPDM cushion’s exceptional UV and weather resistance.

Technical Specifications

Frequently Asked Questions

Q1: What makes EPDM rubber the preferred lining material for seismic pipe clamps?

Unlike standard PVC or generic plastic inserts, EPDM rubber maintains superior elastic memory, ozone resistance, and thermal stability over decades of operation. In seismic configurations, it provides an unyielding yet flexible cradle that dampens micro-vibrations from high-pressure fluid flow, preventing those frequencies from stressing the mounting fasteners or creating resonant noise throughout building structures.

Q2: Can these P-clamps be used on copper pipes without causing galvanic corrosion?

Yes, absolutely. Galvanic corrosion occurs when dissimilar metals (like steel and copper) make direct contact in the presence of moisture. Because our P-clamps feature a fully enveloping EPDM rubber liner, the steel clamp never touches the underlying copper pipe, acting as a complete electrical insulator and eliminating the risk of galvanic degradation.
