Strut Bolt

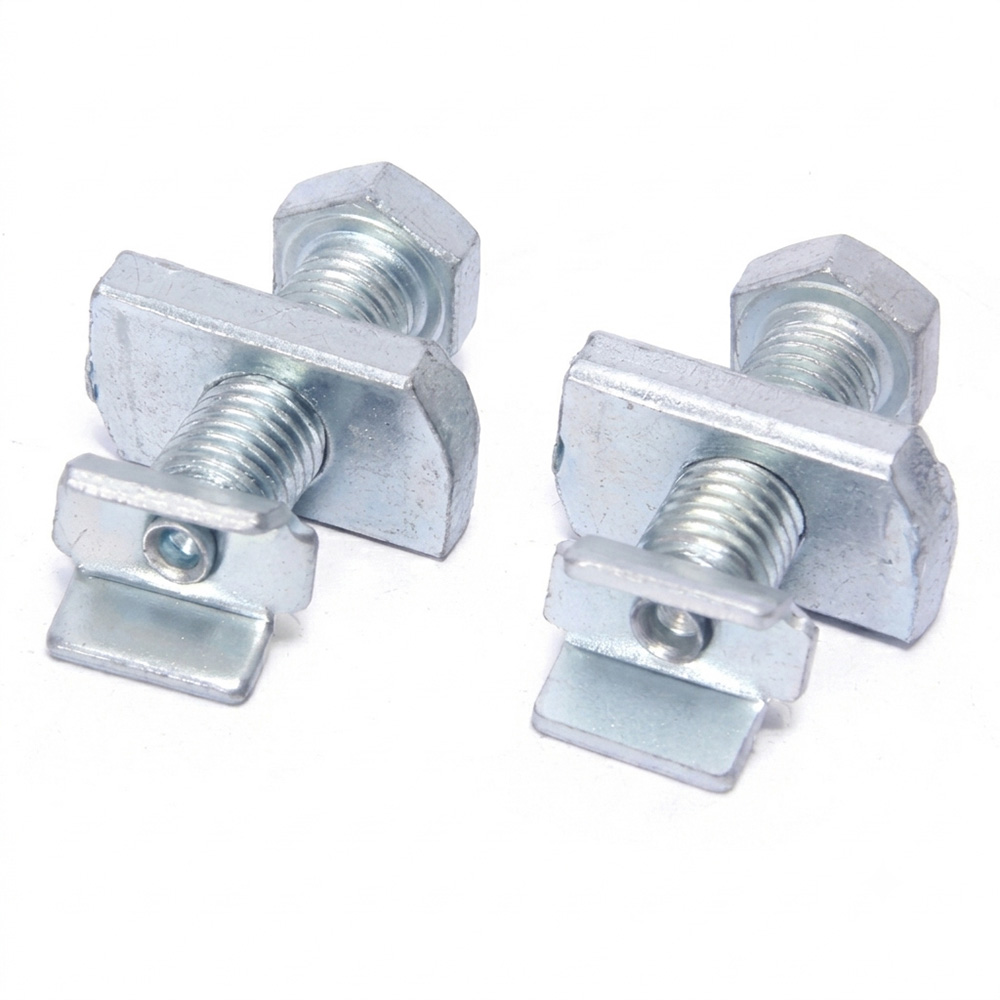

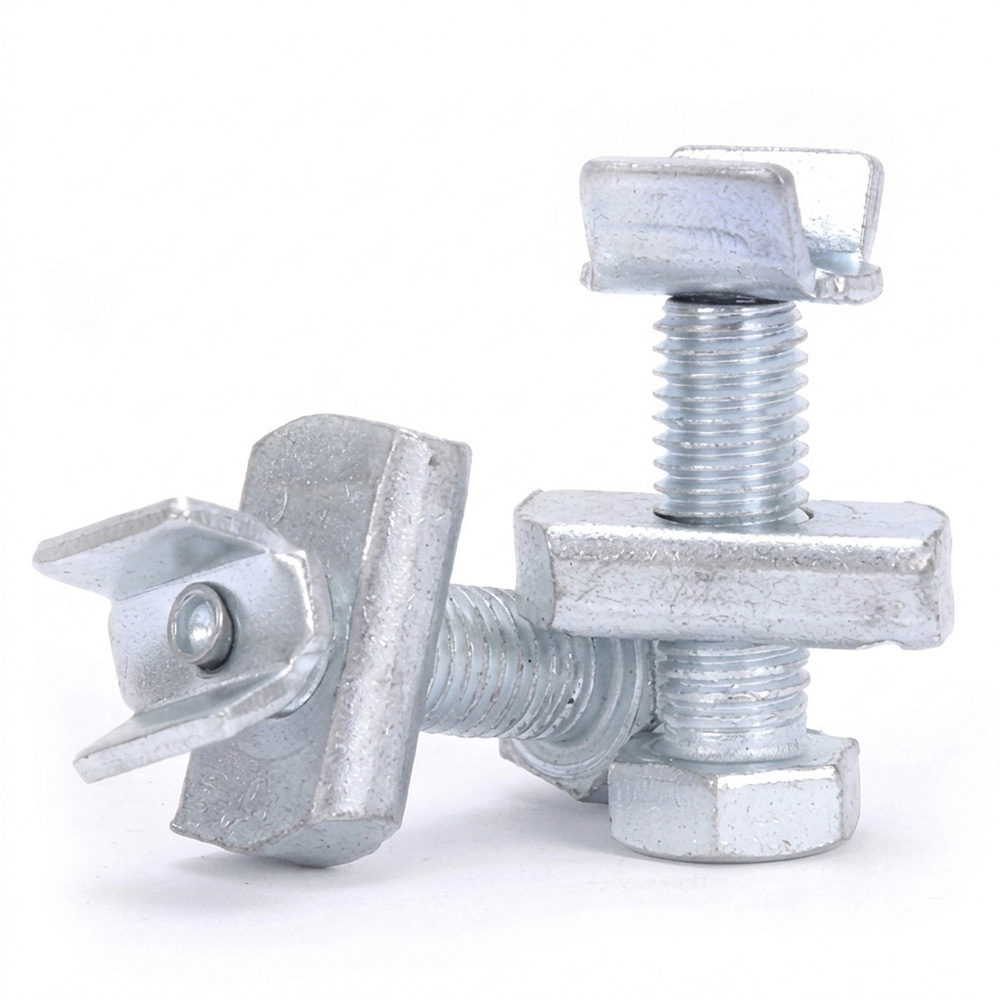

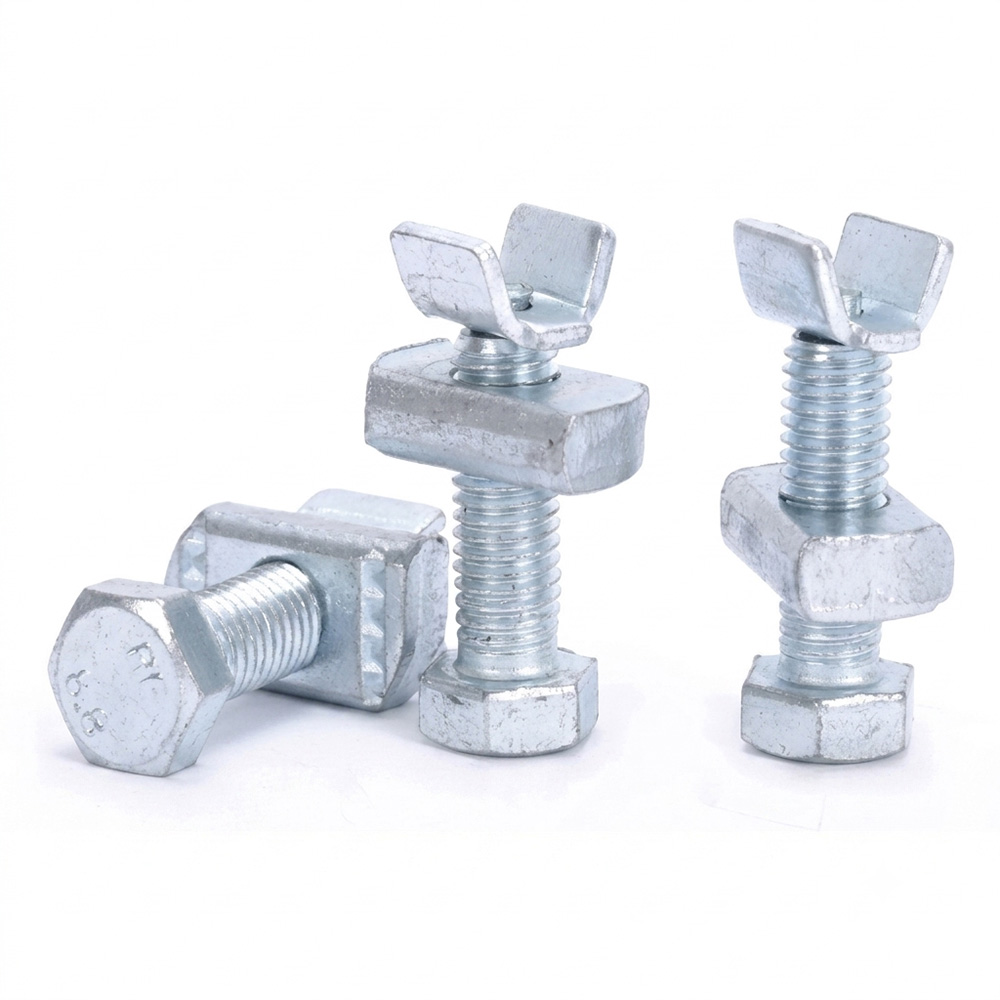

Heavy-Duty Strut Channel Bolt with Stiffener: Engineered Anti-Slip Fastening Solution

The Strut Channel Bolt with Stiffener (also known as an anti-slip winged channel bolt assembly) is a critical component engineered to maximize the structural stability, load-bearing capability, and safety of mechanical, electrical, and plumbing (MEP) seismic bracing networks. By adding localized rigidity to connection nodes, this specialized fastener optimizes structural response under dynamic seismic loads, successfully eliminating risk factors like structural deformation, joint slippage, and systemic swaying.

️ Core Functions & Engineering Advantages

Reinforced Load-Bearing Capacity: Positioned at critical high-stress connections (such as hinge joints, cantilever ends, or cross-intersections), the integration of the stiffener element substantially reinforces the tensile, compressive, and bending limits of the connection.

Ultimate Slip & Displacement Prevention: The unique winged stiffener profile tightly clamps both the threaded bolt and the C-channel lips, neutralizing horizontal and vertical slippage caused by persistent tremors or seismic vibrations.

Optimized Dynamic Stress Distribution: When subjected to intense earthquake forces, the reinforcement bracket evenly disperses localized stress concentrations, preventing catastrophic failure at connection nodes.

Zero-Damage & Weld-Free Installation: Engineered for modular, snap-on installation without onsite welding or drilling. This ensures ultra-fast positioning on layout drawings and prevents any destruction of the C-channel’s hot-dip galvanized protective coating.

⚙️ Versatile Application Scenarios

V-Type & Lateral Bracing Stabilization: Widely utilized in multi-pipe lateral seismic bracing configurations to solidly anchor diagonal tension elements and strut connections.

Heavy-Duty Channel Reinforcement: Ideal for reinforcing high-load C-channel joints, providing superior mechanical interlocking when paired with serrated channel profiles.

Rigid Hinge Node Connections: Installed at critical junctions between diagonal braces, anchors, and channels to guarantee maximum structural rigidity during tight diagonal tensioning.

Technical Specifications

Frequently Asked Questions

 Q1: How does the stiffener bracket prevent bolt slippage inside a smooth strut channel?

Standard bolts rely solely on friction, which can easily fail under dynamic seismic shaking. Our channel bolt assembly includes a specialized winged stiffener that wraps around the external lips of the C-channel while drawing the internal nut tight. This creates a dual-surface mechanical lock, transferring horizontal shear forces into structural stability and increasing slip resistance by up to 200%.

 Q2: Is this reinforcement fastener compliant with code-regulated anti-seismic installations?

Yes. Our strut channel bolts with stiffeners are designed and rigorously stress-tested to comply with international building and MEP installation codes (such as IBC, ASCE 7, and NFPA 13). They satisfy the strict requirements for weld-free modular engineering layouts in civil and industrial projects.
