Perforated Cable Tray vs Solid Bottom Cable Tray: Which One Should You Choose?

Choosing the right cable tray is important for safe cable support, ventilation, protection, installation, and long-term electrical system performance.

Two commonly used cable tray designs are Perforated Cable Tray and Solid Bottom Cable Tray.

Although both are designed to support and organize electrical cables, their structures provide different levels of ventilation, protection, drainage, and installation flexibility.

So, which cable tray is better for your project?

The answer depends on the cable type, cable loading, installation environment, ventilation requirements, protection requirements, and project specifications.

In this guide, we compare Perforated Cable Tray vs Solid Bottom Cable Tray and explain how to select the right solution.

What Is a Perforated Cable Tray?

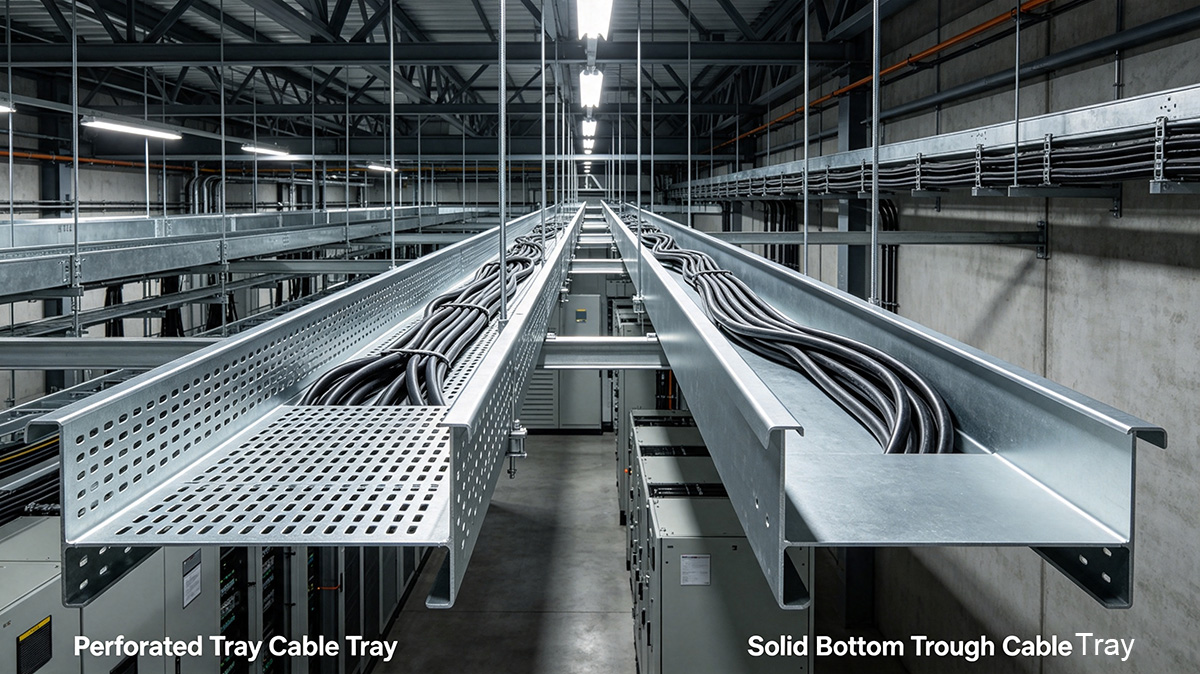

A Perforated Cable Tray, also known as a ventilated cable tray, features regularly spaced holes or openings in the bottom and/or side walls.

The perforated design allows air to circulate around the cables and provides convenient points for securing cables with cable ties and accessories.

Key Features of Perforated Cable Tray

• Excellent ventilation

• Good heat dissipation

• Easy cable fastening

• Convenient installation and maintenance

• Good water drainage

• Suitable for power and control cables

• Available in different widths, heights, thicknesses, and finishes

Perforated cable trays are widely used in commercial buildings, industrial plants, data centers, infrastructure projects, electrical rooms, and solar power projects.

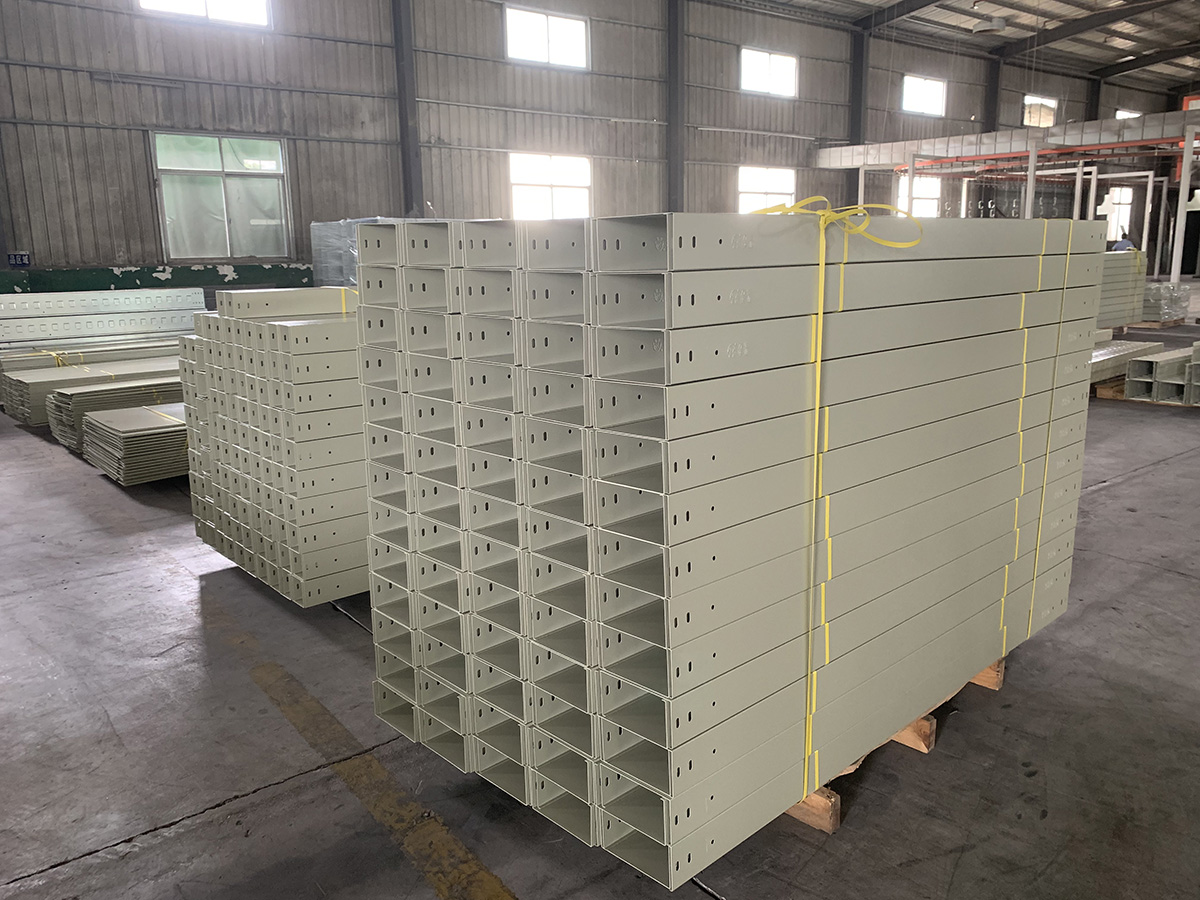

What Is a Solid Bottom Cable Tray?

A Solid Bottom Cable Tray has a continuous, non-perforated bottom surface.

Unlike a perforated cable tray, the bottom does not have ventilation openings. This design provides continuous cable support and offers additional protection from dust, small debris, and certain external mechanical interference.

Key Features of Solid Bottom Cable Tray

• Continuous solid bottom

• Good cable support

• Additional protection from dust and debris

• Clean appearance

• Suitable for selected sensitive cable applications

• Available in steel, aluminum, stainless steel, and other materials

Solid bottom cable trays can be used in commercial buildings, industrial facilities, electrical rooms, and applications where additional cable protection is required.

Perforated Cable Tray vs Solid Bottom Cable Tray

The main difference between these two cable tray designs is the bottom structure.

1. Ventilation and Heat Dissipation

One of the main advantages of a perforated cable tray is ventilation.

The openings allow air to circulate around the cables, helping dissipate heat generated by electrical cables.

This can be particularly important for installations carrying power cables with significant current loads.

A solid bottom cable tray provides less natural airflow around the underside of the cables. Cable loading, ambient temperature, cable spacing, and project requirements should therefore be considered carefully.

When ventilation and heat dissipation are important, a perforated cable tray is generally a suitable choice.

2. Cable Protection

Solid bottom cable trays provide a continuous surface beneath the cables.

This can offer additional protection against:

• Dust

• Small debris

• Falling particles

• Certain mechanical interference

• Contaminants entering from below

For applications where cable protection is a higher priority, a solid bottom cable tray may be preferred.

However, a solid bottom cable tray should not automatically be considered a completely enclosed cable protection system. Where a higher level of environmental protection is required, a covered cable tray or cable trunking system may be more appropriate.

3. Cable Installation and Maintenance

Perforated cable trays are generally convenient for cable installation.

The openings allow installers to:

• Secure cables with cable ties

• Organize cable groups

• Fix cables at different positions

• Install cable accessories

• Inspect and maintain cables more easily

Solid bottom cable trays provide a continuous supporting surface, but additional cable clamps or fixing accessories may be required depending on the application.

4. Drainage

Drainage is another important factor when selecting a cable tray for outdoor or humid environments.

The openings in perforated cable trays allow water to drain through the bottom.

Solid bottom cable trays do not provide the same natural drainage unless drainage holes or other drainage measures are incorporated into the design.

For outdoor applications, engineers should consider:

• Rainwater

• Condensation

• Humidity

• Corrosive environments

• Surface treatment

• Drainage requirements

5. Dust and Contaminant Protection

Solid bottom cable trays provide a continuous bottom surface, which can reduce the amount of dust and small particles entering the tray from underneath.

This can be useful in certain industrial and indoor applications.

However, the overall protection level depends on the complete cable management system.

If the project requires stronger protection from dust, water, or external environmental conditions, a covered cable tray or enclosed cable trunking system may be more appropriate.

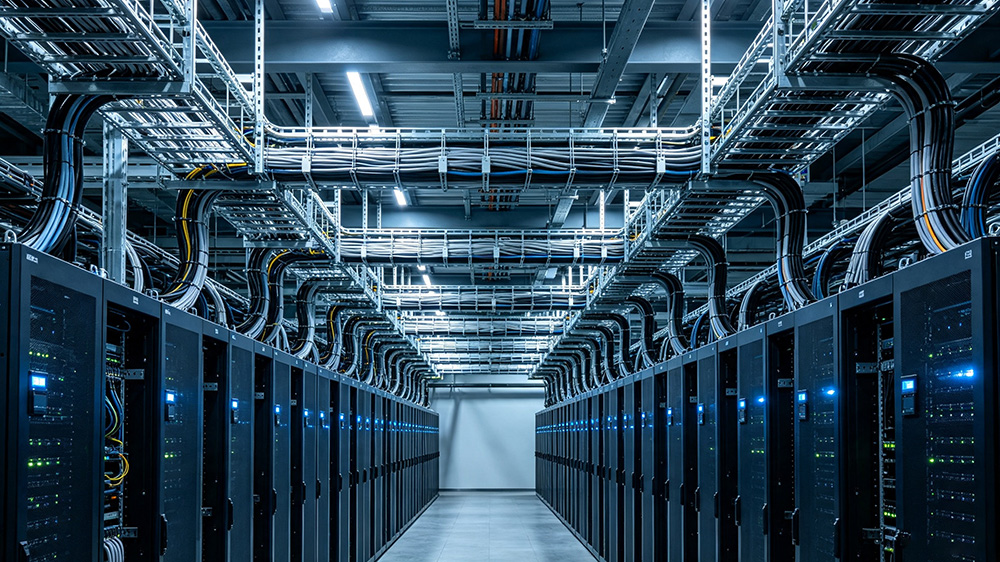

Which Cable Tray Is Better for Data Centers?

Both perforated and solid bottom cable trays can be used in data center environments depending on the cable system and project specifications.

Perforated cable trays are often suitable where ventilation, accessibility, cable organization, and installation flexibility are important.

Solid bottom cable trays may be considered where additional protection from dust, falling objects, or other contaminants is required.

Data center designers should also consider:

• Power cable requirements

• Data and communication cables

• Fiber optic cables

• Cable separation

• Heat dissipation

• Fire protection

• Maintenance access

• Cable loading

• Project standards

Which Cable Tray Is Better for Industrial Applications?

Industrial environments can have very different cable management requirements.

For factories and industrial plants with significant power cable loads, perforated cable trays can provide good ventilation and convenient installation.

For areas exposed to dust, falling materials, or mechanical hazards, solid bottom cable trays may provide additional protection.

The material and surface finish are also important in industrial environments.

Common options include:

• Hot-Dip Galvanized (HDG) Cable Tray

• Zinc-Aluminum-Magnesium (ZAM) Cable Tray

• Stainless Steel Cable Tray

• Aluminum Cable Tray

• Powder Coated Cable Tray

The appropriate material depends on the installation environment, corrosion conditions, expected service life, project specifications, and budget.

How to Choose the Right Cable Tray?

When choosing between perforated and solid bottom cable trays, consider the following factors.

1. Cable Type

Determine whether the system contains:

• Power cables

• Control cables

• Instrumentation cables

• Communication cables

• Fiber optic cables

• Data cables

Different cable types may have different ventilation, separation, and protection requirements.

2. Cable Loading

Consider the number, size, weight, and arrangement of cables.

These factors affect the required cable tray width, height, thickness, support span, and load capacity.

3. Installation Environment

Consider whether the cable tray will be installed:

• Indoors

• Outdoors

• In a data center

• In an industrial plant

• In a commercial building

• In a power plant

• In a solar project

• In a coastal or humid environment

4. Corrosion Resistance

For outdoor, coastal, and industrial applications, material and surface treatment are important.

Common options include HDG, ZAM, stainless steel, aluminum, and powder-coated steel.

5. Ventilation Requirements

If cable heat dissipation is a major consideration, a perforated cable tray is usually a strong option.

6. Protection Requirements

If protection from dust, debris, or mechanical interference is more important, a solid bottom cable tray may be preferred.

7. Applicable Standards

Always check the project specifications and applicable cable tray standards before making the final selection.

Perforated Cable Tray or Solid Bottom Cable Tray: Which One Should You Choose?

There is no single cable tray design that is best for every application.

Choose a Perforated Cable Tray When:

• Ventilation is important

• Heat dissipation is required

• Easy cable fastening is needed

• Good drainage is required

• Convenient installation and maintenance are important

• Power or control cables are being installed

Choose a Solid Bottom Cable Tray When:

• Additional cable protection is required

• Dust and debris protection is important

• A continuous supporting surface is preferred

• The installation environment is relatively clean and protected

• The project specifically requires a solid-bottom design

In some projects, both types can be used in different areas of the same electrical system.

The final selection should be based on cable type, cable loading, installation environment, ventilation, corrosion resistance, mechanical protection, project standards, and total system requirements.
