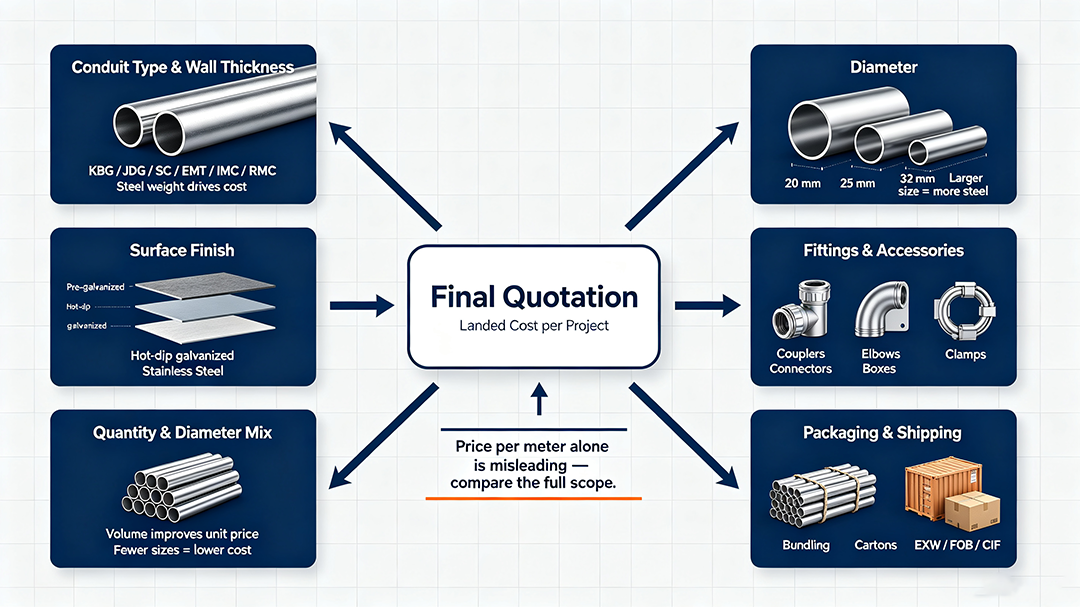

Electrical conduit price is driven mainly by five things: the conduit type and wall thickness, the diameter, the surface finish, the fittings and accessories included, and the order quantity and shipping terms. Two quotes for the same nominal size can differ widely because one is a thinner-wall type, uses a lighter coating, or leaves out the couplings and boxes the other includes, so comparing price per meter alone is misleading. This guide explains what actually moves the price and how to compare quotes on equal terms.
Cost factor | What changes the price | Effect on cost |
|---|---|---|
Conduit type and wall thickness | KBG, JDG, SC, or EMT / IMC / RMC equivalents | Large; steel is priced largely by weight, so thicker-wall types cost more per meter |
Diameter | Nominal size, such as 20 mm, 25 mm, 32 mm or larger | Large; larger diameters use more steel per meter |
Surface finish | Pre-galvanized, hot-dip galvanized, stainless steel | Medium to large; hot-dip galvanizing and stainless steel cost more than pre-galvanized |
Fittings and accessories | Couplers, connectors, elbows, boxes, clamps, straps | Medium; easy to leave out of a quote and add back later |
Quantity and diameter mix | Order volume, number of sizes in one order | Medium; standard sizes in larger volume usually carry better unit prices |
Packaging and shipping | Bundling, fitting boxes, Incoterms (EXW / FOB / CIF) | Medium; freight is a real share of the landed cost for long, heavy conduit |

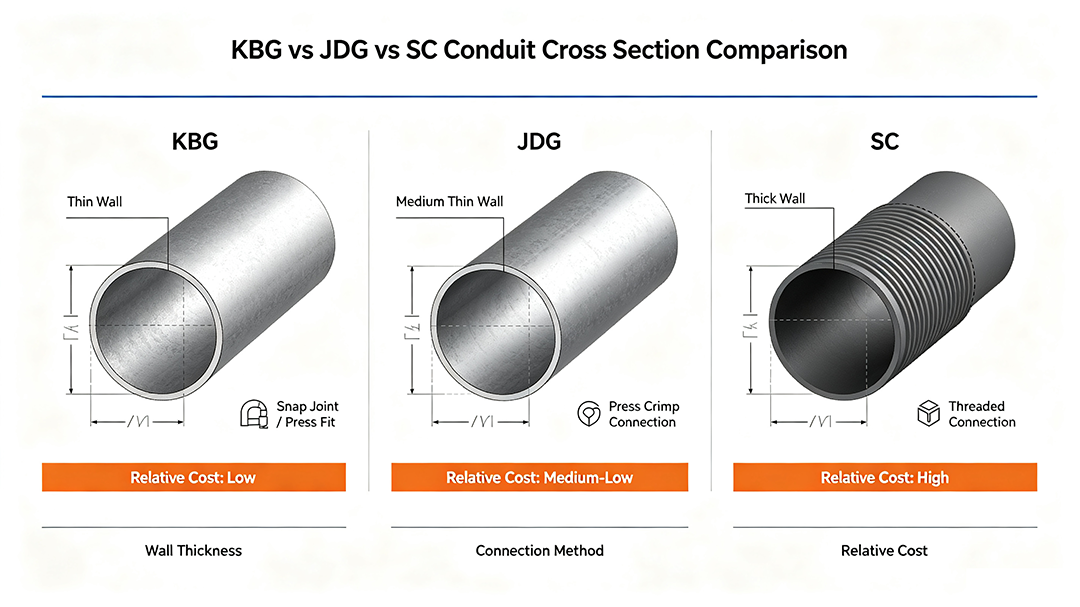

Type is the biggest single driver, because each type has a different wall thickness and connection method. Thin-wall types such as KBG and JDG use less steel and cost less per meter than thick-wall threaded SC conduit, which uses a heavier wall and is built for stronger mechanical protection. The right choice depends on where the conduit is used, not just on price (see our KBG vs JDG vs SC Conduit comparison and our EMT vs Rigid vs PVC Conduit comparison for how the types differ).
Specify the lightest type that still meets the project's mechanical protection and code requirements
Do not substitute one type for another on price alone, since connection systems are not interchangeable between types
Confirm the wall thickness in the quote, since two quotes for the same type can use different thicknesses
Steel is priced largely by weight, so larger diameters cost more per meter. Standard sizes such as 20 mm, 25 mm, and 32 mm are produced in volume and typically cost less per meter than less common sizes that need a dedicated production run. Choosing the correct size for the cable fill, rather than defaulting to a larger size, avoids paying for steel the project does not need (see our How To Choose The Right Conduit Size guide for how to size by cable fill).

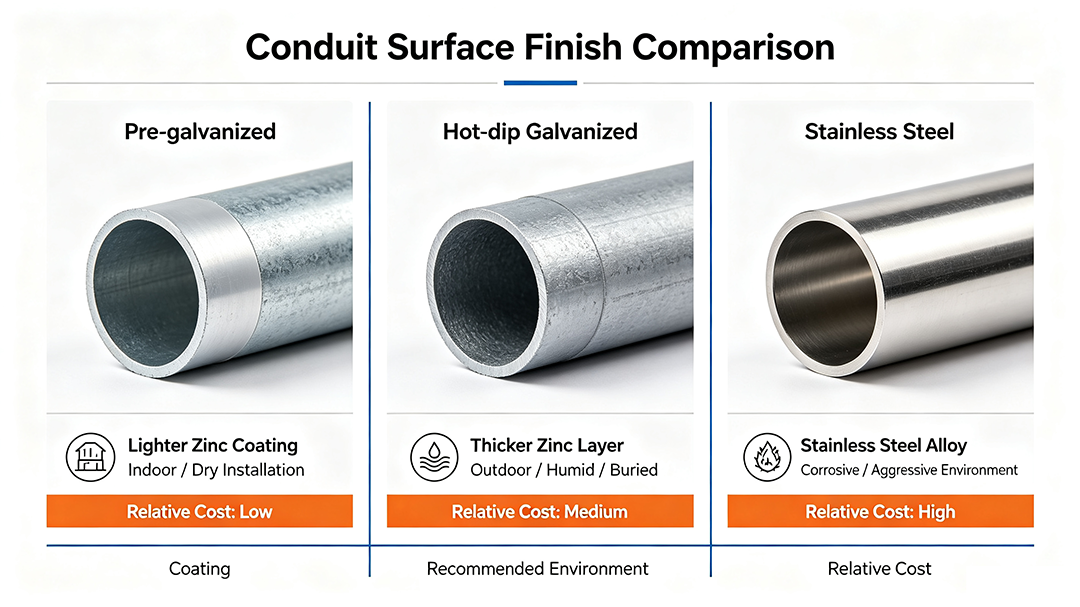

Finish determines both cost and service life. Pre-galvanized conduit costs less and suits indoor, dry installations. Hot-dip galvanized conduit carries a thicker zinc layer and costs more, but lasts much longer outdoors, underground, and in humid or industrial environments. Stainless steel costs the most and is reserved for aggressive environments. A lower price sometimes reflects a lighter coating than the project needs, so confirm the finish type and the coating thickness requirement together (see our Galvanized Steel Conduit guide for how the finishes compare).
Pre-galvanized: lowest cost, suited to indoor, dry installations
Hot-dip galvanized: higher cost, suited to outdoor, humid, and buried installations
Stainless steel: highest cost, used where corrosion exposure is severe
Straight conduit length is only part of the bill. Couplers, connectors, elbows, junction boxes, clamps, and straps are priced separately and can add a significant share to the project total. Fittings are also specific to each conduit type, so a quote that leaves them out will look cheaper than one that includes them, and buying them from a different source later risks a compatibility mismatch. Ask for a complete list of what is included (our Conduit Fittings & Accessories Explained guide covers what a full installation typically requires).
Order volume affects unit price, because production runs are more efficient at larger quantities. A single-size order in a standard finish moves through production more cheaply than an order that spans many sizes and finishes. If a first order is small, ask for price breaks at several quantity levels so you can see where the unit price improves.
Conduit is long and heavy, so freight is a real share of the delivered cost. The Incoterm in the quote decides what is included: EXW excludes freight entirely, FOB includes delivery to the port of loading, and CIF includes freight and insurance to the destination port. Comparing an EXW quote with a CIF quote without adjusting for this is one of the most common mistakes in price comparison. Packaging also matters: bundled conduit protected against coating damage, with fittings boxed and labeled separately, reduces losses and sorting time on site. Our How to Import Electrical Conduit from China guide covers MOQ, lead time, packaging, and inspection in more detail.

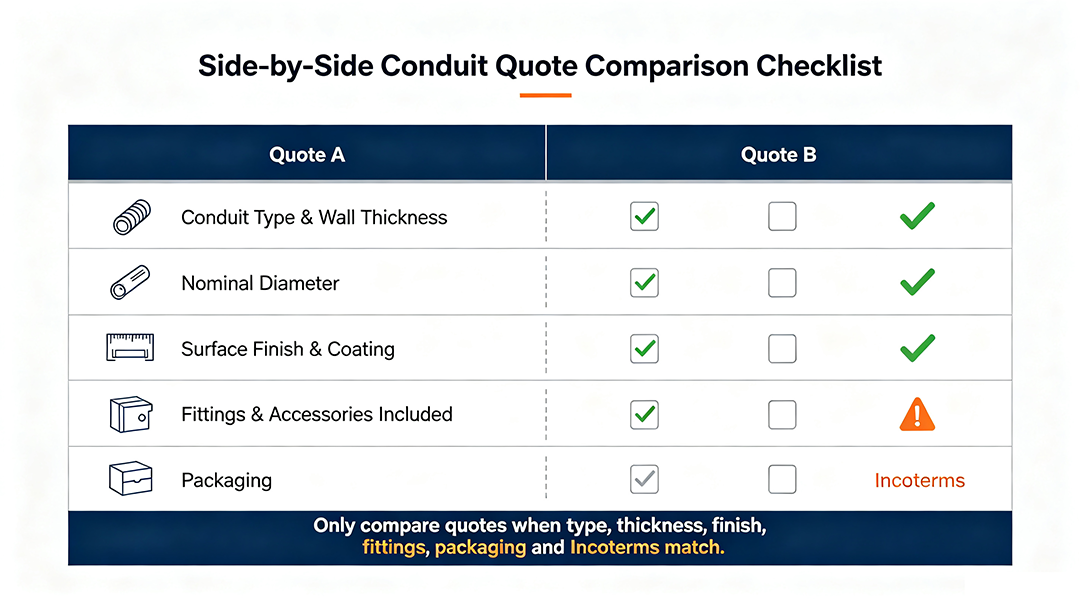

Confirm the same type and standard. KBG, JDG, SC, and imperial-size equivalents are not interchangeable, so every quote should name the same type.
Match the wall thickness and diameter. A thinner wall at the same nominal size is a cheaper product, not a better price.
Check the finish and coating requirement. A cheaper quote may specify a lighter coating than your project needs.
Include fittings and accessories. Ask for a full list, not just the straight length.
Compare packaging. Confirm how conduit is bundled and how fittings are boxed and labeled.
Match the Incoterms. Convert EXW, FOB, and CIF quotes to the same basis before comparing.
Conduit price comes down to the type and wall thickness, the diameter, the finish, the fittings included, and the quantity and shipping terms behind the quote. The lowest price per meter is rarely the lowest cost per project if it hides a thinner wall, a lighter coating, missing fittings, or a different Incoterm. Comparing quotes on the same type and the same terms, and asking for a full list of fittings, is the most reliable way to see what you are really paying for.
The usual causes are wall thickness, finish, and what the quote includes. A thicker wall and a heavier galvanized coating cost more, and a quote that leaves out couplings, boxes, or freight will look cheaper than one that includes them. Confirming the type, wall thickness, and Incoterm usually explains most of the gap.
For outdoor, buried, humid, or industrial installations, usually yes, because the thicker zinc layer lasts much longer and reduces replacement cost over the life of the project. For dry indoor installations, pre-galvanized conduit is often sufficient, and the extra cost of hot-dip galvanizing may not be justified.
It is possible, but fitting dimensions are specific to each conduit type and sometimes to each manufacturer's profile, so mixing sources increases the risk of a compatibility mismatch that costs more than the savings. Buying conduit and its matching fittings from the same supplier, or explicitly confirming cross-compatibility, reduces this risk.
