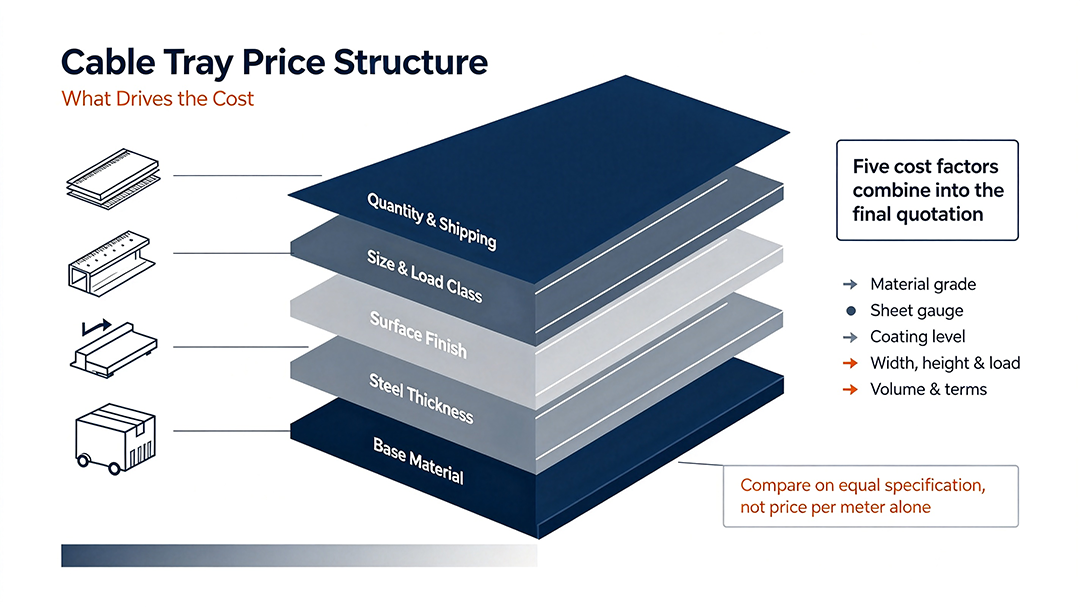

Cable tray price is driven mainly by five things: the base material, the thickness of the steel, the surface finish, the tray size and load class, and the order quantity and shipping terms. Two quotes for tray with the same width and length can differ by a large margin simply because one uses thinner steel or a lighter coating, so comparing price per meter alone is misleading. This guide explains what actually moves the price and how to compare quotes on equal terms.
Cost factor | What changes the price | Effect on cost |
|---|---|---|
Base material | Carbon steel, aluminum, stainless steel (SS304 / SS316), fiberglass | Large; stainless steel and aluminum cost significantly more than carbon steel |
Steel thickness | Sheet thickness (for example 1.2 mm vs 2.0 mm) and weight per meter | Large; steel is priced largely by weight, so thicker tray costs more |
Surface finish | Pre-galvanized, hot-dip galvanized, powder coating, electro-galvanized | Medium; hot-dip galvanizing adds a process step and zinc cost |
Size and load class | Width, side rail height, and rated load / support span | Medium to large; wider and taller tray uses more material |
Tray type and accessories | Perforated, ladder, trough, wire mesh; bends, tees, covers, brackets | Medium; fittings and covers can add substantially to the project total |
Quantity and shipping | Order volume, packaging, Incoterms (EXW / FOB / CIF) | Medium; freight is a real share of the landed cost for bulky tray |
Material is the biggest single driver. Carbon steel with a protective finish is the standard low-cost choice for most indoor and general outdoor installations. Aluminum costs more per unit but is lighter and corrosion resistant. Stainless steel costs the most, and SS316 costs more than SS304, which is why it is normally reserved for coastal, chemical, and food-processing environments (see our SS304 vs SS316 vs HDG Cable Tray comparison for where each one is justified).
Specify the material the environment actually requires, not the highest grade available
Use stainless steel only where corrosion exposure justifies it, and carbon steel with a suitable finish elsewhere on the same project
Remember that steel prices move with the market, so a quote's validity period matters

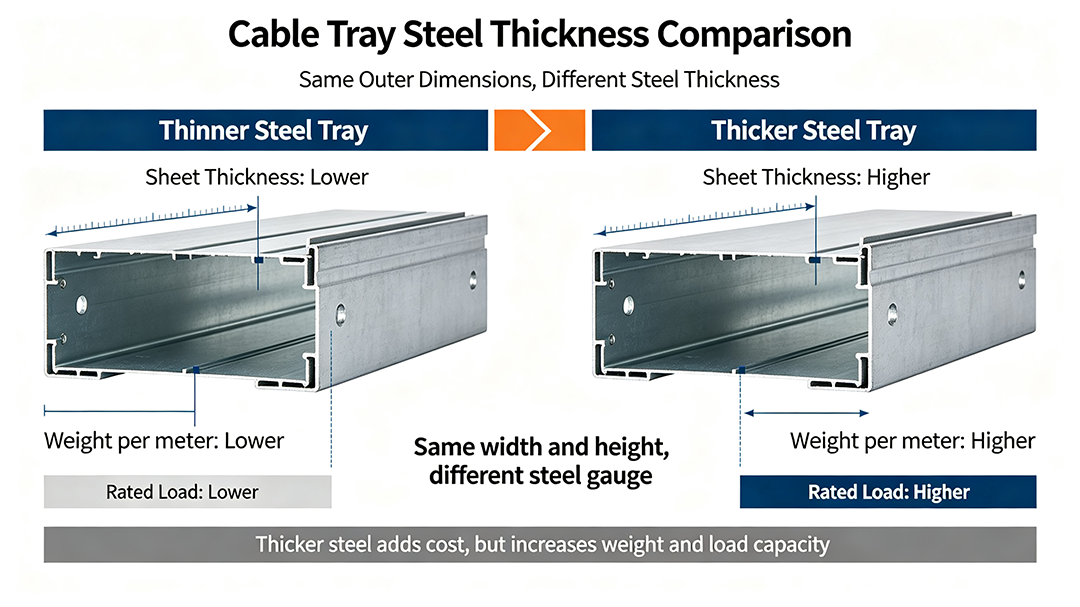

Because steel tray is priced largely by weight, sheet thickness has a direct effect on price. A thinner tray can look identical in a photo but carry less load and cost less. When you compare quotes, confirm the actual thickness of the sheet and the rated load at your support span, not just the width and height of the tray (our Cable Tray Load Capacity & Support Span guide explains how thickness and span interact).
The exact sheet thickness for the tray body, side rails, and covers
The weight per meter, which makes quotes easier to compare
The rated load at your intended support span

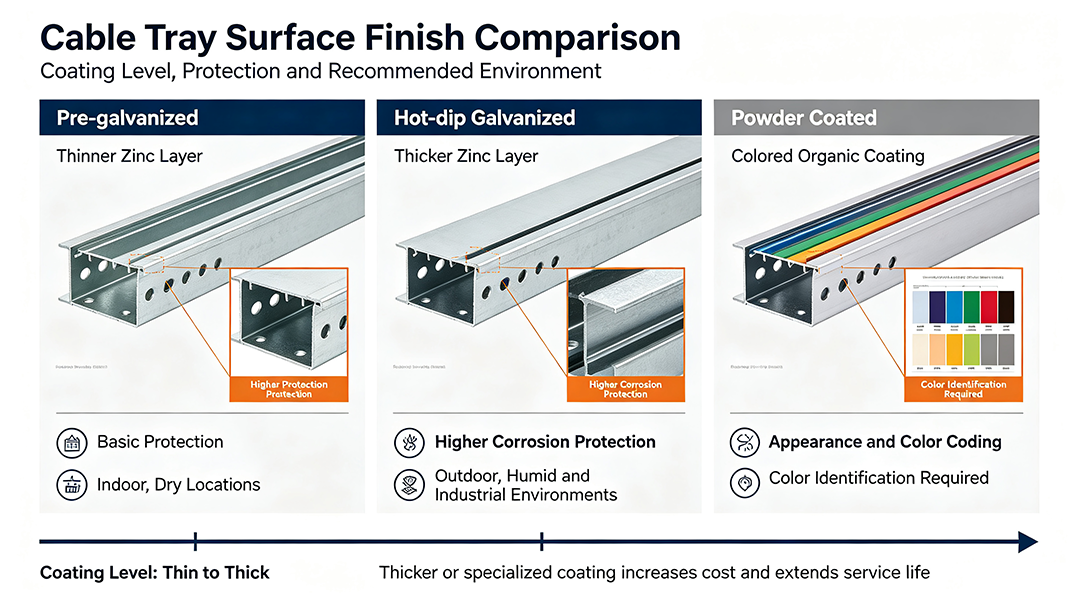

Finish determines both cost and service life. Pre-galvanized steel is cheaper and suits indoor, dry locations. Hot-dip galvanized (HDG) tray carries a thicker zinc layer and costs more, but lasts much longer outdoors and in humid or industrial environments. Powder coating is used mainly where appearance or color coding matters. A lower price on a quote sometimes reflects a lighter coating, so confirm the finish type and the coating thickness requirement together (see our HDG vs ZAM Cable Tray comparison for coating performance).
Pre-galvanized: lowest cost, suited to indoor, dry installations
Hot-dip galvanized: higher cost, suited to outdoor and corrosive environments
Powder coated: used where color or appearance matters, usually over a galvanized base for durability
Wider and taller tray uses more steel, so cost rises with the dimensions. Load class matters too: a heavy-duty tray designed for long support spans costs more than a light-duty tray designed for short spans. The tray type also affects price, since perforated, ladder, trough, and wire mesh designs each use different amounts of material and different manufacturing steps (see Trough vs Ladder Cable Tray and Wire Mesh vs Perforated Cable Tray for how they compare).
Straight tray length is only part of the bill. Bends, tees, reducers, covers, brackets, and hardware are priced separately and can add a significant share to the project total. A quote that looks cheap on straight length may be missing fittings the project needs, so ask for a complete list. Our Cable Tray Accessories Explained guide covers what a full installation typically requires.
Order volume affects the unit price, because production runs and container loading are more efficient at larger quantities. Cable tray is also bulky relative to its weight, so freight cost is a real share of the delivered price. The Incoterm in the quote decides what is included: an EXW price excludes freight entirely, FOB includes delivery to the port of loading, and CIF includes freight and insurance to the destination port. Comparing an EXW quote with a CIF quote without adjusting for this is one of the most common mistakes in price comparison. Our How to Import Cable Tray from China guide covers MOQ, lead time, packaging, and inspection in more detail.
Confirm the same specification. Material, sheet thickness, finish, width, height, and rated load should match across every quote.
Compare weight per meter. A big gap in weight for the same nominal size usually explains a big gap in price.
Check the finish and coating requirement. A cheaper quote may specify a lighter coating than your project needs.
Include fittings and accessories. Ask for a full bill of quantities, not just the straight length.
Match the Incoterms. Convert EXW, FOB, and CIF quotes to the same basis before comparing.
Ask about certification and testing. Third-party test reports and standards compliance can affect cost, and should be part of the comparison where the project requires them.
Cable tray price comes down to material, thickness, finish, size and load class, and the quantity and shipping terms behind the quote. The lowest price per meter is rarely the lowest cost per project if it hides thinner steel, a lighter coating, missing fittings, or a different Incoterm. Comparing quotes on the same specification and the same terms, and asking for weight per meter and a full list of fittings, is the most reliable way to see what you are really paying for.
The usual causes are sheet thickness, finish, and what the quote includes. Thicker steel and a heavier galvanized coating cost more, and a quote that leaves out fittings, covers, or freight will look cheaper than one that includes them. Comparing weight per meter and confirming the Incoterm usually explains most of the gap.
For outdoor, humid, or industrial installations, usually yes, because the thicker zinc layer lasts much longer and reduces replacement and maintenance cost over the life of the project. For dry indoor installations, pre-galvanized tray is often sufficient, and the extra cost of hot-dip galvanizing may not be justified.
Generally yes, because production and container loading are more efficient at higher volumes, though the effect depends on the product and the supplier. For a first order, it is worth asking for price breaks at several quantity levels so you can see where the unit price improves.
