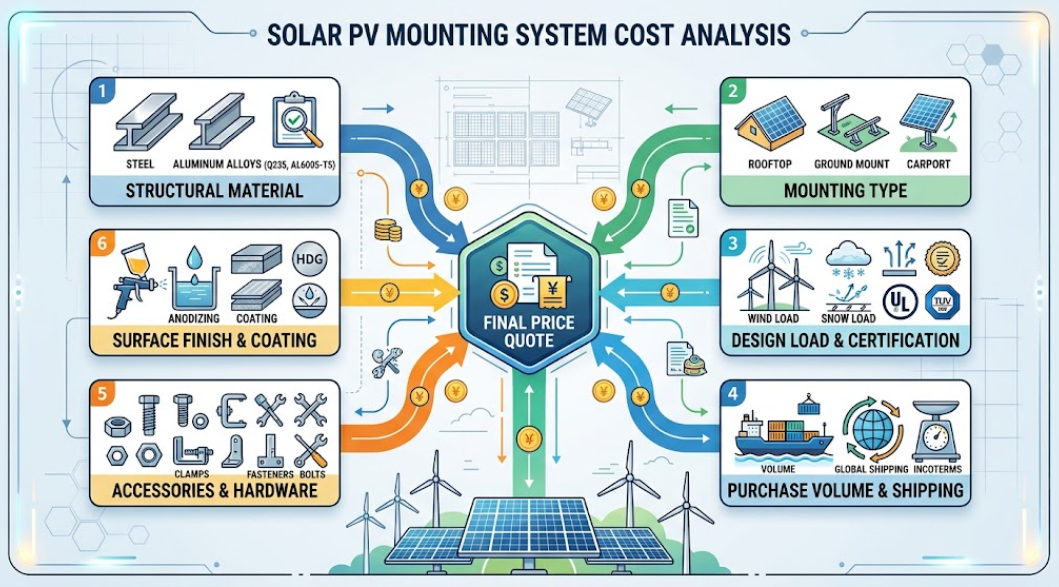

Solar mounting system price is driven mainly by five things: the structural material, the mounting type (roof, ground, carport, or floating), the design load and certification requirements, the surface finish, and the order quantity and shipping terms. Two quotes for the same array size can differ widely because one is designed for a lower wind load, uses a lighter coating, or leaves out parts the other includes, so comparing price per kW alone can be misleading. This guide explains what actually moves the price and how to compare quotes on equal terms.
Cost factor | What changes the price | Effect on cost |
|---|---|---|
Structural material | Aluminum, hot-dip galvanized steel, or a mix of both | Large; material choice sets the base cost and the weight to ship |
Mounting type | Rooftop, ground mount, carport, floating | Large; each type needs a different amount of structure and foundation |
Design load and certification | Wind and snow load, site conditions, UL 2703 / IEC 62817 requirements | Medium to large; higher loads need more steel or aluminum and stronger connections |
Surface finish and coating | Zinc coating thickness, anodizing, stainless steel hardware | Medium; heavier protection costs more but lasts longer in harsh environments |
Accessories and hardware | Clamps, rails, brackets, grounding parts, fasteners | Medium; easy to leave out of a quote and add back later |
Quantity and shipping | Order volume, packaging, Incoterms (EXW / FOB / CIF) | Medium; freight is a real share of the landed cost for heavy steel |
Material sets the base cost. Hot-dip galvanized steel offers high structural strength for a lower material price, which is why it dominates ground mount and carport frameworks. Aluminum costs more per unit of structural capacity but is light and naturally corrosion resistant, which suits rooftop and rail-based systems. Many projects use both, with steel for the main structure and aluminum for rails and clamps (see our Aluminum vs Galvanized Steel Solar Mounting comparison for where each one fits).
Match the material to the structure type rather than using one material across the entire project
Compare total installed cost, not just material price, since aluminum's lighter weight can reduce transport and installation labor
Confirm the steel grade and the aluminum alloy in the quote, since cheaper quotes sometimes use lower grades

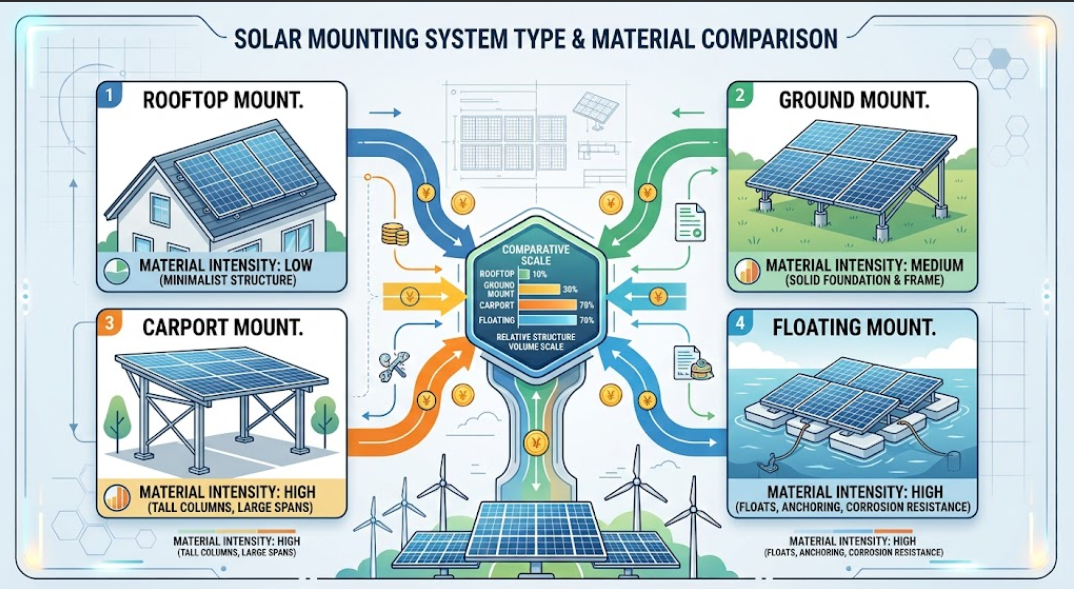

The mounting type changes how much structure the project needs. A rooftop system is the lightest, since the building already provides the support. A ground mount needs posts, foundations, and a larger frame. A carport needs tall columns and beams strong enough to span parking bays. Floating systems need floats, anchoring, and corrosion-resistant components for water exposure (see our Roof vs Ground vs Carport Solar Mounting comparison and Floating Solar Mounting System guide for how they differ).
Whether foundations, piles, or ballast are included in the quote or priced separately
The tilt angle and row spacing the quote is based on, since these change the amount of structure per kW
Whether the design is fixed tilt or adjustable (our Adjustable Tilt vs Fixed Tilt guide covers the trade-offs)

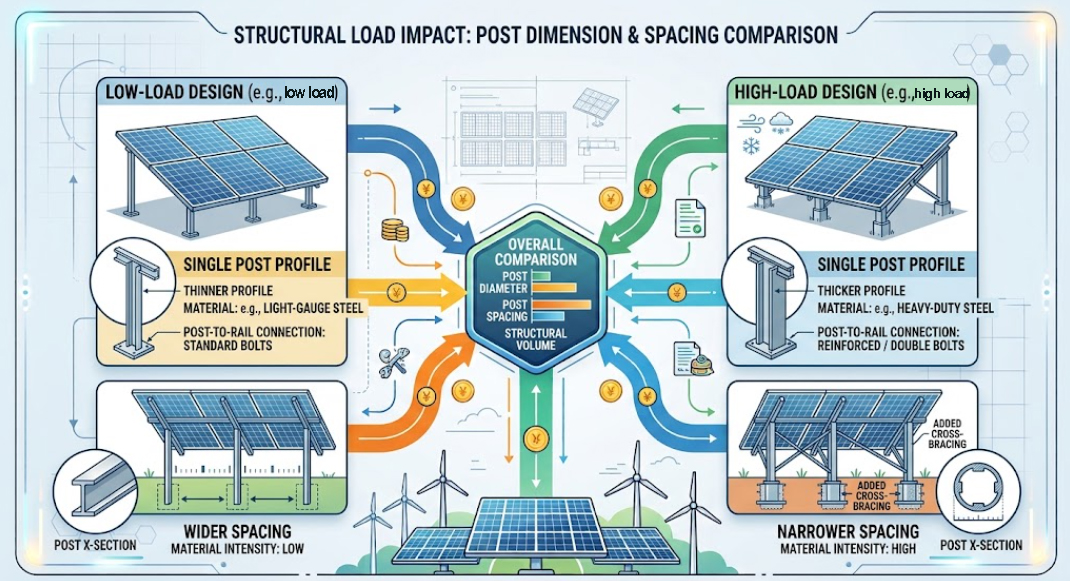

Wind load and snow load are major cost drivers, because a structure designed for a high-wind or heavy-snow site needs thicker members, closer support spacing, or stronger connections. A quote built on a lower design load will look cheaper but may not meet the site's requirement. Certification matters too: structures designed and tested to UL 2703 or IEC 62817 carry engineering and testing costs that a non-certified product may not (see our Solar Mounting System Standards & Certifications guide for what each standard covers).
The wind speed, snow load, and site conditions the structural design is based on
Whether the quote includes a structural calculation report for the project
Which standards and test reports apply to the product being quoted
Finish determines both cost and service life. A thicker hot-dip galvanized coating costs more but lasts longer in humid, coastal, or industrial environments. Aluminum is usually anodized, and stainless steel fasteners cost more than plated ones but resist corrosion better. A lower price sometimes reflects a lighter coating, so confirm the coating thickness requirement along with the material.
The main structure is only part of the bill. Clamps, rails, brackets, grounding components, and fasteners are often priced separately, and a quote that leaves them out will look cheaper than one that includes them. Ask for a full bill of materials so the comparison covers everything the installation needs (our Solar Mounting Accessories Explained guide covers what a complete system typically includes).
Order volume affects unit price because production runs and container loading are more efficient at larger quantities. Steel mounting structures are heavy, so freight is a real share of the delivered cost. The Incoterm in the quote decides what is included: EXW excludes freight entirely, FOB includes delivery to the port of loading, and CIF includes freight and insurance to the destination port. Comparing an EXW quote with a CIF quote without adjusting for this is one of the most common mistakes in price comparison. Our How to Import Solar Mounting Systems from China guide covers MOQ, lead time, packaging, and inspection in more detail.

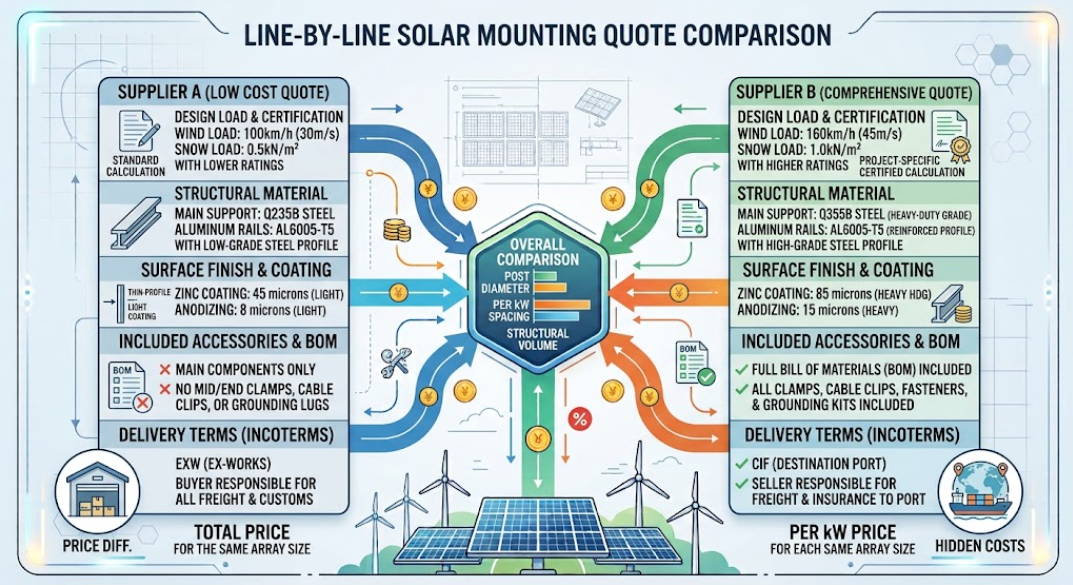

Confirm the same project basis. Array size, mounting type, tilt angle, and module dimensions should match across every quote.
Match the design load. Wind speed, snow load, and site conditions should be the same, or the structures are not comparable.
Compare material and coating. Check the steel grade, aluminum alloy, and coating thickness in each quote.
Request a full bill of materials. Make sure clamps, rails, grounding parts, and fasteners are included in every quote.
Check what is excluded. Foundations, installation, and structural calculation reports are often priced separately.
Match the Incoterms. Convert EXW, FOB, and CIF quotes to the same basis before comparing.
Solar mounting price comes down to the material, the mounting type, the design load and certification, the finish, and the quantity and shipping terms behind the quote. The lowest price per kW is rarely the lowest cost per project if it hides a lower design load, a lighter coating, missing accessories, or a different Incoterm. Comparing quotes on the same project basis and the same terms, and asking for a full bill of materials, is the most reliable way to see what you are really paying for.
The usual causes are the design load, the coating, and what the quote includes. A structure designed for a lower wind or snow load uses less material, and a quote that leaves out accessories, foundations, or freight will look cheaper than one that includes them. Confirming the design basis and requesting a full bill of materials usually explains most of the gap.
Galvanized steel is usually cheaper per unit of structural capacity, which is why it is common for ground mount and carport frameworks. Aluminum costs more in material but can reduce transport and installation cost on rooftops because it is lighter. The lower total cost depends on the project type, so compare installed cost rather than material price alone.
It can, because designing and testing to standards such as UL 2703 or IEC 62817 involves engineering and test costs. For projects where certification is required by the market, the owner, or the financing party, a certified system avoids the cost of delays or rework later, so it is worth including in the comparison rather than treating it as an optional extra.
Need a quote for your project? Browse our ground solar mounting, roof solar mounting, and solar carport systems, or contact our team with your project size and site conditions.
