Choosing between a cable tray and cable ladder is an important decision when designing a reliable cable management system. Both systems are widely used for supporting and routing power cables, control cables, instrumentation cables and communication cables, but they are designed for different project requirements.
The right choice depends on factors such as cable weight, ventilation requirements, installation environment, cable quantity, span length, maintenance access and project budget.
In this guide, we compare cable tray vs cable ladder and explain which solution is better for industrial plants, data centers, solar power projects, commercial buildings and other electrical installations.
A cable tray is a support system designed to organize and protect cables along a defined route.
Common cable tray designs include:
Perforated cable tray
Solid-bottom cable tray
Trough cable tray
Ladder-type cable tray
Wire mesh cable tray
Perforated cable trays are especially popular because the perforations provide ventilation while also allowing cables to be secured and accessories to be installed conveniently.
Cable trays are commonly used in:
Industrial plants
Commercial buildings
Data centers
Manufacturing facilities
Power distribution systems
Solar PV projects
Infrastructure projects
A cable ladder is a cable support system consisting primarily of two longitudinal side rails connected by horizontal rungs.
The open structure provides excellent ventilation and makes it easy to install, inspect and maintain large quantities of cables.
Cable ladders are particularly suitable for:
Heavy power cables
Large cable bundles
Long cable runs
Industrial plants
Power plants
Solar farms
Data centers
Utility and infrastructure projects
For projects with large and heavy cables, cable ladder systems can provide strong mechanical support while keeping the installation accessible.

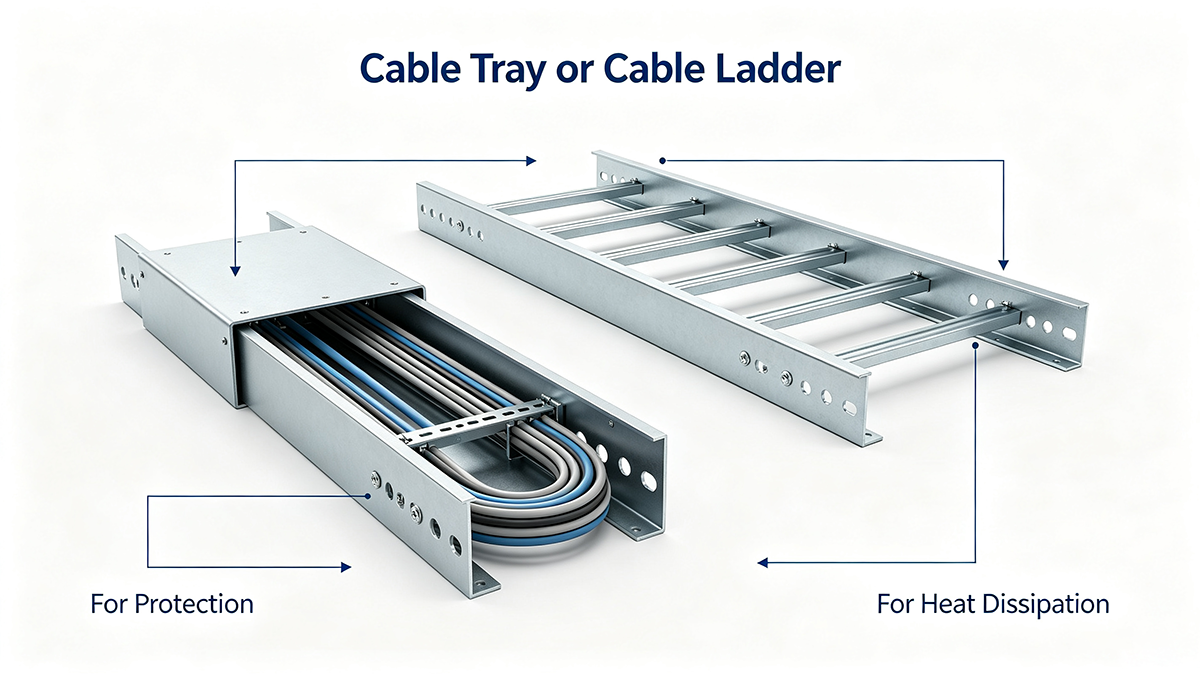

The main difference is the structure.
A cable tray provides a continuous or semi-continuous surface for cables, while a cable ladder supports cables on horizontal rungs.
Feature | Cable Tray | Cable Ladder |
|---|---|---|
Structure | Solid or perforated bottom | Side rails with rungs |
Ventilation | Good to excellent | Excellent |
Heavy cable support | Good | Excellent |
Large cable bundles | Good | Excellent |
Cable access | Good | Excellent |
Heat dissipation | Good | Excellent |
Installation | Simple | Simple |
Maintenance | Easy | Very easy |
Typical application | General cable management | Heavy-duty cable management |
Long cable runs | Suitable | Highly suitable |
Industrial projects | Excellent | Excellent |
There is no universal winner. The best solution depends on the cable type and project conditions.
A cable tray is usually the better choice when you need a versatile cable management solution for a wide range of cables.
Cable trays are suitable for routing power, control, instrumentation and communication cables throughout factories and industrial facilities.
If a project contains different types and sizes of cables, a perforated or trough cable tray can provide a practical and organized routing solution.
The tray surface provides additional support for cables and can help keep the cable installation organized.
Cable trays are commonly used for electrical installations in commercial buildings, warehouses, hospitals and other facilities.
Depending on the design, cable trays can offer an economical solution for general-purpose cable management.
Cable ladders are often preferred when mechanical strength, ventilation and accessibility are major priorities.
Cable ladders are particularly suitable for large and heavy cables because the ladder structure provides strong support while maintaining good ventilation.
For long-distance cable routing, cable ladder systems can provide efficient support and convenient installation.
The open structure allows air to circulate around cables, helping heat dissipate more effectively.
Cable ladders are widely suitable for power plants, manufacturing plants, substations and other heavy-duty electrical installations.
When many large cables need to be routed together, a cable ladder can provide excellent accessibility for installation and maintenance.
Different projects have different cable management requirements.
For manufacturing facilities, either cable tray or cable ladder can be suitable.
For general electrical and control cables, perforated cable trays are often a practical choice.
For heavy power cables and long cable routes, cable ladders may be preferable.
Data centers require organized cable routing, good ventilation and easy maintenance.
Cable trays can be suitable for many data and power cable applications, while ladder systems may be selected for heavier power cable routes.
The final selection should consider cable type, separation requirements, loading and the project's electrical design.
Solar PV projects often involve long cable routes and outdoor installation.
Cable ladder systems can be useful for heavy power cable routes, while cable trays can be used for other cable management requirements.
For outdoor solar projects, material selection is also important. Hot-dip galvanized steel, zinc-aluminum-magnesium steel and other corrosion-resistant solutions may be considered depending on the environment.
Cable trays are often a practical choice for commercial buildings because they can accommodate different cable types and provide an organized installation.
Heavy-duty cable ladder systems are often preferred for large power cables and demanding industrial environments.
Generally, cable ladder systems provide better natural ventilation because cables are supported on open rungs with large spaces between them.
Cable trays can also provide good ventilation, particularly perforated cable trays.
For installations where heat dissipation is a major consideration, the cable type, cable loading, ambient temperature and installation arrangement should all be evaluated rather than choosing solely based on tray type.
For heavy power cables, cable ladder is generally the preferred option.
Its side rails and rungs provide strong mechanical support while maintaining an open structure.
However, the final selection should be based on:
Cable weight
Cable diameter
Tray or ladder width
Support span
Deflection requirements
Installation environment
Required load capacity
A properly engineered cable tray can also support significant cable loads when the appropriate material thickness, width, reinforcement and support spacing are selected.
The material is just as important as the cable management design.
Common materials include:
HDG cable trays and ladders provide good corrosion resistance and are widely used in industrial and outdoor applications.
ZAM cable tray systems provide excellent corrosion resistance and can be particularly attractive for demanding outdoor and tropical environments.
Powder-coated cable trays can provide an additional protective coating and are available in different colors according to project requirements.
Stainless steel cable trays and ladders may be selected for highly corrosive environments where additional corrosion resistance is required.
Before selecting a system, consider these seven factors:
Calculate the total cable load per meter.
Large-diameter cables may require wider or stronger support systems.
Longer support spans generally require stronger tray or ladder construction.
Consider whether the system will be installed indoors, outdoors, underground, near the coast or in a high-humidity environment.
For outdoor, coastal and tropical projects, material and surface treatment should be carefully selected.
If heat dissipation is critical, an open cable ladder or perforated cable tray may be appropriate.
Leave sufficient capacity for future cable installation instead of designing the system only for today's cable load.
As a general rule:
Choose Cable Tray when:
You need general-purpose cable management
You have mixed cable types
You need a continuous support surface
The project requires flexible cable routing
You are working on commercial or industrial buildings
Choose Cable Ladder when:
You have heavy power cables
Cable ventilation is important
You have long cable runs
Cable access and maintenance are important
The project involves power plants or heavy industrial applications
However, project specifications, applicable standards and engineering calculations should always determine the final design.
Shenzhen Wanan Industrial Co., Ltd. is a manufacturer of cable management and electrical installation products in China, supplying cable trays, cable ladders and galvanized conduit systems for industrial and infrastructure applications.
Our cable tray solutions include different configurations, materials and surface treatments to meet project requirements.
We can provide:
Perforated Cable Tray
Trough Cable Tray
Cable Ladder
HDG Cable Tray
ZAM Cable Tray
Powder-Coated Cable Tray
Cable Tray Accessories
Galvanized Conduit
For projects with specific cable loads, dimensions or installation conditions, our engineering team can help recommend a suitable cable tray or cable ladder configuration.
So, cable tray vs cable ladder — which should you choose?
The answer depends on your project.
Choose a cable tray when you need a versatile and organized cable management system for general industrial, commercial or building applications.
Choose a cable ladder when you need strong support, excellent ventilation and easy access for heavy power cables and long cable routes.
For demanding projects, the best solution may even be a combination of cable trays and cable ladders in different sections of the installation.
The key is to select the system based on cable load, cable size, support span, environment, corrosion resistance, ventilation and future expansion requirements.
Tell us your cable type, cable quantity, required width, support span, installation environment and project location.
Shenzhen Wanan Industrial Co., Ltd. can recommend a suitable cable tray or cable ladder solution for your project.
Contact us for a cable tray or cable ladder quotation and technical recommendation.
Not always. Cable ladder is generally better for heavy power cables, long cable runs and applications requiring maximum ventilation. Cable tray is more versatile for general cable management.
A cable tray normally provides a continuous or perforated support surface, while a cable ladder uses side rails and horizontal rungs to support cables.
Yes. Properly designed cable trays can support heavy cable loads. The tray width, material thickness, reinforcement, support spacing and load capacity must be considered.
Yes. Cable ladders are widely used outdoors. The appropriate material and surface treatment should be selected according to the environmental conditions and corrosion risk.
Both can be used. The choice depends on the type of cables, loading, ventilation, cable segregation, installation space and project specifications.
Both cable trays and cable ladders can be used in solar PV projects. Cable ladders are often suitable for heavy power cable routes, while cable trays can be useful for other cable management sections.
