C-Shaped vs U-Shaped Steel for Solar Mounting: Which Profile Fits Your Structure?

Steel profiles are the structural backbone of any solar mounting system — the purlins, rails and support members that hold panels at the correct spacing and angle while carrying wind, snow and dead loads down to the foundation. Two profile shapes dominate solar racking design: C-shaped steel and U-shaped steel. They look similar at a glance, but the difference in cross-section shape changes how each performs structurally, and that difference should drive which one you specify. This guide breaks down how they compare and where each one fits best.

The Core Difference: Cross-Section Shape

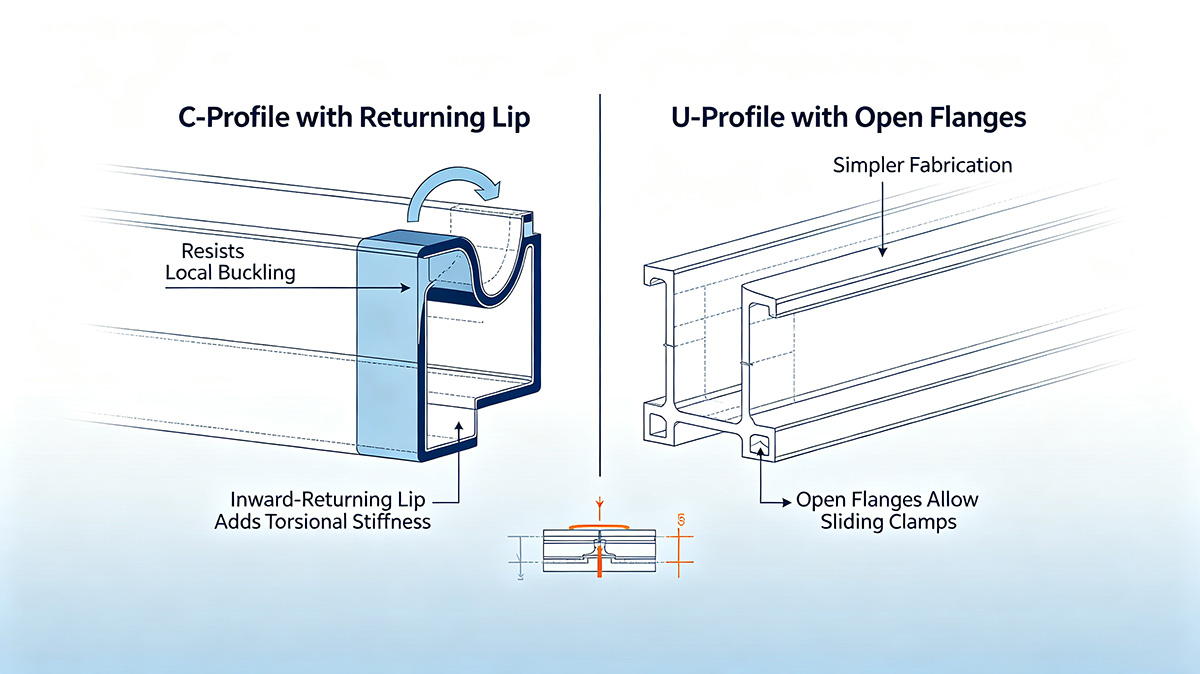

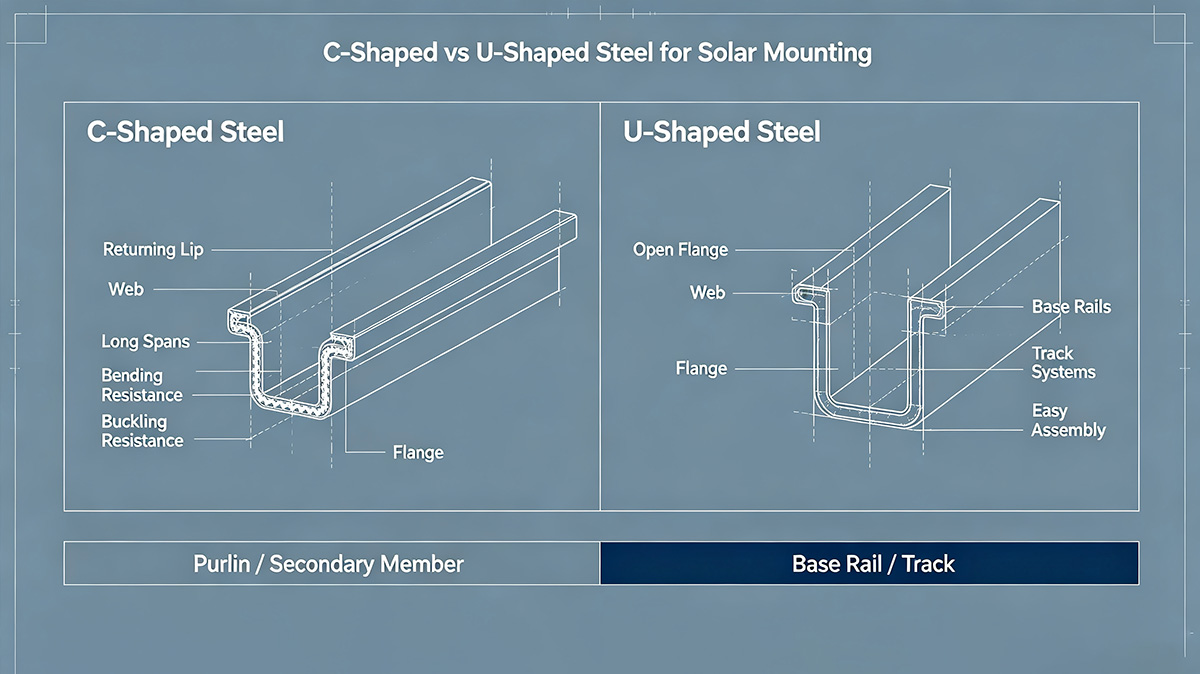

A C-shaped (or C-channel) profile has two inward-facing flanges with lips that curl back toward the web, forming a shape that looks like the letter "C" in cross-section. A U-shaped (or U-channel) profile has two flanges that run straight out from the web with no returning lip, forming an open "U" shape.

That lip is the key structural difference. The returning lip on a C-profile adds stiffness against twisting and local buckling along the flange edge, which is why C-shaped steel is the more common choice for members that span a distance and carry bending loads — like purlins supporting a row of panels. A U-profile without the lip is simpler to fabricate and nest for stacking, and its open flanges make it easier to slide brackets, clips or panel clamps onto during installation.

C-Shaped Steel: Where It's Used

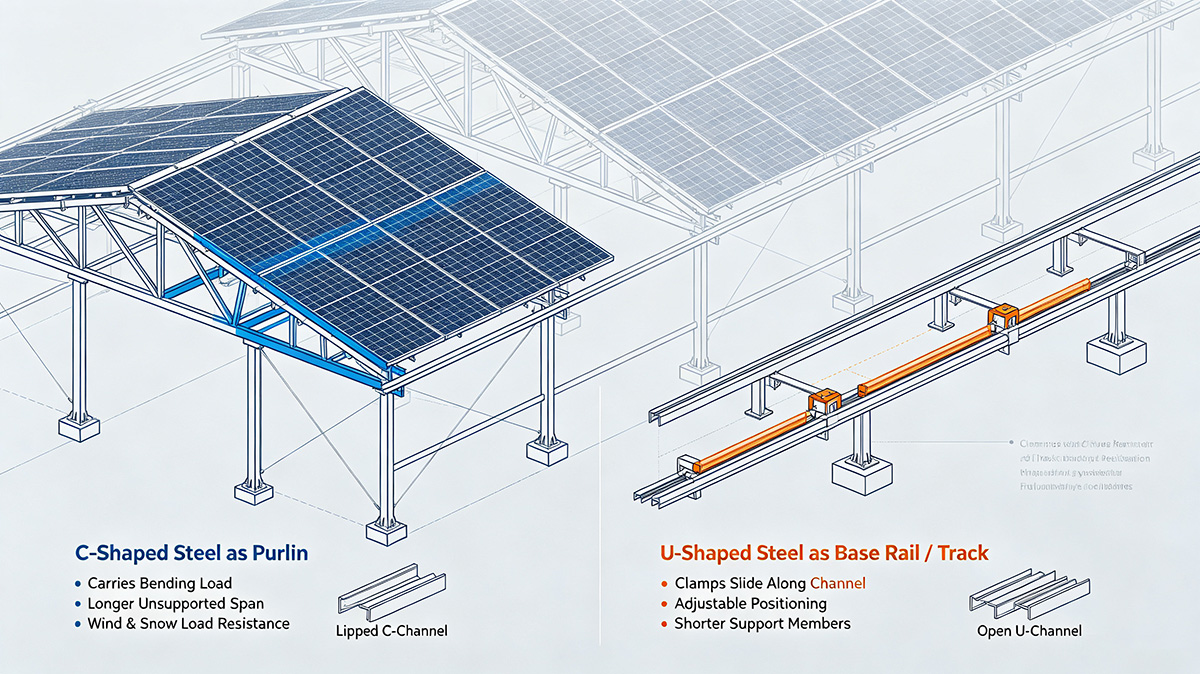

C-shaped steel is typically specified as the purlin or secondary support member that panels rest on — the horizontal (or sloped) members that span between primary support beams or rafters. Its lipped flange gives it better resistance to lateral-torsional buckling, which matters most on longer spans where the member is under significant bending load from panel weight, wind uplift and snow accumulation.

Where C-shaped steel makes sense

• Purlins and secondary structural members spanning between rafters or primary beams

• Rooftop and ground mount projects where longer unsupported spans require extra bending and buckling resistance

• Sites with higher wind or snow load requirements, where the added stiffness of the lip reduces the risk of flange buckling under load

U-Shaped Steel: Where It's Used

U-shaped steel is more commonly used where the primary requirement is a simple, open channel to slide components onto — track systems, base rails, or shorter support members where bending load is lower and ease of assembly matters more than maximum span capacity. Because it has no returning lip, brackets and clamps can be inserted or adjusted along the length of the channel without needing to align with pre-punched holes.

Where U-shaped steel makes sense

• Base rails and track-style mounting systems where clamps need to slide freely along the channel

• Shorter-span support members where bending load is lower and the extra stiffness of a lip isn't the limiting factor

• Applications prioritizing simpler fabrication and flexible on-site adjustment over maximum load capacity

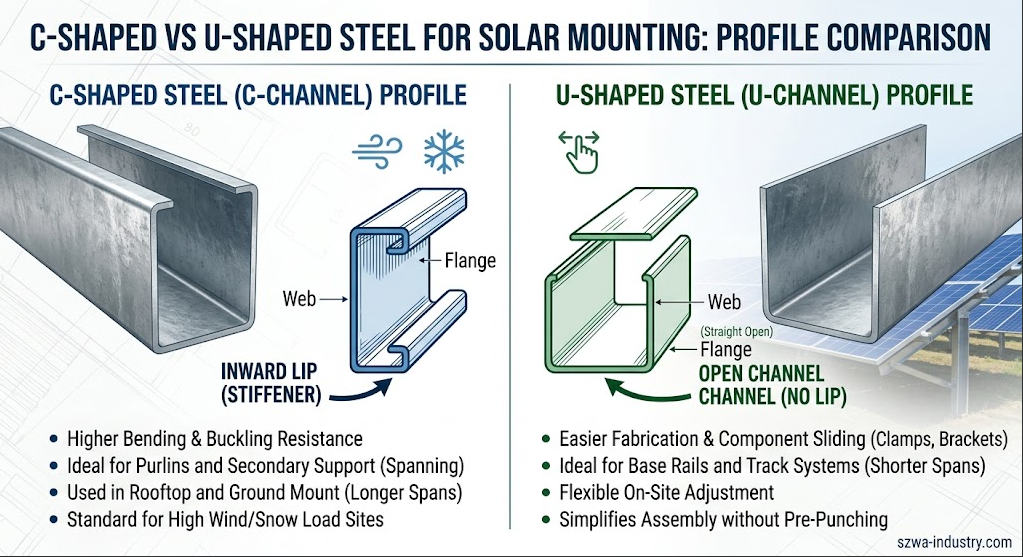

Comparing the Two

Material and Finish Considerations

Profile shape is only one part of the selection — material grade, thickness and surface finish matter just as much for a solar mounting structure's service life. Both C- and U-shaped steel for solar applications are typically specified in hot-dip galvanized (HDG) or, for coastal and high-corrosion sites, stainless steel or ZAM-coated steel, matching the same material logic used across the rest of a mounting system's components.

Thickness and steel grade should be selected based on the actual span, tributary load area and local wind/snow load requirements — a structural engineer or the racking supplier's engineering team should confirm the profile size and gauge for the specific site conditions rather than defaulting to a standard size across different projects.

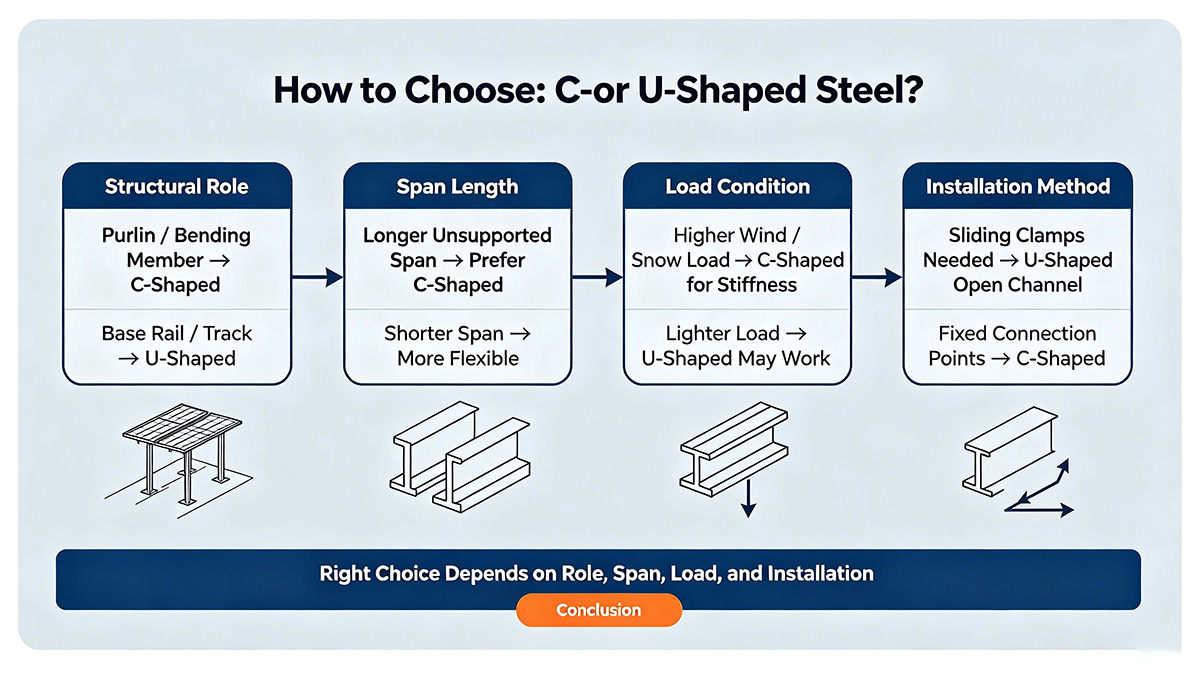

How to Decide

1. Identify the member's structural role first. If it's a purlin spanning between rafters and carrying bending load, C-shaped is generally the stronger default. If it's a base rail or track for sliding clamps, U-shaped is usually the simpler fit.

2. Check the span length. Longer unsupported spans benefit more from the lip's buckling resistance; shorter spans have more flexibility to use either profile.

3. Confirm local load requirements. Higher wind or snow load zones push the decision toward C-shaped steel for its added structural stiffness.

4. Factor in installation method. If the design calls for adjustable clamp positioning along the member's length, U-shaped steel's open channel makes that easier to achieve.

Conclusion

C-shaped and U-shaped steel aren't interchangeable — the lip on a C-profile gives it meaningfully better resistance to bending and buckling, making it the standard choice for purlins and longer-span structural members, while U-shaped steel's open channel favors base rails and track systems where sliding assembly and simpler fabrication matter more. The right choice comes down to the member's structural role, span length, and local load conditions — confirming this with an engineer or your racking supplier before finalizing a bill of materials avoids under- or over-specifying the structure.

FAQ

Can U-shaped steel be used as a purlin instead of C-shaped steel?

It can, but for longer spans or higher load conditions it typically requires a thicker gauge to compensate for the lack of a stiffening lip, which can offset any cost savings. For shorter spans and lighter loads, U-shaped steel can be a workable and simpler alternative.

Which profile is more corrosion resistant?

Neither shape is inherently more corrosion resistant — resistance comes from the material and finish (hot-dip galvanized, stainless steel, or ZAM coating), not the cross-section shape. Both profiles should be specified in the same finish appropriate for the site's exposure conditions.

Do C-shaped and U-shaped steel cost different amounts?

Per unit weight, cost is similar since both are cold-formed from the same steel grades. The cost difference in practice usually comes from the gauge and size needed to meet structural requirements — a thinner C-profile can sometimes replace a thicker U-profile for the same load, which can offset the price per piece.
