Selecting the right cable management system is one of the most important decisions during electrical project design. Whether you are building a data center, manufacturing facility, commercial building or solar power plant, choosing between a cable ladder and a cable tray directly affects installation efficiency, cable protection, maintenance and long-term operating costs.
Although these two systems are often mentioned together, they are designed for different applications. Understanding their structural differences, advantages and limitations helps engineers, contractors and project owners select the most suitable solution.
This article compares cable ladders and cable trays from multiple perspectives, including design, load capacity, ventilation, installation, applications and cost.

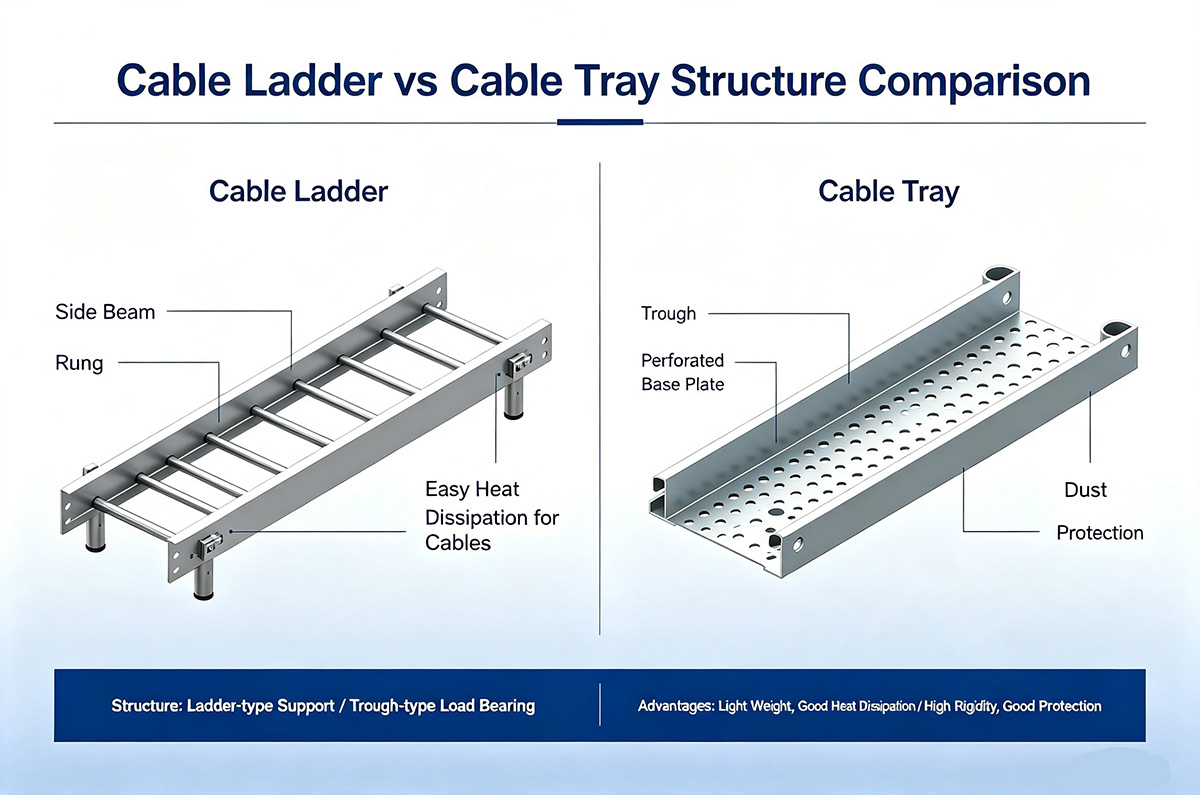

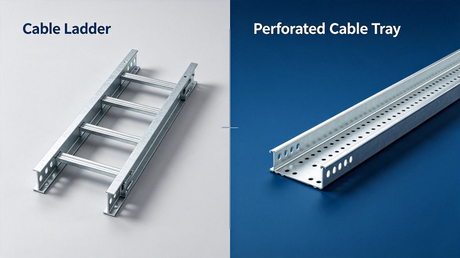

A cable ladder is an open cable support system consisting of two side rails connected by evenly spaced rungs. The open structure allows excellent airflow around cables while providing high mechanical strength.
Cable ladders are widely used for:
Heavy-duty power cables
Industrial facilities
Oil & gas plants
Power stations
Outdoor installations
Long cable runs
The open design helps dissipate heat generated by high-current power cables and simplifies cable inspection and maintenance.
A cable tray is a continuous cable support system designed to organize and protect electrical cables. Depending on project requirements, cable trays are available in several configurations, including perforated cable trays, solid-bottom cable trays and wire mesh cable trays.
Cable trays are commonly used in:
Commercial buildings
Data centers
Hospitals
Office buildings
Shopping malls
Industrial plants
Compared with cable ladders, cable trays provide better support for smaller cables and offer improved protection against dust and accidental contact.
Feature | Cable Ladder | Cable Tray |
|---|---|---|
Structure | Open rung design | Continuous base with or without perforations |
Ventilation | Excellent | Good |
Cable Protection | Moderate | Excellent |
Heavy Power Cables | Excellent | Very Good |
Small Control Cables | Good | Excellent |
Heat Dissipation | Excellent | Good |
Maintenance | Easy | Easy |
Outdoor Applications | Excellent | Excellent |
Data Centers | Good | Excellent |
Load capacity is one of the biggest differences between these systems.
Cable ladders are designed to support heavy power cables over long spans. Their rigid construction provides excellent strength while reducing the number of supports required.
Cable trays also provide sufficient load capacity for many commercial and industrial applications, especially when carrying communication cables, instrumentation cables and medium-weight power cables.
For projects involving multiple large-diameter power cables, cable ladders are generally the preferred option.
Electrical cables generate heat during operation. Proper ventilation improves cable performance and extends service life.
Because cable ladders have an open rung structure, air circulates freely around the cables, making them ideal for high-current applications.
Perforated cable trays also provide ventilation through punched holes, although airflow is lower than that of cable ladders.
Solid-bottom cable trays provide maximum cable protection but offer the least ventilation.
Cable ladders are relatively simple to install because cables can be laid directly across the rungs.
Cable trays require additional attention to cable arrangement but provide a cleaner appearance, especially in commercial buildings and data centers where cable organization is important.
Both systems support horizontal and vertical installations using appropriate fittings and accessories.
Power plants
Industrial factories
Petrochemical facilities
Mining projects
Outdoor substations
Heavy-duty electrical systems
Data centers
Office buildings
Hospitals
Commercial buildings
Airports
Manufacturing plants

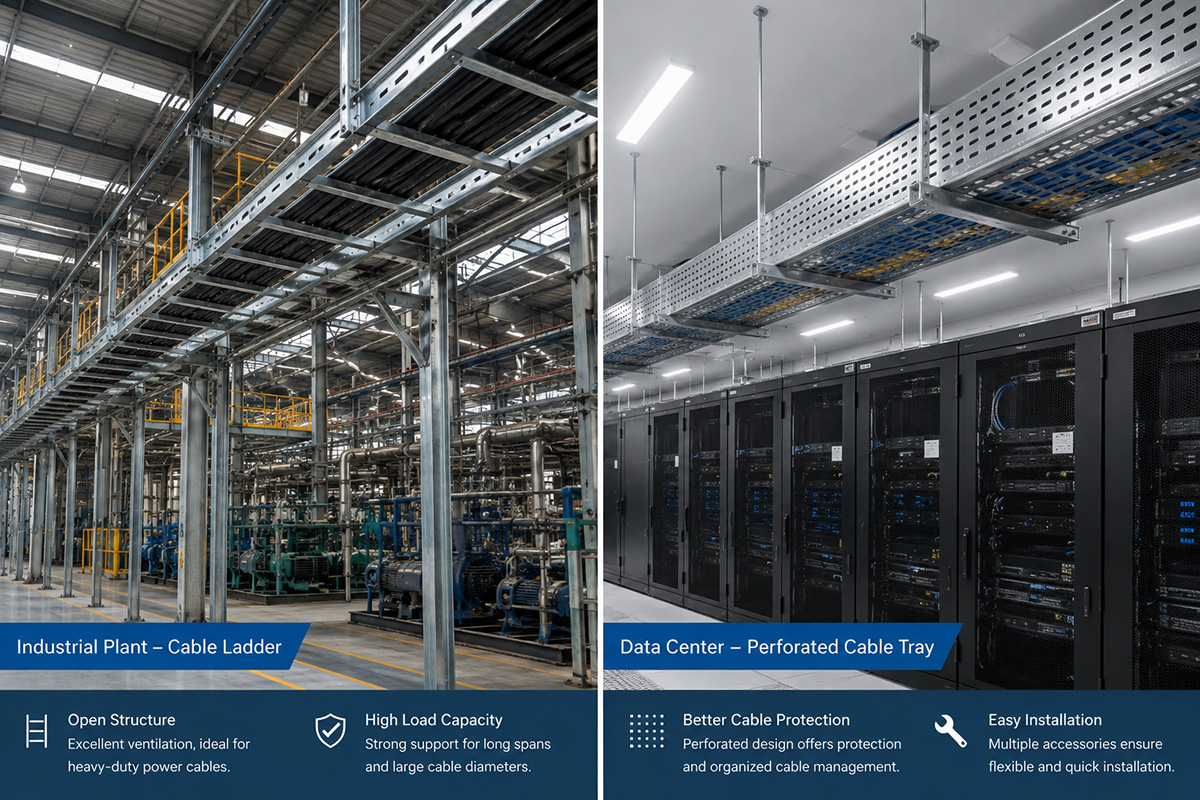

Modern data centers contain thousands of communication and power cables that require organized routing and easy maintenance.
Perforated cable trays and wire mesh cable trays are widely used because they provide excellent cable organization, flexibility and accessibility.
Cable ladders are typically selected for high-capacity power distribution systems where larger power cables require improved ventilation and load support.
Many large data centers use both systems together, selecting the most appropriate solution for different cable types.
Both cable ladders and cable trays are available in different materials to meet various environmental conditions.
Common materials include:
Pre-Galvanized Steel

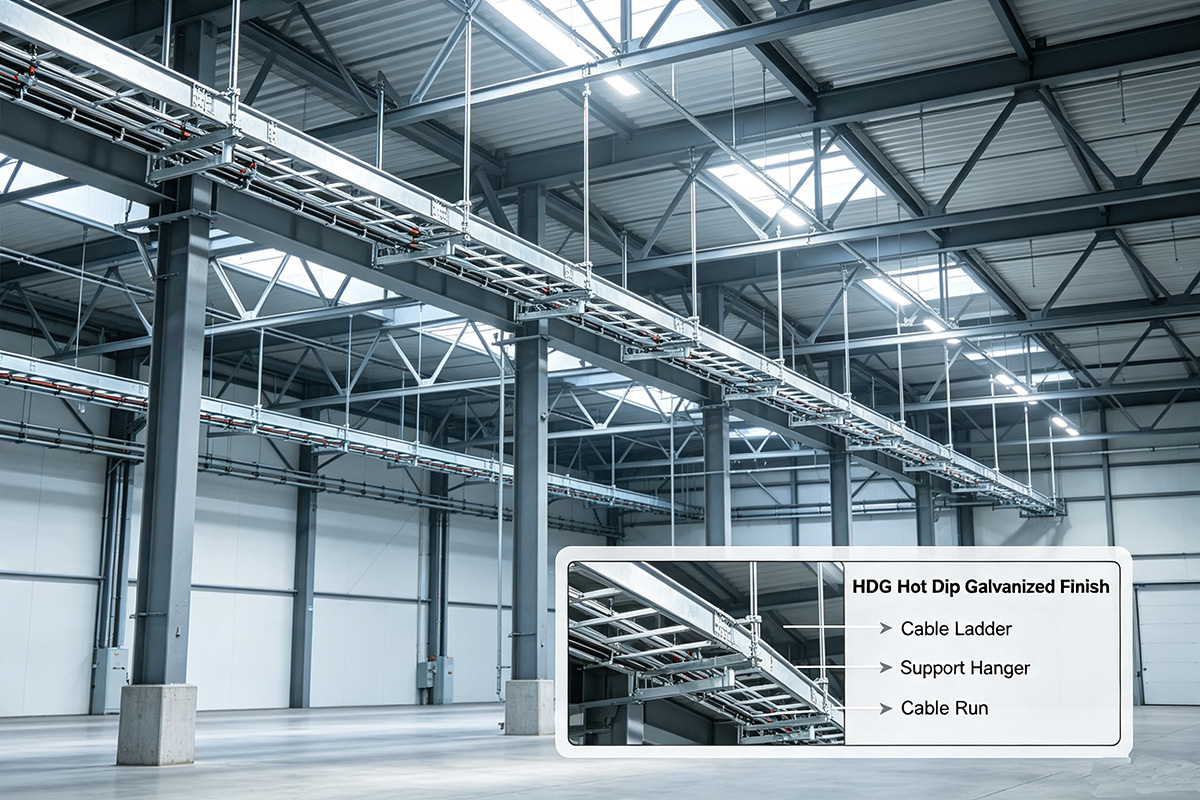

Hot-Dip Galvanized Steel (HDG)
Zinc Aluminum Magnesium (ZAM)
Stainless Steel 304
Stainless Steel 316
Aluminum Alloy
For humid or coastal environments, corrosion-resistant materials such as HDG, ZAM or stainless steel are recommended to extend service life.
When selecting a cable management system, consider the following factors:
Cable type
Cable quantity
Cable weight
Installation environment
Ventilation requirements
Future expansion
Project budget
Local electrical standards
Choosing the right combination of material, size and support spacing ensures reliable long-term performance.

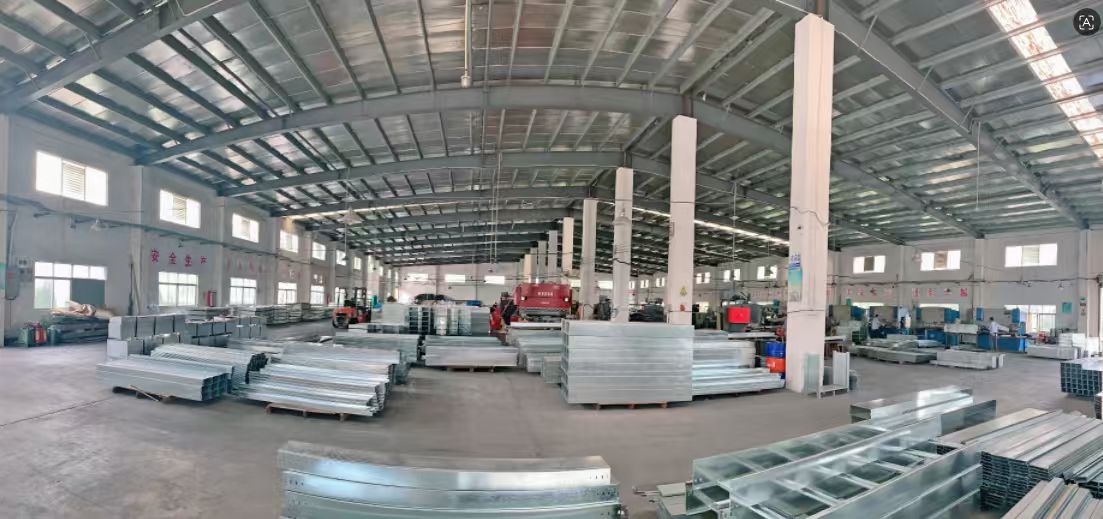

Shenzhen Wanan Industrial Co., Ltd. manufactures cable management solutions for industrial, commercial and infrastructure projects worldwide.
Our product range includes:
Cable Trays
Cable Ladders
Cable Trunking
Wire Mesh Cable Trays
HDG Cable Trays
ZAM Cable Trays
Galvanized Steel Conduits
Solar Mounting Systems
We provide OEM and ODM manufacturing services with strict quality control to meet the requirements of global customers.
Both cable ladders and cable trays play important roles in modern cable management systems. Cable ladders are ideal for heavy-duty power cable installations requiring superior ventilation and load capacity, while cable trays provide better cable organization and protection for commercial buildings, industrial facilities and data centers.
Selecting the right system depends on the project's electrical design, installation environment and maintenance requirements. Understanding these differences allows engineers and project owners to make informed decisions that improve safety, efficiency and long-term reliability.
