Cable Tray Selection Guide for Data Center Projects

Modern data centers require highly reliable electrical infrastructure to support uninterrupted operation. As power density and cable volume continue to increase, selecting the right cable tray system becomes an essential part of project design.

An appropriate cable tray not only provides mechanical support for power and communication cables but also improves airflow, simplifies maintenance, and extends the service life of the entire electrical system.

This guide explains the key factors engineers, consultants, EPC contractors, and procurement teams should consider when selecting cable trays for data center projects.

Why Cable Tray Selection Matters

Data centers operate 24/7, making system reliability a top priority. Improper cable tray selection may lead to:

• Poor cable organization

• Difficult future expansion

• Reduced cooling efficiency

• Corrosion in humid environments

• Increased maintenance costs

• Shortened service life

Choosing the right cable tray at the design stage significantly reduces operational risks throughout the project lifecycle.

Step 1: Select the Right Cable Tray Type

Different cable tray types are designed for different applications.

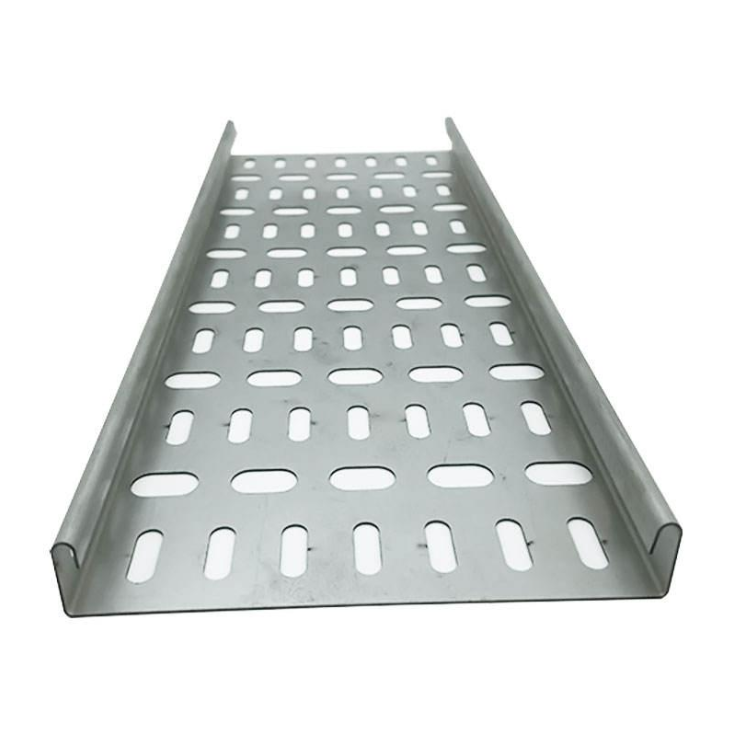

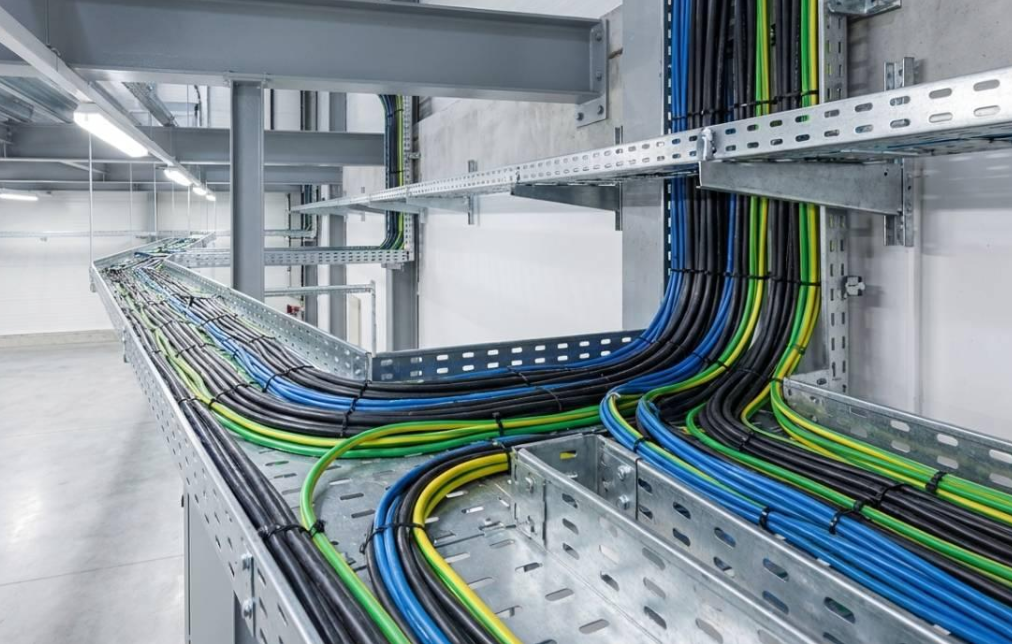

Perforated Cable Tray

Recommended for:

• Data centers

• Commercial buildings

• Industrial facilities

Advantages:

• Excellent ventilation

• Easy cable routing

• Lightweight

• Cost-effective

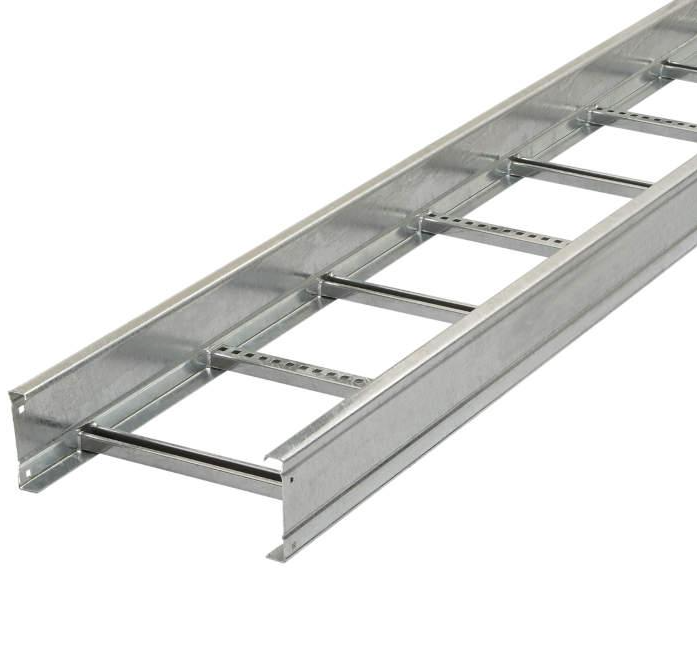

Cable Ladder

Recommended for:

• Large power cables

• Heavy cable loads

• Long-span installations

Advantages:

• Maximum ventilation

• High load capacity

• Easy cable installation

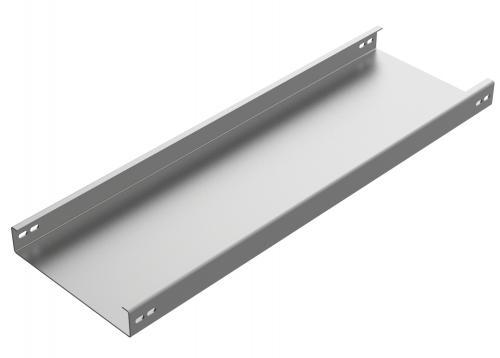

Solid Bottom Cable Tray

Recommended for:

• Fiber optic systems

• Sensitive communication cables

• Dust-sensitive environments

Advantages:

• Better cable protection

• Reduced dust accumulation

• Improved electromagnetic shielding

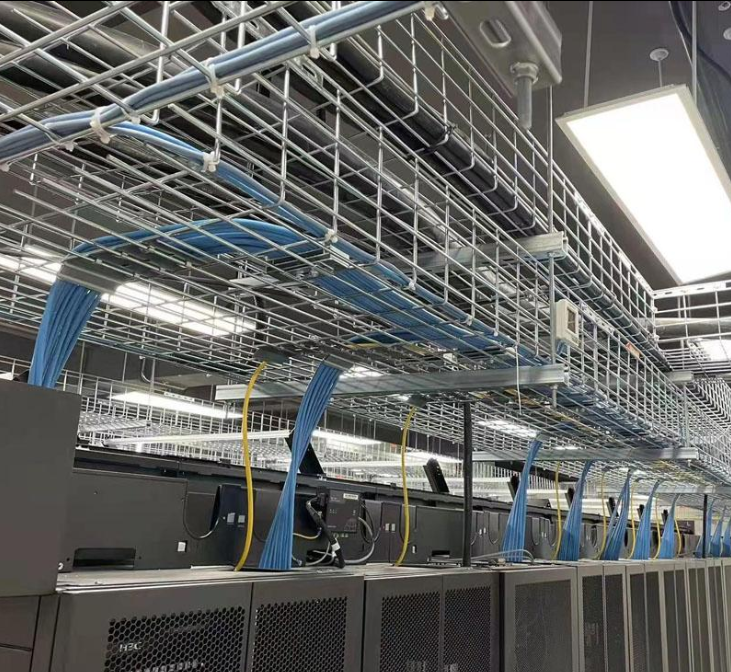

Wire Mesh Cable Tray

Recommended for:

• IT rooms

• Server cabinets

• Low-voltage communication systems

Advantages:

• Excellent airflow

• Flexible installation

• Quick cable modifications

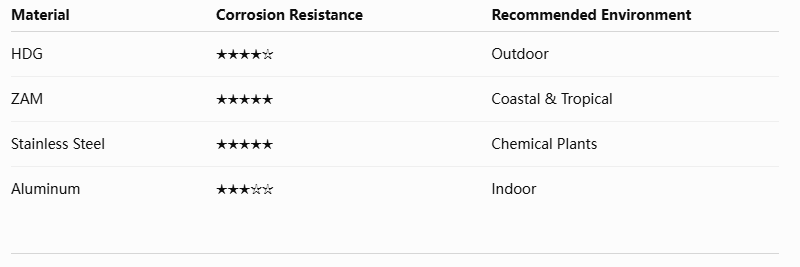

Step 2: Choose the Appropriate Material

Material selection depends on the project environment.

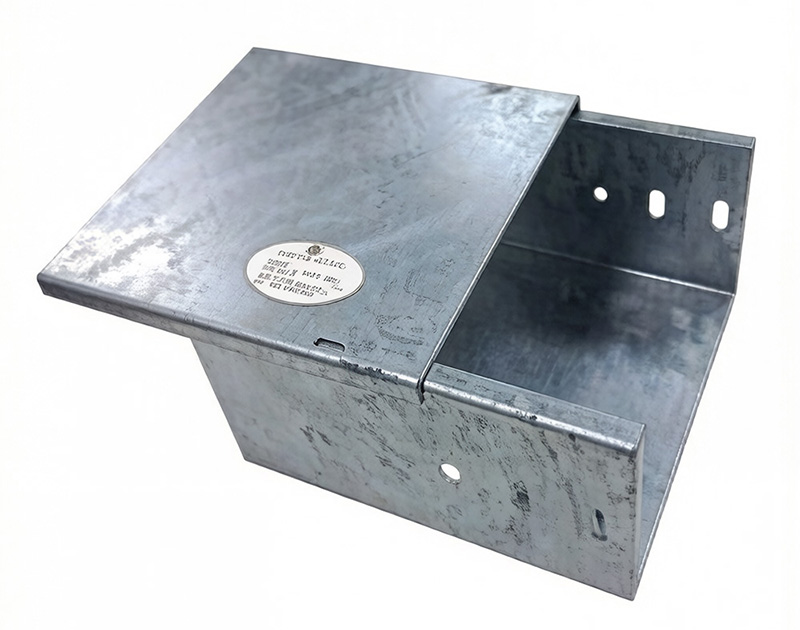

Hot Dip Galvanized Steel (HDG)

Suitable for:

• Outdoor installations

• Industrial environments

• Heavy-duty applications

Advantages:

• Excellent corrosion resistance

• Long service life

• High mechanical strength

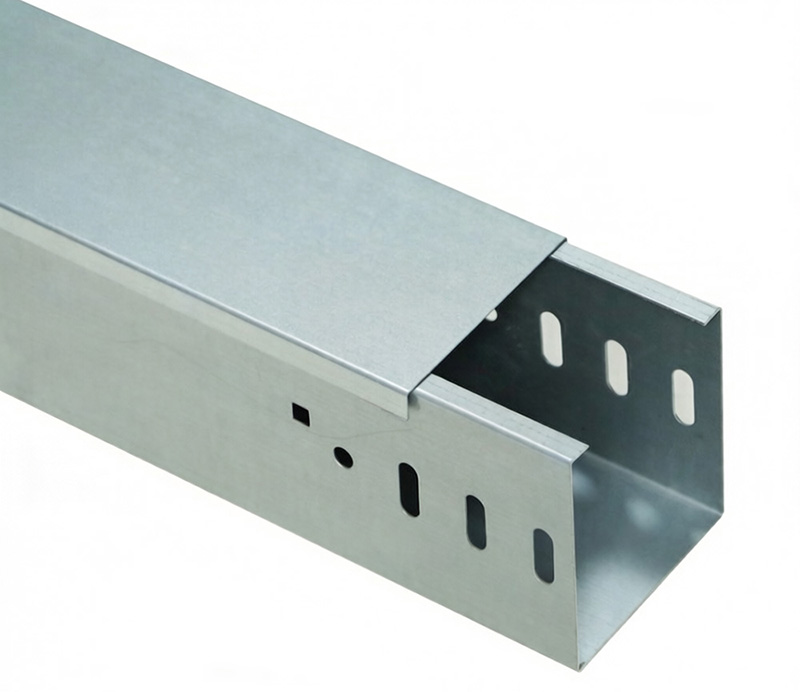

Zinc Aluminum Magnesium (ZAM)

Recommended for:

• Coastal regions

• Tropical climates

• Southeast Asia

• Middle East

Advantages:

• Outstanding corrosion resistance

• Self-healing protection

• Lower maintenance costs

• Longer lifespan than conventional galvanized steel

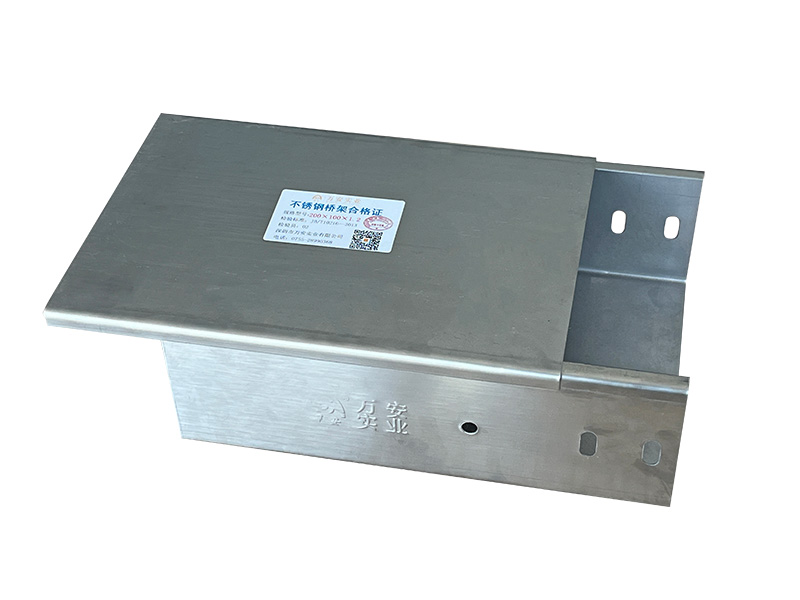

Stainless Steel (SS304 / SS316)

Recommended for:

• Chemical plants

• Marine environments

• Food processing

• Pharmaceutical facilities

Advantages:

• Superior corrosion resistance

• Hygienic

• Long-term durability

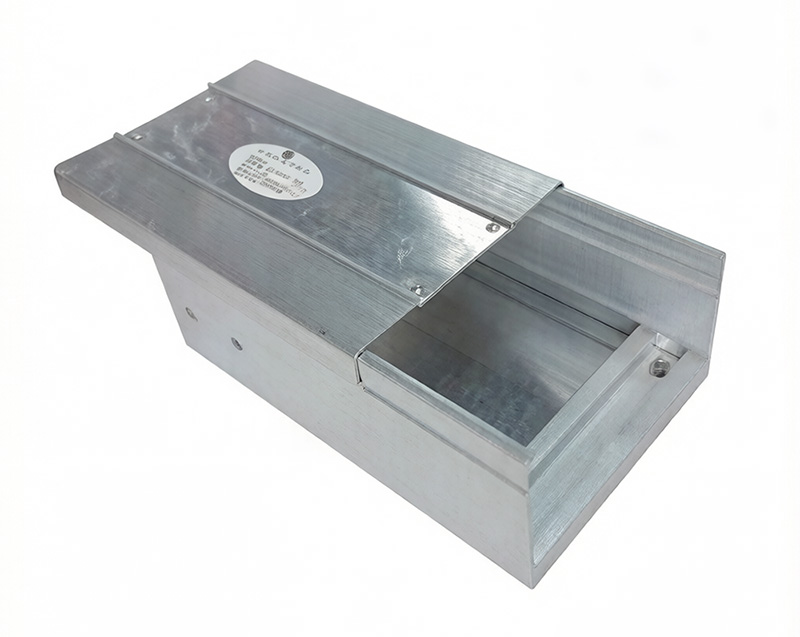

Aluminum Cable Tray

Suitable for:

• Lightweight applications

• Indoor installations

• Data communication systems

Advantages:

• Lightweight

• Non-magnetic

• Easy installation

Step 3: Verify Load Capacity

Cable tray load capacity should be calculated based on:

• Cable weight

• Future cable expansion

• Support span

• Safety factor

Oversized trays provide additional capacity for future upgrades and reduce the need for costly modifications.

Step 4: Consider Environmental Conditions

Environmental factors greatly influence material selection.

Typical environments include:

• Indoor data halls

• Outdoor substations

• Coastal areas

• High humidity regions

• Chemical exposure

• High-temperature facilities

For coastal or tropical climates, corrosion-resistant materials such as ZAM or Hot Dip Galvanized Steel are recommended.

Step 5: Ensure Compliance with International Standards

Selecting products that comply with recognized standards improves project quality and simplifies approval processes.

Common standards include:

• IEC 61537

• NEMA VE 1

• BS EN 61537

Projects may also require quality management certifications such as:

• ISO 9001

• ISO 14001

• ISO 45001

Step 6: Consider Future Maintenance

A well-designed cable tray system should allow:

• Easy cable additions

• Simple inspection

• Convenient maintenance

• Efficient replacement

Modular systems reduce maintenance costs throughout the facility's lifecycle.
