What Is Cable Tray? A Complete Guide for Industrial and Commercial Projects

What Is Cable Tray?

A cable tray is a structural support system designed to hold, protect, and organize electrical cables in commercial, industrial, and infrastructure projects. It provides a safe and efficient way to route power cables, communication cables, and control cables throughout a building or facility.

Compared with traditional conduit systems, cable trays are easier to install, expand, inspect, and maintain. They are widely used in factories, data centers, hospitals, shopping malls, airports, power plants, and commercial buildings.

Why Are Cable Trays Used?

Cable trays offer several advantages over other cable management systems.

Some of the main benefits include:

• Easy cable installation

• Better cable ventilation

• Lower installation costs

• Faster maintenance

• Flexible cable expansion

• Improved cable organization

• Long service life

Because of these advantages, cable tray systems have become a preferred solution for modern electrical installations.

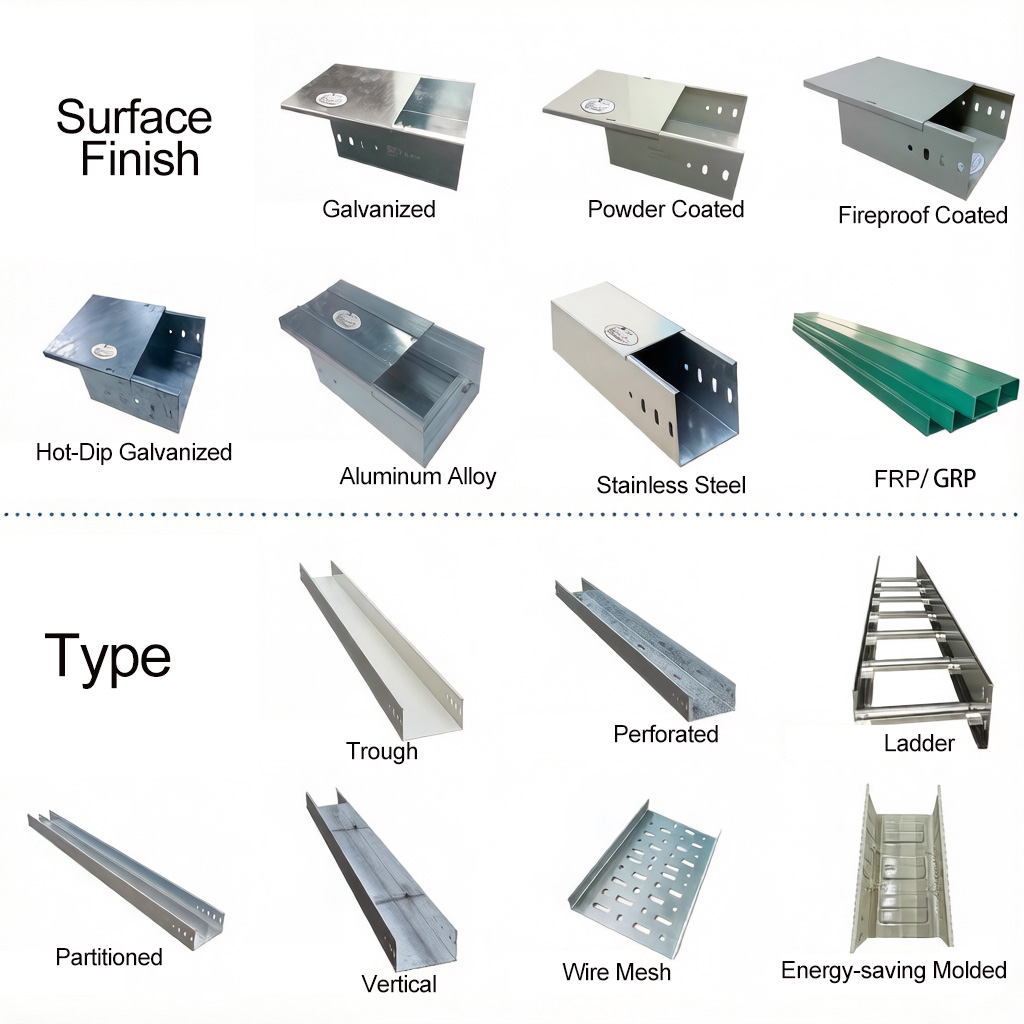

Types of Cable Tray

Different projects require different cable tray systems.

Perforated Cable Tray

Perforated cable trays feature ventilation holes that improve airflow while providing strong cable support. They are commonly used in commercial and industrial buildings.

Cable Ladder

Cable ladders are designed for heavy-duty applications. Their open structure allows excellent heat dissipation and is suitable for large power cables.

Wire Mesh Cable Tray

Wire mesh cable trays are lightweight and ideal for data centers, office buildings, and communication systems where flexibility is important.

Solid Bottom Cable Tray

Solid bottom cable trays provide extra protection against dust, moisture, and falling debris. They are often used in clean rooms and sensitive environments.

Common Cable Tray Materials

Choosing the right material depends on the installation environment.

Where Are Cable Trays Used?

Cable trays are commonly installed in:

• Manufacturing factories

• Data centers

• Hospitals

• Office buildings

• Shopping malls

• Airports

• Solar power projects

• Oil and gas facilities

• Warehouses

They help improve cable management while reducing installation time and maintenance costs.

How to Choose the Right Cable Tray

When selecting a cable tray, consider the following factors:

• Cable type

• Cable quantity

• Load capacity

• Indoor or outdoor installation

• Environmental conditions

• Corrosion resistance

• Project standards

Selecting the appropriate cable tray system helps ensure safety, reliability, and long-term performance.

Frequently Asked Questions

What is the difference between cable tray and cable ladder?

Cable trays provide continuous support for various cable types, while cable ladders are designed mainly for heavy power cables and offer greater ventilation.

Can cable trays be installed outdoors?

Yes. Hot dip galvanized, stainless steel, aluminum, and FRP cable trays are commonly used for outdoor applications because they offer excellent corrosion resistance.

What standards apply to cable tray systems?

Many cable tray systems are designed according to international standards such as IEC 61537 or NEMA VE 1, depending on the project requirements and region.

Looking for a Reliable Cable Tray Manufacturer?

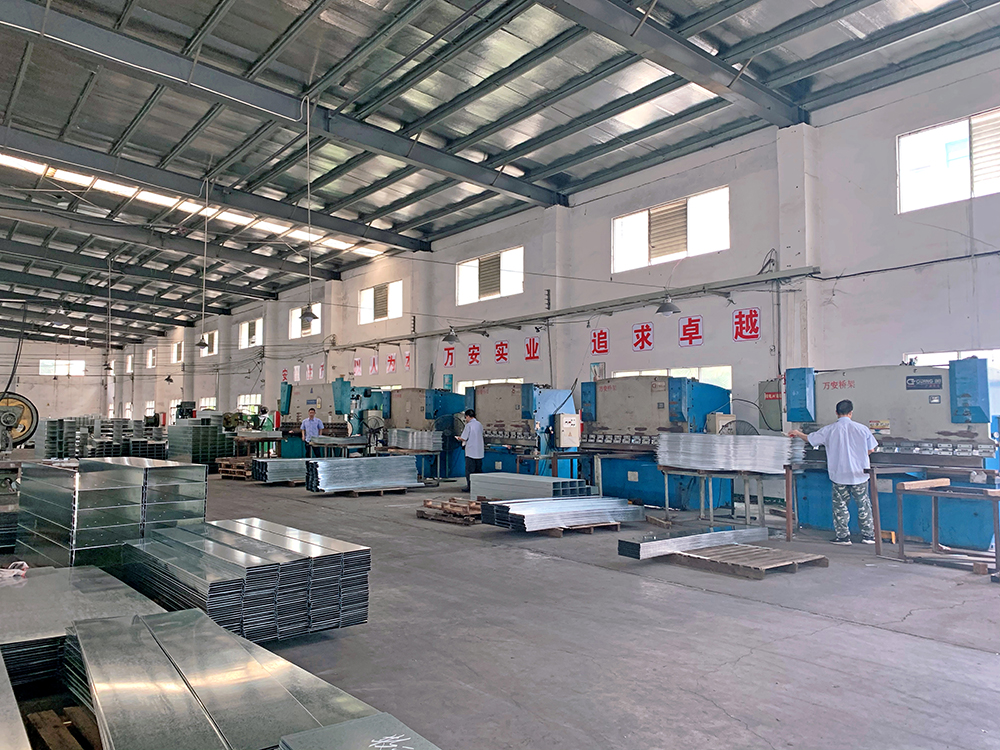

We manufacture high-quality cable tray systems for industrial and commercial projects across Southeast Asia. Our product range includes perforated cable trays, cable ladders, wire mesh cable trays, cable trunking, and accessories in various materials and finishes.
