Material selection for cable tray isn't just a cost decision — it determines how long the system lasts before corrosion becomes a maintenance or safety issue. SS304 and SS316 stainless steel, and hot-dip galvanized (HDG) steel, are the three most commonly specified options, and each is suited to a different level of environmental exposure. Specifying one grade below what a site actually needs is one of the most common and most expensive mistakes in cable tray selection, since replacing a failed tray run is far costlier than paying the material premium upfront.

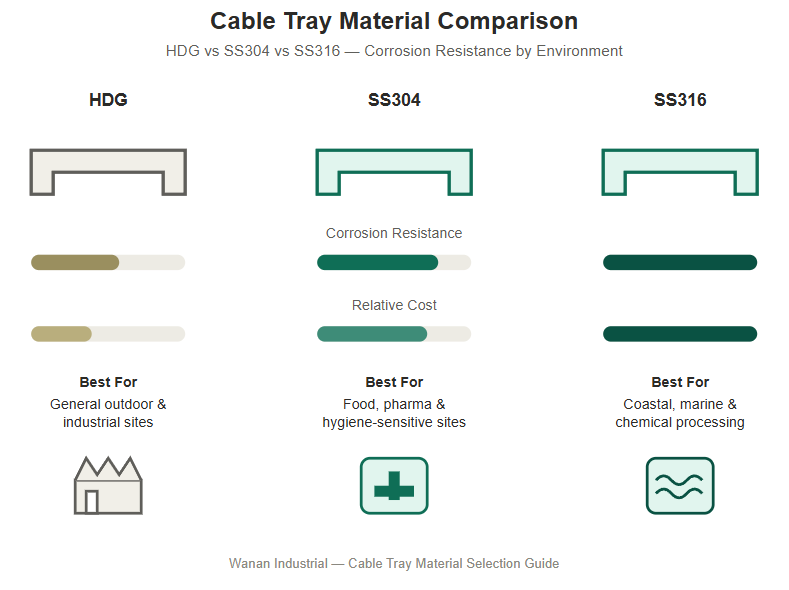

Material | Corrosion Resistance | Relative Cost | Best Suited For |
|---|---|---|---|
HDG (Hot-Dip Galvanized) | Good — zinc coating protects carbon steel | Lowest | General outdoor and industrial use, standard atmospheric exposure |
SS304 | Very good — resists most atmospheric and mild chemical exposure | Moderate–High | Food processing, pharmaceutical, general indoor/outdoor corrosive environments |
SS316 | Excellent — molybdenum content resists chlorides and acids | Highest | Coastal/marine sites, chemical processing, wastewater treatment, offshore |

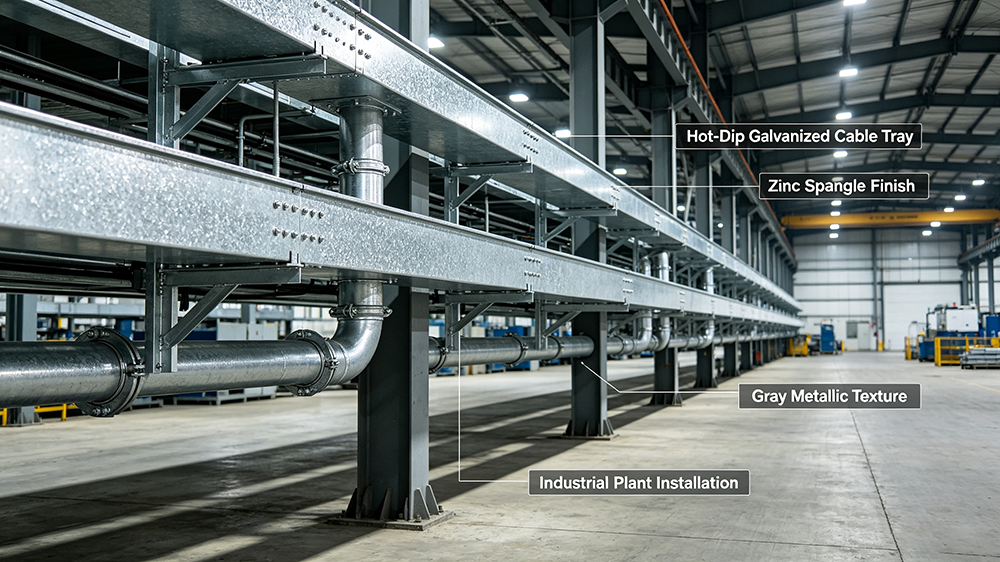

Hot-dip galvanized cable tray is carbon steel coated with a layer of zinc that protects the base metal through both a physical barrier and a sacrificial (galvanic) protection effect — the zinc corrodes preferentially, protecting the steel underneath even where the coating is scratched. This makes HDG the standard choice for the majority of installations, offering solid corrosion resistance for general outdoor and industrial exposure at the lowest material cost of the three options.
Where HDG falls short: in environments with sustained exposure to salt air, industrial chemical fumes, or acidic/alkaline conditions, the zinc coating degrades faster than it would in a standard atmosphere, which shortens the system's effective service life.

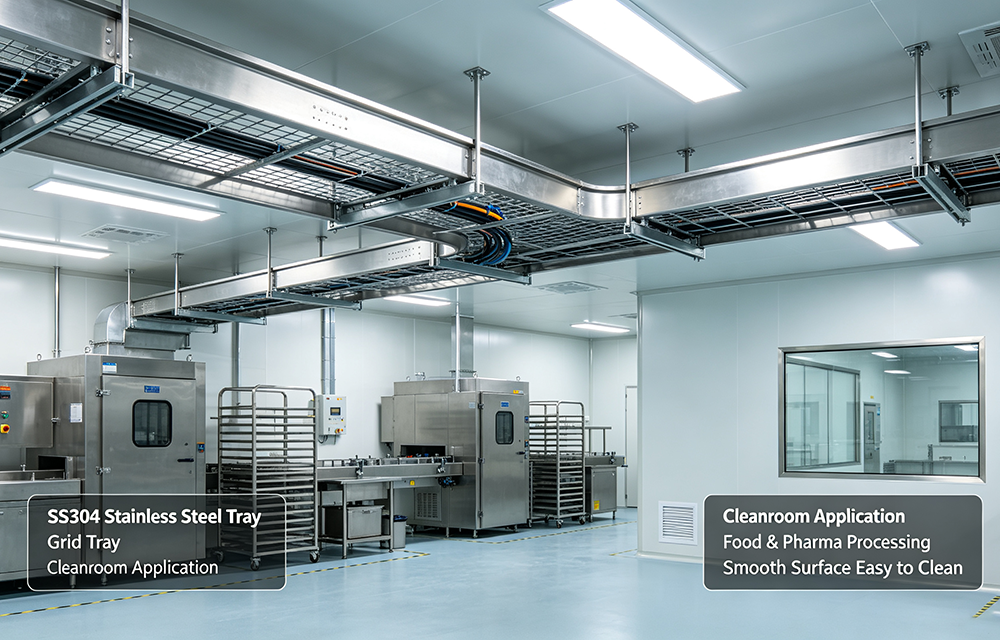

SS304 is the most widely used stainless steel grade, offering strong resistance to atmospheric corrosion and most everyday chemical exposure without the added cost of molybdenum alloying. It's a common upgrade from HDG for indoor environments with hygiene requirements — food and beverage processing, pharmaceutical manufacturing — as well as general outdoor use in non-coastal, non-heavily industrial settings.
Where SS304 falls short: it's vulnerable to pitting and crevice corrosion from chloride exposure, which makes it a poor choice for coastal or marine sites, or any environment with regular contact with chloride-containing chemicals or de-icing salts.

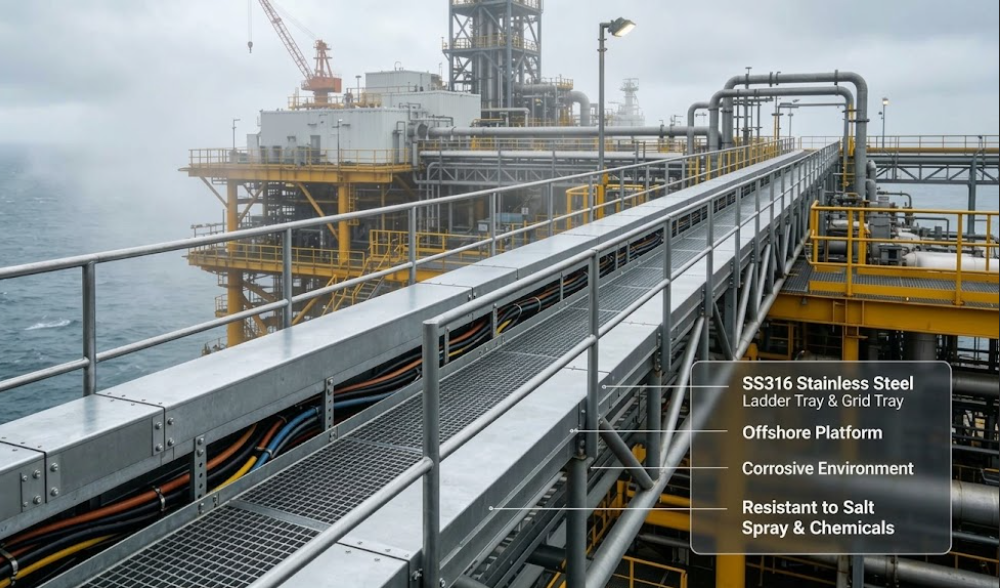

SS316 adds molybdenum to the alloy, which significantly improves resistance to chlorides and a wider range of acids compared to SS304. This is the grade specified for the most demanding corrosive environments — coastal and offshore installations, chemical processing plants, wastewater treatment facilities, and any site with regular exposure to salt spray or aggressive chemical agents.
Trade-off: SS316 carries the highest material cost of the three options, so specifying it for an environment that doesn't actually require that level of resistance adds unnecessary project cost without a corresponding benefit.
Start with the environment, not the budget. Identify whether the site has salt air exposure, chemical fumes, high humidity, or hygiene requirements before comparing material costs.
Default to HDG for standard outdoor and industrial exposure where there's no specific chemical or marine corrosion risk — it's the most cost-effective option for the majority of installations.
Move to SS304 for hygiene-sensitive or general corrosive environments — food processing, pharmaceutical facilities, or sites with moderate but non-chloride-heavy exposure.
Reserve SS316 for coastal, offshore, or chemical-processing sites where chloride or acid exposure would degrade SS304 or HDG faster than the project's intended service life allows.
Factor in total cost of ownership, not just material price. A lower-grade material that needs replacement or heavy maintenance within a few years can cost more over the system's lifetime than specifying the correct grade from the start.
HDG, SS304, and SS316 each solve a different corrosion problem, and the right choice comes down to matching the material's resistance level to the site's actual exposure — not simply choosing the cheapest or most protective option by default. Buyers who specify material grade based on environmental conditions (coastal, chemical, hygiene-sensitive, or standard atmospheric) rather than assumption avoid both the risk of premature corrosion and the cost of over-specifying material the site doesn't need.
Not for every project. SS316's added chloride and acid resistance matters most in coastal, offshore, or chemical-processing environments. For general indoor or non-coastal outdoor use, SS304 typically provides adequate corrosion resistance at a lower cost, making SS316 an unnecessary premium in those settings.
It's possible in some lower-sensitivity areas, but most food and pharmaceutical facilities specify stainless steel (typically SS304) due to hygiene, cleanability, and washdown requirements that HDG's zinc coating doesn't meet as well as a smooth stainless surface.
The exact difference depends on the specific site's salt exposure level, but HDG's zinc coating degrades considerably faster under sustained salt air exposure than SS316's chloride-resistant alloy. For coastal or marine installations, this is usually enough of a difference that SS316 is specified despite its higher upfront cost.
