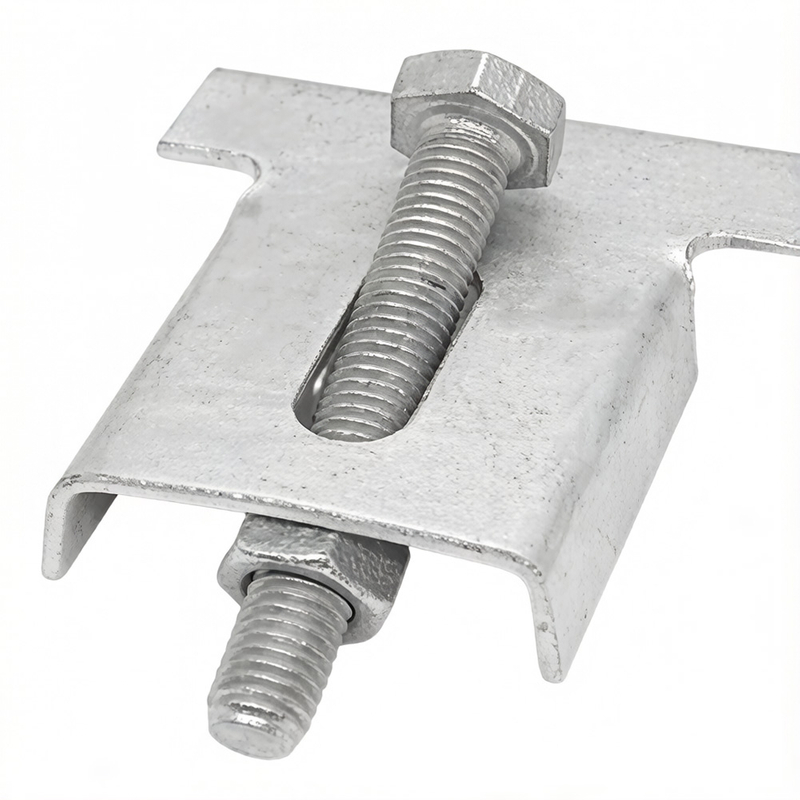

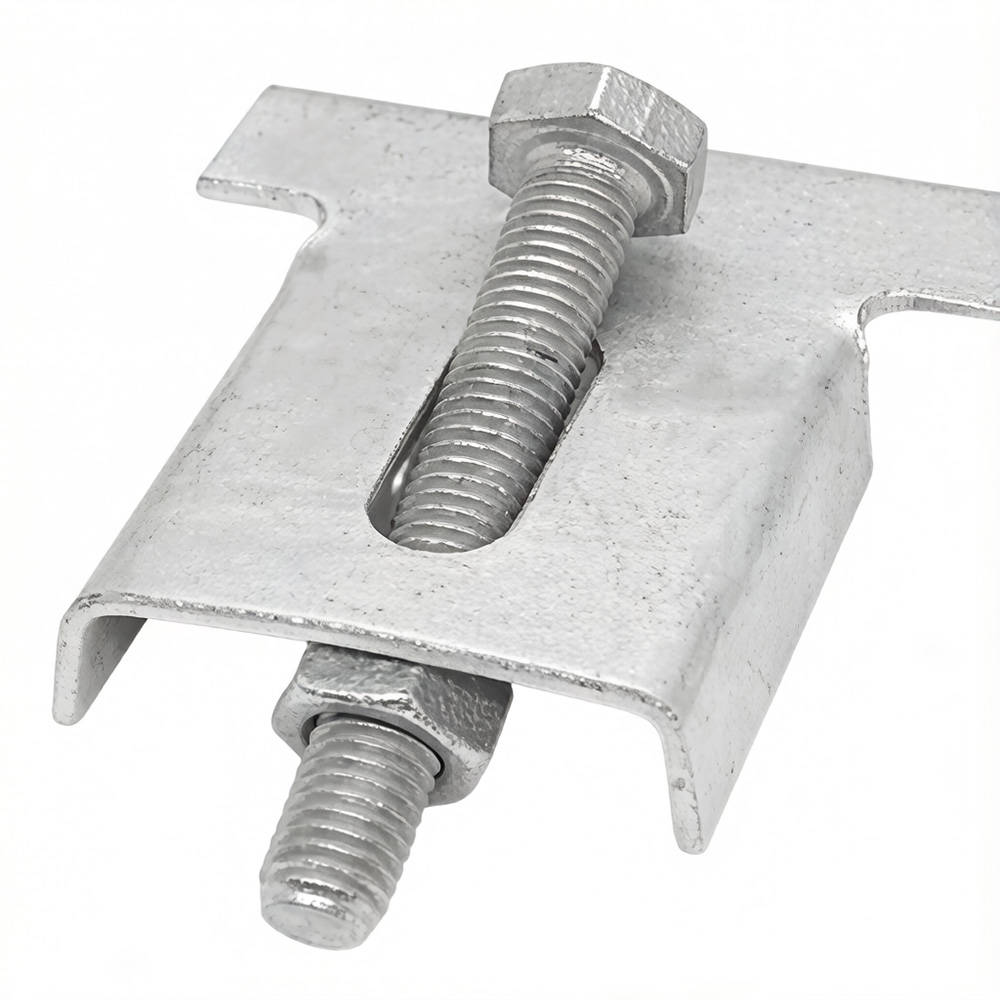

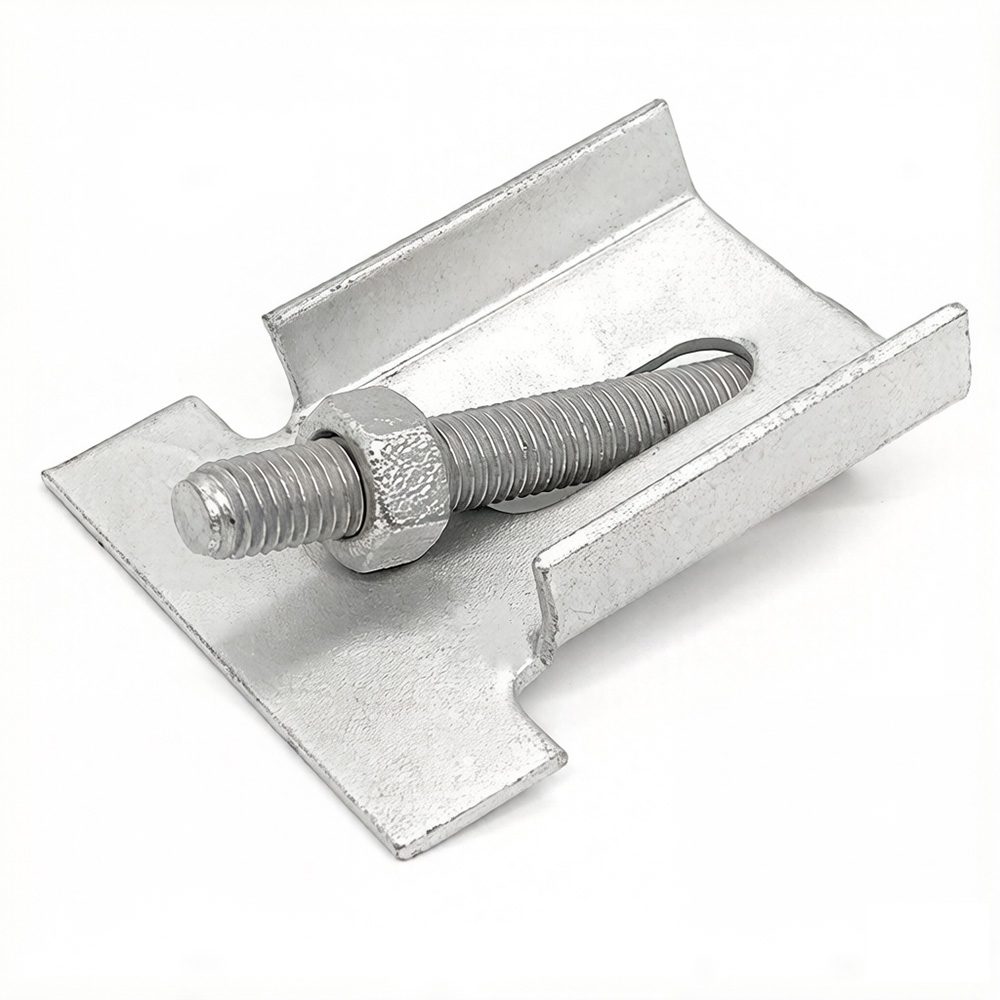

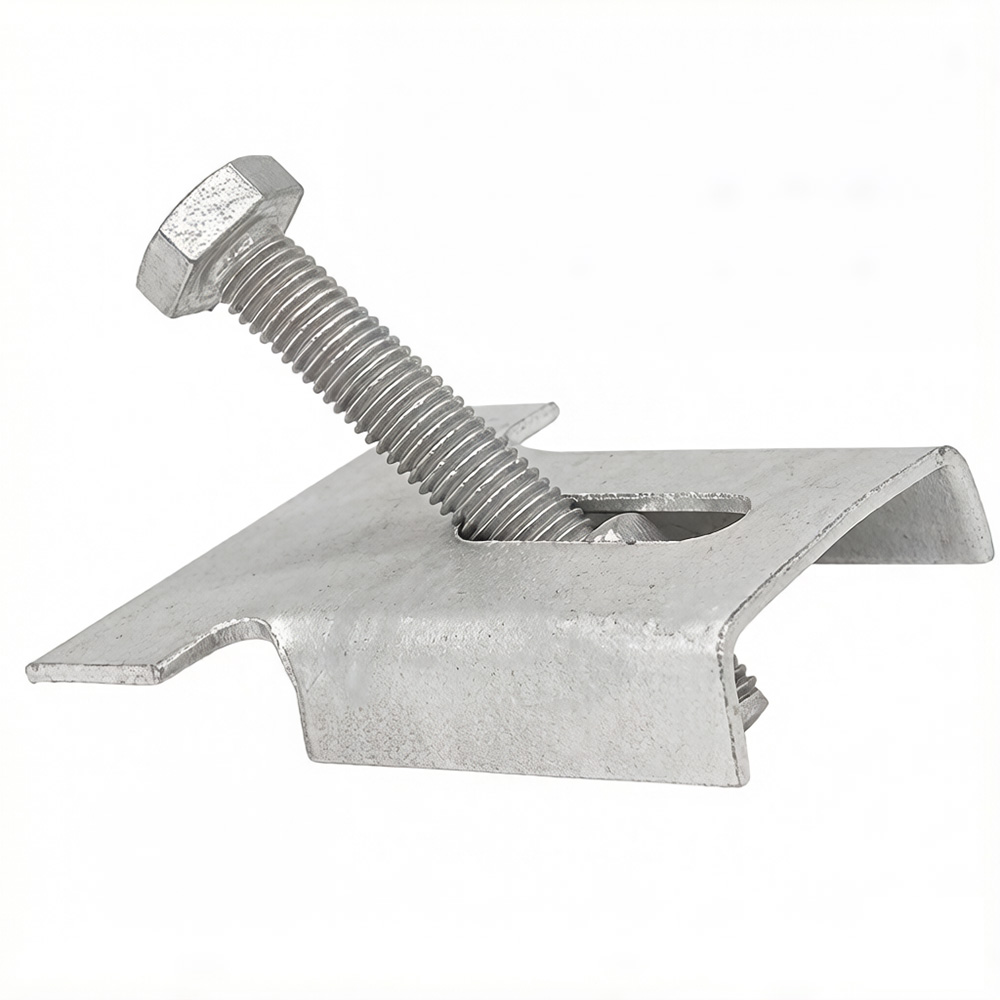

Single-Hole Clamping Plate

Durable Single-Hole Fixing Plate for Solar Racking and Frame Clamping

Enhance the structural integrity of your solar arrays with our premium Single-Hole Clamping Plate. As one of the most reliable and widely utilized mounting accessories in the solar industry, this pressure plate provides a firm, localized grip on solar panel frames and racking profiles, safeguarding your installation against severe weather and environmental elements.

Key Features & Benefits

High-Strength & Load-Bearing: Available in industrial-grade aluminum alloy or galvanized carbon steel, this clamping plate offers exceptional tensile strength to withstand heavy wind loads and heavy snow pressures.

Anti-Vibration & Displacement Prevention: Engineered to work in tandem with standard mounting bolts and rails, it provides a high-friction clamp that securely locks PV modules in place, preventing micro-movements, shifting, or loosening caused by continuous environmental vibration.

Clear Stress Distribution: The simple yet optimized mechanical design ensures that clamping pressure is evenly distributed across the frame contact point, minimizing the risk of warping or damaging the solar module.

Universal System Compatibility: Features a standardized single-hole configuration that makes it universally compatible with various types of solar mounting structures, including residential rooftops, commercial carports, and ground-mounted utility systems.

Rapid, Low-Cost Installation: Its minimalist, highly efficient structure allows installers to quickly position and tighten the clamp on-site, drastically accelerating construction timelines and saving on labor costs.

Technical Specifications

Applications

Solar PV Panel Frame Securing: Clamping the outer or inner frames of solar modules onto aluminum mounting rails.

Structural Joint Reinforcement: Localized auxiliary fastening for solar carport frames, ground racking arrays, and roof mounts.

Universal Racking Assembly: Serving as a reliable, standardized connection point in diverse utility-scale solar projects.

Frequently Asked Questions

Q: How does a single-hole clamping plate protect solar panels from wind displacement?

A: When paired with high-torque bolts, the plate applies uniform downwards and sideways pressure onto the solar module frame against the rail. This high-friction, locked connection acts as an anchor, ensuring that even under heavy, continuous wind buffering or seismic vibrations, the panel frame cannot slide or shift out of alignment.

Q: Is this single-hole clamping plate compatible with both thin-film and framed solar panels?

A: This specific clamping plate is optimized for traditional framed solar modules (aluminum frames) and general racking components. For fragile, frameless thin-film solar panels, we recommend using our specialized rubber-padded thin-film clamps to prevent direct metal-on-glass stress.
