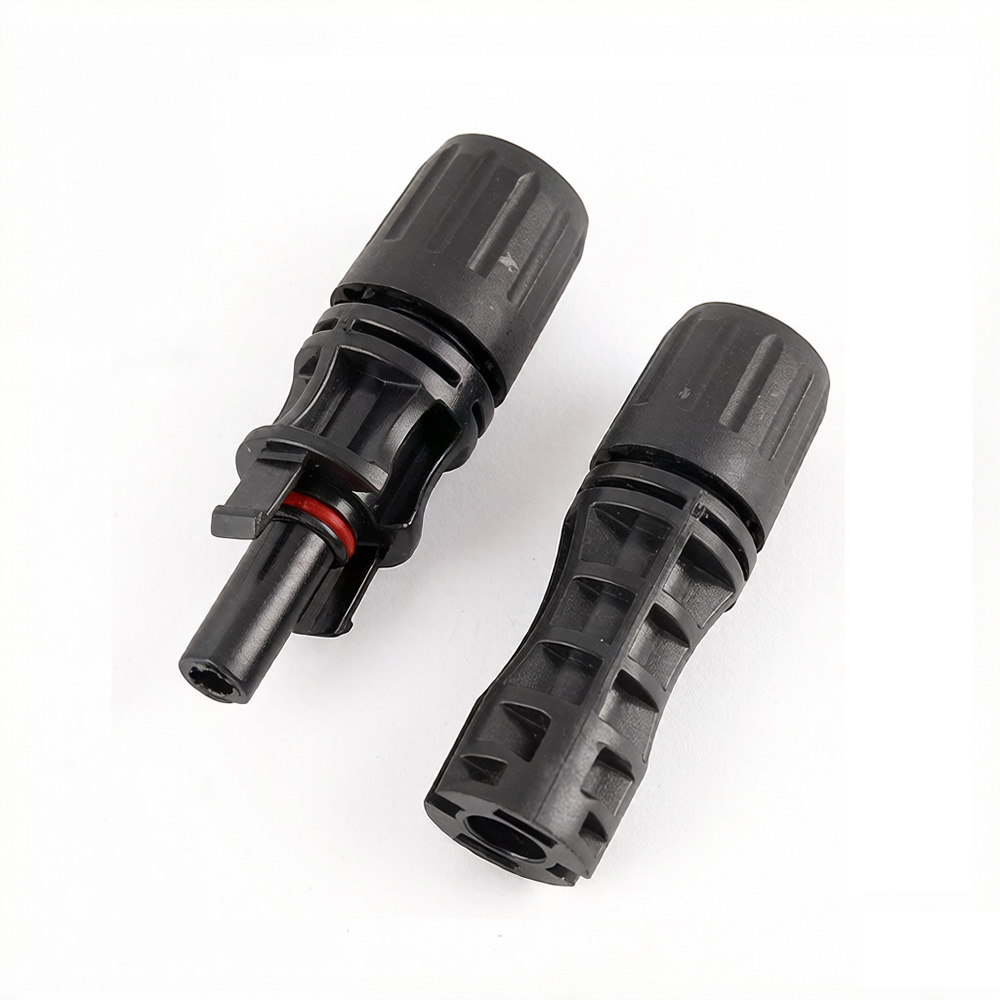

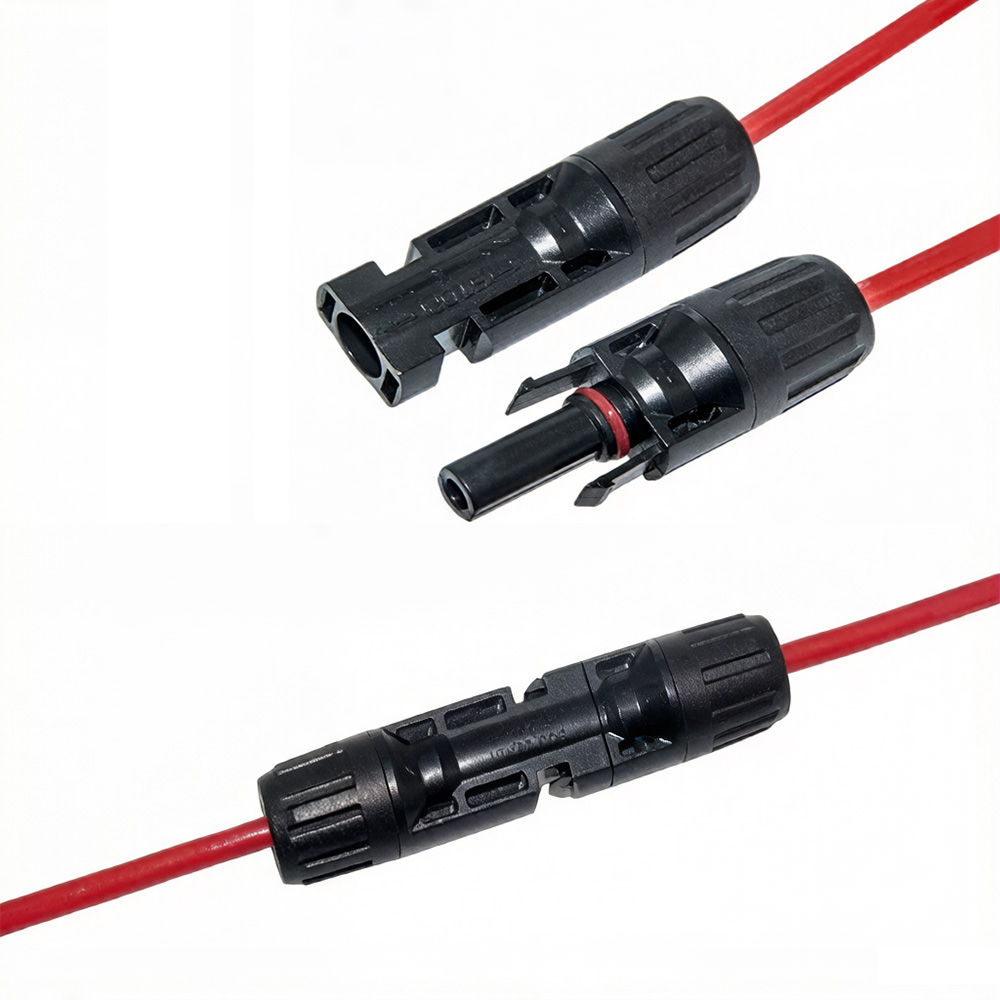

MC4 Connector

The Industry Standard for Reliable Solar DC Connections

The Photovoltaic MC4 Connector serves as the critical backbone for electrical safety and stability across modern solar arrays. Acting as the secure bridge that transports direct current (DC) from solar panels to combiner boxes and inverters, this connector is designed to withstand relentless environmental exposure while maintaining ultra-low resistance. It is an indispensable electrical component for residential rooftops, commercial solar grids, and utility-scale solar farms.

Key Features & Benefits

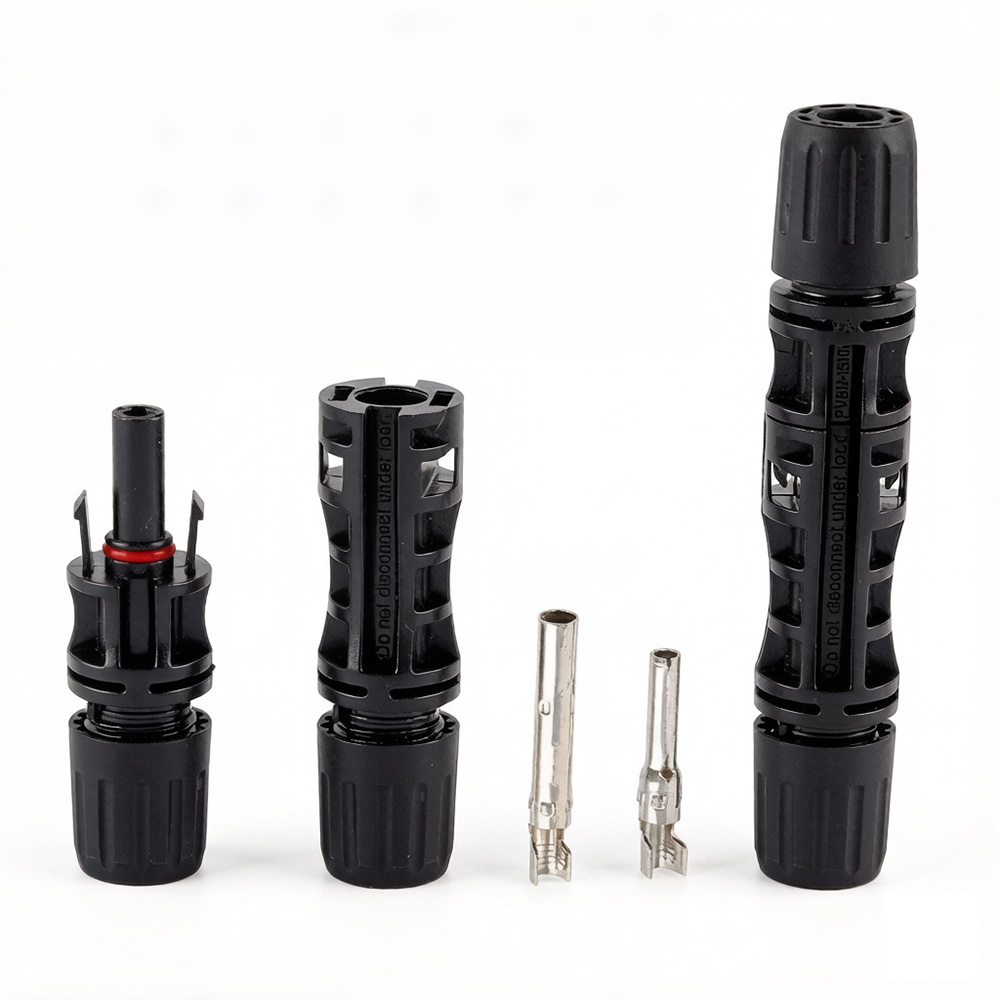

High-Conductivity Copper Alloys: Outfitted with premium tinned copper internal contacts that optimize current flow, lower contact resistance, and minimize power losses over decades of continuous operation.

Weatherproof & UV-Stabilized Shell: Manufactured from advanced engineering polymers featuring elite thermal tolerance and UV stabilization, preventing the housing from cracking or degrading under intense sunlight.

IP68 Waterproof & Dustproof Protection: Engineered with heavy-duty internal O-rings to create an airtight seal, completely shutting out moisture, rain, and dust while eliminating the risk of internal short-circuits or DC arc flashes.

Error-Proof Snap-Lock Mechanism: Features an intuitive plug-and-play mating structure with integrated locking tabs. The design prevents accidental disconnection and incorporates a polarized anti-reverse design to eliminate wiring errors.

Primary Application Scenarios

Designed to handle high voltage and current demands, our MC4 connectors are globally deployed in:

1. Panel-to-Panel Series Stringing: Creating weather-sealed serial connections between individual solar modules.

2. Homerun Cable Assemblies: Linking the termination of panel strings safely over long distances to combiner boxes.

3. Inverter & Component Integration: Connecting main DC inputs to string inverters, optimizers, and microinverters.

Technical Specifications
