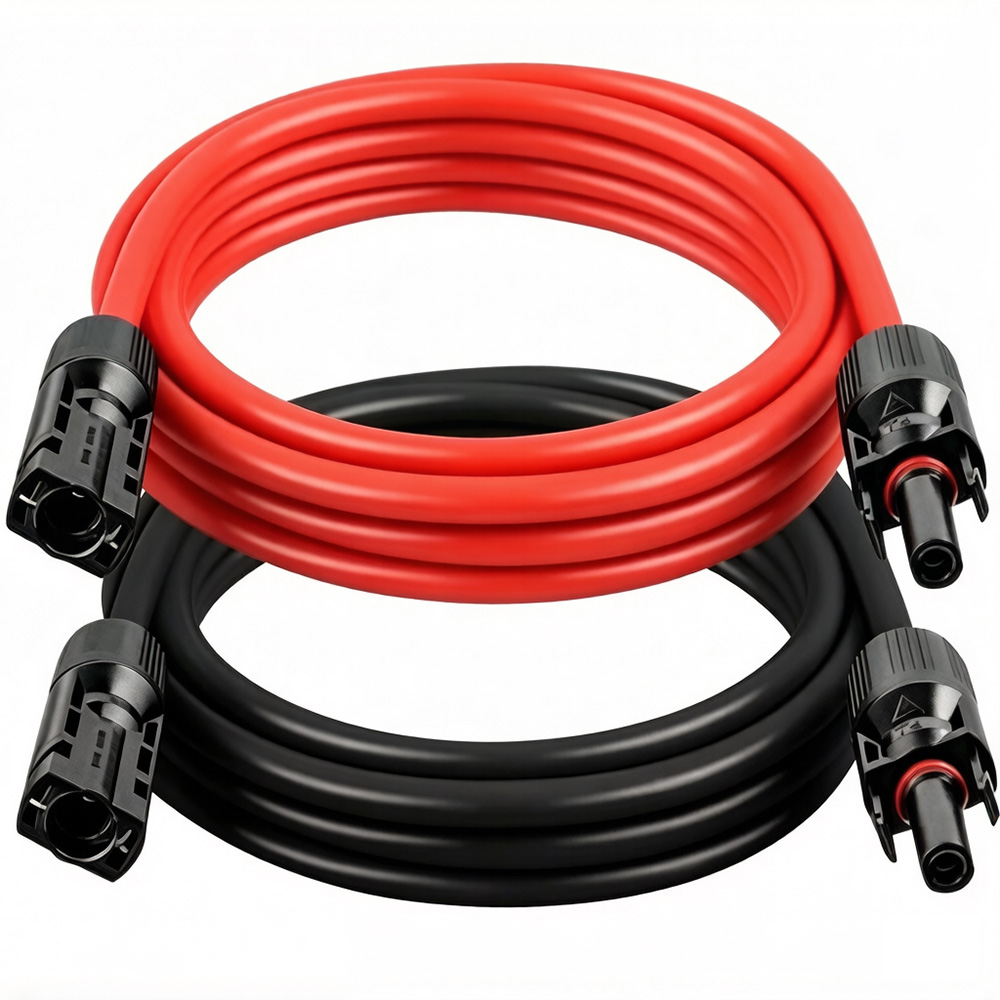

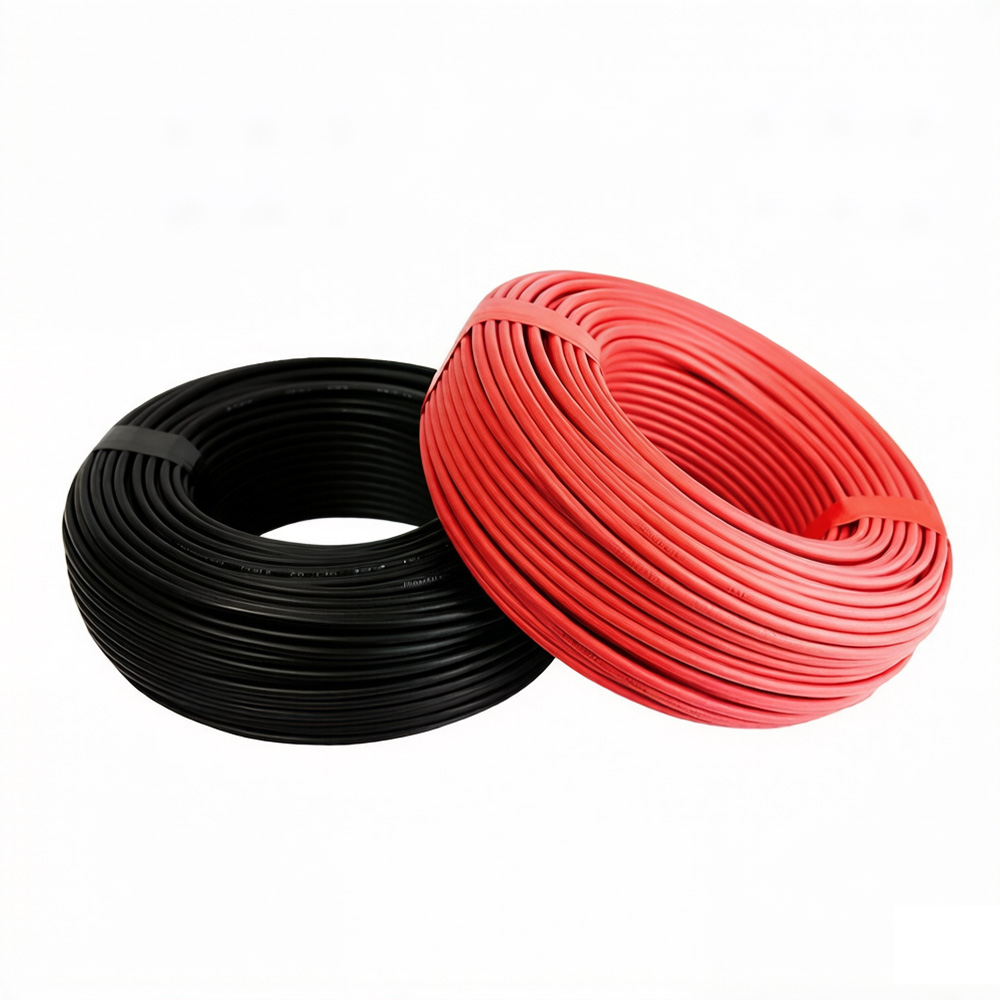

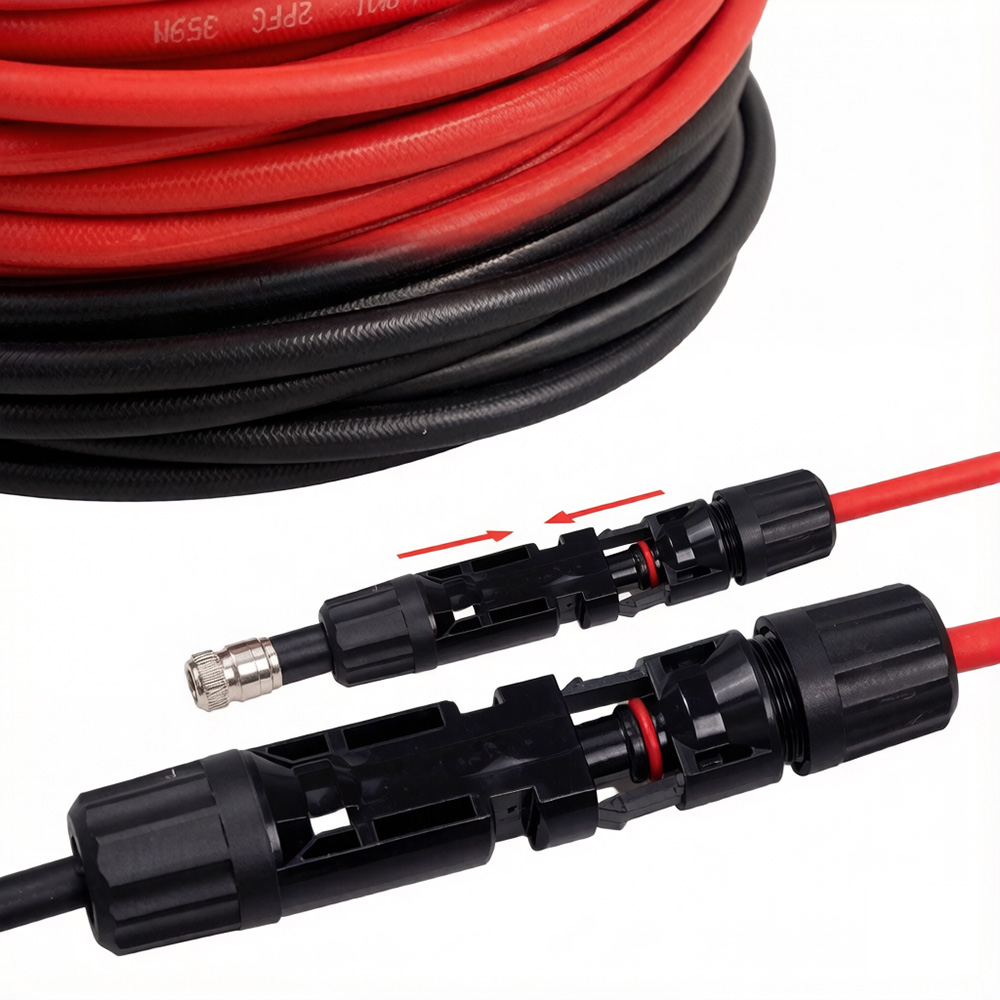

PV Red and Black Wire

High-Performance DC Wiring Solution for Solar Arrays

The Photovoltaic Red & Black Wire Pair serves as the vital circulatory system for modern solar energy setups. Engineered to transport direct current (DC) efficiently from your solar panels to charge controllers, batteries, and string inverters, these cables are built to withstand relentless outdoor exposure. By pairing the standard Red (Positive) and Black (Negative) lines together, it simplifies system polarity identification, eliminates wiring mistakes on-site, and ensures maximum system safety.

Key Features & Benefits

Premium UV & Weather-Resistant Insulation: Encased in an advanced, cross-linked engineering polymer insulation that prevents cracking, chalking, and degradation under decades of scorching sunlight and extreme weather conditions.

Stable & Efficient Conductivity: Utilizes high-purity, multi-strand tinned copper internal conductors that minimize electrical resistance, maximize power transmission efficiency, and resist oxidation in humid or coastal environments.

Heavy-Duty Temperature & Flame Tolerance: Designed to operate flawlessly across extreme temperature swings, featuring robust flame-retardant properties to prevent thermal hazards and electrical fires.

Waterproof & Anti-Corrosive Sealing: Fully optimized for wet outdoor environments, standing up to rain, soil acids, and ambient moisture without sacrificing insulation resistance.

Primary Application Scenarios

Engineered to streamline solar layouts, our red and black PV wire sets are widely integrated into:

1. Panel-to-Panel Interconnections: Wiring adjacent solar panel modules together in series or parallel strings.

2. Home-Run Circuit Routing: Connecting the termination of solar arrays over long distances back to the main combiner boxes or power stations.

3. Solar Carport & Off-Grid Setups: Powering remote off-grid cabins, commercial solar parking structures, and RV battery bank charging circuits.

Technical Specifications
