Floating solar — also called floating photovoltaics or FPV — mounts solar panels on structures that sit directly on water instead of land or a rooftop. It's one of the fastest-growing segments in solar racking, driven by a simple constraint: land is limited, but reservoirs, ponds, and industrial water bodies often sit unused. This guide explains how floating solar mounting systems are built, what makes them different from ground mount racking, and where they're being deployed today.

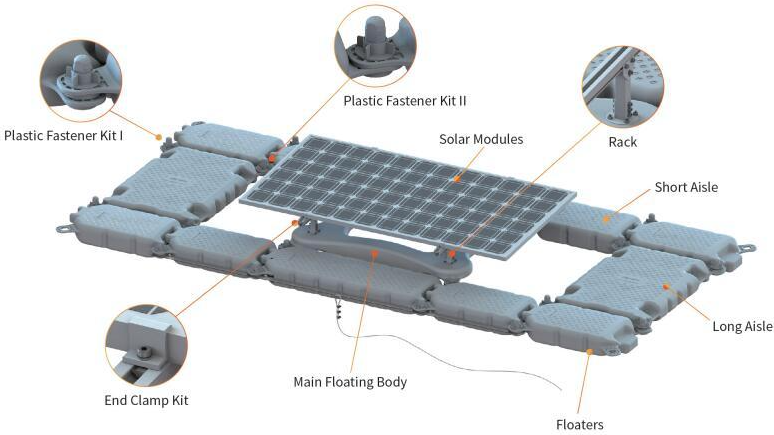

A floating PV system is built around three core components: buoyant floats (or pontoons) that keep the structure on the surface, a racking frame that holds the panels at a fixed tilt angle above the floats, and an anchoring and mooring system that keeps the entire array in position as water levels rise and fall.

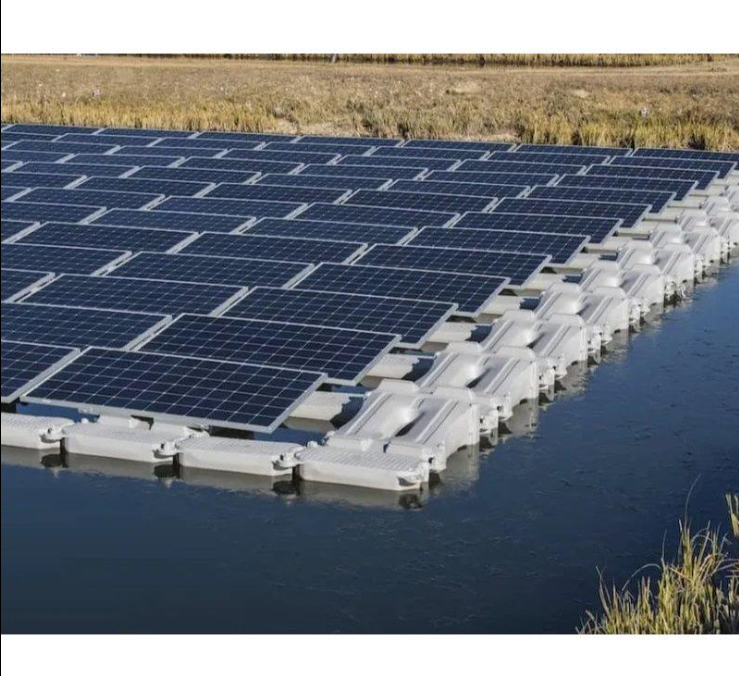

Floats are typically high-density polyethylene (HDPE), chosen for its UV resistance and long service life in constant water exposure. The floats are modular, connecting together to form a continuous platform that distributes the weight of the panels and racking evenly across the water surface.

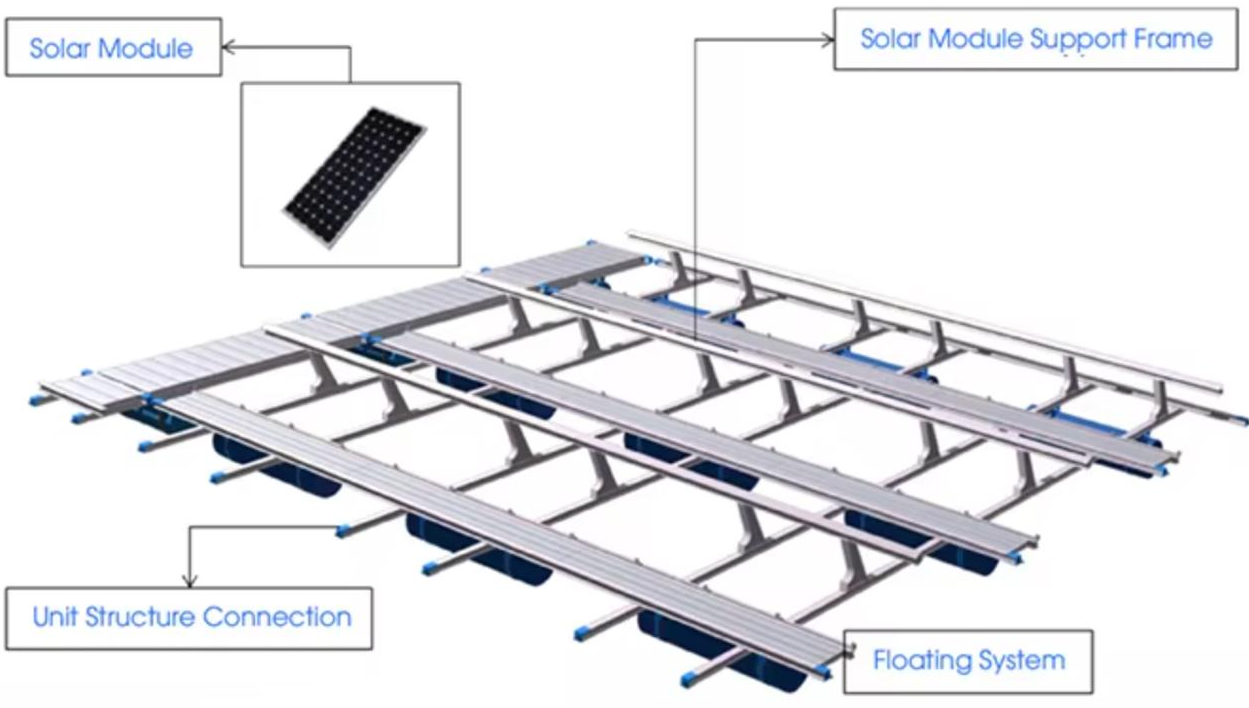

The racking sits on top of or integrated into the float modules, holding panels at a tilt angle — usually lower than typical ground mount angles, since floating systems benefit from the water's natural cooling effect and don't need the same wind and structural considerations as land-based racking. Corrosion-resistant materials (aluminum or stainless steel) are standard here, since the structure is in near-constant contact with moisture.

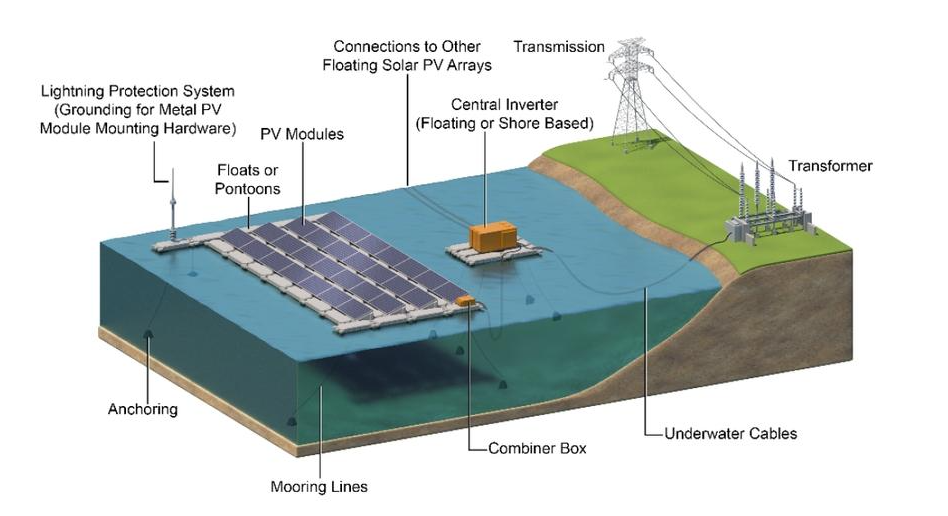

Unlike ground mount or rooftop systems, a floating array has to stay in place on a surface that moves. Anchoring systems — typically cables connected to the shoreline, the water body's bed, or fixed piles — keep the array from drifting while still allowing it to rise and fall with water level changes. Mooring design has to account for wave action, water level fluctuation across seasons, and in some cases ice formation in colder climates.
Floating solar doesn't replace ground mount or rooftop systems — it solves a different problem. The main advantages come down to a few factors:
No land use conflict. Reservoirs, irrigation ponds, and industrial water bodies are typically unused for any other purpose, avoiding the land acquisition or agricultural trade-offs that come with ground mount projects.
Cooling effect improves output. Panel efficiency drops as panel temperature rises, and the water beneath a floating array has a measurable cooling effect compared to land-mounted panels exposed to hot ground-level air.
Reduced water evaporation. On reservoirs and irrigation ponds, the panel coverage shades part of the water surface, which can reduce evaporation — a secondary benefit that matters for water utilities and agricultural water management.
The trade-off is added engineering complexity: mooring design, float durability, and water-level management all add cost and design time that a simple ground mount project doesn't require.

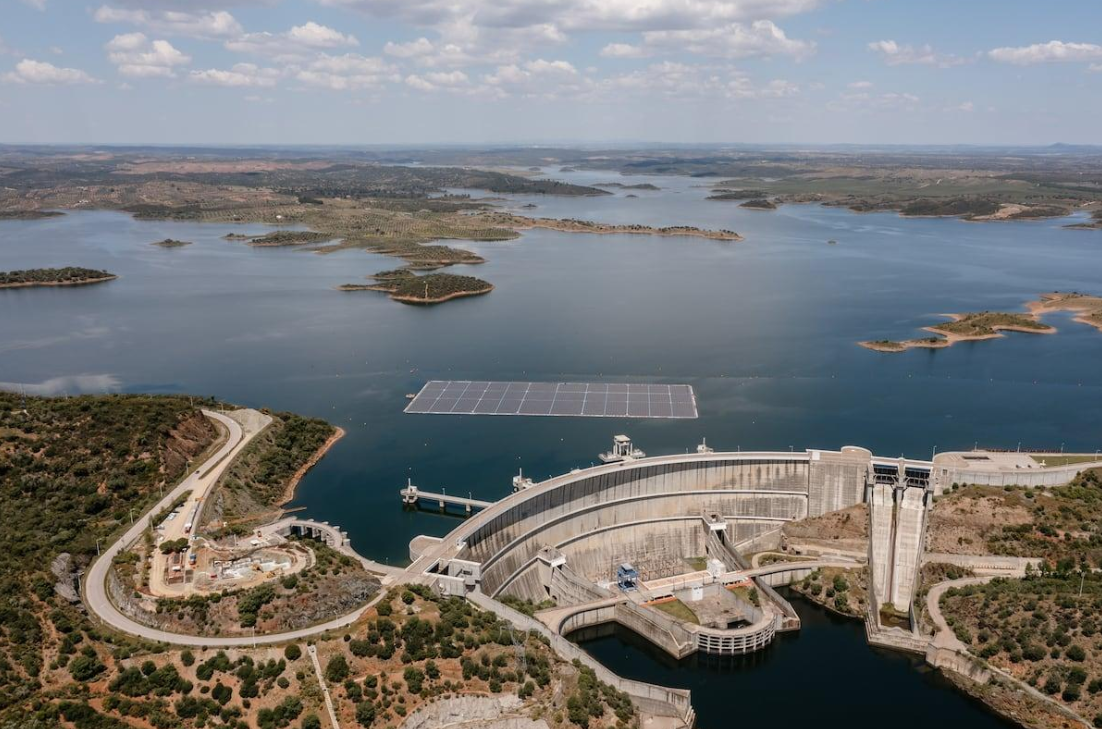

Pairing floating solar with existing hydropower infrastructure is one of the most common applications — the site already has grid connection infrastructure in place, and floating panels can share transmission capacity with the hydropower plant.

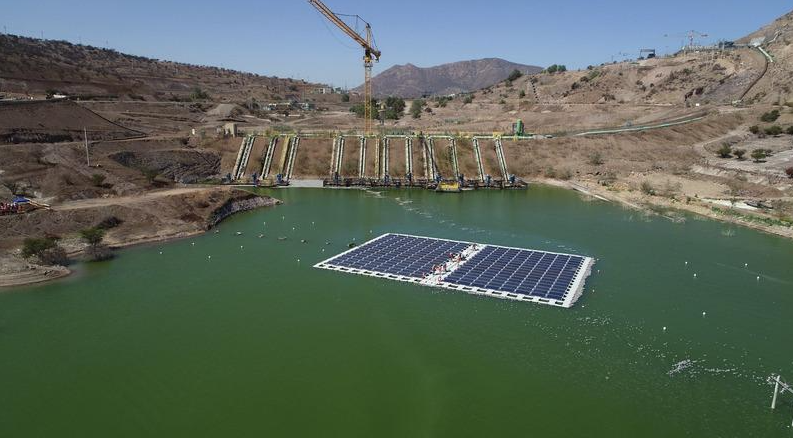

Tailings ponds, industrial wastewater basins, and other water bodies on industrial sites are rarely usable for anything else, making them a practical fit for floating arrays without competing for productive land.

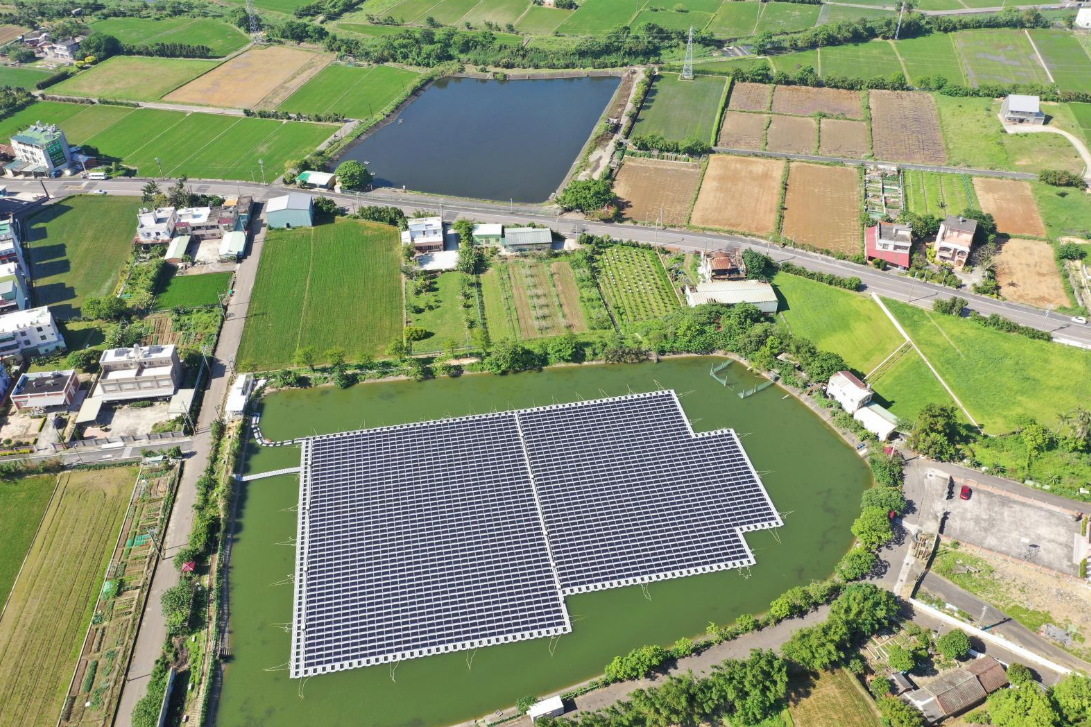

Agricultural water storage ponds are increasingly used for floating solar, combining the evaporation-reduction benefit with on-site power generation for irrigation pumps and farm operations.
Drinking water reservoirs and treatment facility ponds are another common site type, where the added benefit of reduced algae growth from surface shading is sometimes cited alongside the generation and evaporation benefits.
Water level fluctuation. Reservoirs used for irrigation or hydropower can see significant seasonal water level changes — the mooring system has to accommodate this range without over-tensioning or allowing excessive drift.
Material durability. Floats, racking, and cabling all need to withstand constant water exposure, UV degradation, and in some cases brackish or contaminated water — material selection has a direct impact on system lifespan.
Wave and wind loading. Larger water bodies generate wave action that adds dynamic loading the racking and anchoring system need to be engineered for, beyond the static loads typical of ground mount design.

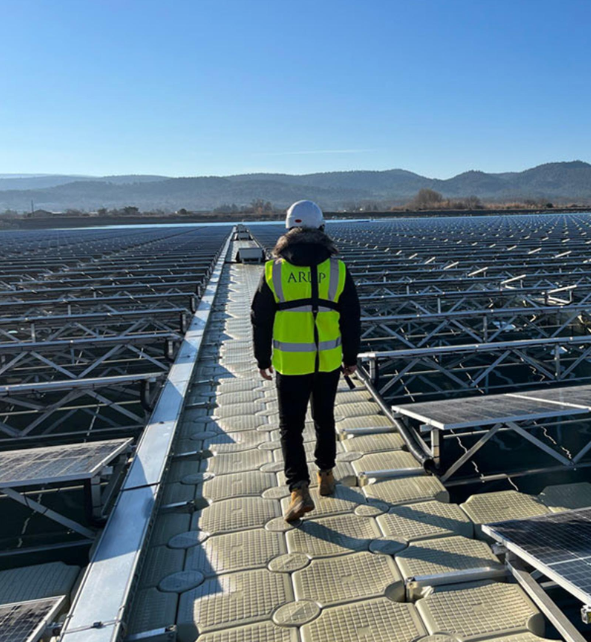

Access for maintenance. Floating platforms need to support foot traffic or boat access for cleaning and maintenance, which affects walkway design and float module layout.
Floating solar mounting systems open up water surfaces — reservoirs, industrial ponds, irrigation basins — as viable sites for solar generation without competing for land. The engineering is more complex than ground mount racking, with float durability, mooring design, and water-level management as the key differentiators, but the payoff includes a cooling-driven efficiency gain and, on many sites, a meaningful reduction in water evaporation. For developers and EPC contractors working near reservoirs, dams, or industrial water bodies, floating solar is worth evaluating as an alternative to competing for scarce land.
Generally yes, per installed watt — the float structure, corrosion-resistant materials, and mooring system add cost that ground mount racking doesn't require. The trade-off is access to sites where land isn't available or affordable at all.
Not automatically — water depth, wave exposure, water level fluctuation range, and shoreline access all need to be assessed. Very shallow or highly seasonal water bodies can complicate mooring design significantly.
Partial surface coverage can reduce algae growth by limiting sunlight penetration, which is sometimes cited as a benefit for water treatment reservoirs — though the environmental impact should be assessed per site, since full or excessive coverage can also affect aquatic ecosystems.
