A utility-scale or large commercial solar project isn't just a mounting system and panels — it's also the cable tray and conduit infrastructure that routes DC and AC cabling from the array to inverters and switchgear, all of which has to be specified alongside the racking rather than as an afterthought. Treating these as separate procurement decisions often leads to compatibility gaps, mismatched finishes, and coordination delays between trades. This guide walks through how cable tray, conduit, and mounting system choices interact on a solar farm project, and what to coordinate across all three.

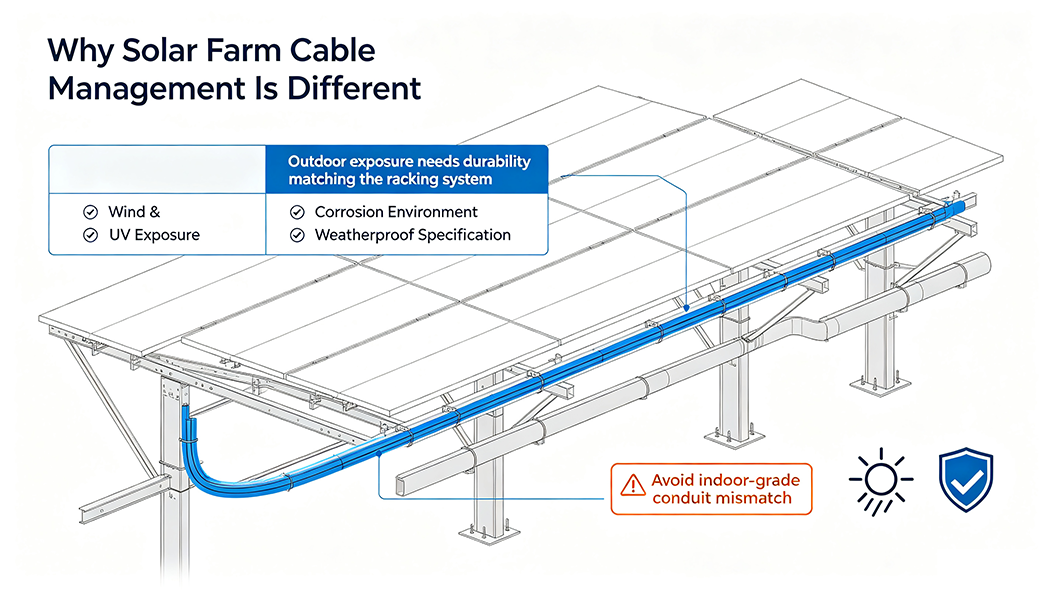

Unlike a typical industrial or commercial building, a solar farm's cable infrastructure runs almost entirely outdoors, often across open ground or elevated above a carport or rooftop array, exposed to the same wind, UV, and weather conditions as the racking itself. This means cable tray and conduit specified for a solar project need to meet the same environmental durability standard as the mounting structure — a mismatch here (for example, standard indoor-grade conduit paired with an outdoor racking system) is a common and avoidable source of premature failure.
The racking system — ground mount, rooftop, carport, or floating — determines both the physical routing path for cable tray and conduit and the array's overall layout, which in turn determines how much cable management infrastructure the project needs and where it runs.

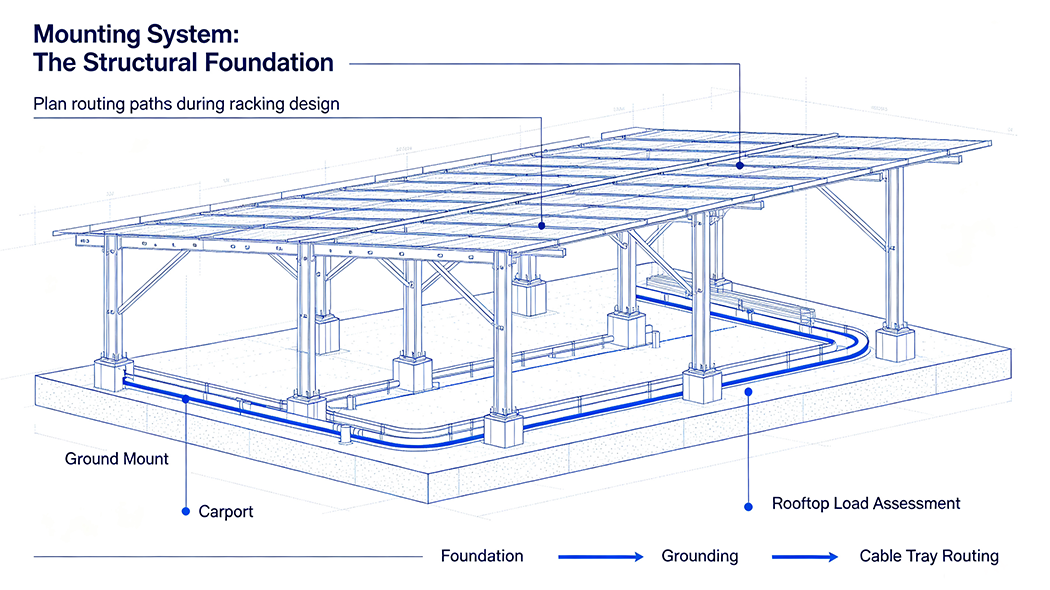

Confirm cable tray and conduit routing paths during racking design, not after the structural layout is finalized, since retrofitting cable management around a completed structure is far more labor-intensive
For ground mount and carport systems, plan for cable tray runs along or beneath the structural framework, coordinated with foundation and grounding work happening at the same time
For rooftop systems, confirm conduit routing doesn't add structural load the roof assessment didn't account for

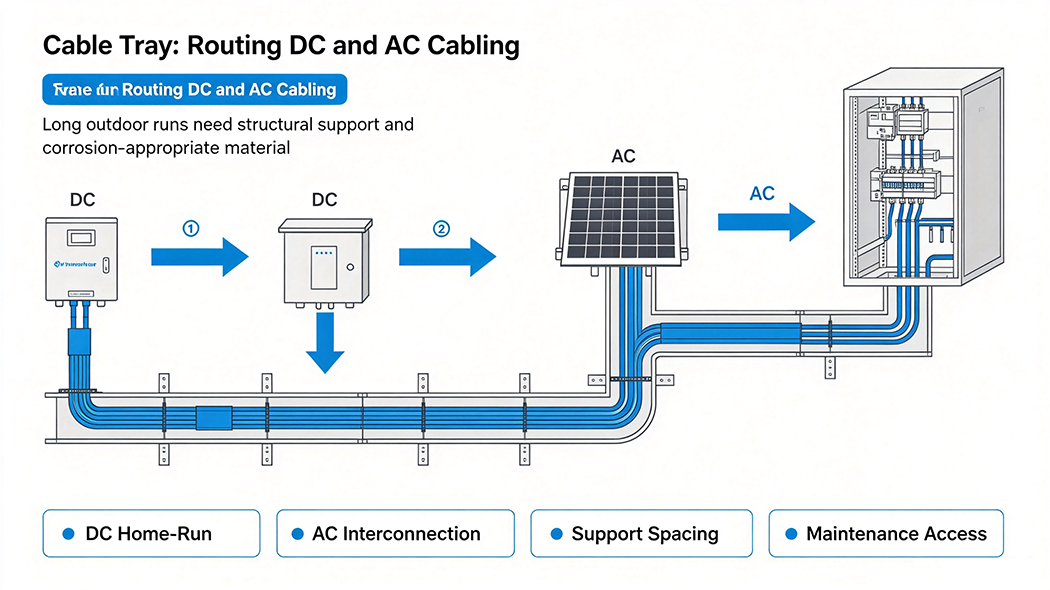

Cable tray on a solar farm typically carries DC home-run cabling from combiner boxes to inverters, and AC cabling from inverters to switchgear or the grid interconnection point — often across long outdoor runs that need both structural support planning and corrosion-appropriate material selection.
Match cable tray material and finish to the site's corrosion environment the same way the racking material was selected (see our Aluminum vs Galvanized Steel Solar Mounting and SS304 vs SS316 vs HDG Cable Tray comparisons for the same underlying material logic)
Size support spacing for the actual cable load and span, accounting for the long, often unsupported runs typical of ground mount and utility-scale layouts
Plan tray routing to follow accessible paths for future maintenance, since solar farm cable tray runs are often harder to access after the array is fully installed

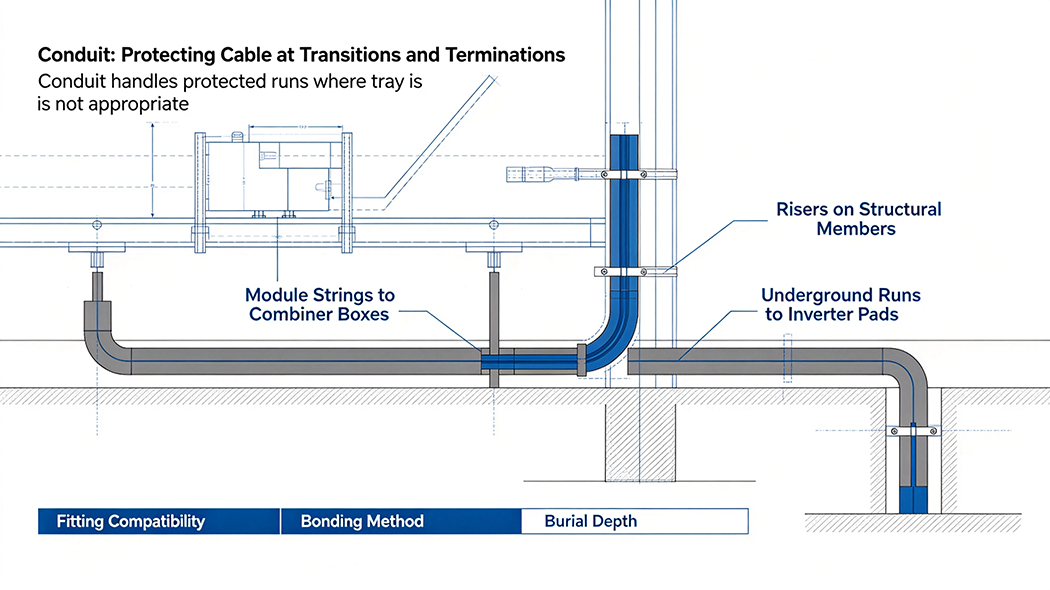

Conduit on a solar project typically handles the shorter, more protected cable runs — from module strings into combiner boxes, risers up structural members, and underground runs to inverter pads — where cable tray's open design isn't appropriate for the level of protection needed.
Confirm conduit type and fitting compatibility match the racking manufacturer's grounding method, since conduit often forms part of the overall system's bonding path alongside the racking structure itself
For underground conduit runs between ground mount rows and inverter pads, confirm burial depth and conduit type meet both electrical code and the project's soil conditions
Coordinate conduit riser locations with the racking layout early, since risers typically need to attach to structural members that are easier to plan for than retrofit
Source cable tray, conduit, and mounting systems with compatible grounding methods from the start, rather than discovering a bonding gap between systems during commissioning.
Match material and finish logic across all three products to the site's actual corrosion environment, rather than treating each product's material selection as an independent decision.
Plan cable tray and conduit routing during racking design, not as a follow-on trade coordination exercise once the structural layout is fixed.
Confirm support spacing and conduit burial requirements against the project's actual site conditions, the same way structural foundation decisions are confirmed against geotechnical data.
Cable tray, conduit, and the mounting system aren't three independent procurement decisions on a solar farm project — they're interconnected systems that need to share a consistent approach to material selection, grounding, and routing coordination. Projects that plan cable management alongside the racking design, rather than after it, avoid the compatibility gaps and rework that come from treating these as separate trades. Sourcing all three from a single supplier familiar with how they interact is one practical way to keep that coordination consistent across the project.
Not necessarily the identical material, but the same underlying logic — matching corrosion resistance to the site's actual environment. A coastal site that specifies SS316 cable tray but standard HDG conduit, for example, creates an inconsistency worth reviewing, since the conduit may degrade faster than the rest of the system.
Yes, in many cases. If the racking system achieves grounding continuity through its structural frame, conduit transitioning into or out of that structure needs a bonding method compatible with it — this is worth confirming with both the racking and conduit supplier rather than assuming compatibility.
Retrofitting cable management around a completed structural layout is significantly more labor-intensive than planning routing paths into the original design — support points, riser locations, and underground runs are all easier to coordinate with foundation and structural work happening at the same stage of the project.
