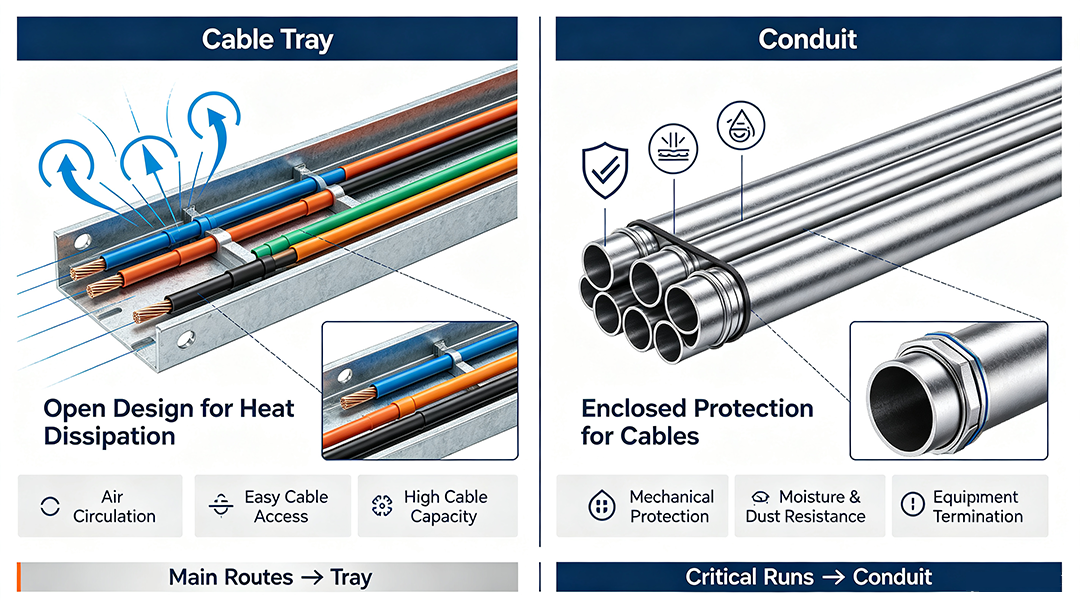

Cable tray is the better choice for carrying large numbers of cables over long runs where access, heat dissipation, and future expansion matter, while conduit is the better choice where cables need full enclosed protection from mechanical damage, moisture, dust, or hazardous conditions. Most real projects use both: tray for the main routes, conduit for the protected final connections. This guide compares the two by the factors that actually drive the decision, so you can specify each one where it performs best.

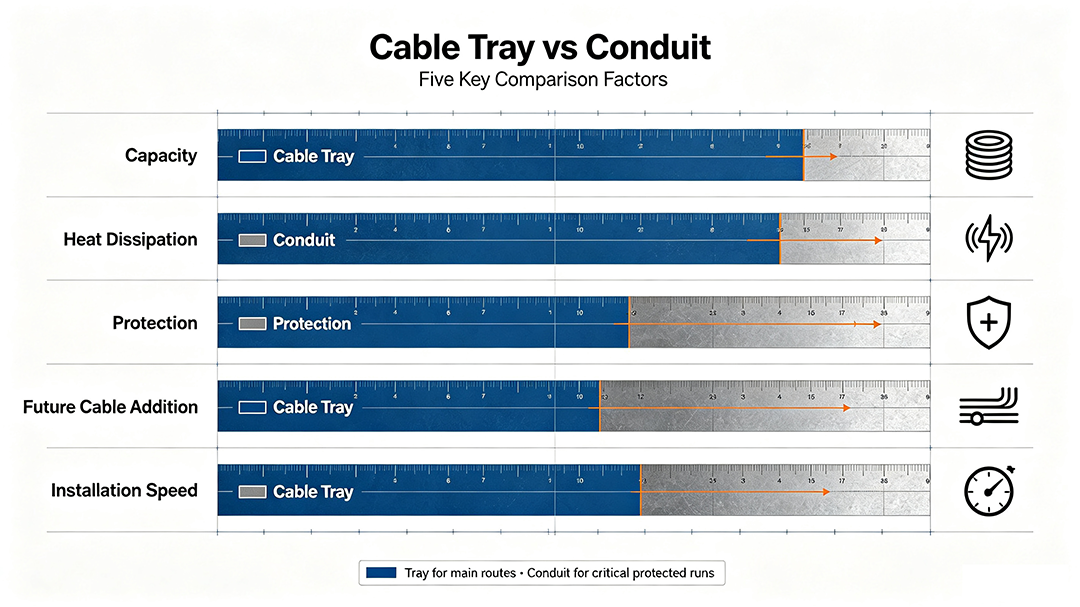

Factor | Cable Tray | Conduit |
|---|---|---|
Cable protection | Open or semi-open; limited protection from impact, dust, and moisture unless covered | Fully enclosed; strong protection from impact, moisture, dust, and chemical exposure |
Cable capacity | High; carries many cables, including large-diameter and multi-core types, in one run | Limited by conduit diameter and fill rules; typically one circuit or a few cables per conduit |
Heat dissipation | Good; open design allows air circulation around cables | Limited; enclosed cables retain more heat, which can require derating |
Installation speed | Faster for large cable counts; cables are laid in rather than pulled through | Slower; every run needs bending, threading or fitting assembly, and cable pulling |
Future changes | Easy; cables can be added or removed without disturbing the support system | Difficult; adding cables means pulling through an existing run or installing a new one |
Inspection and maintenance | Cables are visible and accessible | Cables are hidden inside the run |
Typical use | Main cable routes in factories, data centers, solar farms, and commercial buildings | Final connections to equipment, exposed or hazardous areas, and concealed or embedded runs |
Cable tray is a support system rather than an enclosure. Cables rest in the tray along its length, which makes it the more efficient way to route a large number of cables together and the easier system to modify after installation.
Main cable routes carrying many power, control, or data cables together over long distances
Facilities that expect to add or reroute cables over time, such as data centers and production lines
Installations with heavy or large-diameter cables, where the open design also helps dissipate heat
Outdoor and overhead routes, where hot-dip galvanized or stainless steel tray can be matched to the corrosion environment (see our SS304 vs SS316 vs HDG Cable Tray comparison)
Trade-off: Standard tray leaves cables more exposed than conduit does. Where cables could be damaged by impact, or where dust and moisture are a concern, tray needs covers, or the exposed sections should be switched to conduit.
Conduit is a fully enclosed raceway. Each run protects its cables from physical damage, moisture, dust, and in many cases chemical exposure, which is why it remains the standard choice for the last stretch between a main route and the equipment it serves.
Final connections from a cable tray run down to panels, motors, and equipment
Concealed runs inside walls, ceilings, or embedded in concrete (see our KBG vs JDG vs SC comparison for the common conduit types)
Areas with mechanical impact risk, such as exposed runs near vehicle traffic or machinery
Locations where code or the environment calls for enclosed wiring methods, including some hazardous or wet areas
Trade-off: Conduit costs more in labor per cable, since every run has to be bent, fitted, and pulled. Enclosed cables also retain heat, and conduit fill limits (for example, the common 40% fill limit for three or more conductors under NEC rules) cap how many cables a single run can carry.
Count the cables on the route. A route carrying many cables together generally favors tray; a single circuit or a short drop to one piece of equipment generally favors conduit.
Assess the physical risk. If cables could be struck, crushed, or exposed to dust, moisture, or chemicals, enclosed conduit protection is usually worth the extra labor.
Consider future changes. If the facility is likely to add or reroute cables, tray's open access saves significant cost compared with pulling new cable through conduit.
Check heat and ampacity. Bundled cables in enclosed conduit may need derating, while tray's open air circulation can support higher continuous loads for the same cable.
Check the applicable code. Local electrical code and the project specification decide which wiring methods are permitted in each area, so confirm this before finalizing the design.

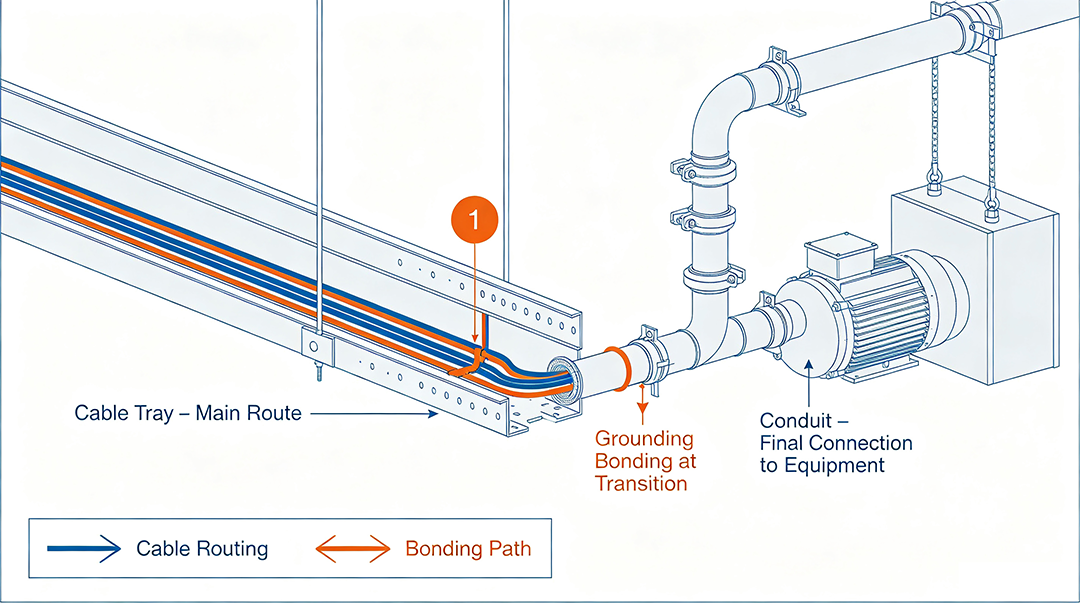

Combine them where it makes sense. Run tray along the main route, then drop to conduit for the protected final connection to each piece of equipment.
Cable tray and conduit aren't really competitors. Tray handles capacity, access, and future flexibility across main routes, while conduit handles enclosed protection at the points where cables are most exposed or most critical. The strongest designs assign each one to the job it does best, rather than forcing a single system across the whole project. Specifying both from a supplier who understands how they connect also reduces the compatibility and grounding gaps that appear when they are sourced separately.
In many applications, yes. Cable tray is permitted for main cable routes in most commercial and industrial installations, provided the cable type is suitable for tray use and the local code allows it. It does not replace conduit where enclosed protection is required, such as final connections exposed to impact or in certain hazardous areas, so check the project specification and local code for each location.
It depends on the cable count. For a route carrying many cables, tray is typically cheaper overall because installation is faster and cables are laid in rather than pulled. For a single circuit or a short run, conduit is often cheaper per run. Total installed cost should include labor, supports, and future modification costs, not material price alone.

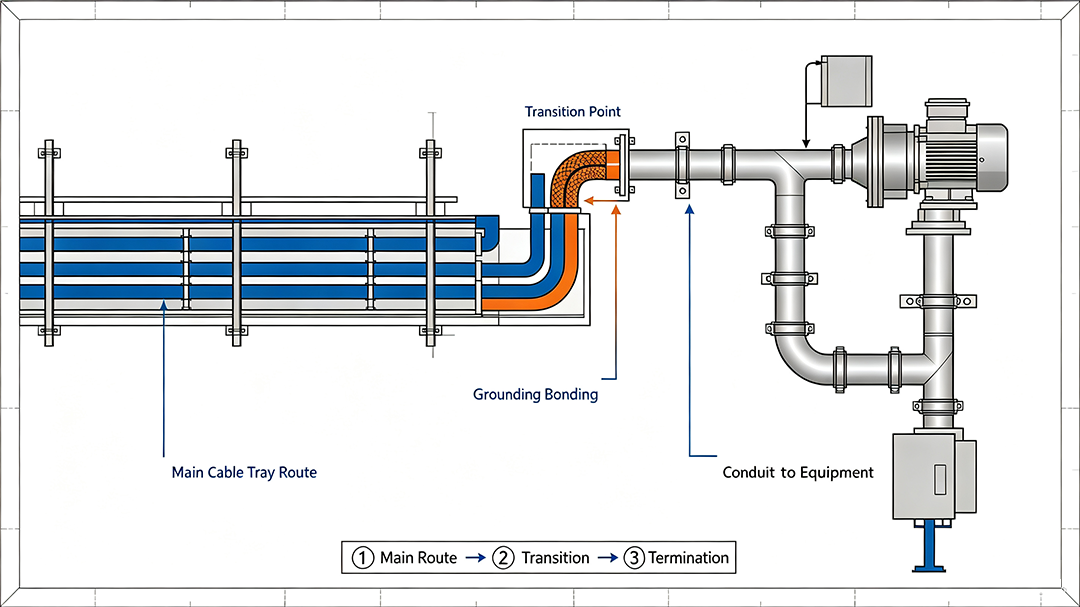

Yes, and this is the most common approach. Tray carries cables along the main route, and conduit protects the final connection from the tray to the equipment. The two need compatible supports and grounding continuity at the transition point, so it is worth confirming this at the design stage.
