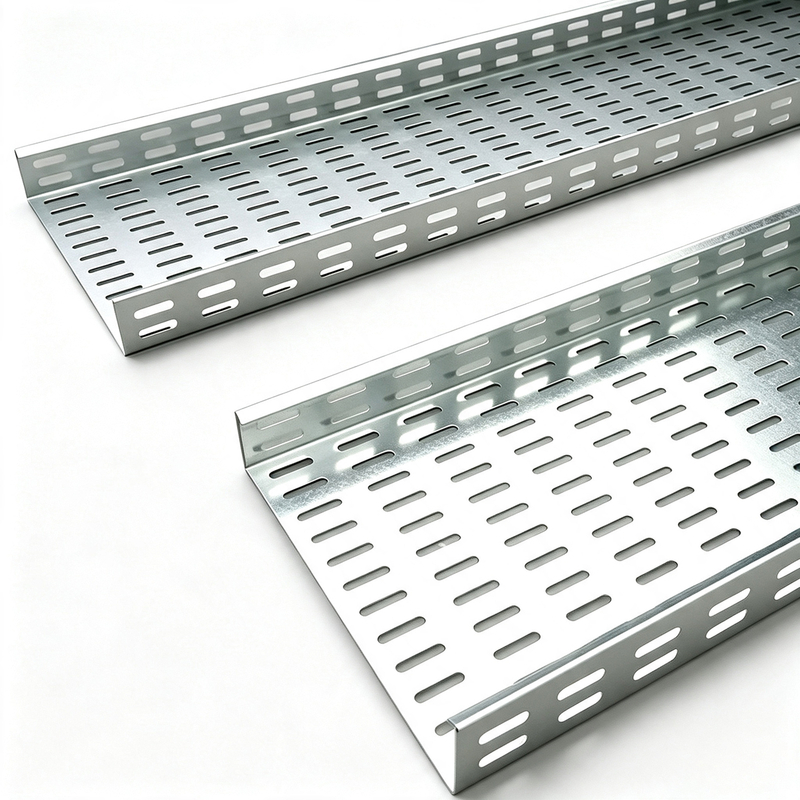

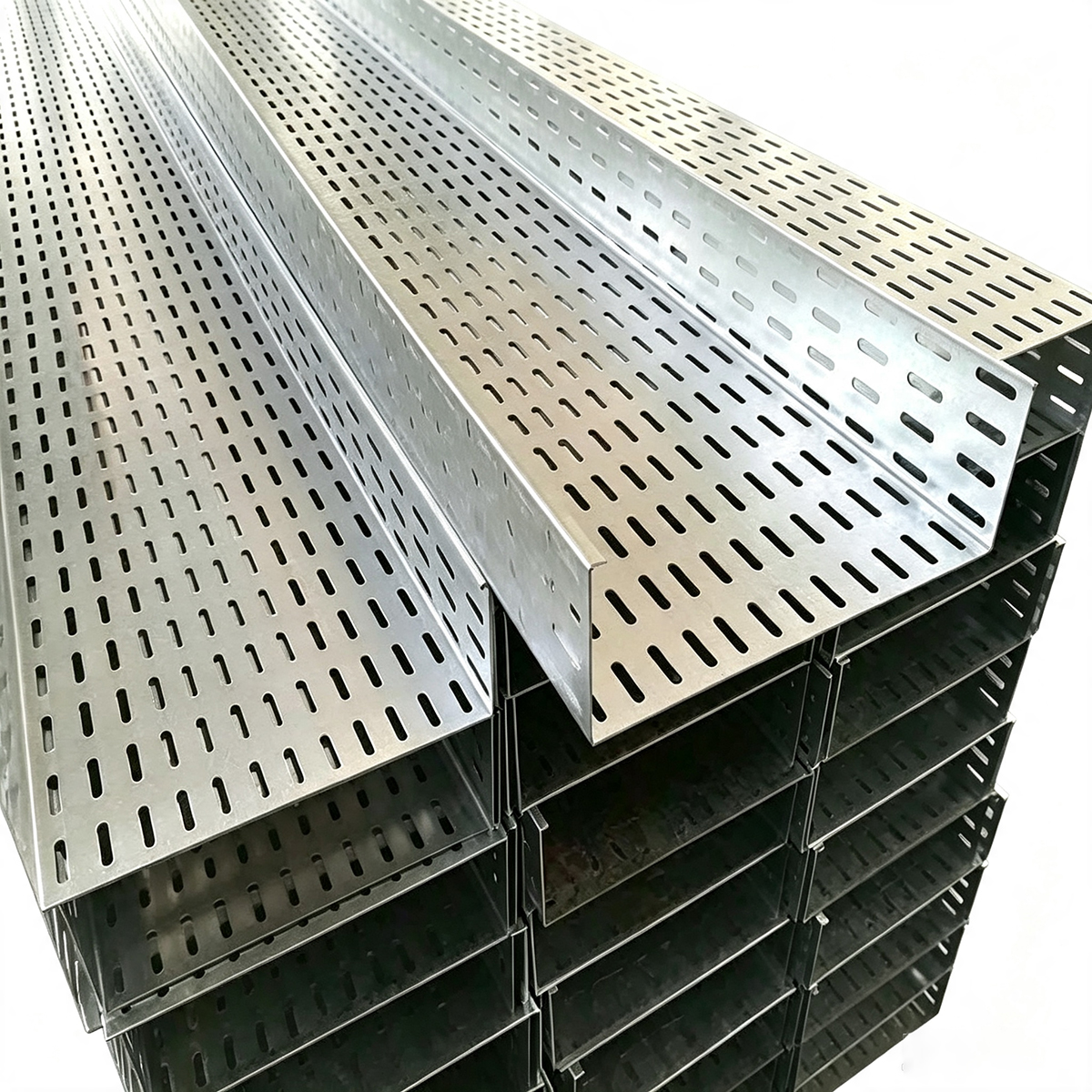

Hot-Dip Galvanized Steel Construction

Our Hot-Dip Galvanized Perforated Cable Tray is manufactured from high-quality steel and treated with a hot-dip galvanizing process.

During galvanizing, the fabricated steel tray is immersed in molten zinc, forming a protective zinc coating over the steel surface.

This coating helps protect the cable tray from corrosion and provides a durable finish for long-term cable management applications.

Excellent Corrosion Protection

Hot-dip galvanizing provides enhanced corrosion protection compared with untreated steel.

It is particularly suitable for applications where cable trays may be exposed to:

• Humidity

• Moisture

• Outdoor environments

• Industrial atmospheres

• Coastal environments

• Construction and infrastructure conditions

The appropriate galvanizing specification should be selected according to the project environment and applicable standards.

Perforated Design

The perforated structure provides ventilation around the cables and allows convenient cable fastening.

The openings also make it easier to inspect and maintain the cable installation.

The tray can be used for:

• Power cables

• Control cables

• Communication cables

• Data cables

• Low-voltage cables

• Instrumentation cables

Reliable Cable Support

The formed steel structure provides stable mechanical support for cable installations.

Different steel thicknesses, tray widths, and heights can be manufactured according to cable loading and project requirements.

For larger cable loads or demanding installations, appropriate support spacing and tray specifications should be selected based on engineering calculations and applicable standards.

Easy Installation and Maintenance

The perforated bottom and side walls provide convenient access for cable installation and fastening.

Installers can easily:

• Route cables

• Secure cables

• Inspect cable runs

• Add or remove cables

• Maintain existing cable systems

• Modify cable layouts

This makes the system suitable for projects that require accessible and organized cable management.

6. Cable Tray Fittings and Accessories

Wanan can supply a complete range of fittings and accessories for Hot-Dip Galvanized Perforated Cable Tray systems.

Available accessories include:

• Horizontal bends

• Vertical bends

• Tees

• Crosses

• Reducers

• Couplers

• End caps

• Support brackets

• Hangers

• Fasteners

Customized fittings can also be manufactured according to project drawings and cable routing requirements.

7. Applications

Industrial Facilities

Suitable for factories, manufacturing facilities, processing plants, warehouses, and industrial electrical systems.

Power and Electrical Facilities

Used for routing and supporting power, control, and electrical cables in substations, electrical rooms, and related facilities.

Commercial Buildings

Suitable for offices, shopping centers, hotels, hospitals, and other commercial buildings.

Data Centers

Can be used for power and low-voltage cable management where ventilation, accessibility, and organized cable routing are required.

Infrastructure Projects

Suitable for infrastructure, transportation, utilities, and large-scale construction projects requiring durable cable management systems.

Outdoor Applications

The hot-dip galvanized surface provides enhanced corrosion protection for selected outdoor applications. Final material and coating specifications should be determined according to the actual environmental conditions.

8. Key Features

• Hot-dip galvanized steel construction

• Enhanced corrosion protection

• Perforated cable tray design

• Good ventilation

• Reliable cable support

• Easy cable installation

• Easy inspection and maintenance

• Suitable for indoor and selected outdoor applications

• Multiple widths and heights available

• Different steel thicknesses available

• Wide range of fittings and accessories

• Customized dimensions available

• OEM and project-specific manufacturing

9. Customization Options

Wanan can customize Hot-Dip Galvanized Perforated Cable Tray according to project specifications.

Customization options include:

• Tray width

• Tray height

• Steel thickness

• Tray length

• Hole size

• Hole pattern

• Side rail height

• Galvanizing specification

• Fitting configuration

• Support accessories

We support customized cable tray solutions for EPC contractors, electrical contractors, MEP contractors, distributors, system integrators, data center projects, industrial projects, and infrastructure projects.

10. Why Choose Wanan?

Shenzhen Wanan Industrial Co., Ltd. is a China-based manufacturer of cable management and electrical infrastructure products.

Our cable management range includes:

• Hot-Dip Galvanized Perforated Cable Tray

• Galvanized Perforated Cable Tray

• Perforated Cable Tray

• Solid Bottom Cable Tray

• Cable Ladder

• Wire Mesh Cable Tray

• Cable Trunking

• Cable Tray Accessories

We support standard and customized production, including different dimensions, steel thicknesses, surface treatments, fittings, and project-specific configurations.

For distributors, EPC contractors, electrical contractors, and project buyers, Wanan can provide product specifications, technical drawings, samples, quotations, and export supply support.

Contact us for Hot-Dip Galvanized Perforated Cable Tray specifications, technical drawings, catalog, and quotation.
