A cable tray system is an important part of modern electrical infrastructure. It provides mechanical support, organized routing, protection, and easier maintenance for power cables, control cables, communication cables, and data cables.
However, selecting the right cable tray is not simply a matter of choosing a suitable width and height. Project engineers, electrical contractors, consultants, and procurement teams need to consider cable type, cable quantity, load capacity, installation environment, corrosion resistance, fire requirements, available space, maintenance requirements, and applicable standards.
This guide explains the key factors to consider when selecting a cable tray for industrial facilities, data centers, commercial buildings, power projects, infrastructure projects, and other electrical installations.
The first step is to understand where and how the cable tray will be installed.
Different applications require different cable management solutions.
Typical applications include:
Industrial plants
Manufacturing facilities
Data centers
Power plants
Solar power projects
Commercial buildings
Airports and transportation infrastructure
Oil and gas facilities
Petrochemical projects
Warehouses and logistics centers
Telecommunications facilities
For example, a data center may require high-density cable management and easy access for future cable installation, while an industrial plant may place greater emphasis on mechanical strength, corrosion resistance, and heavy cable loads.
Therefore, the cable tray should be selected according to the actual project environment rather than using the same specification for every application.

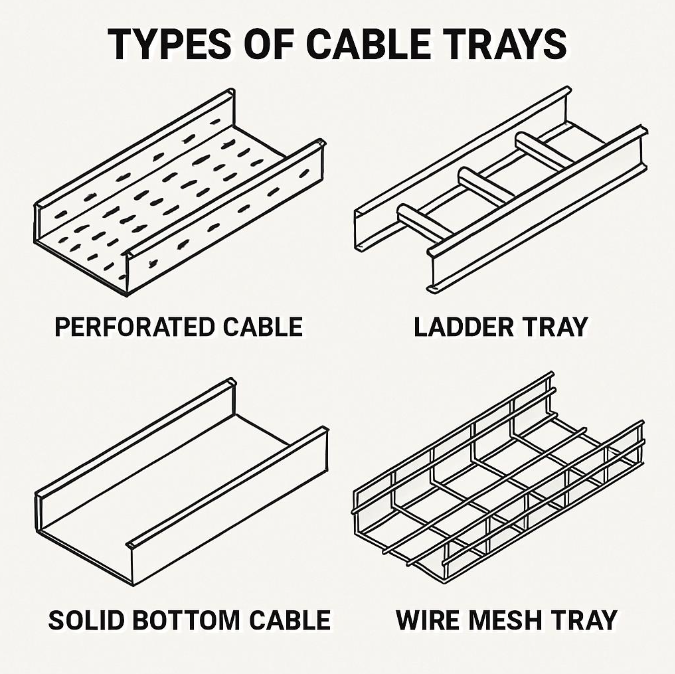

There are several common cable tray configurations. Each type has different advantages and applications.
Perforated cable trays have openings in the bottom and are widely used for power, control, instrumentation, and communication cables.
Advantages include:
Good ventilation
Easy cable installation
Convenient cable fixing
Good heat dissipation
Flexible accessory installation
Suitable for many industrial and commercial applications
Perforated cable trays are commonly used in industrial plants, commercial buildings, infrastructure projects, and electrical rooms.
Solid bottom cable trays provide a continuous bottom surface and can provide additional protection and support for smaller or more sensitive cables.
They may be suitable where:
Additional cable protection is required
Small cables need continuous support
Dust or debris protection is important
A cleaner cable management appearance is preferred
The final selection should depend on cable type, installation environment, ventilation requirements, and project specifications.
Cable ladders consist primarily of side rails and rungs.
They are particularly suitable for heavy cables and long-span installations because their open structure provides good ventilation and can reduce the overall weight of the cable management system.
Typical applications include:
Power plants
Industrial facilities
Utility projects
Heavy-duty electrical installations
Large power cable systems
Cable ladders can also be used where large quantities of heavy power cables need to be routed over long distances.
Wire mesh cable trays are manufactured from welded wire mesh and are often used for smaller cables, communication cables, data cables, and installations where flexibility and easy cable access are important.
They are particularly useful for:
Data centers
Telecommunications rooms
Network infrastructure
Control systems
Low-voltage cable installations
Their open structure allows convenient cable access and good ventilation.
Cable trunking provides an enclosed cable management solution.
Compared with open cable trays, trunking can provide greater protection against dust, mechanical contact, and other external influences.
Cable trunking is commonly considered for:
Indoor electrical installations
Commercial buildings
Control panels
Electrical rooms
Areas requiring enclosed cable routing
Material selection is one of the most important factors affecting cable tray performance and service life.
Common materials and finishes include:
Hot-Dip Galvanized Steel (HDG)
Zinc-Aluminum-Magnesium Coated Steel (ZAM)
Stainless Steel
Aluminum
Powder-Coated Steel
Pre-Galvanized Steel
The appropriate material depends on the installation environment.
HDG cable trays provide strong corrosion protection and are widely used for industrial and outdoor applications.
They can be considered for:
Industrial plants
Outdoor installations
Infrastructure projects
Utility projects
General corrosive environments
Zinc-Aluminum-Magnesium coated steel provides advanced corrosion protection and can be particularly attractive for humid, coastal, and demanding outdoor environments.
ZAM cable trays are increasingly considered for projects in tropical and coastal regions, including Southeast Asia.
Stainless steel cable trays are suitable for environments where high corrosion resistance is required.
Common applications include:
Chemical plants
Marine environments
Food processing facilities
Coastal infrastructure
Highly corrosive environments
For stainless steel applications, grades such as AISI 304 and AISI 316L may be considered according to the project environment and specification.
The surrounding environment directly affects cable tray material and coating selection.
Important environmental factors include:
Humidity
Temperature
Rain
Salt spray
Coastal exposure
Chemical contamination
Indoor or outdoor installation
UV exposure
Industrial pollutants
For example, projects located near the sea may require higher corrosion resistance than standard indoor electrical installations.
In tropical regions such as Malaysia, Indonesia, Thailand, Vietnam, and the Philippines, high humidity and rainfall should be considered during cable tray material selection.
For coastal or highly corrosive environments, engineers may consider ZAM or stainless steel depending on the required corrosion protection and project specifications.
Cable tray dimensions should be selected according to the quantity, diameter, and arrangement of cables.
The basic factors include:
Number of cables
Cable outside diameter
Cable weight
Required separation
Future expansion
Installation method
Project specifications
A cable tray should not be selected only according to the current cable quantity.
It is good engineering practice to consider future cable additions when sufficient installation space is available.
For example, if a project currently requires 250 mm of usable cable space, selecting a tray with additional capacity may reduce the need for future modifications.
The exact dimensional requirements should always be confirmed against the project cable schedule and applicable design standards.
Load capacity is critical for industrial and data center projects.
The cable tray must be capable of supporting the expected cable weight over the specified support span.
Important factors include:
Total cable weight
Cable tray width
Cable tray material
Material thickness
Tray design
Support spacing
Span length
Installation configuration
Heavy-duty cable trays and cable ladders may be more appropriate for large power cables and long support spans.
For industrial projects, the required load capacity should be determined from the cable schedule and structural design requirements.
For data centers, the engineer should consider both current cable loading and potential future cable additions.
Cable tray thickness affects mechanical strength, load capacity, and overall system durability.
Common factors affecting thickness selection include:
Tray width
Tray length
Support span
Cable weight
Installation environment
Material
Project specification
Required safety factor
A wider tray with a heavy cable load and long support span may require a thicker material or reinforced structure.
Instead of selecting thickness only by price, engineers and procurement teams should evaluate the complete load and support conditions.
For outdoor and industrial projects, corrosion protection can significantly affect the service life of a cable management system.
The selection should consider:
Indoor dry environment
→ Pre-galvanized or powder-coated steel may be suitable depending on the project specification.
General industrial environment
→ HDG steel may be considered.
Humid or coastal environment
→ HDG, ZAM, or stainless steel may be considered according to the corrosion category and project requirements.
Highly corrosive environment
→ Stainless steel or other specified corrosion-resistant solutions may be required.
The final coating and material selection should always be based on the actual environmental conditions and project specifications.
Data centers have specific cable management requirements because they contain large quantities of power, communication, network, and control cables.
A data center cable tray system should consider:
High cable density
Easy cable access
Ventilation
Future expansion
Cable segregation
Maintenance access
Structural loading
Installation flexibility
Corrosion protection
Common cable management solutions for data centers include:
Suitable for network, communication, and low-voltage cables where easy access and flexibility are important.
Suitable for power, control, and other cable systems requiring mechanical support and organized routing.
Suitable for larger power cables and areas requiring high load capacity.
Suitable for applications where enclosed cable protection is required.
A complete data center cable management system may use several cable tray types rather than relying on a single configuration.
Industrial facilities often require cable management systems capable of handling heavy cable loads and challenging environmental conditions.
Typical industrial applications include:
Manufacturing plants
Chemical plants
Power plants
Steel plants
Water treatment facilities
Oil and gas facilities
Mining projects
Utility infrastructure
For these applications, the selection process should focus on:
Cable load
Support span
Mechanical strength
Corrosion resistance
Operating temperature
Installation environment
Maintenance requirements
Project specifications
Heavy-duty cable trays and cable ladders are often considered for large industrial power cable installations.
Cable tray systems may need to comply with applicable international, regional, or project-specific standards.
IEC 61537 is an important international standard for cable tray and cable ladder systems.
Depending on the project, customers may also request:
Load testing
Deflection testing
Electrical continuity testing
Corrosion-related testing
Material verification
Coating thickness verification
Product inspection reports
Before placing an order, procurement teams should confirm the required standards, testing documents, material certificates, and inspection requirements with the supplier.
A cable tray system is more than the tray itself.
Typical accessories include:
Horizontal bends
Vertical bends
Tees
Crosses
Reducers
Couplers
Covers
Cover clamps
Support brackets
Hangers
Threaded rods
Bolts, nuts, and washers
Cable cleats
Earthing accessories
Accessories should be compatible with the selected cable tray material and dimensions.
For large projects, it is recommended to develop a complete cable tray system rather than purchasing only straight sections.
Before selecting a cable tray, project engineers and procurement teams should confirm the following:
Application
Industrial plant, data center, commercial building, power plant, solar project, or infrastructure?
Cable Type
Power cables, control cables, instrumentation cables, communication cables, or data cables?
Cable Quantity
How many cables need to be installed?
Cable Weight
What is the total load per meter?
Tray Dimensions
What width and height are required?
Support Span
What is the distance between supports?
Material
HDG, ZAM, stainless steel, aluminum, or powder-coated steel?
Environment
Indoor, outdoor, humid, coastal, chemical, or highly corrosive?
Load Capacity
What working load is required?
Future Expansion
Is additional capacity required for future cables?
Standards
Does the project require IEC 61537 or other standards?
Accessories
Are bends, tees, crosses, covers, couplers, and supports required?
There is no single cable tray that is suitable for every project.
A practical selection process is:
Step 1: Identify the application.
Step 2: Determine the cable types and quantity.
Step 3: Calculate cable weight and required load capacity.
Step 4: Determine tray width, height, thickness, and support span.
Step 5: Evaluate the installation environment.
Step 6: Select the appropriate material and corrosion protection.
Step 7: Select the suitable cable tray type.
Step 8: Confirm applicable standards and testing requirements.
Step 9: Select compatible accessories and supports.
Step 10: Review the complete cable management system before purchasing.
For large industrial and data center projects, working directly with an experienced cable tray manufacturer can simplify product selection and customization.
An experienced manufacturer can provide support with:
Cable tray type selection
Material selection
Thickness recommendations
Load capacity requirements
Custom dimensions
Cable tray accessories
Project-specific specifications
Testing and inspection documentation
Production and quality control
Export packaging and delivery
For projects with specific requirements, customers should provide the cable schedule, tray dimensions, material requirements, support span, environmental conditions, and applicable standards to the manufacturer.
This allows the supplier to recommend a cable management solution based on the actual project requirements.
Selecting the right cable tray requires more than choosing a tray size. The cable type, cable quantity, load capacity, material, corrosion resistance, installation environment, support span, standards, and future expansion requirements should all be considered.
For industrial projects, mechanical strength, load capacity, and corrosion resistance are often key considerations. For data centers, cable density, accessibility, ventilation, scalability, and organized cable routing are particularly important.
By evaluating these factors systematically, project engineers, contractors, consultants, and procurement teams can select a cable tray system that provides reliable cable support, efficient installation, long-term durability, and easier maintenance.
Shenzhen Wanan Industrial Co., Ltd. provides cable management solutions including perforated cable trays, solid bottom cable trays, cable ladders, wire mesh cable trays, cable trunking, HDG cable trays, ZAM cable trays, and stainless steel cable trays for industrial, infrastructure, data center, and other electrical projects.
For project-specific cable tray selection, customers can provide their cable schedule, required dimensions, material requirements, loading conditions, installation environment, and project specifications for evaluation.
