Choosing between an aluminum and a steel solar mounting structure affects a PV project's lifespan, maintenance cost, and total installed cost more than almost any other design decision. In short: aluminum mounting structures cost more upfront but resist corrosion naturally and need no coating, making them the preferred choice for coastal, rooftop, and long-design-life projects; hot-dip galvanized (HDG) or ZAM-coated steel structures cost less per ton, carry higher structural loads, and remain the standard choice for large ground-mount and utility-scale solar farms where budget and load capacity matter more than weight.
This guide compares the two materials across corrosion resistance, mechanical performance, cost, and typical applications, so EPC contractors, distributors, and project developers can select the right mounting structure material for their site conditions.
A solar mounting structure is the complete supporting framework that holds PV modules in position — including posts or foundations, rails, purlins, brackets, clamps, and connecting hardware. The structure is what transfers wind, snow, and dead-load forces from the panels down to the roof or ground, so its material and coating directly determine whether the system survives 25+ years of outdoor exposure without failure or costly maintenance. Structures are typically built from either aluminum alloy or coated steel, and the choice affects everything from shipping weight to long-term corrosion performance.
Mounting structures are exposed to weather, UV, and — depending on location — salt spray, industrial pollutants, or high humidity for the full design life of a PV system. Structural corrosion doesn't just mean a replaced part; it can mean panel misalignment, water ingress at roof penetrations, or in worst cases, structural failure during a wind event. Material selection at the design stage is one of the few decisions that is expensive and disruptive to correct later, which is why it deserves careful evaluation during procurement rather than being decided on price alone.
Aluminum structures are usually built from 6000-series alloys (commonly 6005-T5 or 6063-T5), used for rails, posts, and brackets alike.
Corrosion resistance: Aluminum forms a natural, self-healing oxide layer on its surface, so it resists corrosion without any additional coating. This makes it inherently well-suited to coastal, humid, and marine environments where salt spray accelerates corrosion in unprotected steel. Anodized aluminum components offer an extra layer of protection and a more consistent surface finish for architectural or highly visible installations.
Weight and handling: Aluminum is roughly one-third the weight of steel for a given volume, which reduces shipping cost — a meaningful factor for export projects — simplifies rooftop installation where roof load limits are a constraint, and speeds up on-site assembly with smaller crews.
Mechanical properties: Aluminum has lower tensile and yield strength than steel, so aluminum structural members typically need larger cross-sections or closer post spacing to carry equivalent structural loads. This is manageable in most rooftop and small-to-mid-scale ground-mount designs but becomes a more significant design and cost factor in high-wind or heavy-snow-load zones.
Typical applications: Rooftop solar mounting structures, coastal and marine projects, aluminum-framed solar carports, floating solar systems, and projects where weight reduction or corrosion-free performance justifies the higher material cost.

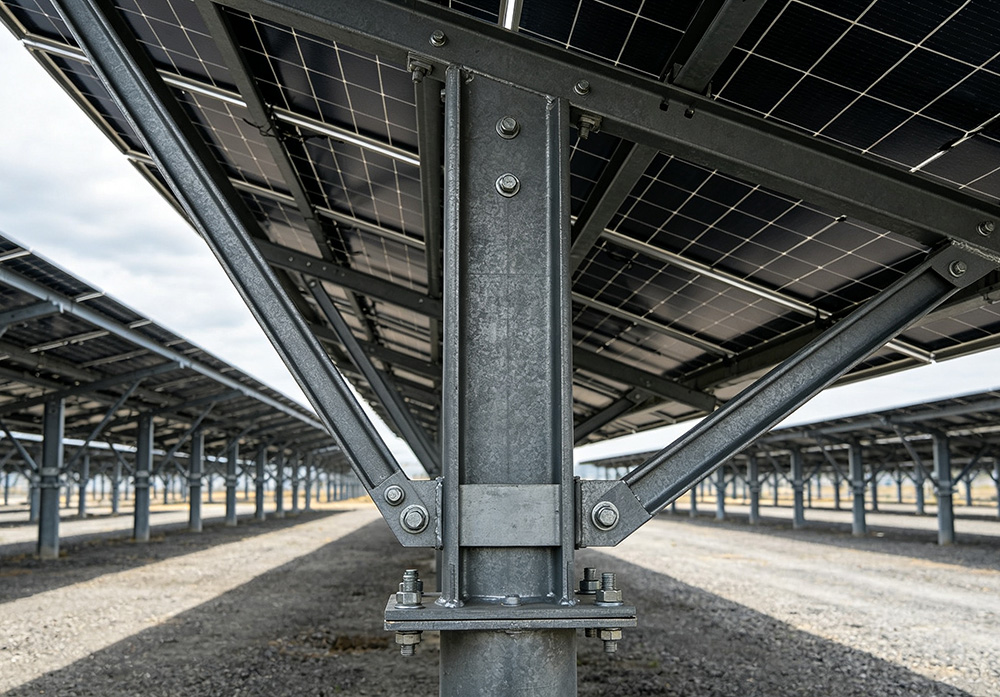

Steel structures are almost always supplied with a corrosion-protective coating, most commonly hot-dip galvanized (HDG) per ASTM A123 / ISO 1461, or a zinc-aluminum-magnesium (ZAM) coating for higher corrosion resistance in a thinner coating layer. Stainless steel is used in select high-corrosion or high-hygiene applications but at a significant cost premium.
Corrosion resistance: Uncoated steel corrodes quickly, so protection quality is everything. HDG coatings typically provide 25+ years of protection in normal atmospheric conditions per standard coating thickness classes; ZAM coatings can outperform HDG in coastal and industrial environments at a comparable or thinner coating thickness. Coating damage during transport or installation (cut edges, drilled holes, field welds) is the most common cause of premature steel structure corrosion, so field touch-up with zinc-rich paint at any exposed cut is essential.
Weight and load capacity: Steel's higher strength-to-cross-section ratio means steel structures carry more load per unit of material than aluminum, which is why steel dominates ground-mount racking, solar carports with vehicle clearance requirements, and utility-scale projects with demanding wind and snow load calculations.
Cost: Raw steel is significantly cheaper per ton than aluminum, and HDG coating adds relatively little to the base cost. This makes steel the default choice where budget and load capacity are the primary drivers and the site is not aggressively corrosive — which is why hot-dip galvanized mounting structures remain the standard specification across large utility-scale markets, including much of South Asia, the Middle East, and Africa.
Typical applications: Ground-mount solar farms, solar carports, utility-scale projects, and any site where coating quality can be reliably controlled and inspected during fabrication and installation.
Aluminum vs Steel Solar Mounting Structure: Side-by-Side Comparison
Factor | Aluminum Structure | Steel Structure (HDG / ZAM) |
|---|---|---|
Corrosion resistance | Naturally corrosion-resistant; no coating required | Depends entirely on coating quality and thickness |
Best environment | Coastal, marine, high-humidity, rooftop | Inland, industrial, standard atmospheric conditions |
Weight | ~1/3 the weight of steel | Heavier; more material handling required |
Structural load capacity | Lower per cross-section; needs larger profiles | Higher per cross-section; better for heavy loads |
Material cost | Higher per ton | Lower per ton |
Coating maintenance | None required | Coating touch-up needed at cut edges/damage |
Typical design life | 25–30+ years with minimal maintenance | 25+ years if coating remains intact |
Common use case | Rooftop, coastal, floating solar | Ground-mount, carports, utility-scale |
Comparing aluminum and steel mounting structures on material price alone is misleading. A full cost comparison should include:
Material cost — steel is cheaper per ton, but aluminum's lower density means less material by weight is needed for the same structural volume, narrowing the gap.
Freight cost — aluminum's lower weight reduces shipping cost per shipment, which matters more for export projects and long-distance inland freight than for local delivery.
Installation labor — lighter aluminum components reduce crew size and installation time on rooftop projects; heavier steel components may require additional lifting equipment on ground-mount sites.
Maintenance cost over 25 years — aluminum requires effectively none; steel requires periodic inspection of coating integrity, especially at cut edges, welds, and fasteners, with touch-up costs if damage is found.
End-of-life value — both aluminum and steel are highly recyclable, but aluminum typically retains higher scrap value per ton.
For large, inland, low-corrosion-risk ground-mount projects, HDG or ZAM steel usually wins on total installed cost. For coastal, rooftop, or long-design-life projects where corrosion risk or weight is a real constraint, aluminum's lower lifecycle maintenance often offsets its higher material cost.
Coastal or high-humidity site → Aluminum, or steel with a ZAM or stainless coating specification.
Large ground-mount or utility-scale project, standard inland environment → HDG steel for the best cost-to-load-capacity ratio.
Rooftop project with load or weight restrictions → Aluminum for easier handling and lower dead load on the roof structure.
Solar carport with vehicle clearance and heavy load requirements → Steel, typically HDG, for structural capacity.
Budget-constrained project in a low-corrosion environment → Steel is generally the more economical choice.
Tight design-life or low-maintenance requirement (e.g., remote sites with limited access for maintenance) → Aluminum reduces long-term maintenance visits.
Is aluminum or steel better for a solar mounting structure? Neither is universally "better" — it depends on site conditions. Aluminum is better for corrosion resistance and weight-sensitive rooftop or coastal projects; steel (properly coated) is better for load capacity and cost-sensitive ground-mount projects.
Does an aluminum solar mounting structure need any coating? No. Aluminum's natural oxide layer provides corrosion resistance without additional coating, though anodizing is sometimes applied for a more consistent surface finish or added protection in very aggressive environments.
How long does a hot-dip galvanized steel mounting structure last? Hot-dip galvanized coatings applied per ASTM A123 / ISO 1461 standards typically protect steel structures for 25 years or more in normal atmospheric conditions, and often longer, provided the coating isn't damaged during installation.
Is a steel solar mounting structure cheaper than aluminum? Steel is generally cheaper on a per-ton material basis and is the more economical choice for large-scale, inland ground-mount projects. Aluminum can be more cost-effective overall on rooftop or coastal projects once freight, installation labor, and maintenance are factored in.
Can aluminum and steel components be used in the same mounting structure? Direct contact between aluminum and uncoated steel can cause galvanic corrosion. Where the two materials must connect — for example, aluminum rails on a steel ground-mount frame — use isolating washers, compatible fasteners, or components designed for mixed-material assemblies to prevent galvanic reaction.
Shenzhen Wanan Industrial supplies both aluminum and hot-dip galvanized / ZAM steel solar mounting structures — including brackets, C-shaped and U-shaped steel profiles, and aluminum guide rails — for ground mount, rooftop, and carport PV projects worldwide. Contact us for material recommendations based on your project's site conditions and load requirements.
