HDG vs ZAM Cable Tray: Which Is Better for Southeast Asia?

When selecting cable trays for electrical, industrial, infrastructure, solar PV, and data center projects in Southeast Asia, corrosion resistance is one of the most important factors to consider.

Countries such as Malaysia, Indonesia, Thailand, Vietnam, and the Philippines have tropical climates characterized by high humidity, heavy rainfall, high temperatures, and, in many areas, coastal salt exposure. These environmental conditions can accelerate corrosion and affect the long-term performance of steel cable management systems.

Two popular corrosion protection solutions are Hot-Dip Galvanized (HDG) Cable Trays and Zinc-Aluminum-Magnesium (ZAM) Cable Trays.

So, which is better for Southeast Asia?

The answer depends on the project environment, installation location, required service life, maintenance requirements, applicable standards, and overall project budget.

In this article, we compare HDG vs ZAM Cable Trays and explain how to choose the right solution for Southeast Asian projects.

What Is an HDG Cable Tray?

HDG stands for Hot-Dip Galvanized.

An HDG cable tray is typically manufactured from steel and protected with a zinc coating through a hot-dip galvanizing process. The steel component is immersed in molten zinc, creating a protective zinc coating that helps protect the underlying steel from corrosion.

HDG cable trays are widely used in:

• Industrial plants

• Power plants

• Infrastructure projects

• Commercial buildings

• Data centers

• Outdoor electrical installations

• Solar PV projects

• Utility projects

• Oil and gas facilities

HDG is a well-established corrosion protection method and is widely recognized in the electrical and construction industries.

For many projects, HDG cable trays provide a practical combination of corrosion resistance, mechanical strength, durability, and cost efficiency.

What Is a ZAM Cable Tray?

ZAM stands for Zinc-Aluminum-Magnesium.

A ZAM cable tray uses steel with a zinc-aluminum-magnesium alloy coating. The addition of aluminum and magnesium can improve corrosion protection compared with conventional zinc coatings in many environments.

ZAM cable trays are increasingly considered for applications where enhanced corrosion resistance and long-term outdoor performance are important.

Typical applications include:

• Solar PV projects

• Renewable energy projects

• Outdoor cable management

• Industrial facilities

• Coastal infrastructure

• Data centers

• Commercial buildings

• Long-life infrastructure projects

ZAM can be an attractive option for tropical and humid regions where cable tray systems may be exposed to moisture, rain, salt-laden air, and other corrosive conditions.

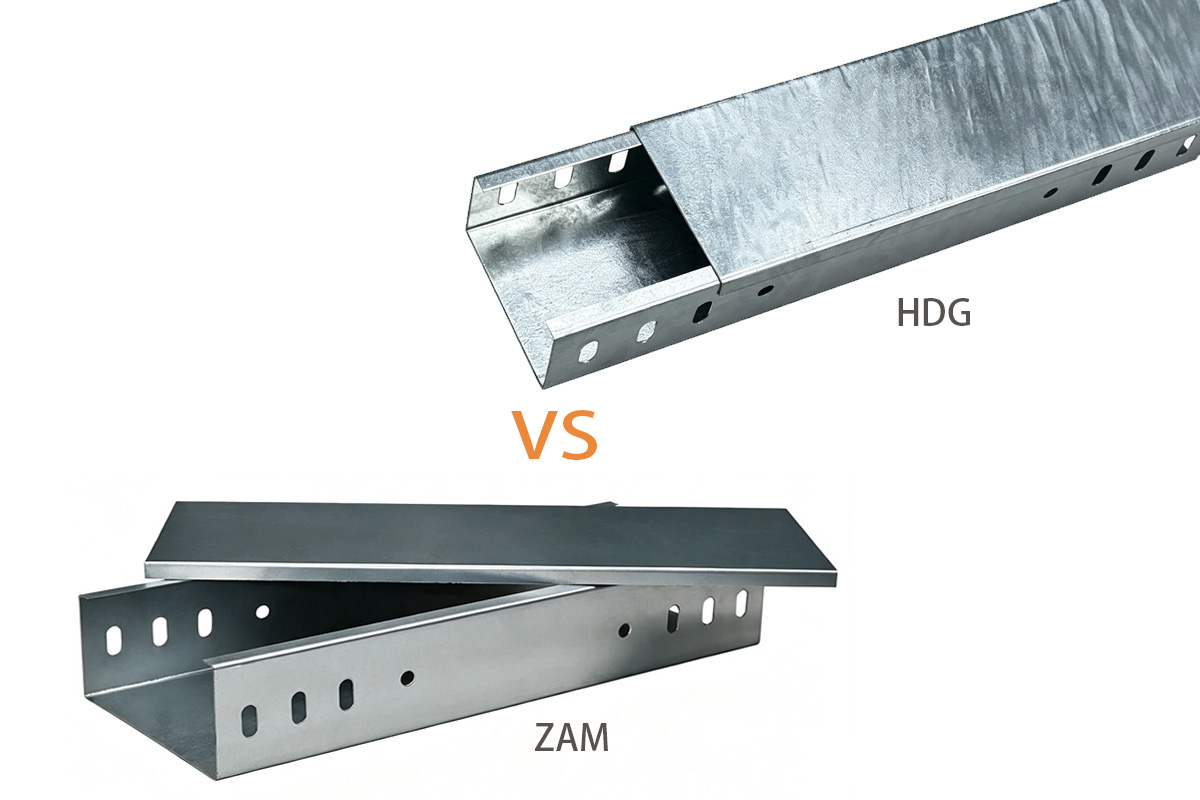

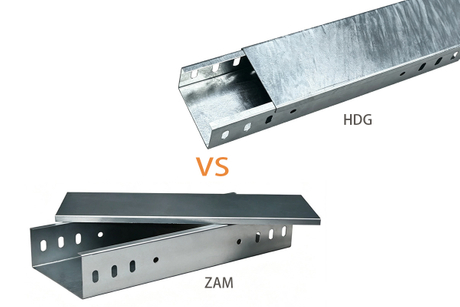

HDG vs ZAM Cable Tray: Key Differences

HDG and ZAM cable trays both provide corrosion protection, but their coating technologies and performance characteristics are different.

The actual performance of a cable tray depends on many factors, including coating quality, coating thickness, material thickness, installation environment, drainage, cut edges, fasteners, and project specifications.

Therefore, material selection should always be based on the complete project environment rather than simply choosing one coating type.

Why Is Corrosion Resistance Important in Southeast Asia?

Southeast Asia is one of the world's important regions for industrial development, infrastructure construction, renewable energy, data centers, and manufacturing.

However, the tropical climate creates challenging conditions for metal products.

Cable trays installed in Southeast Asia may be exposed to:

• High humidity

• Heavy rainfall

• High temperatures

• Coastal salt spray

• Airborne chlorides

• Industrial pollution

• Dust and moisture

• Long-term outdoor exposure

These conditions can accelerate corrosion, especially in coastal areas and industrial zones.

Corrosion can eventually affect the long-term performance of cable tray systems, including:

• Structural integrity

• Cable support

• Connection points

• Bolts and accessories

• Grounding continuity

• Maintenance requirements

• Replacement costs

For this reason, choosing an appropriate corrosion protection system at the design stage is important for long-term cable management performance.

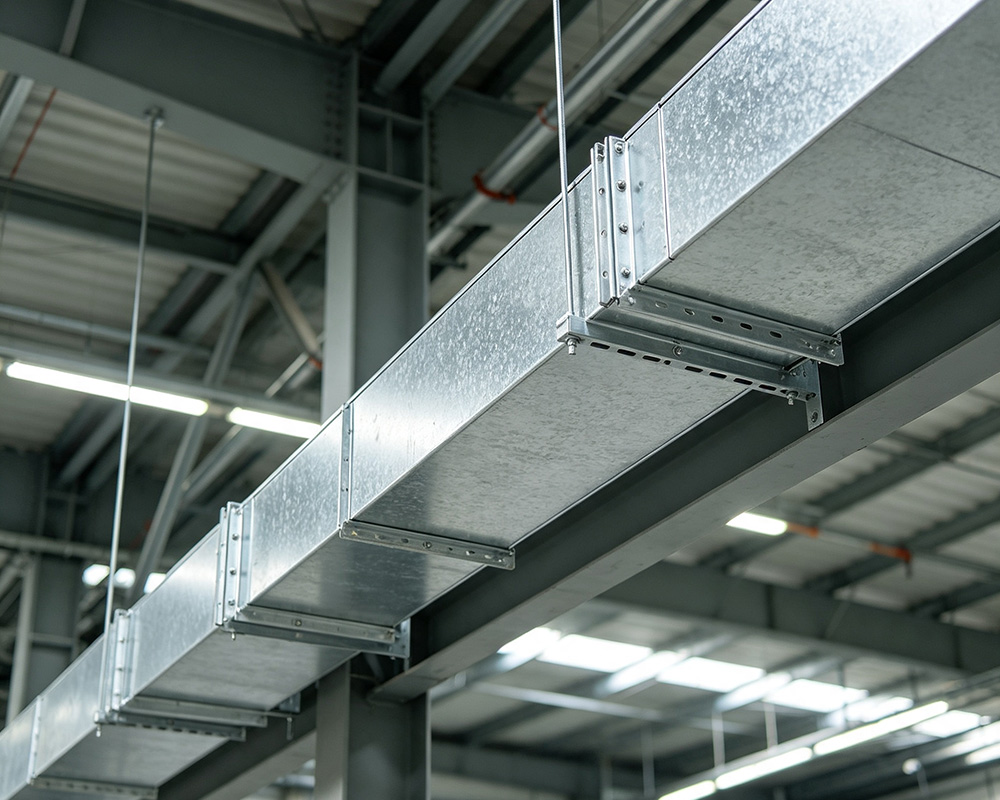

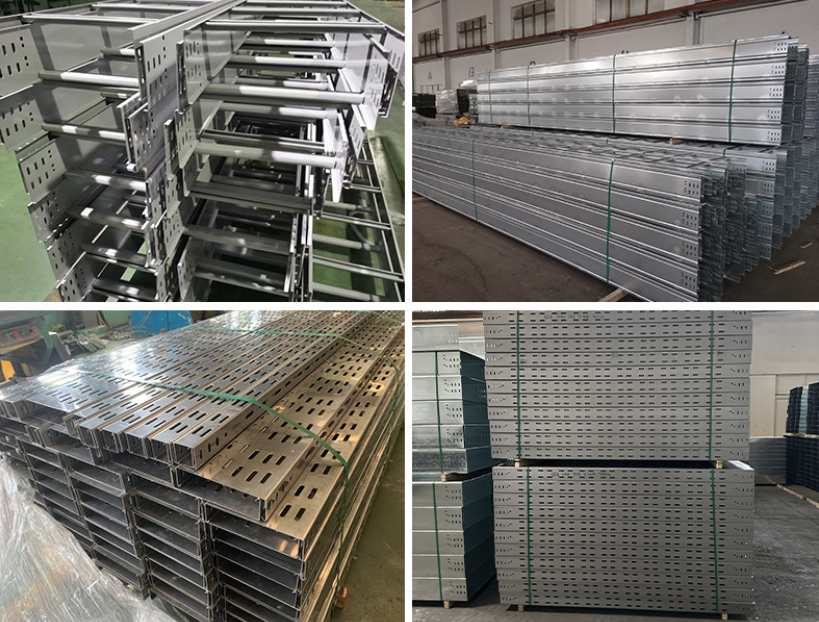

HDG Cable Tray for Southeast Asian Projects

HDG cable trays are a proven solution for many projects throughout Southeast Asia.

They are suitable for applications where:

• Reliable corrosion protection is required

• Strong mechanical performance is important

• Outdoor installation is involved

• A widely recognized galvanizing process is specified

• Competitive initial cost is important

• The project requires durable steel cable management

HDG cable trays can be used in industrial facilities, commercial buildings, power infrastructure, factories, warehouses, and many outdoor electrical applications.

For projects located in coastal or highly corrosive environments, the appropriate galvanizing specification and coating requirements should be carefully evaluated according to the project conditions and applicable standards.

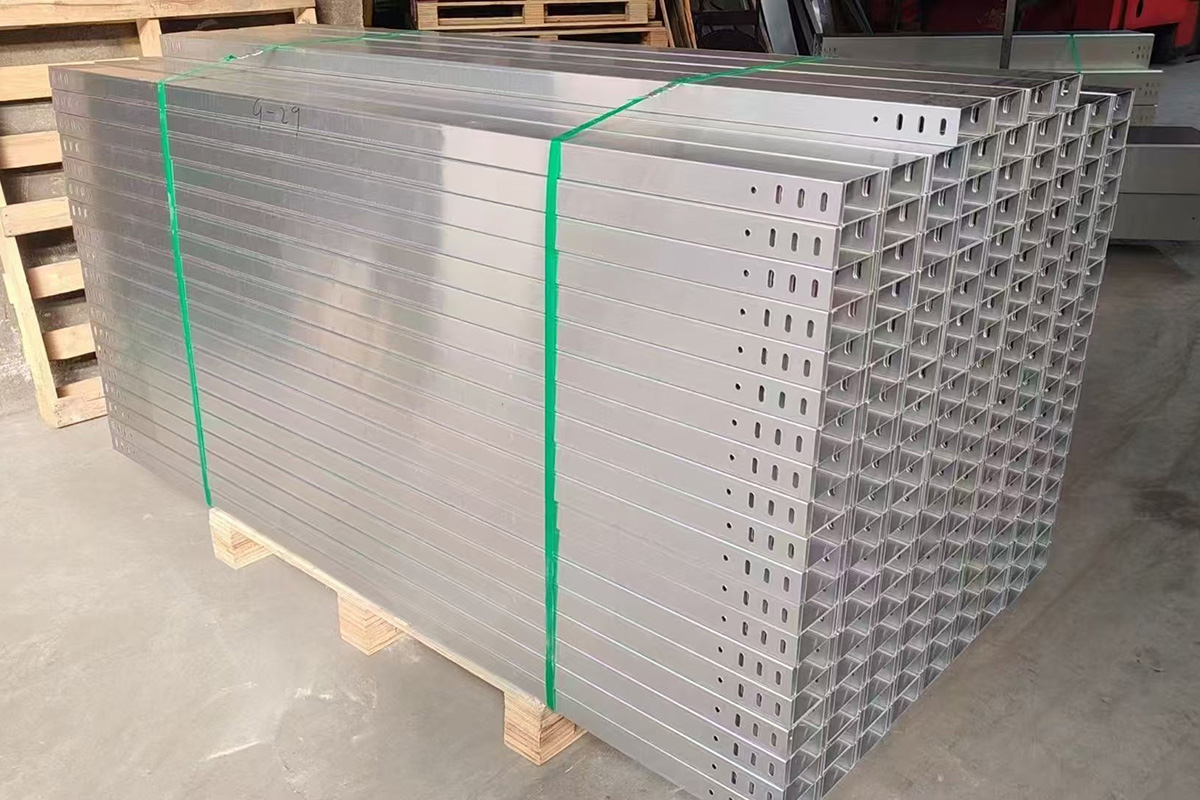

ZAM Cable Tray for Southeast Asian Projects

ZAM cable trays can be an attractive option for projects where enhanced corrosion protection is a major priority.

The combination of zinc, aluminum, and magnesium in the coating can provide strong corrosion protection in many environments.

ZAM cable trays may be particularly suitable for:

• Coastal areas

• Tropical outdoor installations

• Solar PV projects

• Renewable energy facilities

• Industrial environments

• Long-service-life infrastructure

• Projects where maintenance access is difficult

For large solar farms and renewable energy projects, cable tray systems may remain outdoors for many years and be continuously exposed to sunlight, humidity, rain, and atmospheric pollutants.

In these applications, selecting a suitable corrosion protection system can help support long-term reliability and reduce potential maintenance requirements.

HDG vs ZAM for Coastal Areas

Coastal areas can be especially challenging for steel cable management systems because salt-laden air and chloride exposure can accelerate corrosion.

Both HDG and ZAM cable trays can be used in outdoor and coastal projects when they are properly specified for the environment.

For projects with higher corrosion exposure or long service-life requirements, ZAM cable trays may offer advantages in corrosion protection and long-term maintenance performance.

However, the final material selection should consider:

• Distance from the coastline

• Salt exposure

• Humidity

• Rainfall

• Industrial pollution

• Expected service life

• Maintenance accessibility

• Project specifications

• Applicable standards

• Total cost of ownership

For extremely aggressive environments, engineers may also evaluate stainless steel, aluminum, GRP/FRP, or additional protective coating systems.

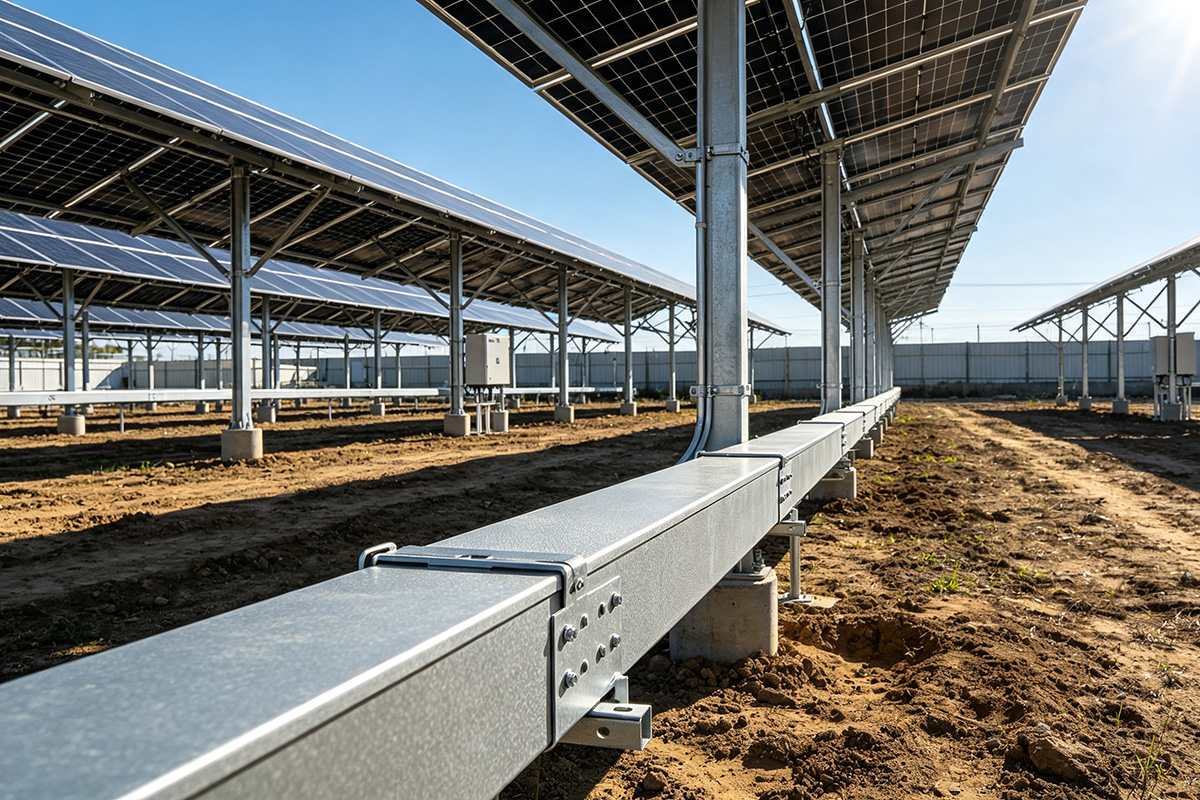

HDG vs ZAM for Solar PV Projects

Southeast Asia has significant potential for solar PV development, and the region continues to attract investment in renewable energy.

Solar PV cable tray systems are often installed outdoors and may be exposed to:

• High temperatures

• UV radiation

• Heavy rainfall

• High humidity

• Coastal salt

• Dust

• Industrial pollution

Because solar PV projects are designed for long operating periods, corrosion protection is an important consideration when selecting cable management systems.

For standard solar projects with suitable environmental conditions, HDG cable trays can provide a reliable and cost-effective solution.

For coastal solar farms or projects with higher corrosion exposure and long-term outdoor requirements, ZAM cable trays can be considered when enhanced corrosion protection is required.

The best solution should always be selected based on the project's actual environmental conditions and technical specifications.

Which Is More Cost-Effective: HDG or ZAM?

When comparing HDG and ZAM cable trays, the lowest initial purchase price is not necessarily the lowest total project cost.

Project owners and contractors should consider the Total Cost of Ownership (TCO), including:

• Initial material cost

• Transportation

• Installation

• Maintenance

• Inspection

• Replacement

• Downtime risk

• Expected service life

HDG cable trays can offer competitive initial costs and have a long history of use in electrical and construction projects.

ZAM cable trays may have a higher initial material cost in some markets, but their enhanced corrosion protection may provide advantages in applications where maintenance and replacement costs are significant.

For large-scale solar, industrial, infrastructure, and data center projects, it is important to evaluate both initial investment and long-term performance.

HDG vs ZAM: Which Cable Tray Should You Choose?

There is no single cable tray material that is perfect for every Southeast Asian project.

Choose HDG Cable Tray When:

• You need a proven galvanizing solution

• Strong mechanical performance is required

• The environment has moderate to high corrosion exposure

• Competitive initial cost is important

• The project specification requires hot-dip galvanized steel

• The application is industrial, commercial, or infrastructure-related

Choose ZAM Cable Tray When:

• Enhanced corrosion protection is a priority

• The project is located in a coastal area

• Long-term outdoor exposure is expected

• Maintenance access is difficult

• A long service life is required

• The project is a solar PV or renewable energy application

• Long-term total cost of ownership is more important than the lowest initial purchase price

Our Recommendation for Southeast Asia

For many general electrical, commercial, and industrial projects in Southeast Asia, HDG cable trays remain a reliable and cost-effective solution.

For coastal, highly humid, outdoor, renewable energy, and long-service-life projects, ZAM cable trays can be an excellent alternative when enhanced corrosion protection is required.

The right choice depends on the project's actual environmental conditions, technical requirements, applicable standards, service life expectations, and budget.

At Shenzhen Wanan Industrial Co., Ltd., we provide customized cable tray solutions for international projects and different environmental requirements.

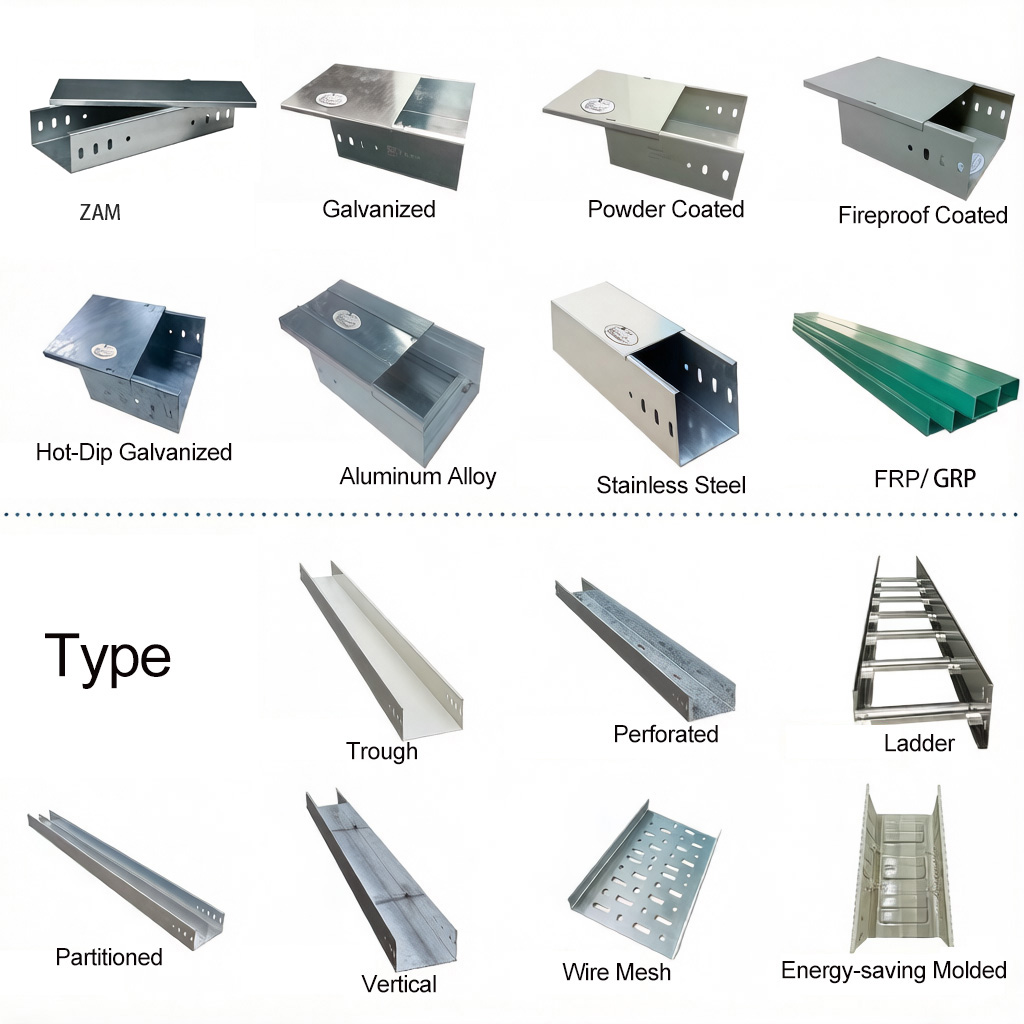

Our cable tray product range includes:

• Perforated Cable Tray

• Solid Bottom Cable Tray

• Trough Cable Tray

• Cable Ladder

• Wire Mesh Cable Tray

• Cable Trunking

• HDG Cable Tray

• ZAM Cable Tray

• Spray-Coated Cable Tray

• Fire-Resistant Cable Tray

We can customize cable tray dimensions, material, thickness, surface treatment, accessories, and packaging according to project requirements.

Our cable management solutions are suitable for industrial, commercial, infrastructure, solar PV, renewable energy, and other electrical applications.

If you are planning a project in Malaysia, Indonesia, Thailand, Vietnam, the Philippines, or another Southeast Asian market, our team can help you evaluate the appropriate cable tray material and corrosion protection solution based on your project environment.

Contact Shenzhen Wanan Industrial Co., Ltd. to discuss your cable tray requirements and request a customized quotation.

Frequently Asked Questions

Is ZAM better than HDG for cable trays?

ZAM can provide enhanced corrosion protection in many environments, while HDG remains a proven and widely used corrosion protection solution. The better option depends on the project environment, required service life, technical specifications, and budget.

Is HDG cable tray suitable for Malaysia?

Yes. HDG cable trays can be suitable for many Malaysian industrial, commercial, infrastructure, and outdoor applications. For coastal or highly corrosive environments, the required corrosion protection should be carefully evaluated.

Is ZAM cable tray suitable for solar PV projects?

Yes. ZAM cable trays can be considered for outdoor solar PV projects, especially where long-term corrosion resistance and reduced maintenance are important.

Which cable tray is better for coastal areas?

Both HDG and ZAM cable trays can be used in coastal environments when properly specified. For higher corrosion exposure and long-service-life requirements, ZAM may offer advantages, but the final selection should be based on actual project conditions and applicable specifications.

Can Shenzhen Wanan manufacture customized HDG and ZAM cable trays?

Yes. Shenzhen Wanan Industrial Co., Ltd. can provide customized cable tray solutions based on project requirements, including dimensions, material, thickness, surface treatment, accessories, and packaging.

Conclusion

When choosing between HDG vs ZAM Cable Tray for Southeast Asia, there is no universal answer.

HDG cable trays are a proven, durable, and cost-effective choice for many industrial, commercial, infrastructure, and electrical projects.

ZAM cable trays can be a strong option for applications where enhanced corrosion protection, outdoor exposure, coastal conditions, and long-term performance are key priorities.

For projects in Malaysia, Indonesia, Thailand, Vietnam, the Philippines, and other tropical markets, the right cable tray material should be selected according to the actual environmental conditions and project requirements.

Choosing the right corrosion protection today can help support the long-term reliability and performance of your cable management system.
