Wire Mesh Cable Tray vs Perforated Cable Tray: Which Is Right for Your Project?

Wire mesh and perforated cable tray are both open support structures for cable runs, and at a glance they can look interchangeable — both allow airflow, both support multiple cables, both come in similar widths. But the way each one is built changes how it performs on site, how fast it installs, and what kind of project it's actually suited for. This guide compares the two so you can specify the right one instead of defaulting to whichever is more familiar.

The Core Difference

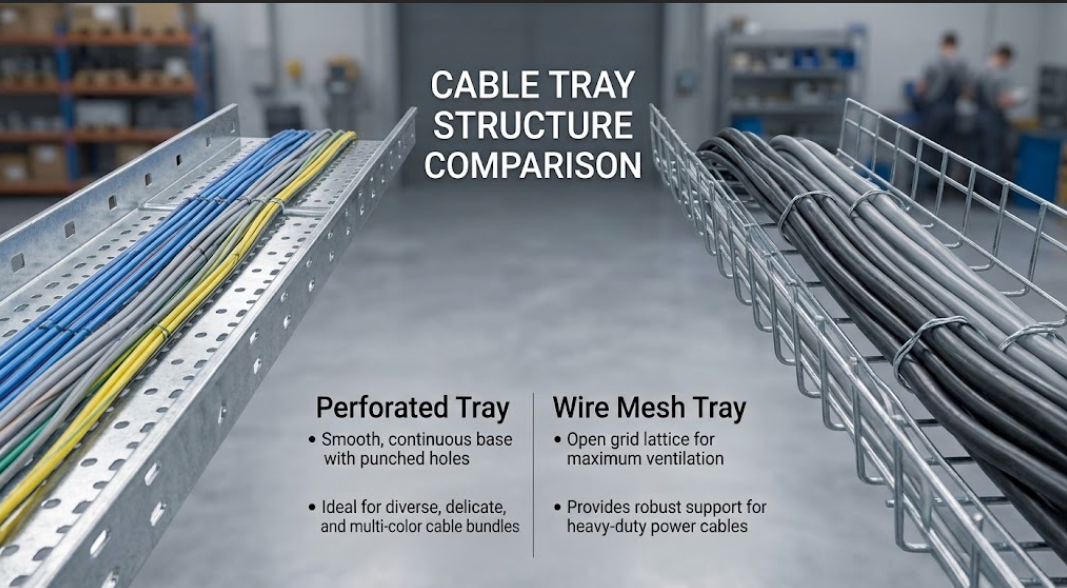

Wire mesh cable tray is welded from steel wire into an open grid, forming a basket-like structure with no solid base — cables sit directly on the wire grid, which is visible from underneath. Perforated cable tray is a solid sheet metal channel with a pattern of punched holes across the base, giving it a defined solid floor with ventilation openings rather than an open lattice.

That structural difference — open grid versus solid perforated base — is what drives most of the practical differences between the two: how easy they are to cut and modify on site, how much they weigh, how well they handle heat and dust, and where each is typically specified.

Wire Mesh Cable Tray

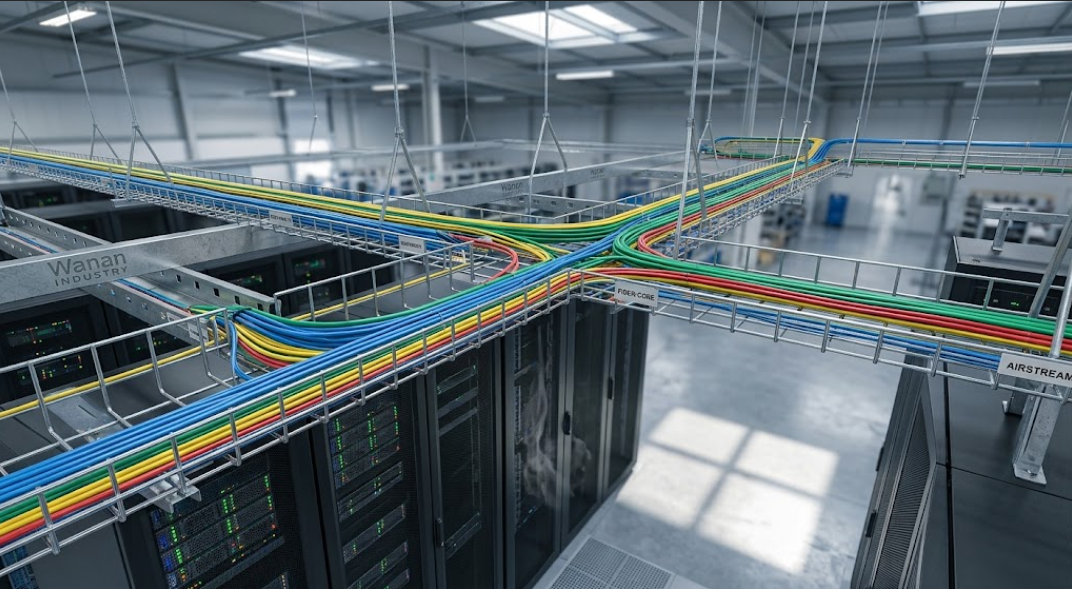

Because wire mesh tray is a welded grid rather than a formed sheet, it can be cut and reshaped on site with basic tools — no special cutting equipment is needed to notch, curve, or branch a run mid-installation. This flexibility makes it popular for retrofit work and IT/data cabling environments where cable routing changes are common and installers need to adapt on the fly.

Where wire mesh cable tray makes sense

• Data centers, server rooms, and IT/telecom cabling where low-voltage and data cables dominate the load

• Retrofit and renovation projects where routing needs to adapt to existing building conditions

• Installations prioritizing fast, tool-light on-site modification over a fully enclosed structure

Wire mesh tray is generally lighter per unit length than perforated tray of the same width, which can simplify handling and support requirements — though its open structure offers less physical protection for cables resting directly against the grid compared to a solid base.

Perforated Cable Tray

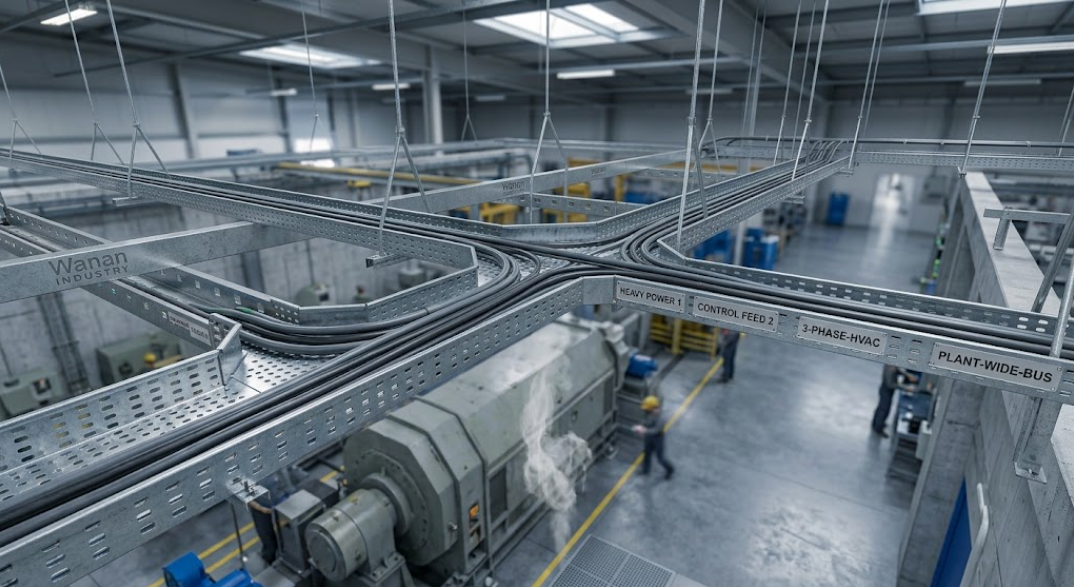

Perforated tray's solid punched base gives cables a continuous surface to rest on, offering more consistent physical support and protection than an open wire grid — particularly useful for heavier power cables or bundles that could sag or shift between the wires of a mesh tray. The perforations still allow heat dissipation and drainage, just through a fixed hole pattern rather than an open lattice.

Where perforated cable tray makes sense

• Industrial and power distribution runs carrying heavier cable bundles that benefit from continuous base support

• Projects requiring a cleaner, more finished appearance with a defined tray edge and base

• Sites where on-site modification is planned and executed with proper cutting tools rather than needed ad hoc

Because it's formed from solid sheet steel, perforated tray generally offers more consistent structural strength across its length and is the more common default for larger industrial and commercial power cable installations.

Comparing the Two

How to Decide

1. Identify the cable type and weight. Lighter data and communication cables suit wire mesh's open structure well; heavier power cable bundles benefit from perforated tray's continuous base support.

2. Consider how often routing will change. Data centers and IT environments with frequent moves, adds and changes favor wire mesh for its on-site adaptability.

3. Check the installation environment. Dusty or particulate-heavy industrial environments may favor perforated tray's more defined base over an open grid where debris can fall through.

4. Factor in appearance requirements. Visible installations in finished spaces often favor perforated tray's cleaner, more uniform look over the exposed wire lattice of mesh tray.

Conclusion

Wire mesh and perforated cable tray both solve the same basic problem from different structural approaches — open lattice versus solid perforated base — and that difference should guide the decision more than habit or familiarity. Wire mesh tray wins on installation flexibility and lighter weight, making it a strong fit for data and IT cabling and retrofit work, while perforated tray's continuous base makes it the more common choice for industrial power distribution and heavier cable loads. Matching the tray type to the cable load and installation environment avoids under-supporting cables or over-specifying structure where it isn't needed.

FAQ

Can wire mesh and perforated tray be used in the same project?

Yes — it's common to see wire mesh used for data/IT cable runs in server rooms or office areas, while perforated tray handles the heavier power distribution backbone in the same building's service corridors or electrical rooms.

Is wire mesh cable tray strong enough for power cables?

It can support power cables, but for heavier bundles or longer unsupported spans, perforated or ladder-type tray's continuous or rung-supported structure generally provides more consistent load support than an open wire grid.

Which one is easier to install?

Wire mesh tray is generally faster to modify on site since it can be cut and reshaped with basic tools without specialized cutting equipment, which can shorten installation time on projects with irregular routing or frequent field changes.
