Trough vs Ladder Cable Tray: Which Type Should You Choose?

Quick Answer

Choose ladder cable tray for heavy power cables, long support spans and outdoor or industrial runs where airflow and easy cable access matter. Choose trough cable tray for lighter control, signal and data cables that need more support and protection along the whole length, and for shorter spans. If you are unsure, check the cable weight, the support spacing and how much heat the cables will produce.

What Is a Ladder Cable Tray?

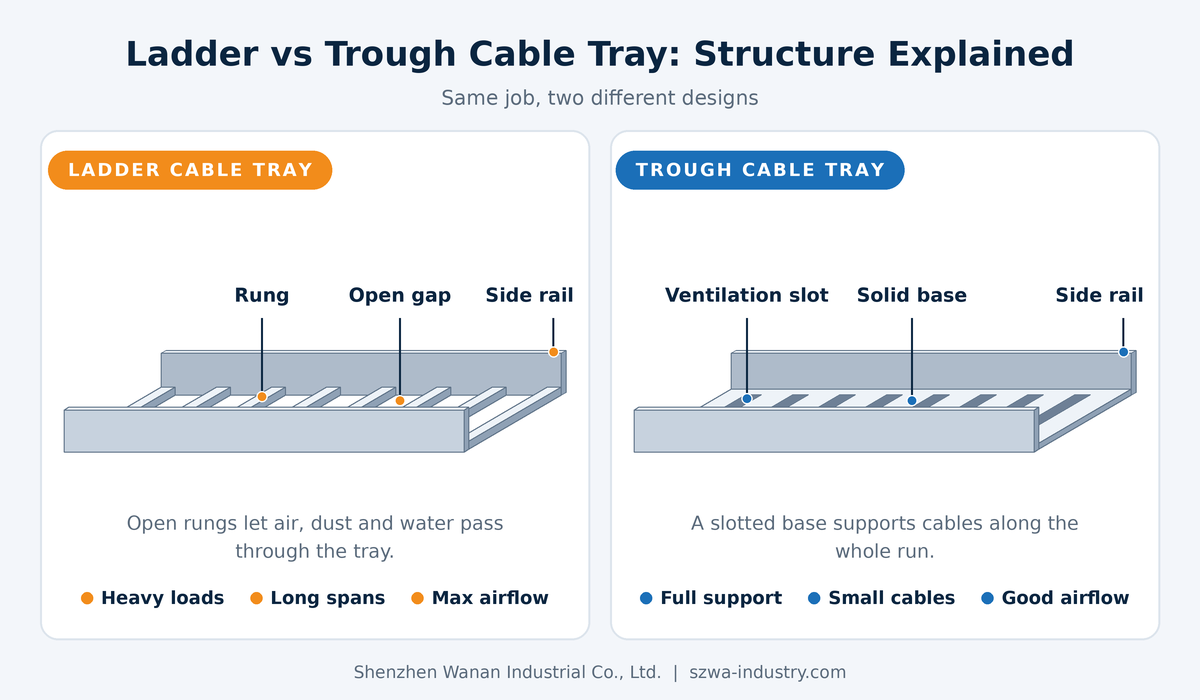

A ladder cable tray has two side rails connected by evenly spaced rungs, like a ladder. Cables rest on the rungs, and the open structure lets air, dust and moisture pass through. Ladder tray is built for heavy loads and long spans, so it is the standard choice for large power cables in industrial plants, substations, tunnels and outdoor runs. See our Ladder-type Cable Tray.

What Is a Trough Cable Tray?

A trough cable tray has a bottom with ventilation slots or openings, with side rails on both edges. The bottom supports cables along their whole length, which suits smaller cables that would sag or bend between rungs. It offers more support and some protection while still allowing airflow through the slots. See our Trough-type Cable Tray.

Trough vs Ladder Cable Tray: Side-by-Side Comparison

Actual load ratings and spans depend on the material, thickness, side rail height and standard used. Always confirm them against the manufacturer's data sheet and the project specification.

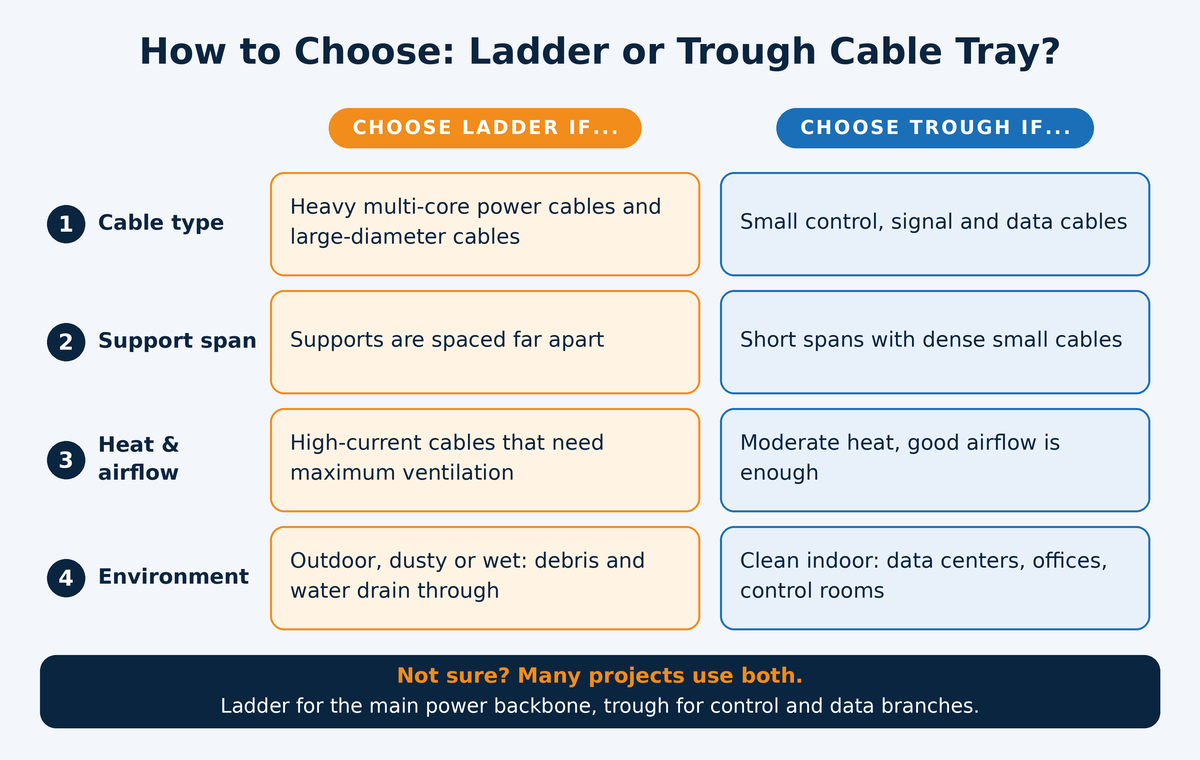

How to Choose

1. Cable type and weight. Heavy multi-core power cables and large-diameter cables belong on ladder tray. Small control and communication cables need continuous support, so trough is the better fit.

2. Support span. If supports can only be spaced widely, ladder tray usually handles the longer span. For short spans with dense small cables, trough works well.

3. Heat and ventilation. Ladder tray gives the most airflow, which helps with high-current power cables. Trough tray still ventilates but retains a little more heat.

4. Environment. Outdoor, dusty or wet locations favor ladder because debris and water drain through. Indoor clean environments such as data centers and commercial buildings suit either type. For material choice, see HDG vs ZAM Cable Tray and Cable Tray Materials Explained.

5. Budget. Ladder tray often uses less material per meter for the same span, but total cost also depends on fittings, supports and installation, so compare the full system rather than the tray alone.

Typical Applications

• Ladder: power stations, substations, oil and gas, heavy industry, tunnels, outdoor cable runs, solar power plant feeders

• Trough: data centers (signal and data cabling), commercial buildings, control rooms, airports and transport hubs, light industrial areas

Can You Mix Both in One Project?

Yes, and many projects do. A common layout is ladder tray for the main power backbone and trough tray for branch runs carrying control and data cables. Keep power and signal cables separated as your electrical standard requires. For an enclosed alternative, read Cable Trunking vs Cable Tray.

Finishes and Materials

Both types are available in hot-dip galvanized (HDG), ZAM, stainless steel, pre-galvanized and powder-coated finishes. Pick the finish by environment: HDG or ZAM for outdoor and corrosive settings, stainless steel for coastal, chemical and food environments, powder coating for indoor visible areas. Covers can be added to either type, see Cable Tray Cover Plates and Waterproof Cover Plate.

Need Help Choosing?

Wanan has manufactured cable tray systems since 2004 and supplies EPC contractors, distributors and MEP contractors worldwide, with OEM and custom sizes. Send us your cable list, span and environment, and our engineers will recommend a suitable type and finish. Contact us.

FAQ

Is ladder cable tray stronger than trough cable tray?
Generally, yes. Ladder tray is designed for heavier loads and longer spans. Final capacity depends on the side rail height, material thickness and the standard the tray is rated to.

Which is better for data centers, trough or ladder?
Both are used. Trough tray suits dense small data and signal cables, while ladder tray is used for heavier power runs and overhead backbones. See our Cable Tray Selection Guide for Data Center.

Does trough cable tray have ventilation?
Yes. The bottom has slots or openings, so it ventilates, though ladder tray has more open area and dissipates heat better.

Which type is cheaper?
It varies by span and load. Ladder tray often needs less material for long spans, while trough may be simpler for short runs of small cables. Compare the complete system cost.

What is the difference between trough tray and perforated tray?
The names are used differently by region and supplier. In general, both have a solid or slotted bottom, and the ventilation pattern and rail height differ. See Wire Mesh vs Perforated Cable Tray for more.
