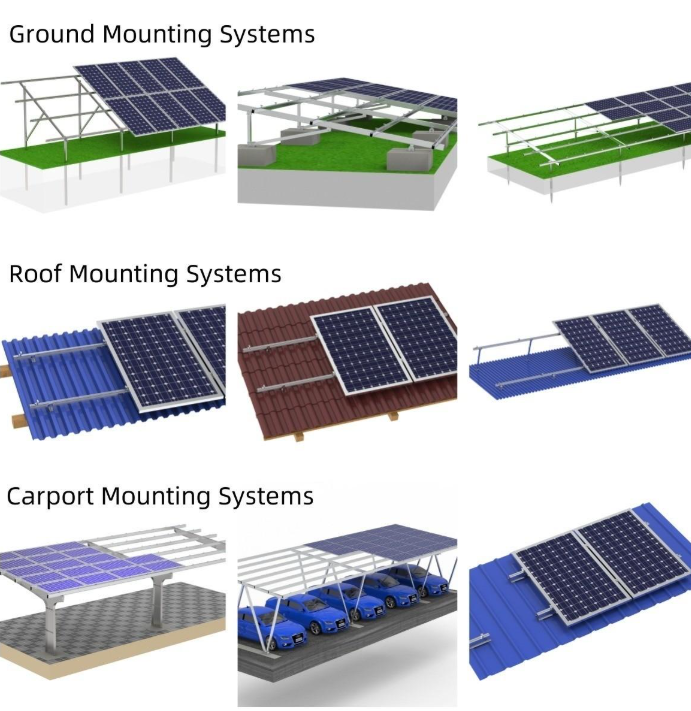

Solar Mounting System Types Compared: Ground Mount vs Rooftop vs Carport vs Floating — How to Choose for Your Project

Solar mounting systems are the structural foundation of every PV project. They hold panels at the correct angle, transfer wind and snow loads safely into the ground or building structure, and directly influence installation cost, project timeline and 25+ year system reliability. Choosing the wrong mounting type can mean higher steel costs, longer installation time, or structural issues down the road — choosing the right one can cut both CAPEX and installation labor significantly.

This guide compares the four main categories of solar mounting systems — ground mount, rooftop mount, solar carport, and floating mount — and explains how site conditions, project scale, and budget should guide your decision.

What Is a Solar Mounting System?

A solar mounting system (also called PV racking or a solar mounting structure) is the framework — typically aluminum, galvanized steel, or ZAM-coated steel — that secures solar panels to the ground, a roof, a carport structure, or a floating platform. Every mounting system is engineered to withstand local wind loads, snow loads, and seismic conditions while keeping panels at the optimal tilt angle for energy generation.

The four main types differ mainly in where the panels are installed and the structural approach used to support them.

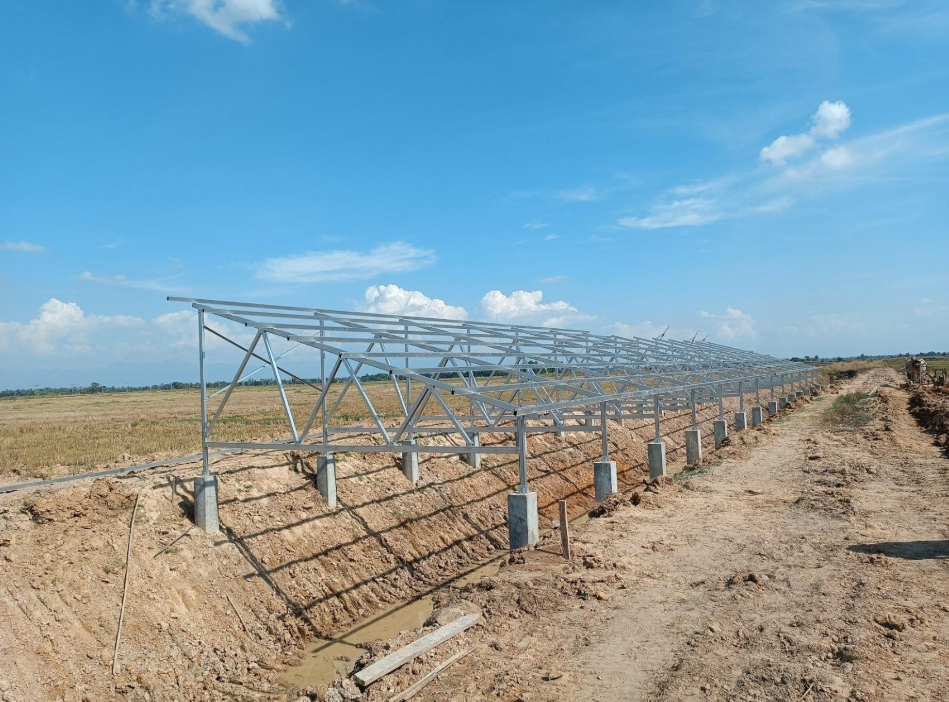

1. Ground Mount Solar Systems

Ground-mounted systems anchor panels directly into the earth using driven piles, screw piles, or concrete foundations, with steel or aluminum racking above.

Best for: Utility-scale solar farms, large commercial sites, agrivoltaic projects, and any site with sufficient open land.

Advantages:

• No roof load limitations — structures can be engineered for optimal tilt and higher wind resistance

• Easier to scale to utility size (MW-level projects)

• Simpler maintenance access and panel cleaning

• Can be combined with tracking systems for higher energy yield

Trade-offs:

• Requires available land and, in many cases, land-use permitting

• Higher foundation and civil works cost per project compared to rooftop

• Grounding and cable routing (often paired with cable tray systems) need to be planned across a large footprint

Common configurations: fixed-tilt ground mount, adjustable-tilt racking, single-axis tracker-compatible structures.

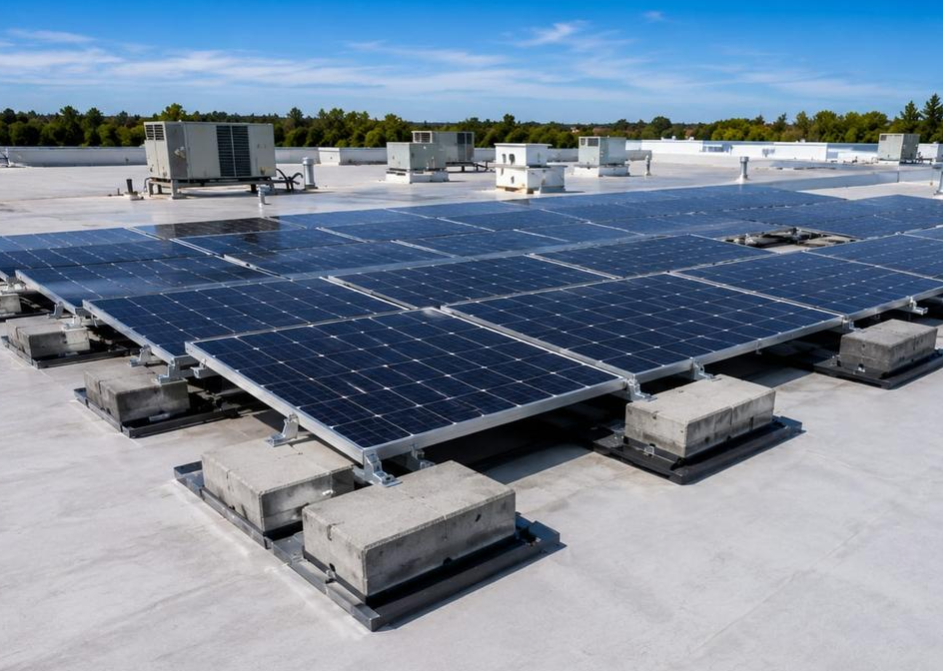

2. Rooftop Solar Mounting Systems

Rooftop systems attach directly to a building's roof structure — trapezoidal metal roofs, flat concrete roofs, or standing-seam roofs each require a different mounting approach.

Best for: Commercial and industrial (C&I) rooftops, warehouses, factories, and distributed generation projects where land is limited or unavailable.

Advantages:

• No additional land required — uses existing building footprint

• Typically lower installation cost than ground mount for small-to-mid scale projects

• Shorter cable runs to the building's electrical system

• Wide range of roof-specific brackets (trapezoidal, clamp-based, ballasted) accommodate almost any roof type

Trade-offs:

• Roof structural load capacity must be verified before installation

• Limited by roof orientation and available unshaded area

• Waterproofing and penetration-free mounting solutions are critical to avoid leaks

Common configurations: trapezoidal metal roof clamps, flat-roof ballasted systems, standing-seam clamps, tilted brackets for flat roofs.

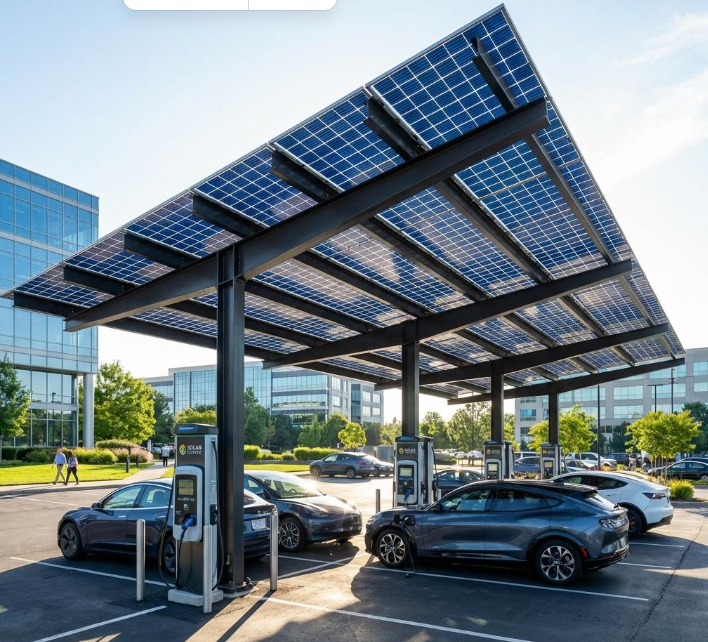

3. Solar Carport Mounting Systems

Solar carports combine a parking structure with an elevated PV array, generating power while providing shaded parking.

Best for: Commercial parking lots, shopping centers, factories, schools, EV charging infrastructure projects, and sites where dual land use adds value.

Advantages:

• Dual-purpose land use — power generation plus vehicle shading/EV charging integration

• Higher visibility, often used for corporate sustainability/branding purposes

• No competition with rooftop space or ground-mount land use

• Elevated structure allows for straightforward cable and conduit routing beneath the canopy

Trade-offs:

• Higher structural engineering complexity (steel columns, wind load, vehicle clearance height)

• Generally the highest cost per watt among the four mounting types

• Requires more detailed site engineering and local building code compliance

Common configurations: single-column cantilever carports, double-column carports, T-shaped and Y-shaped steel structures.

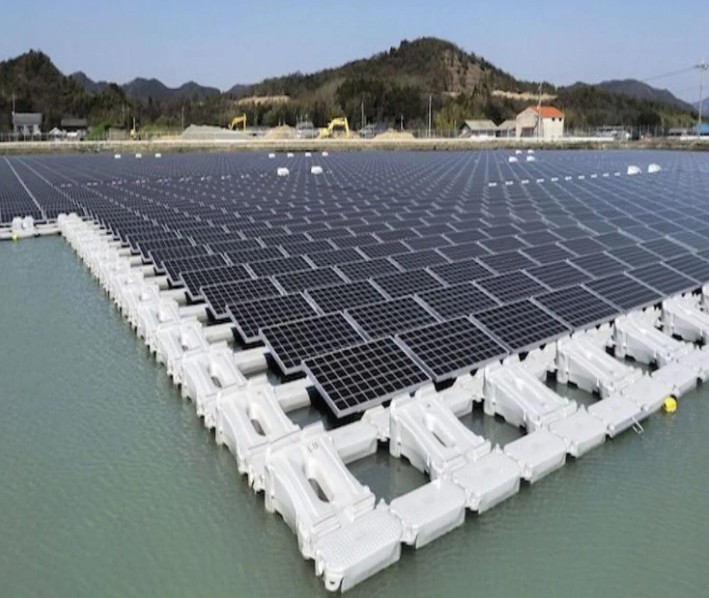

4. Floating Solar Mounting Systems

Floating PV (also called "floatovoltaics") systems mount panels on buoyant platforms deployed on reservoirs, ponds, or hydropower dam surfaces.

Best for: Sites with water reservoirs, aquaculture ponds, hydropower dams, or irrigation basins — especially where land is scarce or expensive.

Advantages:

• No land acquisition cost — uses otherwise unused water surface

• Water cooling effect can improve panel efficiency compared to ground/roof installations

• Reduces water evaporation and can limit algae growth on the water body

• Often paired well with existing hydropower infrastructure for shared grid connection

Trade-offs:

• Requires specialized corrosion-resistant materials (HDPE floats, marine-grade or HDG/ZAM steel anchoring)

• Installation and maintenance require water-based access and mooring/anchoring design

• More complex permitting depending on local water-use regulations

Common configurations: modular floating platforms, anchored floating arrays, hybrid floating + hydropower systems.

Comparison Table: Ground vs Rooftop vs Carport vs Floating

How to Choose the Right Solar Mounting System

When evaluating mounting options for a project, consider these five factors together rather than in isolation:

1. Available space — Do you have unused land, roof area, a parking lot, or a water surface to work with?

2. Budget per watt — Rooftop is typically the most cost-effective per watt; carports carry the highest structural cost.

3. Local climate and corrosion risk — Coastal, tropical, or high-humidity regions require corrosion-resistant materials such as ZAM or hot-dip galvanized (HDG) steel rather than standard coated steel.

4. Structural and wind/snow load requirements — Confirm local building codes and load standards before finalizing racking design, especially for carports and floating systems.

5. Project timeline — Rooftop and ground mount systems generally install faster than carports, which require more extensive civil and structural work.

FAQ

What is the cheapest type of solar mounting system? Rooftop mounting is generally the most cost-effective option per watt, since it uses an existing structure and requires no land acquisition or dedicated foundation work.

Can ground mount and floating solar use the same racking materials? No. Ground mount systems typically use HDG or ZAM-coated steel piles and racking, while floating systems require buoyant HDPE platforms combined with corrosion-resistant anchoring hardware suited to constant water exposure.

Is solar carport mounting worth the extra cost? For sites where land is limited but parking area is available — such as retail centers, factories, or schools — the dual benefit of power generation and vehicle shading (often paired with EV charging) can justify the higher structural cost.

Which mounting system works best in tropical or coastal climates? Ground mount, rooftop, and carport systems used in tropical or coastal environments should specify ZAM or hot-dip galvanized (HDG) steel components to resist humidity and salt-air corrosion, rather than standard powder-coated steel.

Conclusion

There is no single "best" solar mounting system — the right choice depends on available space, budget, local climate, and project scale. Ground mount suits utility and large commercial projects with available land; rooftop mount is the most economical choice for C&I buildings; carports add dual-use value for parking-heavy sites; and floating systems unlock water surfaces that would otherwise go unused.

Wanan Industrial manufactures ground mount, rooftop, carport, and floating solar PV mounting systems, along with adjustable tilt brackets, steel and aluminum guide rails, and mounting accessories engineered for commercial, industrial, and utility-scale projects worldwide. Contact our team to discuss the right mounting solution for your project's site conditions and load requirements.
