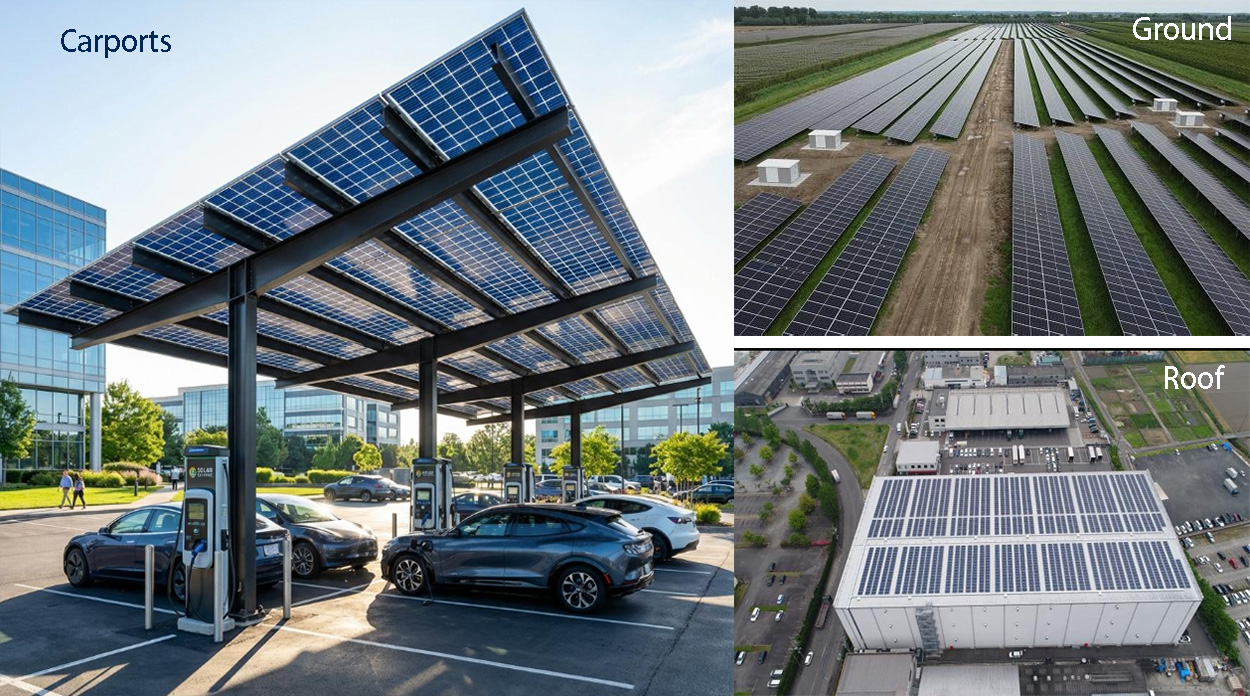

Roof vs Ground vs Carport Solar Mounting: How to Choose

Short answer: Roof mounting is the lowest-cost option for existing buildings with sound structural capacity. Ground mounting suits open land where panel angle, ventilation and future expansion matter more than cost. Carport mounting fits sites that need dual land use — parking plus power generation — and is chosen when land is expensive or already committed to another purpose. The right choice depends on available space, roof/soil condition, budget per watt, and whether the project needs to serve a secondary function like vehicle shading.

This guide compares the three systems across the factors that actually drive procurement decisions, so EPC contractors, developers and facility owners can match the mounting type to the project instead of the other way around.

Quick Comparison Table

Roof Solar Mounting: When It Makes Sense

Roof mounting is the default choice whenever a suitable roof already exists, because it avoids land acquisition and foundation costs entirely.

Best fit for:

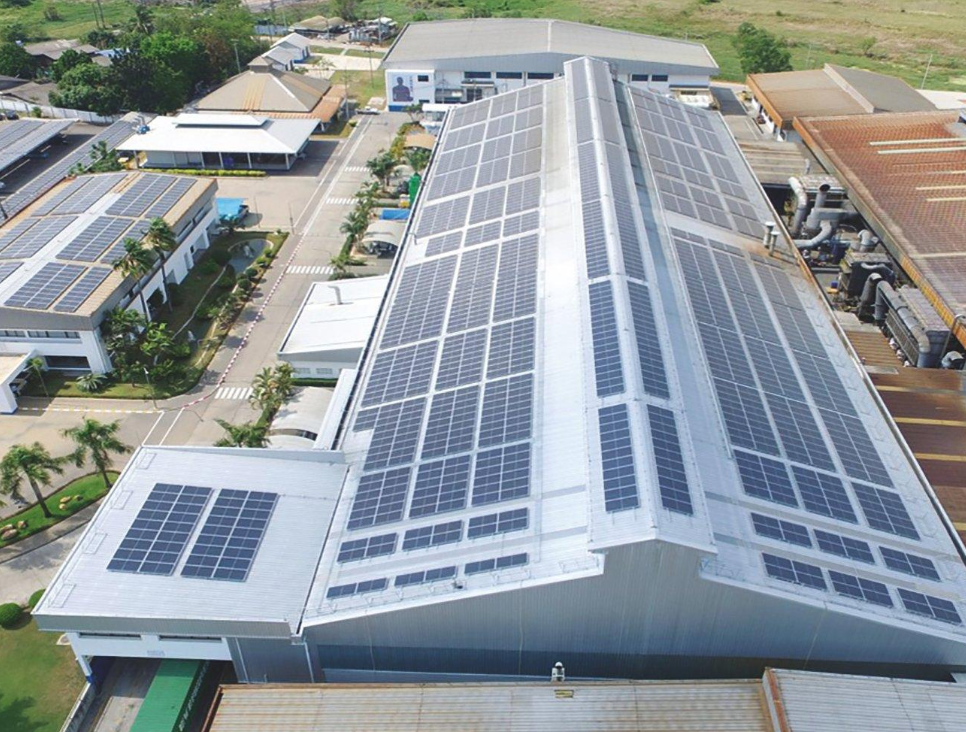

• Commercial and industrial buildings with flat or low-slope roofs

• Warehouses and factories with large, unshaded roof area

• Projects where land cost or availability rules out ground mounting

What to check before specifying roof mounting:

• Roof structural capacity — confirm the roof can bear the added dead load (racking + panels + wind/snow load) without reinforcement.

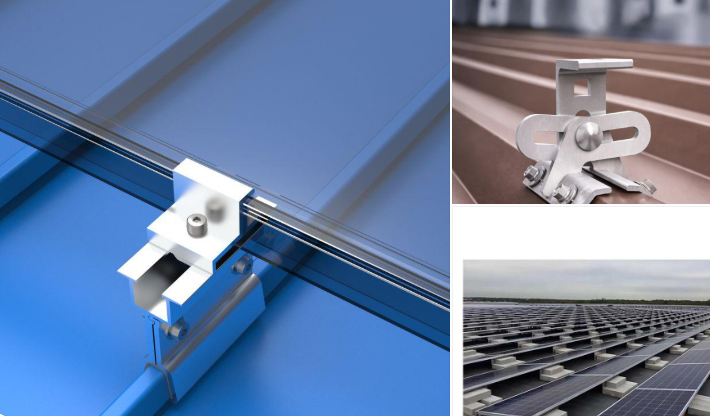

• Roof type and penetration method — trapezoidal metal roofs, standing seam, concrete and membrane roofs each require different clamp or ballast systems.

• Roof age and remaining service life — mounting a 25-year PV system on a roof needing replacement in 8 years creates future removal costs.

• Fire and wind code compliance — setback requirements and wind uplift ratings vary by region and roof type.

Roof systems generally use lighter aluminum rail or steel bracket structures since the roof itself carries less design freedom than open ground.

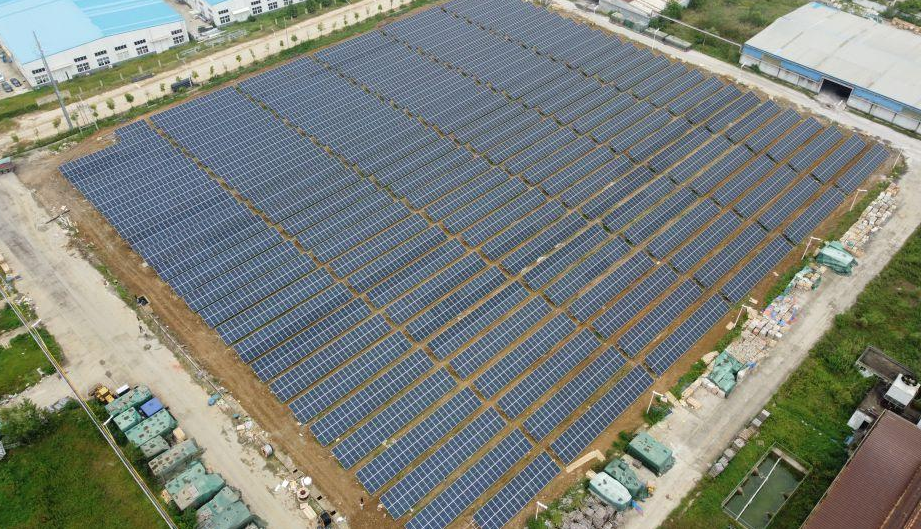

Ground Solar Mounting: When It Makes Sense

Ground mounting is selected when land is available and the priority is maximizing energy yield through optimal tilt angle, row spacing and orientation — factors a roof often can't provide.

Best fit for:

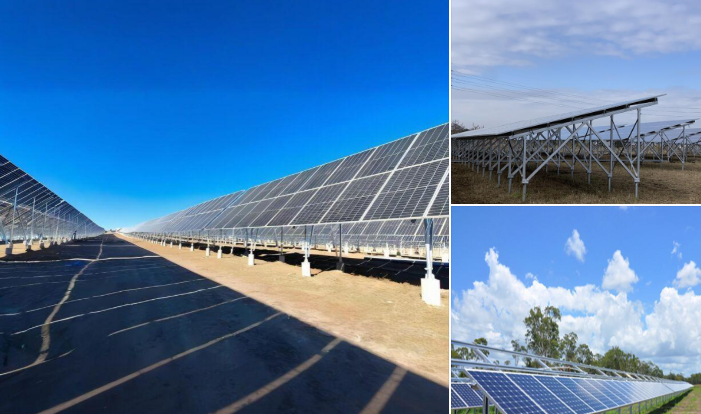

• Utility-scale and large commercial ground-mount projects

• Sites with poor or aging roof structures unsuitable for solar

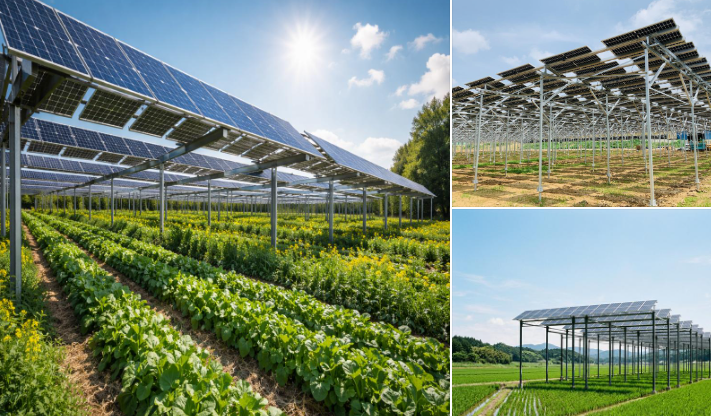

• Agrivoltaic projects combining farmland with elevated PV arrays

• Projects requiring future capacity expansion

What to check before specifying ground mounting:

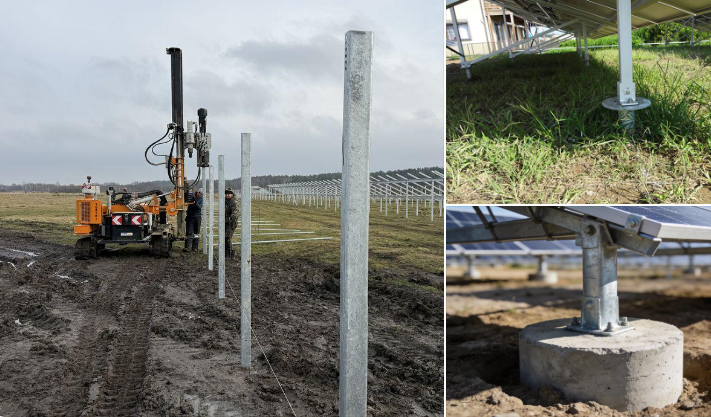

• Soil condition and foundation type — driven pile, screw pile, or concrete footing depends on soil-bearing capacity and geotechnical survey results.

• Land grading and drainage — uneven terrain increases foundation and structure costs.

• Land use restrictions — zoning, agricultural land protections, and environmental permits apply in many regions.

• Row spacing for shading — ground systems must be spaced to avoid inter-row shading, which affects the number of panels per hectare.

Because ground systems are engineered from the foundation up, they allow full tilt-angle optimization and are the most flexible for future array expansion.

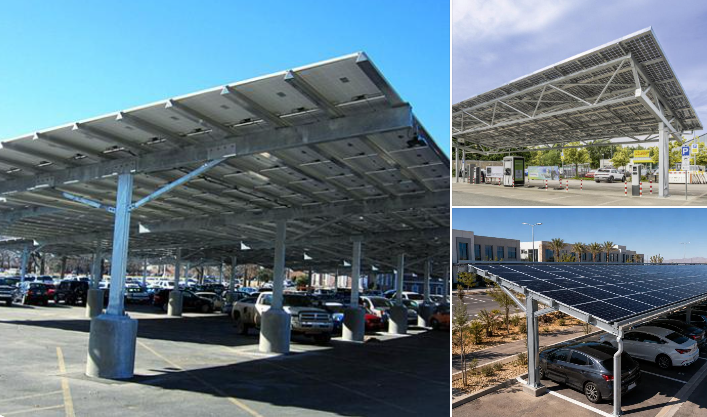

Solar Carport Mounting: When It Makes Sense

Carport mounting is chosen when land is either too valuable to dedicate solely to solar, or already committed to parking — the structure lets a single site generate power and shade vehicles at the same time.

Best fit for:

• Shopping centers, office campuses, schools and hospitals with large parking areas

• Sites with no unused land but ample paved parking

• Projects planning EV charging infrastructure alongside solar generation

What to check before specifying carport mounting:

• Structural steel design — carports need taller, heavier HDG steel columns and beams to clear vehicle height and span multiple parking bays, increasing steel cost per watt.

• Foundation depth — must account for vehicle traffic loads in addition to wind and array loads.

• Drainage design — auxiliary gutters are typically required to channel rainwater away from parking areas below.

• Clearance height and layout — must comply with local parking and fire-lane clearance regulations.

Carport systems cost more per watt than roof or ground mounting due to the additional steel and foundation work, but they solve the land-use problem that makes roof or ground mounting impossible on developed sites.

How to Choose: A Decision Framework

1. Is there a structurally sound, unshaded roof available? → Roof mounting is usually the lowest-cost path.

2. Is there open land not needed for another purpose? → Ground mounting maximizes yield and allows future expansion.

3. Is the site already paved parking with no spare land or usable roof? → Carport mounting turns existing infrastructure into a generation asset.

4. Does the project need a secondary function (vehicle shading, EV charging, dual land use with agriculture)? → Carport or agrivoltaic ground mounting fits better than roof mounting.

5. What is the budget per watt? → Roof < Ground < Carport, in most markets.

Many large projects use a combination — for example, roof mounting on existing warehouse space plus ground or carport mounting for remaining capacity on the same site.

FAQ

Is roof or ground solar mounting cheaper? Roof mounting is typically cheaper per watt because it uses existing structure and avoids foundation and land costs. Ground mounting costs more due to foundation work but often achieves higher yield per panel through optimal tilt and spacing.

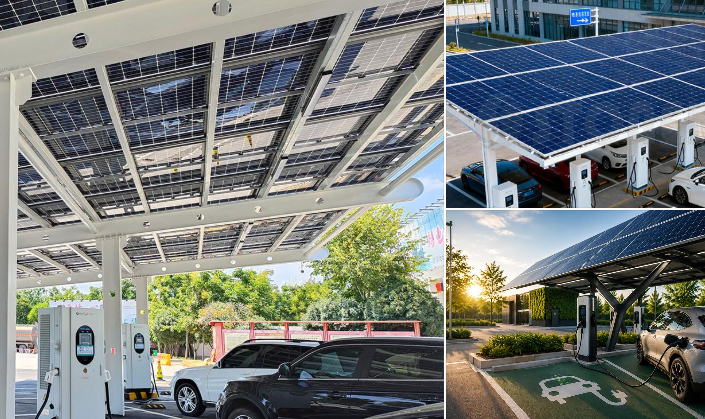

Can carport mounting be combined with EV charging? Yes. Carport structures are commonly designed with additional steel capacity and conduit routing to support EV charging stations under the same array.

What material is used for solar carport structures? Solar carports typically use hot-dip galvanized (HDG) steel for the main columns and beams due to the higher structural load and outdoor exposure, with aluminum or steel rails for panel mounting.

Does ground mounting require a geotechnical survey? Yes, in most cases. Foundation type — driven pile, screw pile or concrete footing — depends on soil-bearing capacity, which is determined through a geotechnical survey before structural design.

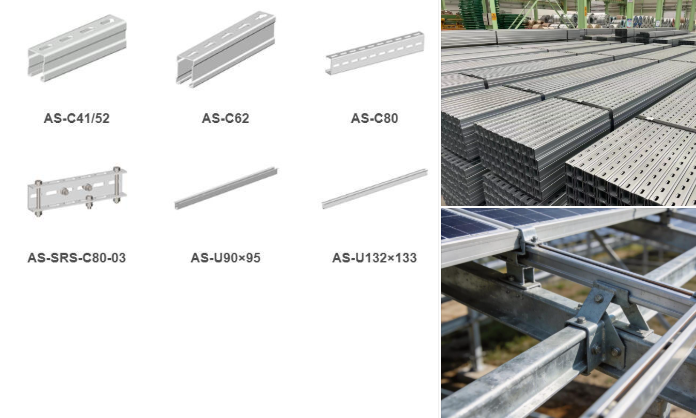

Wanan Industrial supplies HDG, ZAM and aluminum solar mounting systems for roof, ground, floating and carport PV projects, engineered for global infrastructure and EPC projects. Contact us for project-specific mounting system recommendations.
