A solar mounting system that's correctly specified and certified can still underperform — or fail prematurely — if it isn't installed to the same standard the design assumed. Foundation work, bolt torque, panel clamping, and grounding continuity are where real installations most often diverge from the engineering drawings, and each one directly affects whether the racking actually delivers its rated wind/snow load capacity over the system's service life. This guide covers the installation fundamentals that keep a solar mounting system performing as designed.

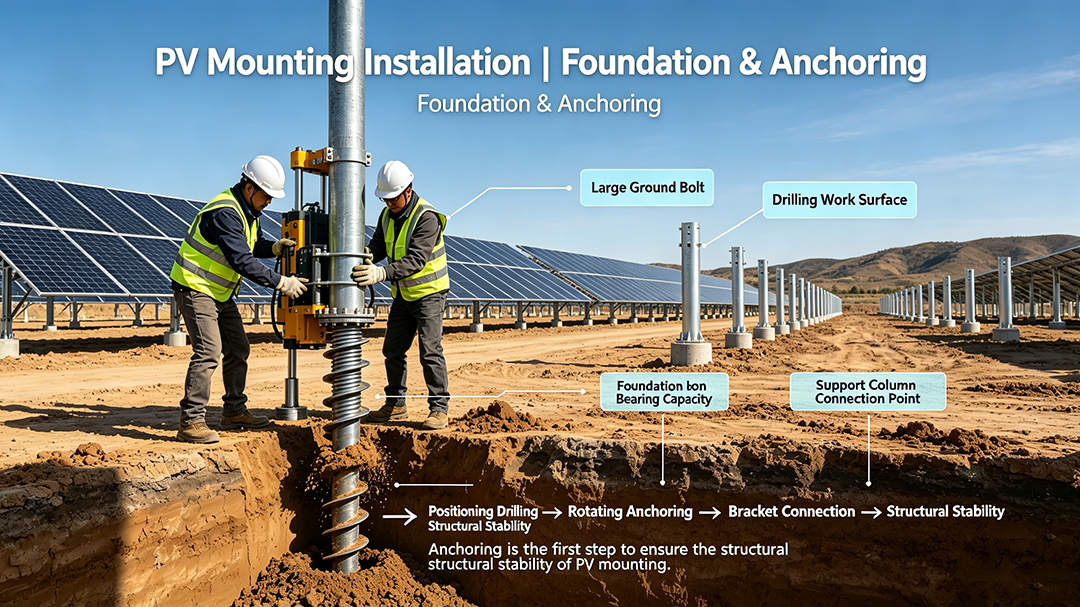

The foundation is what transfers wind uplift and structural load from the racking into the ground or building structure, which makes it the single most consequential step in the entire installation — a structurally correct racking design still fails if the foundation beneath it wasn't installed to match the site's actual soil or roof conditions.
Confirm pile depth, ballast weight, or anchor spacing against the project's actual geotechnical report or roof load assessment — not a generic regional default
Verify soil compaction and pile alignment during installation, since a pile driven off-vertical or into inconsistent soil can reduce its effective holding capacity
For rooftop systems, confirm the mounting point lands on a structural member (rafter, purlin) rather than relying on the roof deck alone to carry concentrated load
Re-check foundation work after any weather delay or soil disturbance during construction, rather than assuming conditions are unchanged from the original site survey

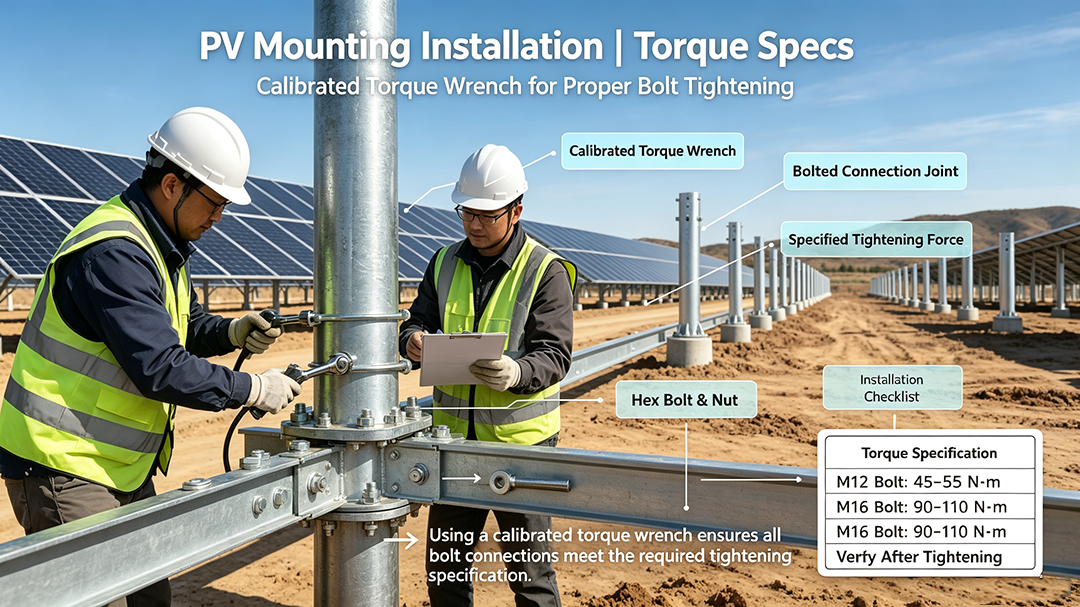

Every bolted connection in a mounting system — rail-to-foundation, clamp-to-rail, module clamp-to-module — has a specified torque value for a reason: under-torqued connections can loosen under wind-induced vibration over time, while over-torqued connections can damage the component or strip the threaded connection entirely. Torque specifications aren't interchangeable between different hardware sizes or coating types.
Use a calibrated torque wrench set to the manufacturer's specified value for each connection type, rather than tightening "until it feels right"
Re-torque connections after the system's first thermal cycle (a period of significant temperature swing), since initial settling can loosen bolts that were correctly torqued at installation
Keep a torque verification log for larger commercial or utility-scale projects, since this documentation is often requested during commissioning or warranty review

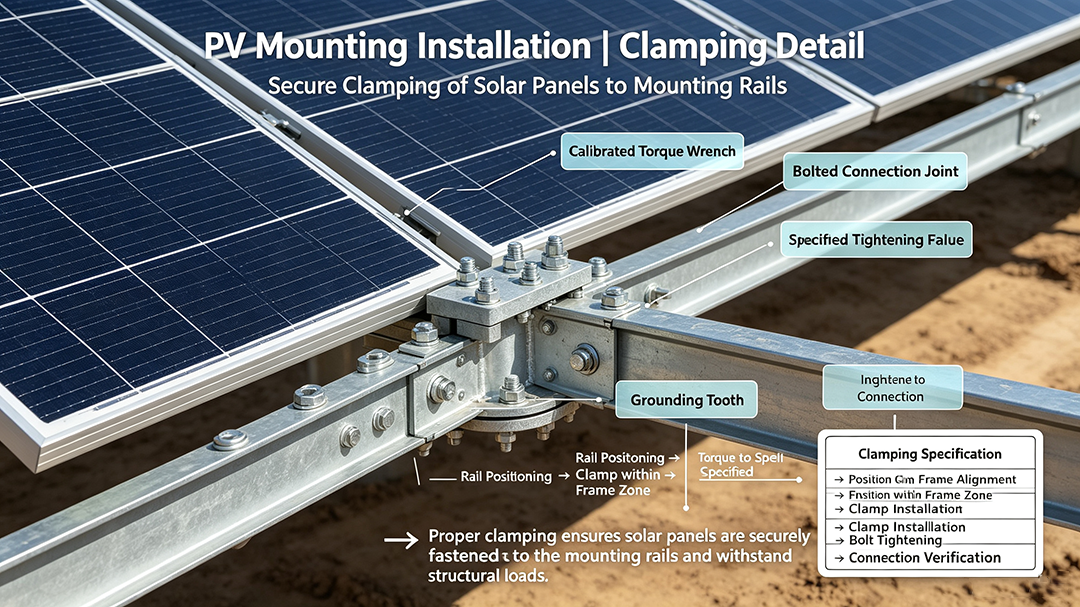

Module clamps have to match the specific panel's frame thickness and dimensions — a clamp sized for one panel profile can either fail to achieve adequate clamping force on a thinner frame or crack a frame that's thicker than the clamp was designed for. This is one of the most common installation errors when a project switches panel suppliers mid-procurement without re-confirming clamp compatibility.
Confirm module clamp size against the actual panel frame thickness being installed, not the panel originally specified at the design stage
Check clamping force and overlap distance against the manufacturer's installation manual, since too little overlap reduces wind uplift resistance
Inspect module frames for damage at the clamp point before final tightening, since a pre-existing frame defect can crack under clamping load

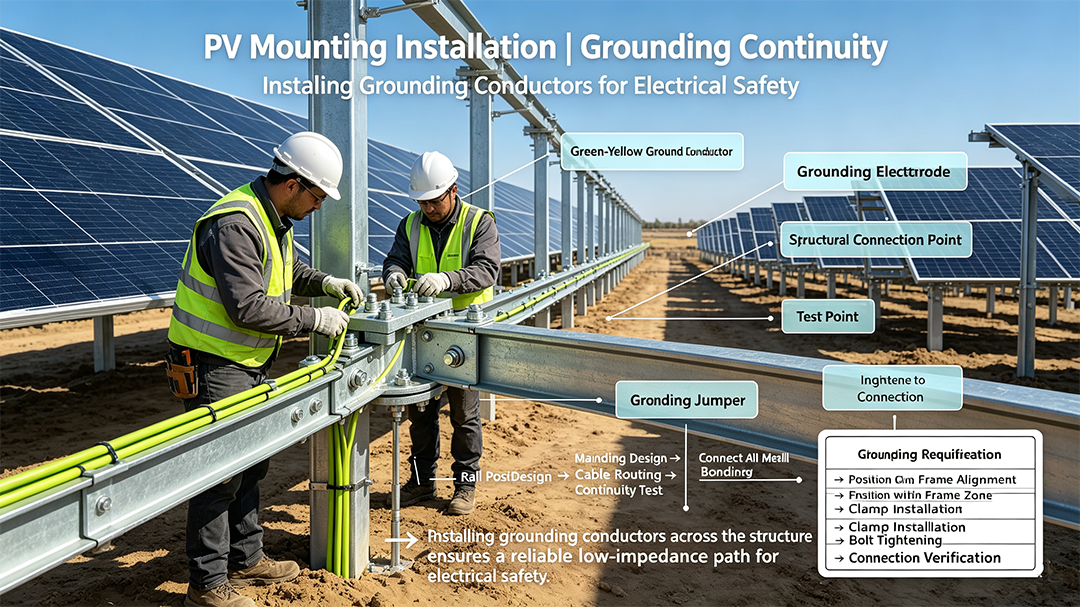

Solar mounting systems need continuous electrical grounding across the entire structure to meet both safety requirements and most jurisdictions' electrical codes, and — as with cable tray — relying on clamp hardware alone to provide this continuity is a common assumption that doesn't always hold. Many racking systems achieve grounding through a combination of self-tapping grounding clips at each module and a continuous grounding conductor along the array's structural frame.
Confirm the racking manufacturer's specified grounding method (integrated clips vs. separate grounding lugs and jumpers) and follow it exactly — these methods aren't interchangeable between different product lines
Test grounding continuity after installation, particularly on larger arrays where a single missed connection point can break continuity across many modules
Protect grounding points from corrosion or loosening over time, especially in coastal or high-humidity sites where connection degradation happens faster
Skipping the geotechnical or roof load confirmation and installing foundations based on a generic assumption instead of the project's actual site data.
Tightening bolted connections without a calibrated torque wrench. Under- and over-torqued connections are both common field errors with long-term reliability consequences.
Reusing the original clamp specification after a panel supplier change without re-confirming frame thickness compatibility.
Assuming grounding continuity without testing it, particularly on larger arrays where one missed connection breaks the whole chain.
Not re-torquing connections after the first thermal cycle, which can leave initially correct torque values loosened by seasonal temperature swings.
A solar mounting system's wind/snow load rating, UL 2703 or IEC 62817 qualification, and site-specific structural calculation only hold up if the physical installation matches what the design assumed. Confirming foundation work against actual site conditions, torquing connections to specification with calibrated tools, matching clamps to the panel actually being installed, and verifying — not assuming — grounding continuity are the installation practices that keep a correctly specified mounting system performing that way for its full service life.
Yes. Clamp sizing is specific to the panel frame's thickness and dimensions, and a different panel supplier can mean a different frame profile even for the same nominal panel wattage. Confirming clamp compatibility with the actual panel being installed — not the one originally specified — avoids inadequate clamping force or frame damage.
Structures go through an initial settling period, and significant temperature swings during the first thermal cycle can cause slight loosening even in connections that were correctly torqued at installation. Re-checking torque after this initial period is standard practice for larger installations.
Yes. Integrated clips reduce the chance of a missed connection compared to separate jumpers, but they don't eliminate it — a single clip not properly seated during installation can still break continuity, especially across a large array. Testing after installation is the only way to confirm continuity rather than assume it.
