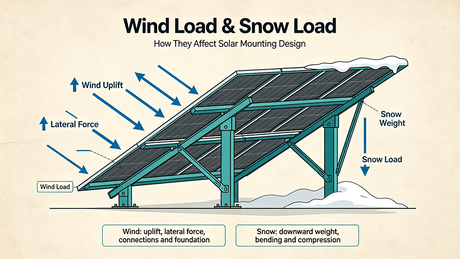

Wind load and snow load are the two environmental forces that most often decide how strong a solar mounting structure must be. Wind mainly pushes and pulls on the panels, creating uplift and lateral force that the frame, connections, and foundation must resist. Snow adds weight pressing down on the array. A site with high design loads needs thicker members, closer support spacing, stronger connections, and bigger foundations, which is why two quotes for the same array size can differ widely in price. This guide explains what drives each load, how it changes the structure, and what information to give a supplier so quotes can be compared fairly.

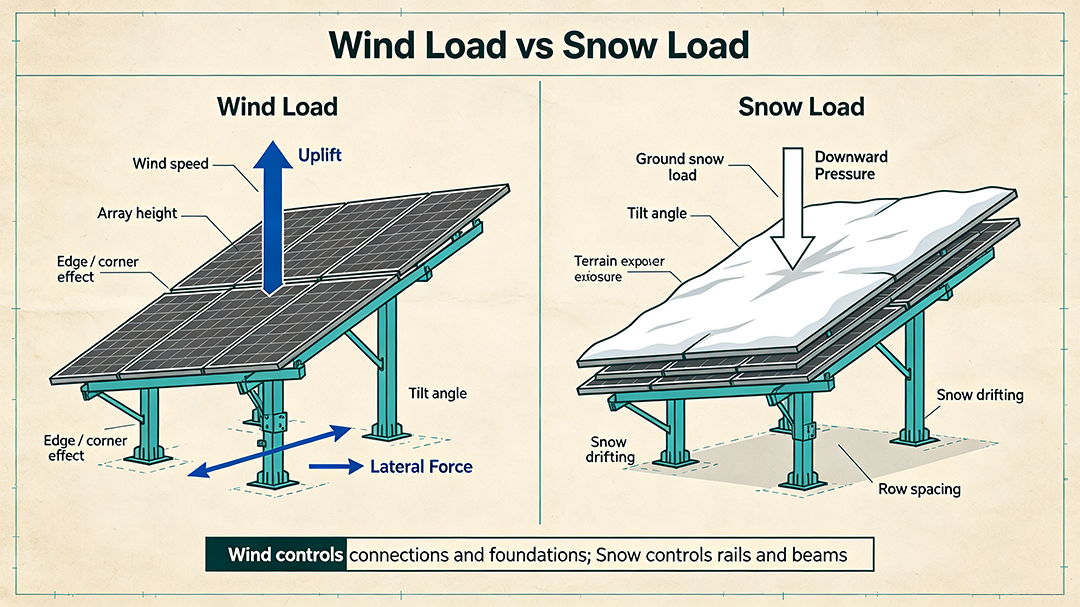

Item | Wind load | Snow load |
|---|---|---|
Direction of force | Uplift, downward pressure, and sideways force | Mainly downward, sometimes uneven across the array |
Main site factors | Basic wind speed, terrain, height above ground, exposure | Ground snow load at the site, roof or ground exposure, drifting |
Main design factors | Tilt angle, array size and position, panel height | Tilt angle and surface, since steep tilts shed snow more easily |
What it stresses | Connections, foundations, and members in tension and bending | Rails, beams, and posts in bending and compression |
Where it matters most | Open ground, coastal, high-rise rooftops, carports | Cold regions, mountain sites, flat or low-tilt arrays |
Wind load is not a single number for the whole country. It depends on the site and on how the array is built. A tilted panel acts like a sail, so the force changes with the tilt angle, the height of the array above the ground, and how exposed the site is. Open flat land, coastal areas, and tall building roofs see higher wind forces than sheltered sites. Arrays at the edge or corner of a roof or field usually see higher local forces than panels in the middle.
The basic design wind speed for the project location, taken from the local code or standard
The terrain and exposure of the site, such as open field, urban area, or coast
The height of the array above the ground or above the roof
The tilt angle and panel size, which change how much force the array catches
The position within the array, since edge and corner zones can carry higher local forces
Snow load is set mainly by how much snow the site collects. It is usually expressed as a ground snow load from the local code, then adjusted for the array's tilt and exposure. A steeper tilt sheds snow more easily, while a flat or low-tilt array holds more of it. Snow can also build up unevenly, for example at the lower edge of the panels or between rows, and the structure must handle that uneven loading as well as the average weight.
The ground snow load for the project location, from the local code or standard
The tilt angle and panel surface, which affect how quickly snow slides off
Row spacing and ground clearance, since snow can pile up under or between rows
Whether the array sits on open ground, a roof, or a carport

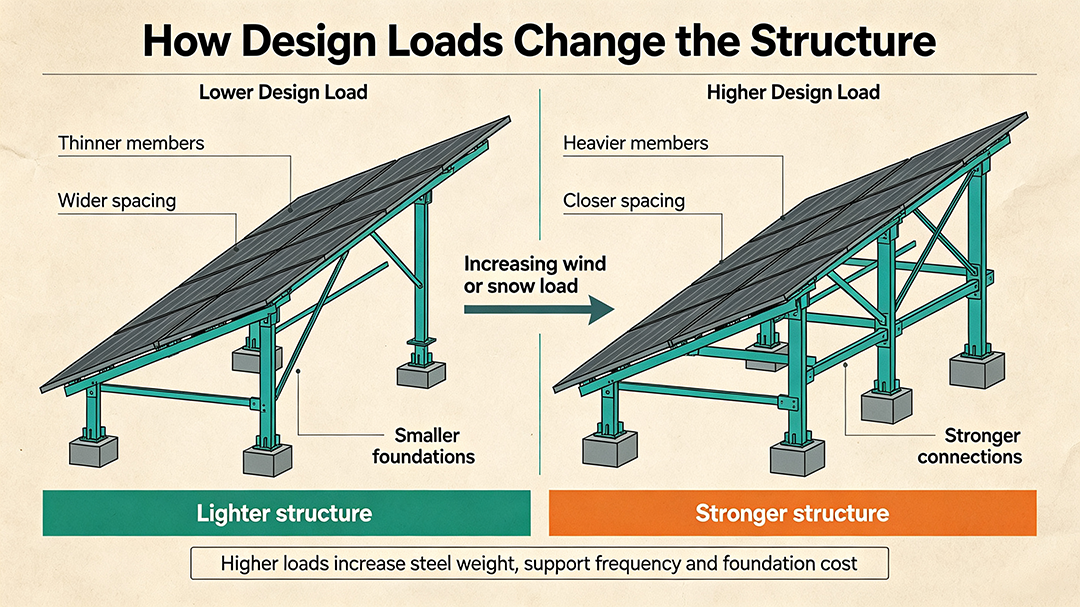

The structure is sized so that the combined loads on it stay within what the members, connections, and foundation can safely carry. Higher wind or snow load makes the engineer respond in several ways at once, and each one adds material or cost.
Heavier members: thicker steel or a larger section for posts, beams, and rails, and a larger profile where bending is the limit
Closer support spacing: more posts or purlin supports along the array, which shortens the span each member must cover

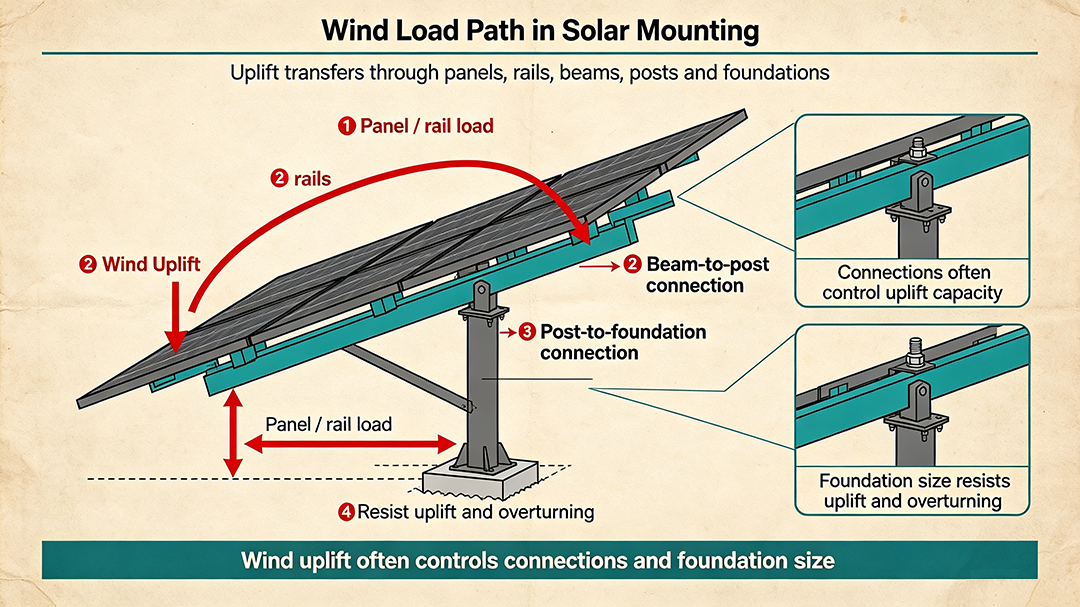

Stronger connections: larger bolts, extra bracing, and reinforced joints, because wind uplift is often decided by connection strength rather than by the members themselves
Bigger foundations: deeper or larger piles, bigger concrete footings, or more ballast, since the foundation must resist uplift and overturning as well as downward load
Lower or steeper tilt: a different tilt can reduce the wind or snow force, though it may also change energy yield, so it is a design trade-off
Material, steel weight, and foundation size usually account for a large share of a mounting system's cost, so a higher design load pushes the price up. A quote built on a lower wind or snow load will look cheaper because it uses less steel, but it may not be suitable for the real site. This is why price per kW is a weak basis for comparison unless every quote uses the same design loads. Our Solar Mounting System Price Guide covers the other cost factors, and our Solar Mounting System Standards & Certifications guide explains the standards behind design loads.
The more complete the site information, the more accurate and comparable the quote. Ask the project owner or engineer for the figures below, or confirm that they should come from the applicable local code.
Project location, so the supplier can check the local code and site conditions.
Design wind speed or wind load, and the code or standard it comes from.
Ground snow load, or confirmation that snow is not a design factor at the site.
Terrain and exposure type, such as open ground, coastal, or rooftop.
Mounting type and tilt angle, including whether the tilt is fixed or adjustable.
Module size and array layout, including row spacing and the height of the lowest edge above ground.
Soil or roof information, since the foundation or roof attachment must resist the same loads.
Required standards and reports, including whether a structural calculation report is needed.
Comparing quotes with different design loads, so a lighter structure looks like a better price.
Using a general wind or snow figure instead of the value for the actual site and code.
Ignoring local effects, such as higher forces at roof or array edges, and snow buildup between rows.
Sizing the members but not the foundation, when uplift and overturning decide the foundation size.
Changing the tilt late in the project without rechecking wind and snow loads.
Wind and snow loads are site-specific, and they shape the whole structure: the member sizes, the support spacing, the connections, and the foundation. Because these choices drive the steel weight and the foundation cost, the design load is one of the biggest reasons solar mounting quotes differ. Giving the supplier the project location, the design wind and snow values from the local code, the tilt, and the array layout lets every quote be based on the same loads and makes the price comparison meaningful. The final design values should always come from the applicable code and the project engineer.
It depends on the site. In open, coastal, or high-exposure locations, wind is usually the controlling load, especially for connections and foundations. In cold, snowy regions, snow can control the sizing of rails and beams. Many sites need to be checked for both, and the design uses the load combinations the local code requires.
A lower design wind load means thinner members, wider spacing, and smaller foundations, so the structure uses less steel and costs less. The risk is that the structure may be under-designed for the real site. Always confirm the wind speed and snow load each quote is based on before comparing prices.
At minimum, the project location, the design wind speed or wind load, the ground snow load, the terrain or exposure type, the mounting type and tilt angle, and the module and array layout. Soil or roof information is also needed so the foundation or roof attachment can be designed for the same loads.
