Specifying the right cable tray is only half the job — how it's installed determines whether that load rating, corrosion resistance, and grounding protection actually hold up in the field. Support spacing set too wide, a poorly aligned splice, or a missing bonding jumper are among the most common installation errors, and each one can undermine a correctly specified system. This guide covers the installation fundamentals that keep a cable tray run performing the way it was designed to.

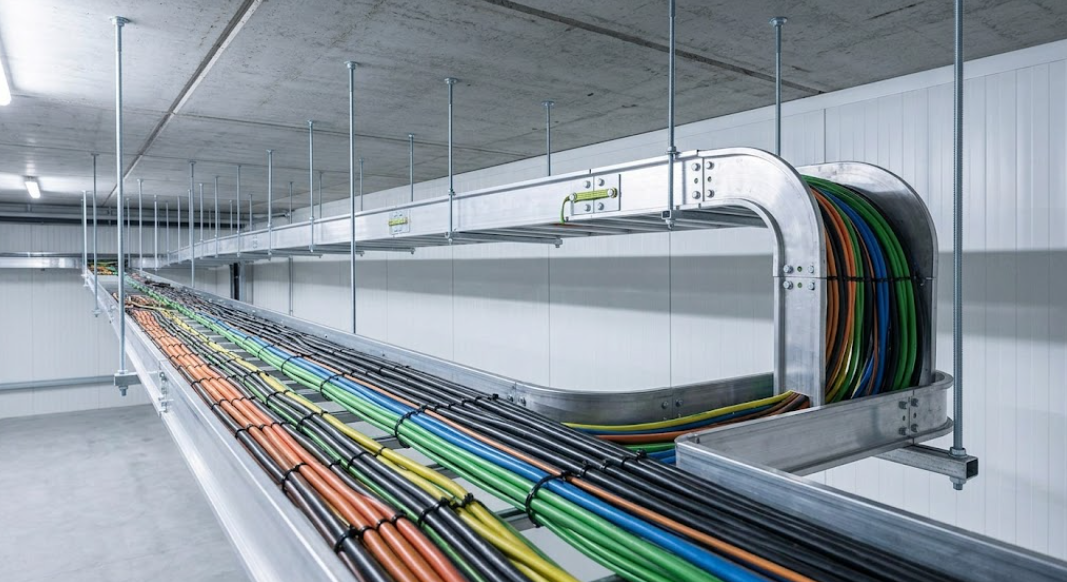

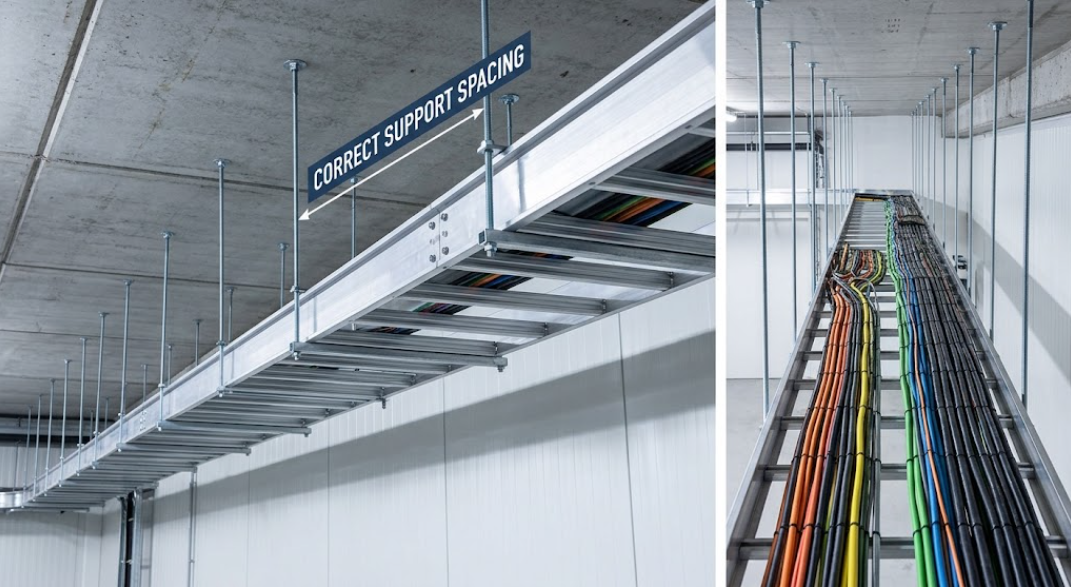

Support spacing directly determines how much load a given cable tray size and gauge can safely carry — the same tray profile rated for a heavy load at a 1.5m span will sag or deflect excessively if that span is stretched further than the manufacturer's rating allows. Support spacing isn't a one-size-fits-all number; it has to match the specific tray's load rating documentation for the cable weight actually being carried.
Confirm the support span against the manufacturer's load rating for the specific tray size, gauge, and finish being installed — not a generic industry assumption
Reduce support spacing at points of concentrated load, such as where multiple heavy cables enter or exit the tray, or at direction changes
Install supports consistently across straight runs rather than spacing them unevenly, which can create uneven load distribution
Account for future cable additions when calculating load, rather than designing support spacing around only the initial installed cable load
Direction changes are where cable tray installations most often go wrong, because bends and tees need to maintain both the tray's structural alignment and an adequate bend radius for the cables running through it. A fitting installed with a radius too tight for the cable type can damage cable insulation over time, even if the tray itself is structurally sound.
Match the fitting's bend radius to the minimum bend radius specified for the cable types being installed, not just the tray's own geometry

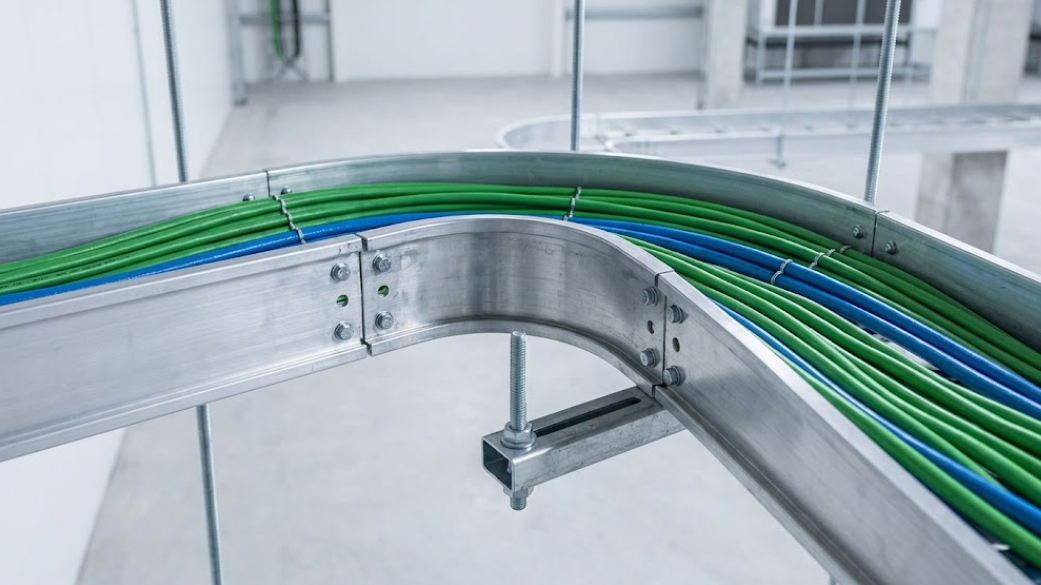

Support bends, tees, and risers independently rather than relying solely on adjacent straight-section supports to carry the fitting's load
Verify fitting orientation (inside vs. outside riser) matches the direction of the structural transition before final fastening
Since cable tray is supplied in fixed lengths, every real installation involves multiple splice connections along a run, and each one is a potential weak point if not installed correctly. A properly tightened splice plate maintains both physical alignment and electrical bonding continuity between sections — a loose or misaligned splice compromises both.

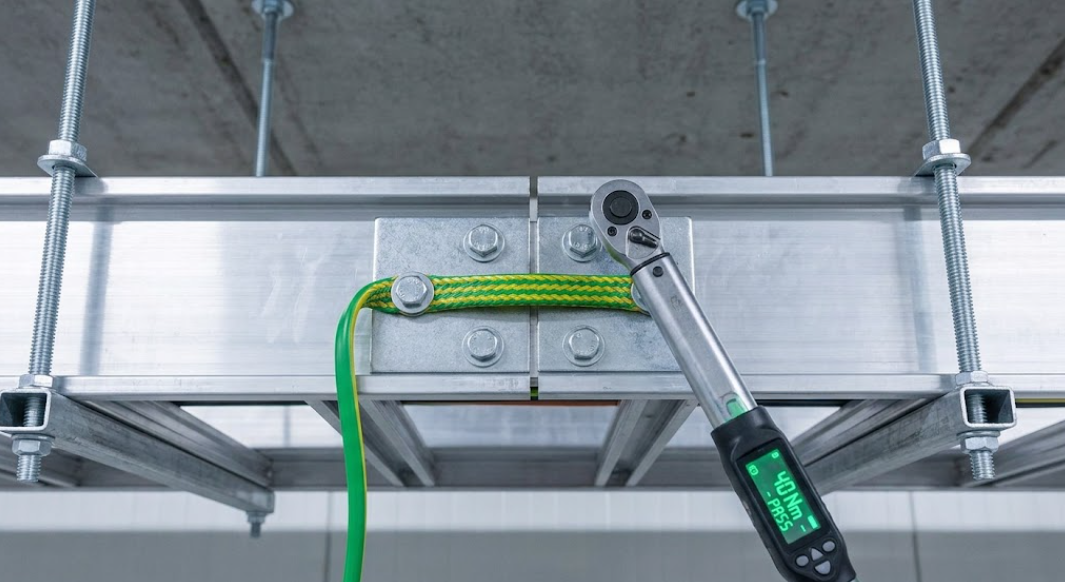

Tighten splice hardware to the torque specification provided by the manufacturer, rather than by feel
Check alignment at each splice before final tightening, since a misaligned joint under cable load can stress the connection over time
Use splice hardware matched to the specific tray profile — ladder, perforated, and trough-type trays typically require different splice connectors
Metallic cable tray systems typically need to maintain continuous electrical grounding along the entire run, which is both a safety requirement and, in most jurisdictions, a code requirement. Relying on splice hardware alone to provide this continuity is a common assumption that doesn't always hold up — many specifications call for dedicated bonding jumpers at every transition point as a verifiable, redundant ground path.
Install bonding jumpers at every splice, expansion joint, and transition to other equipment unless the specification explicitly confirms splice hardware alone meets the applicable code's bonding requirement
Size jumpers according to the fault current rating required by the applicable electrical code, not a generic standard gauge
Test continuity after installation rather than assuming correct installation guarantees it, particularly on longer runs with multiple splices in series
Assuming a generic support spacing applies to every tray size and load. Always check the specific manufacturer's load rating for the actual tray and cable load involved.
Treating bends and tees as self-supporting. Fittings need their own support points, not just reliance on the nearest straight-section supports.
Tightening splices "by feel" instead of to spec. Under- or over-tightened splice hardware both create long-term reliability issues.
Skipping bonding jumpers because splice hardware "should" provide continuity. Confirm this against the applicable code rather than assuming it.
Not planning for future cable load. Support spacing and tray size decided around only the initial cable count can leave no margin for later additions.
A correctly specified cable tray system can still underperform if support spacing, bends, splicing, or grounding aren't installed to the same standard the specification assumed. Following manufacturer load ratings for support spacing, giving fittings their own structural support, tightening splices to spec, and treating grounding continuity as something to verify rather than assume are the installation practices that keep a cable tray system performing exactly as designed over its service life.
Whenever the installed cable load is heavier than what the standard span rating assumes, or at points of concentrated load such as direction changes or where multiple cables enter the tray. Always check the specific manufacturer's load table rather than applying a single standard span across the whole run.
In some jurisdictions, a properly tightened bolted splice connection is accepted as adequate bonding on its own; in others, a dedicated jumper is required regardless. This should be confirmed against the specific electrical code governing the installation, not assumed from a different project's requirements.
Support spacing that doesn't match the actual installed cable load is one of the most frequent issues, often because the spacing was set based on a general assumption rather than the specific tray's load rating documentation. Loose or misaligned splices are a close second.
