Choosing the correct conduit size is one of the most common questions electrical contractors, panel builders, and procurement teams run into — and one of the easiest to get wrong. An undersized conduit makes wire pulls difficult or impossible and can fail inspection; an oversized one wastes material and budget on every meter ordered.
This guide walks through the fill percentage rule, a step-by-step sizing method, and the practical factors beyond the code minimum that contractors and buyers should account for when specifying conduit.

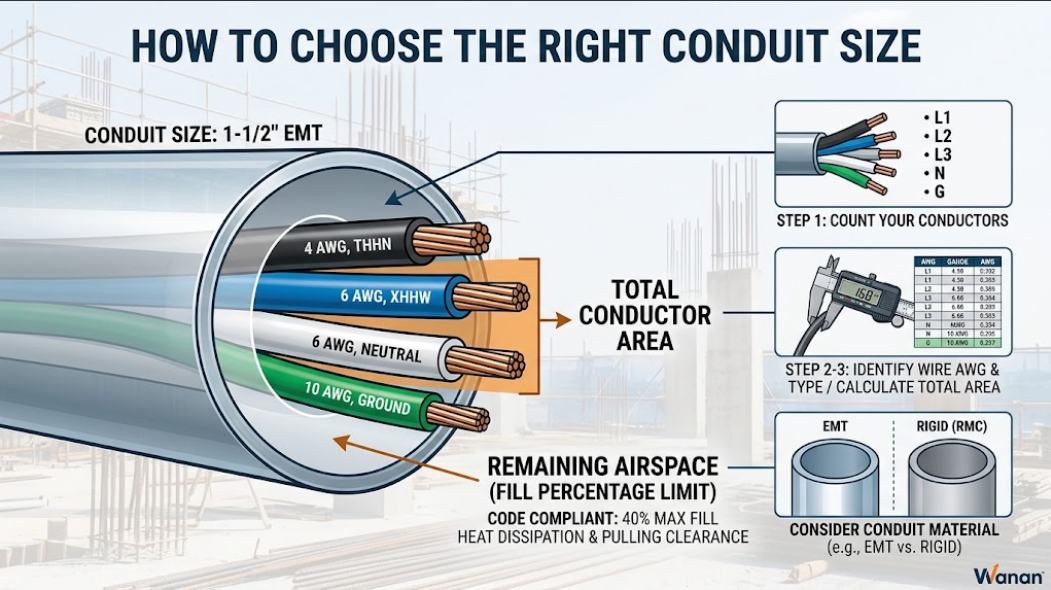

Conduit isn't just a protective sleeve for wiring — its internal diameter directly determines how many conductors it can safely hold. Getting the size wrong creates three real problems:
Heat buildup. Conductors packed too tightly can't dissipate heat efficiently, raising the risk of insulation damage over time.
Difficult or impossible wire pulls. Excess friction during installation can damage conductor insulation, and in tight conduit runs a pull can simply jam.
Inspection failures. Most electrical codes specify maximum fill percentages, and an oversized wire count for the conduit size will not pass inspection.
List every wire that will run through the conduit — not just current-carrying conductors, but also grounding or neutral conductors, since they also take up physical space.
Wire gauge (AWG or mm²) and insulation type (e.g., THHN, XHHW) both affect the outer diameter of each conductor — and therefore how much space it occupies inside the conduit.
Each conductor size/insulation combination has a published cross-sectional area, found in code reference tables or a manufacturer's wire data sheet. Sum the area of every conductor in the run.

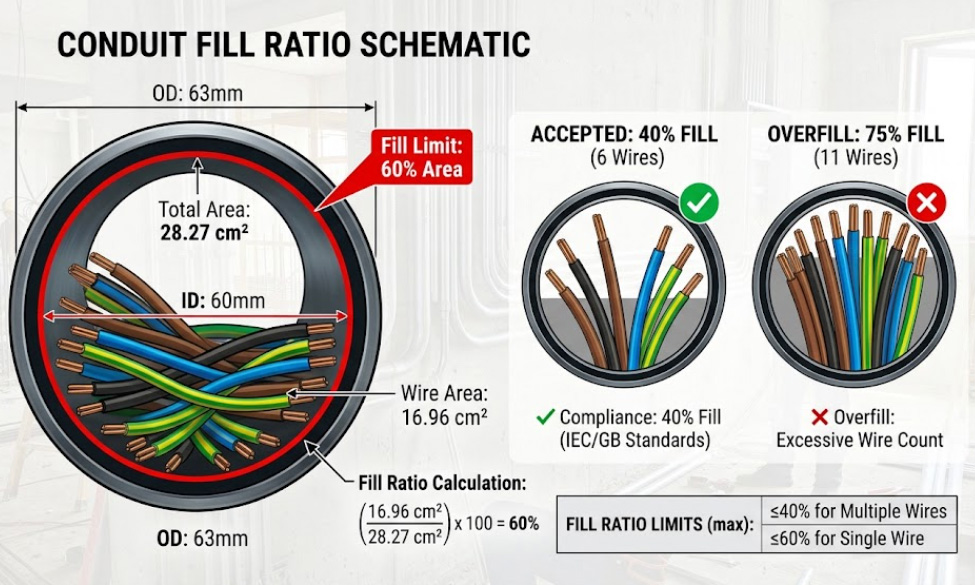

Conduit fill percentage is the share of a conduit's total cross-sectional area that conductors are allowed to occupy, leaving airspace for heat dissipation and pulling clearance:
Number of Conductors | Maximum Fill Percentage |
|---|---|
1 conductor | 53% |
2 conductors | 31% |
3 or more conductors | 40% |
Divide your total conductor area by the applicable percentage to find the minimum required internal conduit area.

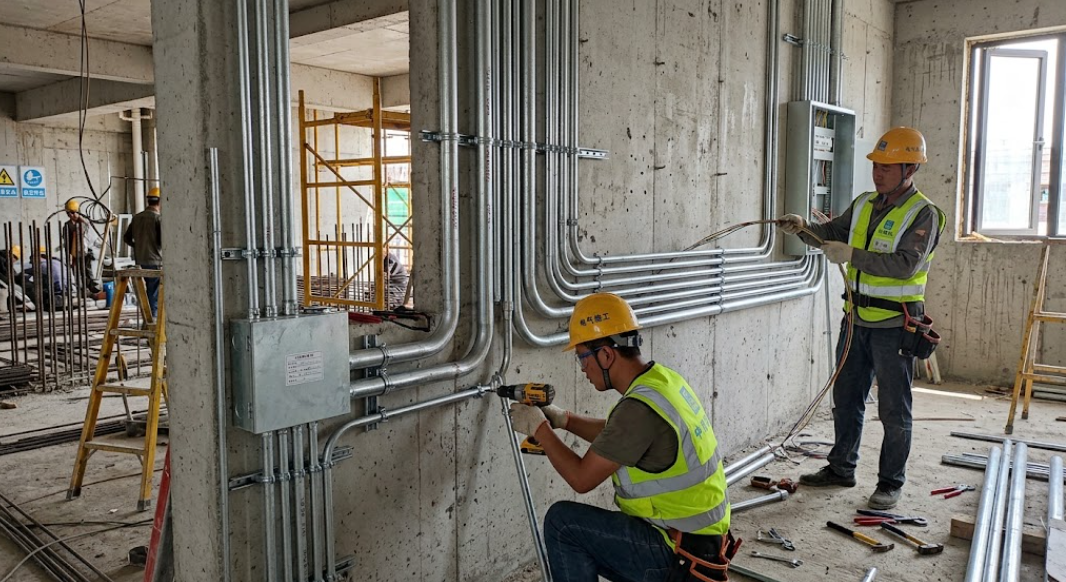

Compare the required internal area against a conduit dimension table for your chosen conduit type (EMT, rigid steel, PVC) and select the smallest trade size that meets or exceeds it. For long runs or runs with multiple bends (more than the equivalent of two 90° bends), go up one trade size — bends increase pulling friction significantly, even when the fill percentage is technically compliant.

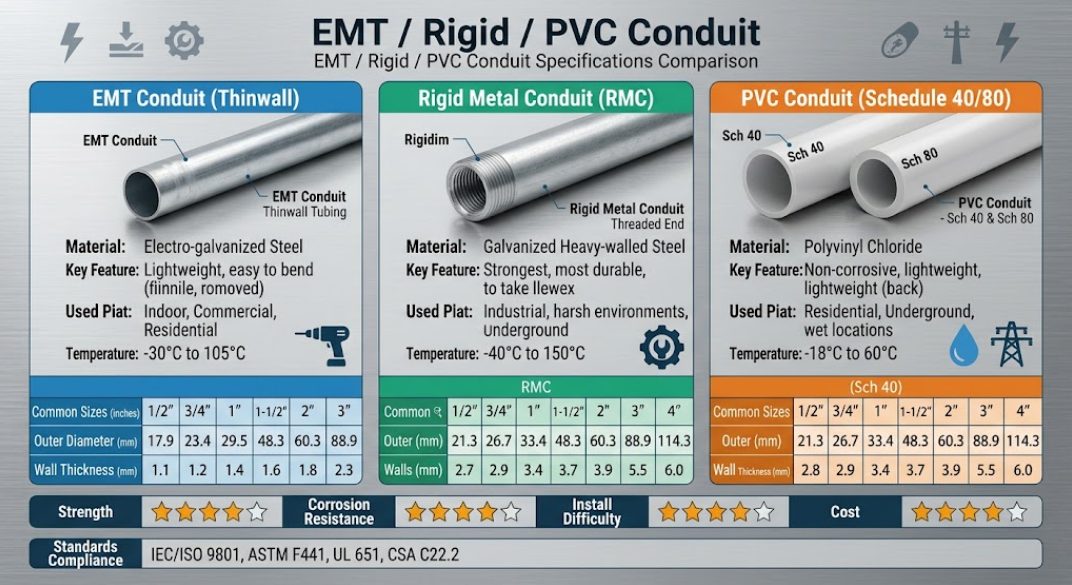

Conduit Type | Wall Thickness Behavior | Best Suited For |
|---|---|---|
EMT | Thin wall; internal diameter close to nominal trade size | Indoor commercial/light industrial runs |
Rigid Steel (RSC/RGS) | Thicker wall; smaller internal diameter than EMT at same trade size | Heavy-duty, exposed, or high-impact areas |
PVC Conduit | Wall thickness varies by schedule (40/80) | Underground, corrosive, or wet locations |
Does conduit fill percentage change with conduit material? No — the fill percentage rule (53%/31%/40%) applies regardless of material. What changes is the internal diameter at a given trade size, since EMT, rigid steel, and PVC have different wall thicknesses.
Should I always round up to the next trade size? Not always, but it's recommended when a run has multiple bends, when future circuit additions are likely, or when the calculated fill is very close to the maximum allowed percentage.
What happens if a conduit is overfilled? Overfilled conduit increases heat buildup, risks insulation damage during pulling, and will not pass electrical inspection.
Correct conduit sizing comes down to two things: applying the fill percentage rule accurately, and accounting for real-world factors like bends, future capacity, and conduit material differences. Wanan manufactures EMT, rigid steel (GI), and PVC-compatible conduit to consistent trade-size tolerances for export projects. Visit our GI Conduit product page or contact our team for project-specific sizing support and equivalent specifications for quoting.
