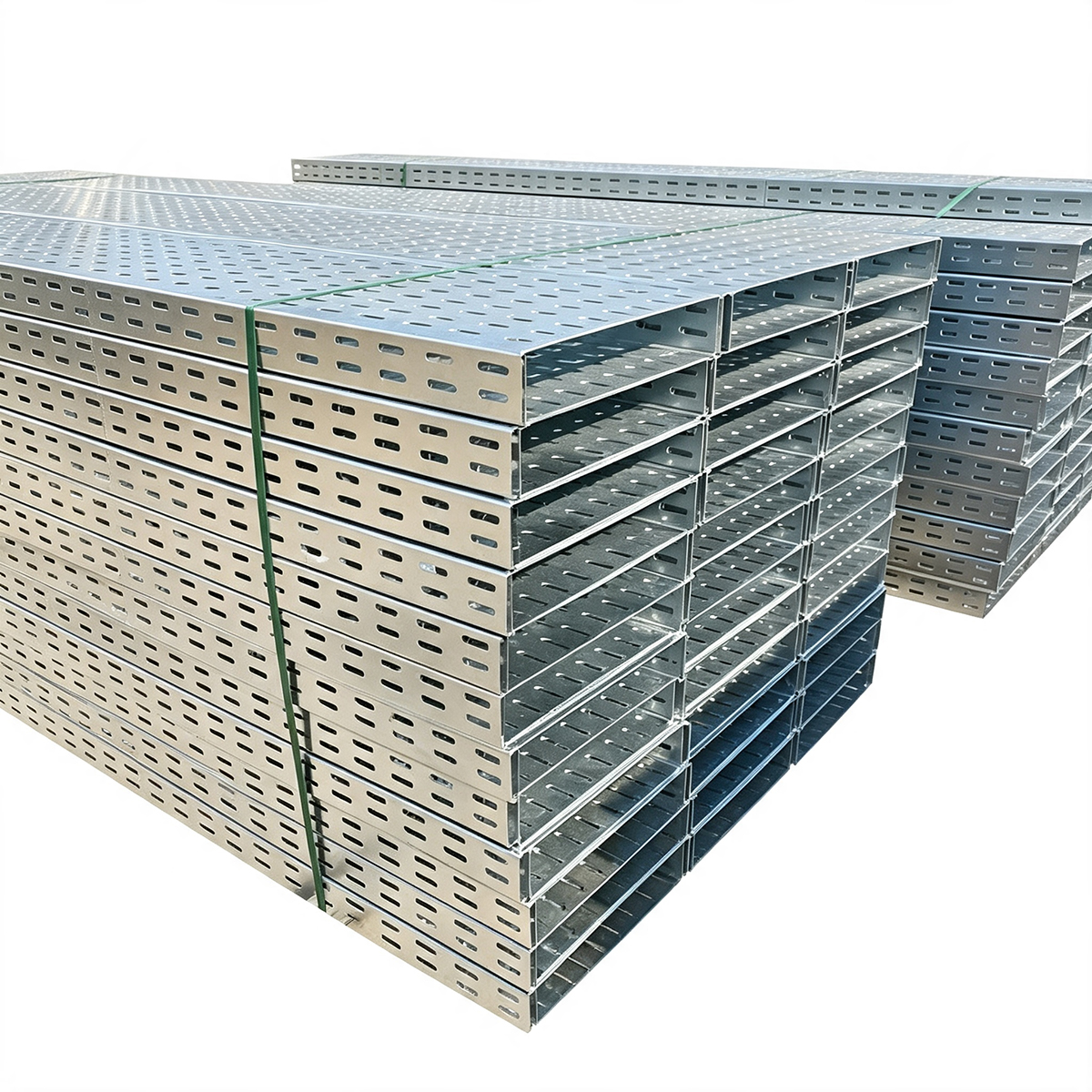

Durable Galvanized Steel Construction

Our Galvanized Perforated Cable Tray is manufactured from high-quality steel and finished with a galvanized coating to provide reliable corrosion protection.

The rigid steel structure provides stable support for cables and is suitable for a wide range of electrical cable management applications.

Depending on project requirements, different steel thicknesses and structural configurations can be provided.

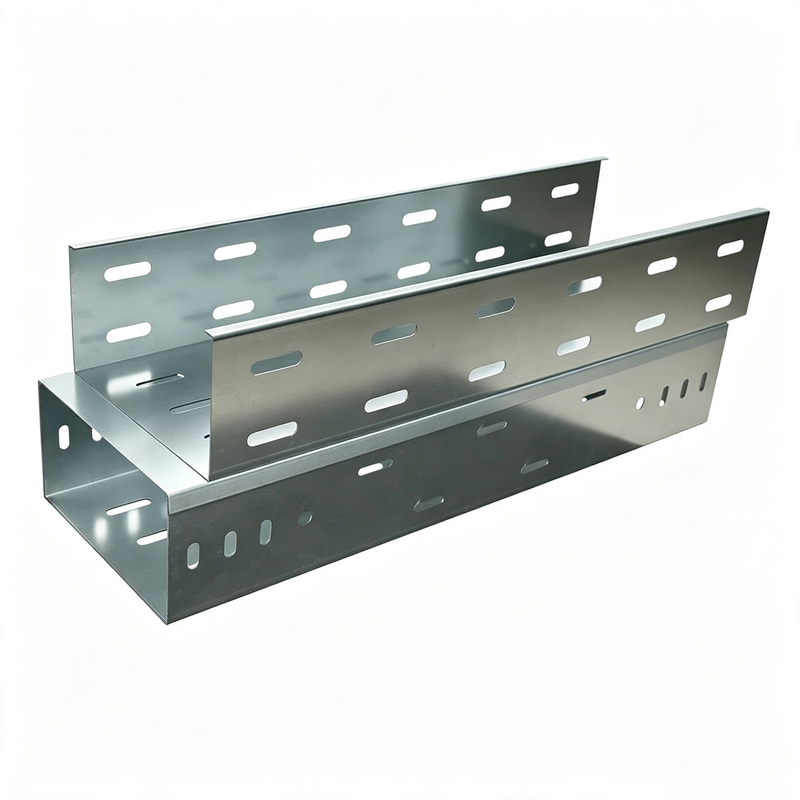

Perforated Design for Ventilation

The perforated bottom and side walls allow air to circulate around the cables, helping improve ventilation and heat dissipation.

The openings also provide convenient access for cable fastening and installation.

The tray can accommodate:

• Power cables

• Control cables

• Communication cables

• Data cables

• Low-voltage cables

• Instrumentation cables

Corrosion Protection

The galvanized surface provides additional protection against corrosion compared with untreated steel.

Different galvanizing options can be supplied according to the installation environment, including:

• Pre-Galvanized Steel

• Hot-Dip Galvanized Steel

For projects requiring higher corrosion resistance, Wanan can also provide other material and surface treatment options according to project specifications.

Easy Cable Installation and Maintenance

The perforated structure makes it easier for installers to secure cables and access the cable route during installation and maintenance.

The open design allows cables to be:

• Easily installed

• Organized

• Inspected

• Secured

• Added or removed when required

This makes perforated cable tray a practical solution for projects where future cable expansion and maintenance need to be considered.

Cable Tray Fittings and Accessories

Wanan can provide a complete range of fittings and accessories for galvanized perforated cable tray systems, including:

• Horizontal bends

• Vertical bends

• Tees

• Crosses

• Reducers

• Couplers

• End caps

• Support brackets

• Hangers

• Fasteners

Accessories can be supplied to create complete cable routing systems for different project layouts.

6. Applications

Industrial Facilities

Suitable for power distribution, control systems, machinery, production lines, and industrial electrical installations.

Commercial Buildings

Used for organized routing of electrical and communication cables in offices, shopping centers, hotels, hospitals, and other commercial buildings.

Data Centers

Perforated cable trays can be used for power and low-voltage cable management where ventilation and easy cable access are important.

Electrical Rooms

The open perforated structure provides convenient access for cable installation, inspection, and maintenance.

Infrastructure Projects

Suitable for various infrastructure and building services projects requiring organized and reliable cable management.

7. Key Features

• Galvanized steel construction

• Perforated tray design

• Good ventilation and heat dissipation

• Reliable cable support

• Corrosion-resistant surface

• Easy cable installation

• Easy maintenance and inspection

• Multiple widths and heights

• Different steel thicknesses available

• Wide range of fittings and accessories

• Standard and customized dimensions

• OEM and project-specific production

8. Customization Options

Wanan can manufacture Galvanized Perforated Cable Tray according to project specifications.

Customization options include:

• Tray width

• Tray height

• Material thickness

• Tray length

• Hole pattern

• Hole size

• Surface treatment

• Galvanizing method

• Fitting configuration

• Support accessories

We can also provide customized cable tray solutions for EPC contractors, electrical contractors, MEP contractors, distributors, system integrators, and project buyers.
