Electrical Conduit Standards Explained: IEC 61386 vs UL 6 vs ANSI C80.1

Electrical conduit is made to different standards depending on the market, and the standards are not interchangeable. Most of Europe, the Middle East, Africa, and Asia work to the IEC and EN 61386 series, while North America works to UL and ANSI product standards used together with the National Electrical Code (NEC). The same nominal size can differ in wall thickness, thread, and fitting design between the two systems, so a conduit that suits one specification may not be accepted under the other. This guide explains what each standard covers, how they differ, and what to confirm before you buy.

Quick Overview: The Main Conduit Standards

The IEC / EN 61386 System

IEC 61386 is a series of standards for conduit systems used to protect and route insulated conductors and cables. Part 1 sets the general requirements, and further parts cover specific conduit types, such as rigid, pliable, flexible, and buried conduit. The standards classify conduit by properties such as mechanical strength, temperature range, resistance to corrosion, and electrical characteristics, so the buyer specifies the classification needed for the installation. In Europe the series is adopted as EN 61386.

What this means for buyers

• The standard sets performance classes, so the project specification should state which classes are required

• Sizes are normally metric, and fittings are matched to the conduit system

• Metallic conduit types such as KBG, JDG, and SC are often supplied for projects that specify IEC-based requirements (see our KBG vs JDG vs SC Conduit comparison for how those types differ)

The North American System: UL, ANSI, and NEC

In North America, each main conduit type has its own product standard. UL 6 covers rigid metal conduit, UL 797 covers EMT, and UL 1242 covers IMC. ANSI C80.1, C80.3, and C80.6 set the dimensions and material requirements for the same three types. The NEC then decides where each type may be installed, such as indoors, outdoors, or in wet or buried locations. Products sold into projects that require UL listing usually need to be listed by the certifying body, so a test report alone may not be enough (see our EMT vs Rigid vs PVC Conduit Comparison for how the types differ).

What this means for buyers

• Sizes are normally in inch trade sizes, and threaded fittings follow the North American thread form

• Project specifications often require UL listing, not only compliance with the standard

• Installation rules come from the NEC and the local authority having jurisdiction

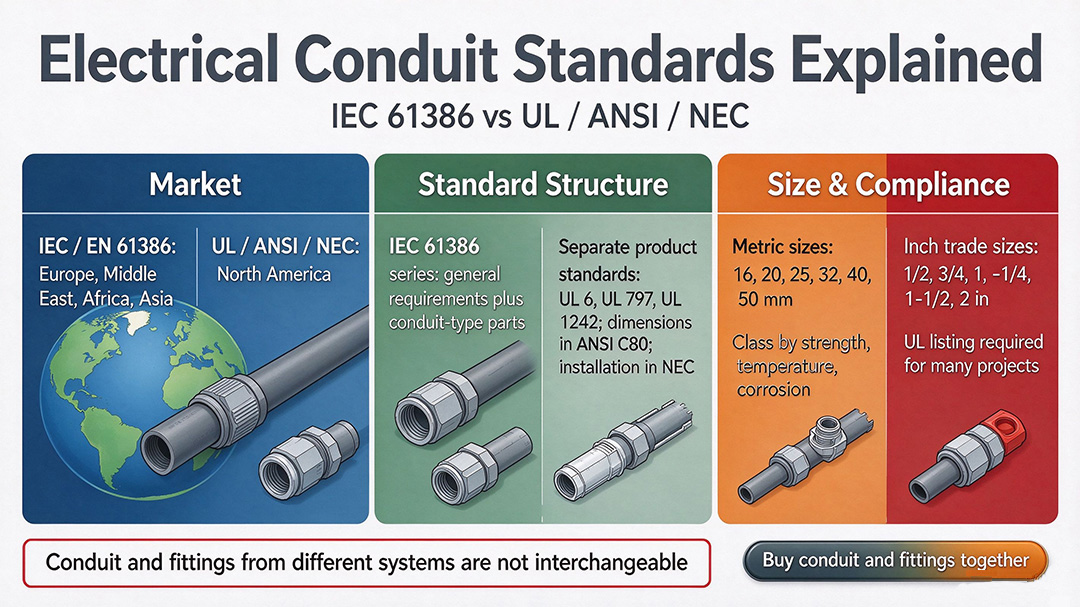

Key Differences at a Glance

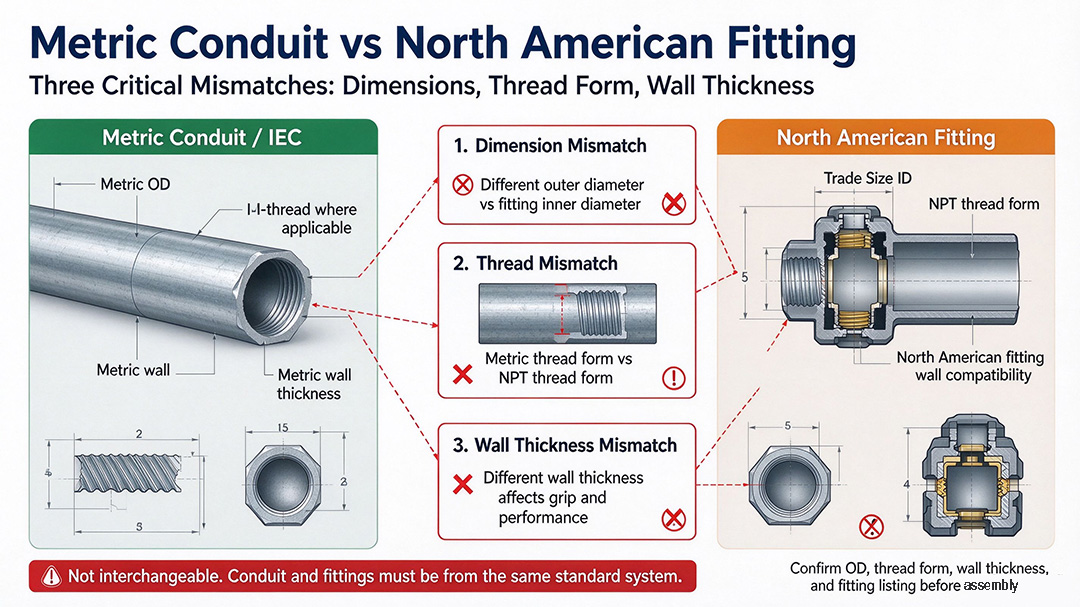

Why Conduit From Different Systems Cannot Simply Be Swapped

The standards define different wall thicknesses, outside diameters, thread forms, and coating requirements, so conduit and fittings from one system may not fit or perform the same as the other. Mixing them can cause poor connections, loose joints, and rejected inspections. Even within one system, fittings should be chosen for the specific conduit type (see our Conduit Fittings & Accessories Explained guide for what a complete installation needs).

How to Choose the Right Standard for Your Project

1. Read the project specification first. It normally names the standard or the listing that applies.

2. Check the local regulations. The country's wiring rules and the authority having jurisdiction decide what is accepted.

3. Match the size system. Confirm metric or inch sizing, including the thread form for threaded types.

4. Ask for the documents. Request the test report or certificate that proves compliance with the named standard, and for UL-listed projects, the listing itself.

5. Buy conduit and fittings together. Confirm the fittings are designed for the same conduit type and standard.

Common Mistakes to Avoid

1. Assuming "galvanized" means "compliant," when the standard governs more than the coating.

2. Using an IEC test report for a project that requires UL listing.

3. Mixing metric and inch conduit and fittings on the same run.

4. Not stating the classification or coating requirement in the order, so the supplier quotes the lightest option.

5. Treating the product standard as the installation rule, when installation is governed by the wiring regulations and the NEC or local code.

Conclusion

Conduit standards follow the market: IEC and EN 61386 for much of the world, and UL, ANSI, and the NEC for North America. They differ in structure, size system, and how compliance is shown, so the right conduit is the one that matches your project's named standard, size system, and documentation requirements. Ask the specification which standard applies, confirm the size and thread system, and request the supporting documents before you order. Final requirements always come from the project specification and local regulations.

FAQ

Can I use IEC conduit on a project that requires UL?

Usually not. Projects that call for UL-listed conduit need products that carry that listing, and a report to a different standard does not replace it. Check the specification, and if it is unclear, ask the engineer or the authority having jurisdiction before ordering.

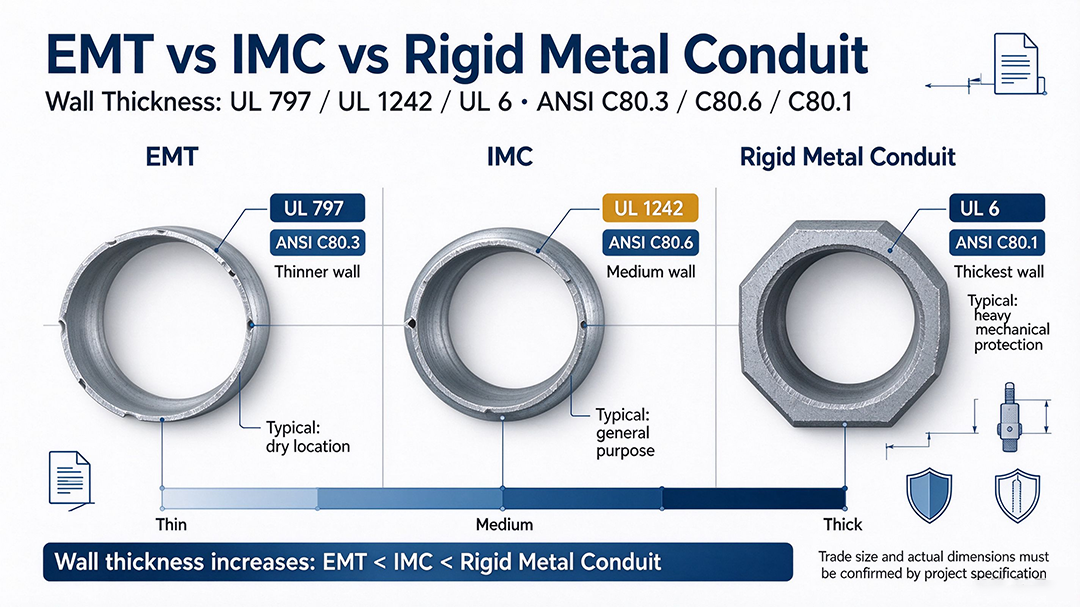

What is the difference between EMT, IMC, and rigid conduit standards?

In North America, each type has its own product standard, UL 797 for EMT, UL 1242 for IMC, and UL 6 for rigid metal conduit. They differ mainly in wall thickness, strength, and where the NEC permits them. EMT is the lightest, and rigid is the heaviest and offers the most mechanical protection.

How do I know which standard my conduit supplier works to?

Ask the supplier to state the standard, size system, wall thickness, and coating in the quotation, and to provide the matching test report or certificate. If the specification names a standard the supplier does not work to, confirm that before placing the order.
