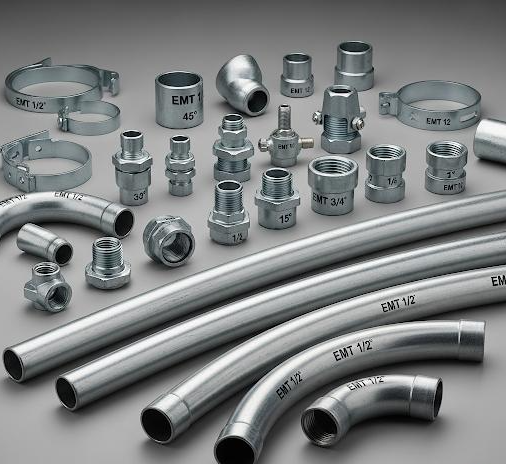

A conduit run is rarely just straight pipe — elbows route it around corners, clamps and straps hold it to the structure, and boxes provide access points for wiring and connections. These fittings and accessories are what turn a length of conduit into a complete, code-compliant electrical system, yet they're often specified as an afterthought once the conduit itself is chosen. This guide walks through the core categories of conduit fittings and accessories, what each one does, and what to check when specifying them.
Conduit protects the wiring inside it, but the fittings are what maintain that protection at every joint, turn, and support point along the run. A mismatched elbow, an undersized clamp, or a poorly grounded connection point can undermine the mechanical protection and grounding continuity that the conduit system is installed to provide in the first place. Specifying fittings with the same attention as the conduit avoids weak points that show up later as loose runs, failed inspections, or corrosion at connection points.

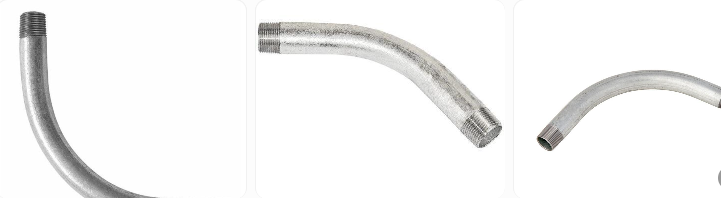

Elbows route conduit around corners and direction changes without kinking or damaging the pipe, most commonly supplied in 90° and 45° bend angles. They're available in the same range of finishes as the conduit itself — hot-dip galvanized steel being the standard choice for exposed or industrial runs needing corrosion resistance.
Bend angle and conduit diameter match the specific run — elbows aren't interchangeable across different trade sizes
Bend radius meets code requirements for the conductor type being pulled through, since a too-tight radius can damage cable insulation during installation
Finish matches the rest of the run's corrosion protection, particularly on exposed outdoor or industrial installations

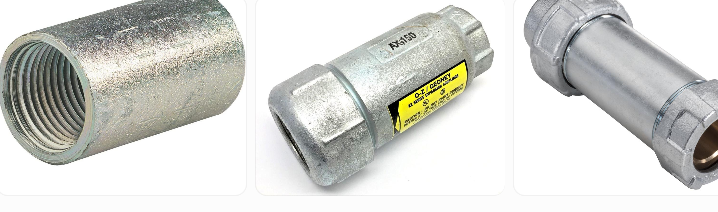

Couplings join two lengths of conduit end to end, maintaining both the mechanical connection and the grounding continuity of the run. Standard couplings are used for straight in-line joints, while expansion-type couplings are specified where a run crosses a structural expansion joint or spans a long outdoor distance subject to thermal expansion and contraction.
Coupling type matches the joint's function — standard for a fixed connection, expansion-type where movement needs to be accommodated
Threaded couplings are fully engaged during installation, since a partially threaded joint weakens both the mechanical strength and grounding path

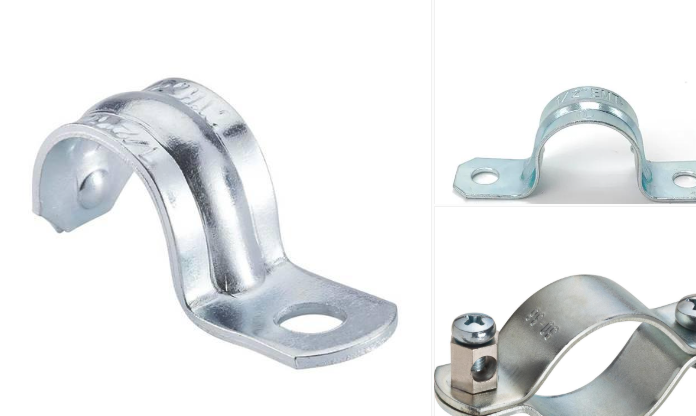

Clamps and straps secure conduit to the building structure at regular intervals along the run, keeping it fixed in place and preventing sagging or movement. One-hole conduit straps (sometimes called half-saddle clamps) are a common choice for surface-mounted runs, while grounding clamps and stud clamps serve more specialized roles — connecting a grounding conductor to the conduit system, or securing conduit to structural steel beams and studs without drilling.
Support spacing follows code-required maximum intervals for the conduit size and type being installed
Grounding clamps are rated and listed for the specific grounding conductor size being connected
Stud and beam clamps are sized correctly for the structural member they attach to, avoiding a loose or over-tightened connection

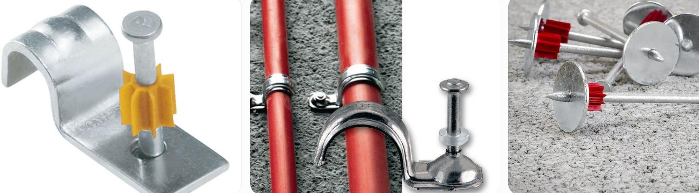

Hook nails, also known as masonry drive pins, provide a fast method for securing conduit straps directly to masonry or concrete surfaces without pre-drilling. They're a common choice on industrial and commercial sites where large volumes of conduit need to be fastened quickly to concrete walls, ceilings, or block structures.
Pin length and diameter suit the masonry substrate's thickness and hardness
Installation follows the manufacturer's recommended tool and technique, since improper driving can weaken the hold or damage the substrate

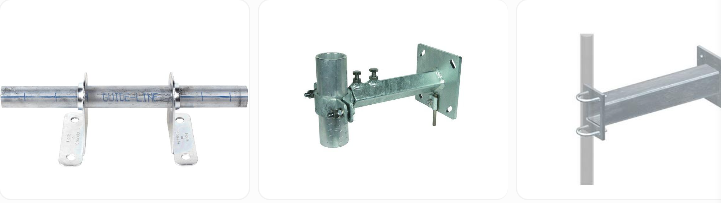

Standoff brackets space conduit away from a wall or structural surface, which is useful for allowing airflow behind the conduit, avoiding surface moisture contact, or maintaining clearance from other building elements. They're typically installed at the same intervals as standard conduit supports.
Standoff distance meets project or code requirements for clearance from the mounting surface
Bracket load rating accounts for the full weight of the conduit run, including cables, not just the empty conduit

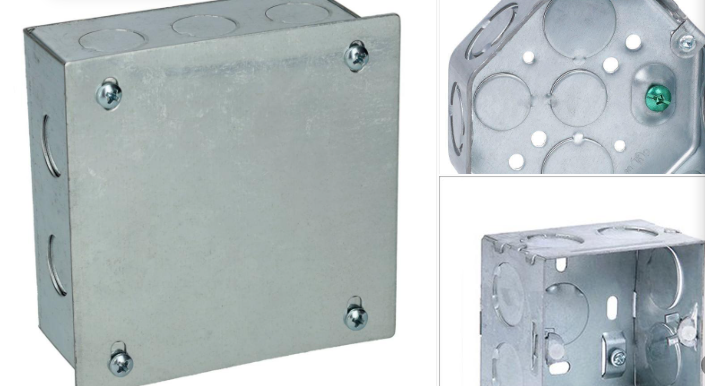

Boxes provide access points along a conduit run for splicing conductors, mounting devices, or changing direction where a fitting alone isn't practical. Surface-mounted boxes are installed directly on a wall or structural surface for exposed conduit runs, while octagonal boxes are typically used for ceiling-mounted fixtures or junction points where multiple conduits converge.
Box size provides adequate fill capacity for the number and size of conductors being spliced or terminated inside it
Box material and rating suit the installation environment — indoor, outdoor, or hazardous location requirements differ
Knockouts align with the conduit entry points planned for the run
Match every fitting to the conduit's trade size and type. Fittings aren't universal — an elbow or coupling sized for one conduit type or diameter won't fit correctly on another.
Maintain consistent corrosion protection across the whole run. A galvanized conduit run with unfinished or mismatched fittings creates weak points that corrode faster than the rest of the system.
Follow code-required support spacing. Under-supporting a run with too few clamps or straps leads to sagging and stress on joints over time.
Order enough fittings and spares. Elbows, couplings, and small hardware like hook nails are the items most likely to run short mid-installation, causing avoidable delays.
Conduit fittings and accessories — elbows, couplings, clamps, straps, hook nails, standoff brackets, and boxes — are what actually make a conduit system functional, code-compliant, and durable over its service life. Specifying them with the same care as the conduit itself, matching trade size, finish, and load requirements at every connection point, is one of the most effective ways to avoid field issues and failed inspections after installation.
Generally yes, as long as every fitting matches the correct trade size and conduit type (EMT, rigid, or PVC) and meets the same applicable standard. Consistency in finish and material grade is still recommended to avoid mismatched corrosion resistance along the run.
Support spacing is set by the applicable electrical code and varies by conduit type and size — larger diameter conduit generally allows longer spacing than smaller sizes. The specific interval should be confirmed against the code governing the installation's location rather than assumed from a different project.
Yes. Grounding clamps serve an electrical safety function and are typically listed or certified specifically for grounding applications, which is a different requirement than a standard mechanical support clamp used only to hold conduit in place.
