Data center construction is one of the fastest-growing segments of global infrastructure spending, and cable management is one of the details that gets scrutinized hardest during design review. A cable tray system that is undersized, poorly ventilated, or missing the right certification can delay commissioning, trigger rework, or create long-term maintenance risk in a facility that is expected to run continuously for 15–20 years.
This guide walks through the five factors EPC contractors, data center developers, and MEP engineers should evaluate before specifying a cable tray system, and compares the tray types and finishes best suited to data center environments.
Data center white space and support areas carry an unusually dense mix of power and low-voltage cabling — busway feeds, PDU whips, structured cabling, and fiber trunks often run in the same overhead space. Three conditions make selection decisions higher-stakes than in a typical commercial building:
Heat density. Server rooms generate significant ambient heat, and poor tray ventilation can accelerate insulation aging on power cables.
Uptime requirements. Tier III/IV facilities are designed for concurrent maintainability, so tray systems need enough spare capacity and accessibility to add or service cables without disrupting live circuits.
Fire and smoke compliance. Data centers are frequently subject to stricter fire-stopping and cable separation requirements than standard commercial buildings.
Calculate total cable weight per linear meter, including future capacity — most data center designs plan for 30–40% spare fill to support future IT load growth without a tray replacement. Confirm the tray's rated load at its actual support span, not just the manufacturer's maximum span rating.

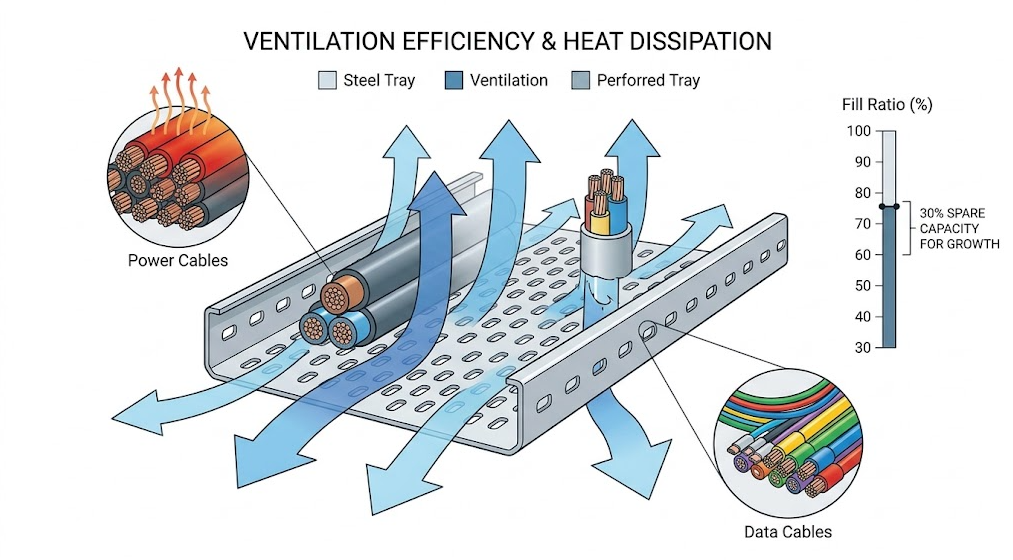

Perforated and ladder-type trays allow airflow around cable bundles, which helps dissipate heat in tightly packed power runs. Solid-bottom or trunking-style trays are typically reserved for low-voltage/fiber runs where dust and physical protection matter more than heat dissipation.

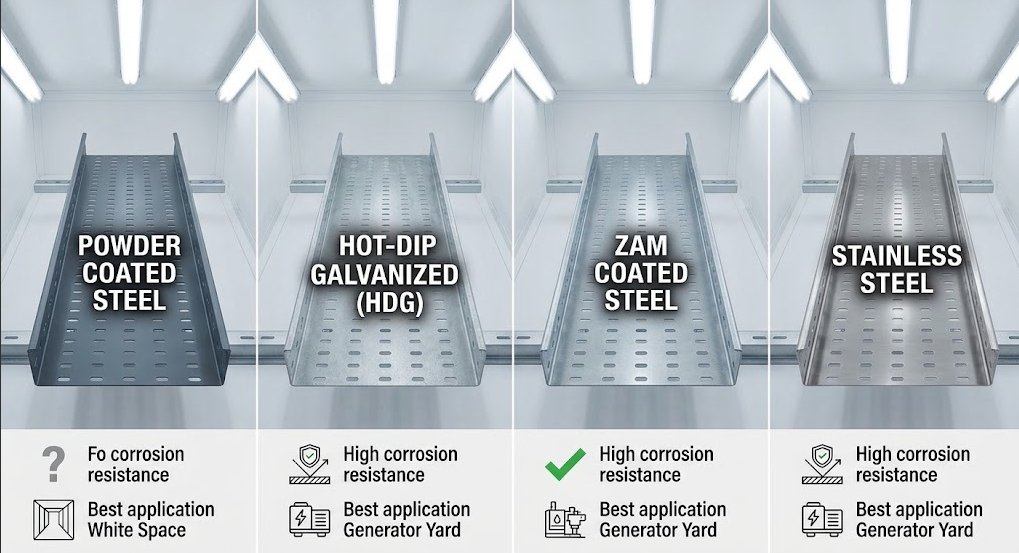

Data center mechanical rooms, generator yards, and cooling plant areas can expose trays to humidity, condensation, or outdoor conditions even when the white space itself is climate-controlled. Coating choice should match the environment, not just the budget:
Finish | Typical Corrosion Resistance | Best Suited For | Relative Cost |
|---|---|---|---|
Powder Coated Steel | Moderate; suited to dry indoor environments | Office/admin areas, low-humidity IT rooms | Lowest |
Hot-Dip Galvanized (HDG) | Good general-purpose protection | Indoor white space, mechanical rooms | Low–Medium |
ZAM Coated Steel | Higher corrosion resistance than standard HDG in humid/coastal conditions | Generator yards, cooling plant, coastal sites | Medium |
Stainless Steel | Highest corrosion resistance | Outdoor runs, chemical exposure, long-design-life projects | Highest |

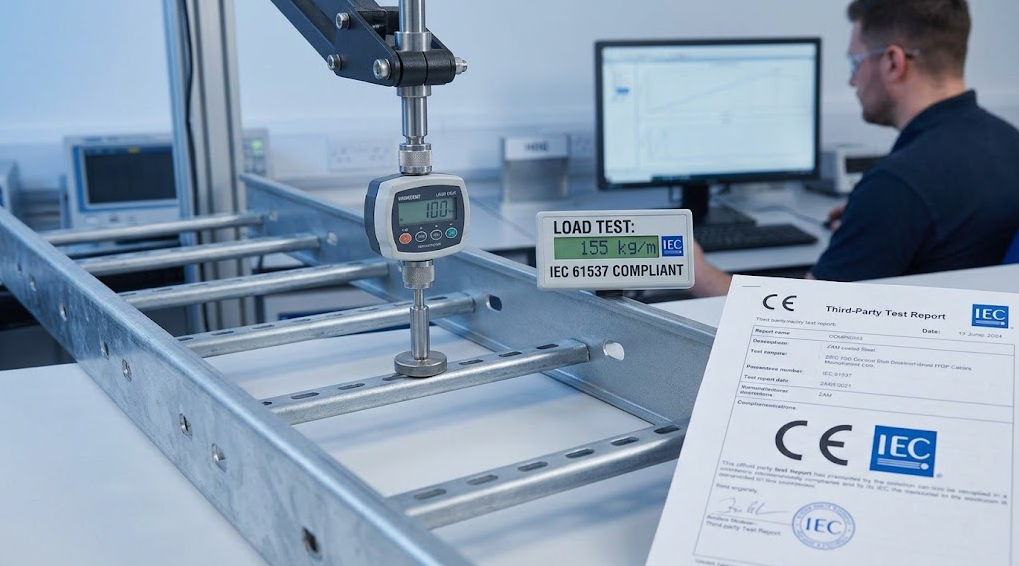

For international EPC and data center projects, specifications commonly reference IEC 61537 for mechanical performance (load, deflection, impact resistance) and CE marking for the European market, alongside local electrical codes. Confirm the supplier can provide third-party test reports, not just a compliance statement — this is typically requested during procurement and acceptance review.

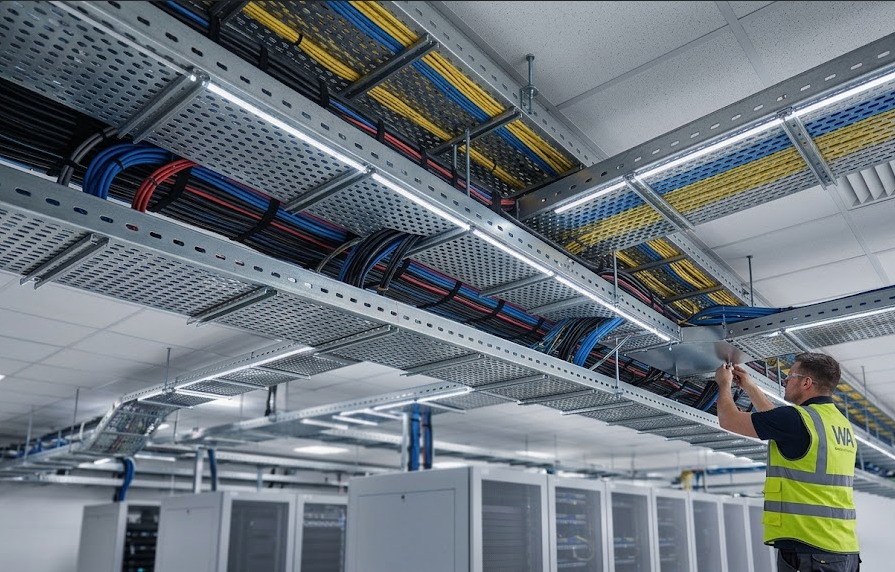

Concurrent maintainability means technicians need to add, remove, or reroute cables without powering down adjacent circuits. Tray width, cover type (hinged vs. bolted), and accessory availability (tees, risers, reducers) all affect how easily a system can be modified after commissioning.
Application Area | Recommended Tray Type |
|---|---|
Main power distribution runs | Ladder-type or trough-type cable tray |
Structured cabling / fiber | Wire mesh tray or cable trunking |

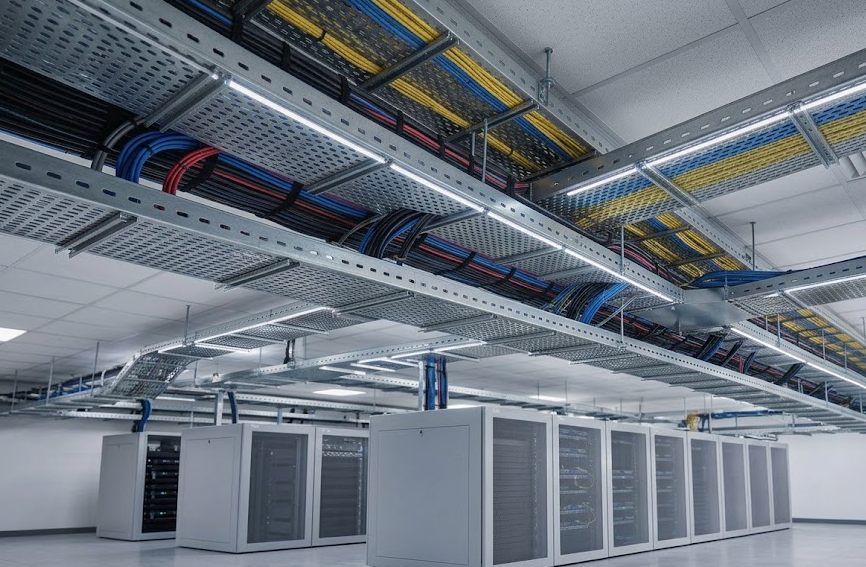

Server room overhead runs | Perforated cable tray (HDG or ZAM) |
Generator yard / outdoor runs | Stainless steel or ZAM perforated tray |
Low-density office/admin areas | Powder-coated perforated tray |
What is the best cable tray coating for a data center? There is no single "best" coating — it depends on the environment. ZAM or stainless steel is generally recommended for outdoor or high-humidity areas such as generator yards and cooling plants, while HDG or powder-coated trays are usually sufficient for climate-controlled indoor white space.
Does data center cable tray need IEC 61537 certification? Most international EPC specifications reference IEC 61537 for mechanical load and deflection testing. Even where it is not explicitly mandated, third-party test reports to this standard are commonly requested during technical review and procurement approval.
How much spare capacity should a data center cable tray allow? A common design practice is to size trays for 30–40% spare fill beyond current cable load, allowing for future IT equipment expansion without requiring tray replacement.
Can perforated and solid-bottom trays be used in the same data center? Yes — many designs mix tray types by function: perforated or ladder tray for power runs that benefit from ventilation, and wire mesh tray or trunking for structured cabling and fiber that need physical protection rather than airflow.
Choosing a cable tray system for a data center is not just a matter of picking a width and length — load capacity, coating, ventilation, and certification each affect long-term reliability and maintenance cost. Wanan manufactures perforated, ladder, trough, and wire mesh cable trays in HDG, ZAM, stainless steel, and powder-coated finishes, with cable tray systems certified to CE and IEC 61537 standards. Contact our team for project-specific tray selection support and technical documentation.
