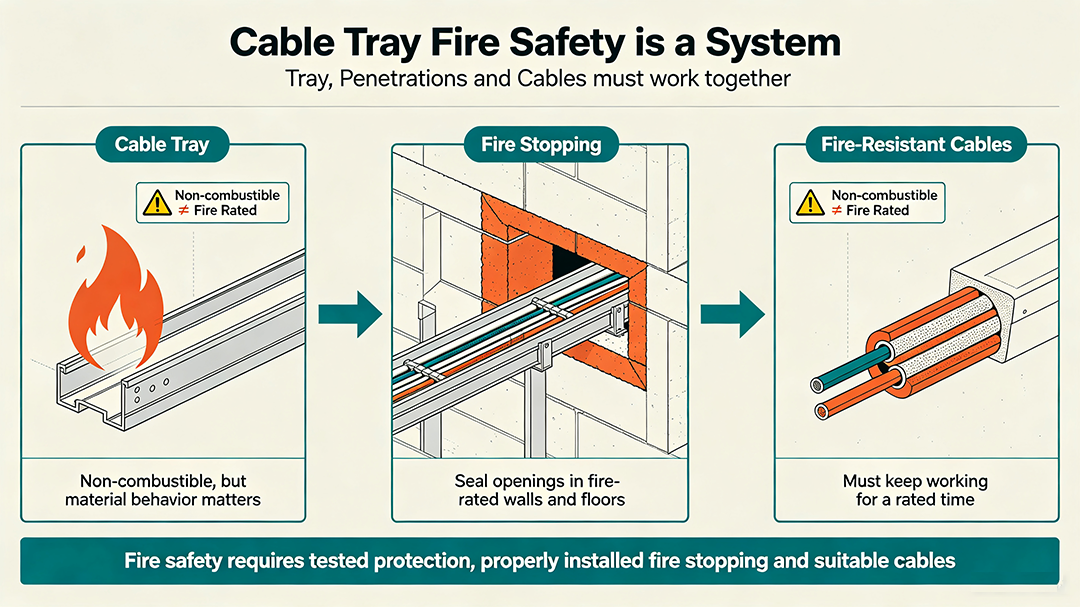

A metal cable tray does not burn, but that does not make it a fire-rated system. Fire safety for cable routes depends on three separate things: whether the tray material keeps its shape in a fire, whether openings where the tray passes through walls and floors are sealed with approved fire stopping, and whether the cables themselves are designed to keep working in a fire. A galvanized tray with unsealed wall penetrations can let fire and smoke spread, while a well-designed system treats the tray, the penetrations, and the cables as one fire strategy. This guide explains the basics so you can ask the right questions when specifying or buying cable tray.
Measure | What it does | Where it applies |
|---|---|---|
Non-combustible tray material | The tray does not add fuel to a fire | All metal tray types |
Fire stopping at penetrations | Seals openings where tray passes through fire-rated walls and floors | Every wall or floor penetration on a fire-rated barrier |
Fire-resistant cables | Cables keep working for a set time during a fire | Emergency lighting, alarm, smoke control, and pump circuits |
Fire protection coating or enclosure | Protects the tray and cables from heat for a rated time | Where the project requires a fire-rated route |
Material choice | Affects how the tray behaves when heated | Selected for the project's fire and environment requirements |
Steel, aluminum, and stainless steel cable trays are non-combustible, so the tray itself does not feed a fire. That is different from being fire resistant. In a fire, the tray is heated and loses strength, and the cables it carries, with their insulation, are usually the bigger concern. Standard galvanized tray is not tested or sold as a fire-rated product unless the supplier states it and provides the supporting test documentation. When a project calls for a fire-rated route, ask for the specific system and test evidence, not just the material name.
Does the project specification require a fire-rated cable route, or only non-combustible materials?
Which circuits must keep working during a fire, such as emergency lighting, alarm, or smoke control?
What fire resistance time and which standard does the local code or project require?

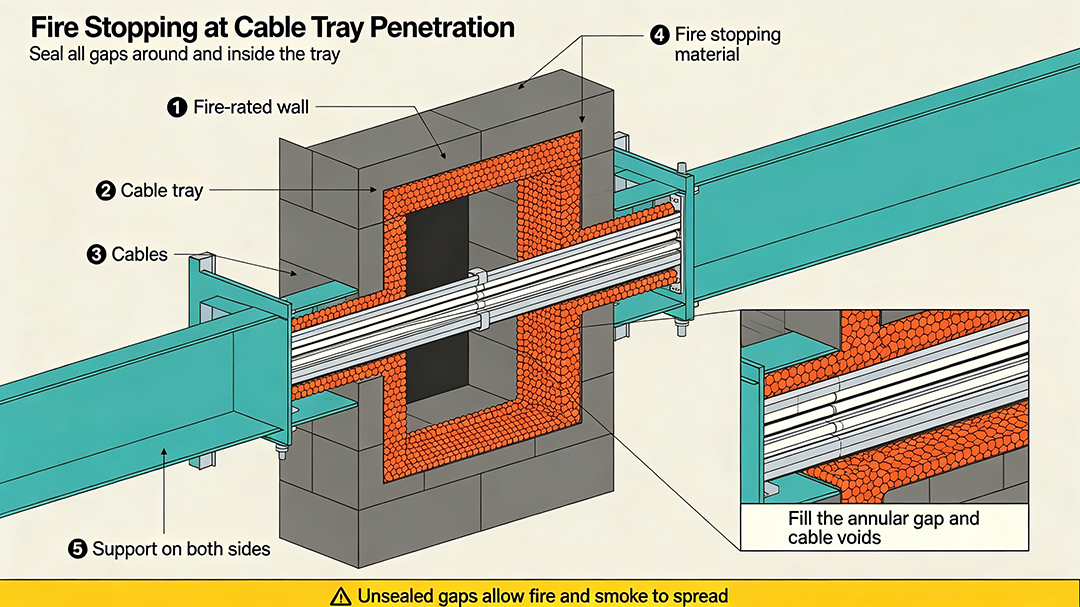

Where cable tray passes through a fire-rated wall or floor, the opening must be sealed so fire and smoke cannot pass through the gap around the tray and cables. This is done with fire stopping, which is a tested system, such as fire-rated sealant, boards, collars, or wraps, chosen for the barrier, the opening size, and the cable types. Fire stopping is normally installed after the tray and cables are in place, and it should be done by a trained installer following the manufacturer's tested method.
That every penetration through a fire-rated barrier has a fire stopping system suited to that barrier
That the tray, cable load, and opening size match the tested system, since a system tested with one arrangement may not cover a different one
That space is left in the penetration for future cables, or that the fire stopping can be reopened and resealed
That the tray run is supported on both sides of the penetration so it does not stress the seal
When a circuit must keep operating in a fire, there are two common approaches. One is to use fire-resistant cables, which are built to keep working for a stated time, and to carry them on a tray that is supported and fixed as the cable's test conditions require. The other is to protect standard cables with a fire-rated enclosure, wrap, or coating applied to the tray route. The right choice depends on the project standard, the required rating time, and the cost, and the supplier of the fire protection system normally defines how the tray must be supported.
Whether the fire rating applies to the cable, the tray route, or the combined system
Support spacing and fixing type, which are often part of the tested arrangement
Whether the tray finish and size match what the fire protection system was tested with
All metal trays are non-combustible, but materials behave differently when heated. Steel generally holds its shape at higher temperatures than aluminum, which softens and loses strength at a lower temperature. Stainless steel keeps its strength well at high temperature and is used where heat and corrosion are both concerns. Fiberglass (FRP) trays may be fire-retardant depending on the resin, and the grade must be confirmed with the supplier. The right material depends on the fire requirement, the environment, and cost (see our Cable Tray Materials Explained guide and our SS304 vs SS316 vs HDG Cable Tray comparison for how the materials differ).

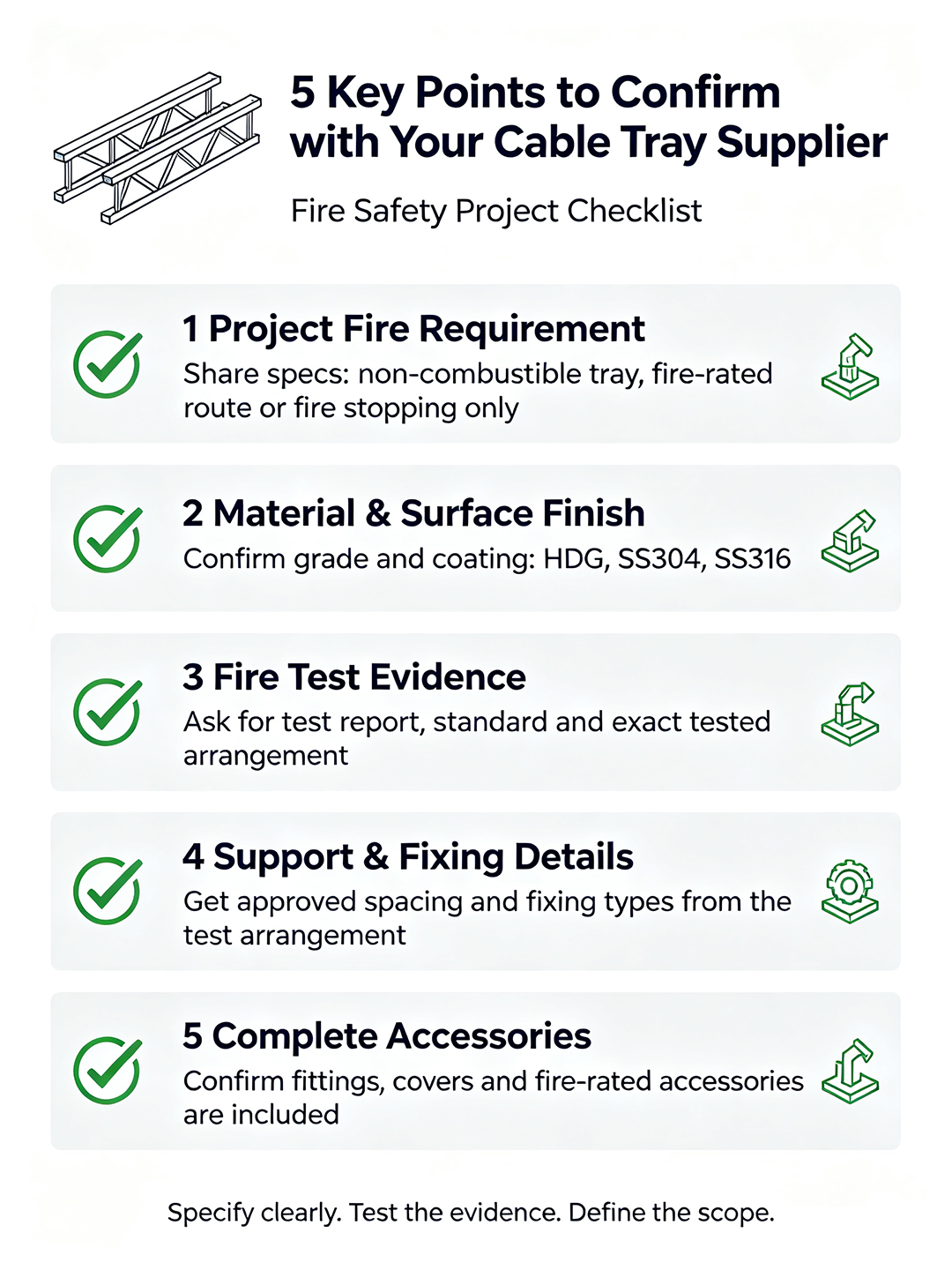

The project's fire requirement. Share the specification, so the supplier knows whether you need non-combustible tray, a fire-rated route, or only fire stopping advice.
Material and finish. Confirm the material grade and surface finish, since both can matter for fire behavior and corrosion.
Test evidence. If a fire rating is claimed, ask for the test report, the standard used, and the exact arrangement tested.
Support and fixing details. Ask what support spacing and fixings the rating assumes.
Accessories. Check which fittings, covers, and fire-rated accessories are included, and which are not.
Treating galvanized tray as fire-rated tray, when non-combustible and fire-resistant are different things.
Leaving penetrations unsealed, or sealing the wall opening but not the gap inside the tray and around the cables.
Using a fire stopping system outside its tested conditions, such as a different cable load or opening size.
Choosing the tray without checking the cable, since the cable's fire performance often decides the result.
Reopening a penetration for new cables without resealing it with a suitable system.
Cable tray fire safety comes down to treating the tray, the penetrations, and the cables as one system. Metal tray is non-combustible, but a fire-rated route needs tested fire protection, properly installed fire stopping at every barrier, and cables suited to the circuit's purpose. Confirm the project's fire requirement first, ask suppliers for test evidence rather than assuming it, and follow the local code and fire authority for final requirements.
Not by itself. Galvanized steel tray is non-combustible, but a fire rating applies to a tested system with specific cables, supports, and protection. Unless the supplier provides test documentation for a fire-rated system, do not assume standard tray carries a fire rating.
If the wall or floor is a fire-rated barrier, yes. The opening around the tray and cables must be sealed with a fire stopping system suited to that barrier and tested for that kind of penetration. Your project specification and local fire code decide which walls and floors require it.
All common metal trays are non-combustible, and steel and stainless steel generally hold their strength better at high temperature than aluminum. The best choice depends on the project's fire requirement, the environment, and cost, so confirm it against the specification rather than choosing on material alone.
Planning a project with fire safety requirements? Browse our cable tray systems, including hot-dip galvanized and stainless steel perforated tray, or contact our team with your fire requirements and cable details.
