Adjustable Tilt vs Fixed Tilt Solar Mounting Brackets: Which One Fits Your Site?

Tilt angle is one of the most overlooked decisions in solar racking design — yet it directly affects energy yield, installation cost, and how well a system performs across seasons. When it comes to choosing brackets, the decision usually comes down to two options: adjustable tilt or fixed tilt. Both hold panels at the correct angle to the sun, but they solve the problem in very different ways, with different cost and performance trade-offs. This guide breaks down how the two compare, so you can choose the right bracket type for your project.

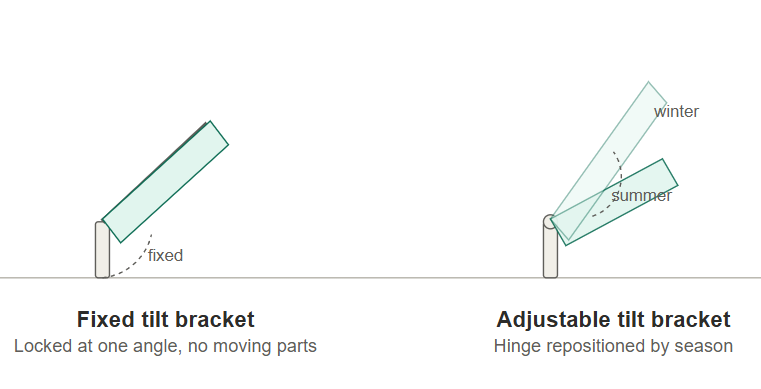

The Core Difference

A fixed tilt bracket locks the panel at one angle, set during installation based on the site's latitude and typical sun path, and it never changes afterward. An adjustable tilt bracket uses a hinge or slotted mounting point that lets the installer — or in some cases the system owner — change the angle periodically, usually a few times a year, to better track the sun's seasonal position.

The trade-off is straightforward: fixed tilt is simpler, cheaper, and requires no maintenance; adjustable tilt costs more upfront but can capture more energy over the course of a year by adapting to seasonal sun angle changes.

Fixed Tilt Brackets

Fixed tilt brackets are engineered and installed at a single angle calculated to maximize annual energy yield for the site's latitude — typically close to the site's latitude angle, though local weather patterns and roof constraints can shift the optimal number slightly. Once installed, the structure has fewer moving parts, which means less to inspect, adjust, or maintain over the system's lifetime.

Where fixed tilt makes sense

• Large-scale ground mount and utility projects where uniform, low-maintenance racking across thousands of panels matters more than seasonal fine-tuning

• Rooftop installations where structural or space constraints limit how much the tilt angle can vary anyway

• Projects prioritizing lower installation and long-term maintenance cost over maximum seasonal yield

Because there's no adjustment mechanism, fixed tilt brackets also tend to have a lower parts count and simpler bill of materials — fewer hinge components, pins, or locking hardware — which can simplify sourcing and installation training for large deployments.

Adjustable Tilt Brackets

Adjustable tilt brackets typically use a hinge point at the base of the bracket with multiple pre-set angle positions, secured by a locking pin or bolt. Installers or maintenance teams can loosen the lock, reposition the panel to a steeper angle for winter or a flatter angle for summer, and re-secure it — capturing more direct sunlight across seasons than a single fixed angle allows.

Where adjustable tilt makes sense

• Sites at higher latitudes where the sun's seasonal angle swings widely between summer and winter

• Off-grid or residential systems where owners are willing to perform seasonal adjustments in exchange for better year-round output

• Projects where maximizing energy yield per panel is a higher priority than minimizing installation and structural cost

The trade-off is added complexity: more moving parts means more points that need to be checked for corrosion, loosening, or wear over time, particularly in coastal or high-humidity environments where hinge hardware needs a corrosion-resistant finish.

Comparing the Two

How to Decide

1. Check your site's latitude. The closer to the equator, the smaller the seasonal swing in optimal tilt angle — which narrows the benefit of going adjustable. At higher latitudes, the gap between summer and winter optimal angles is much larger.

2. Be honest about maintenance capacity. Adjustable brackets only pay off if someone actually performs the seasonal adjustment. An adjustable system left at one angle year-round loses most of its advantage over a properly designed fixed system.

3. Factor in project scale. For utility-scale arrays with thousands of panels, the labor cost of seasonal readjustment across the whole site can outweigh the yield gain — this is why fixed tilt dominates large ground-mount and utility projects.

4. Consider structural exposure. Coastal, marine, or high-humidity sites should specify corrosion-resistant hinge hardware (hot-dip galvanized or stainless steel) if going adjustable, since moving parts are more vulnerable to long-term corrosion than a welded fixed joint.

Conclusion

Neither bracket type is universally "better" — fixed tilt wins on simplicity, cost, and low maintenance at scale, while adjustable tilt wins on energy yield for sites and owners that can commit to seasonal upkeep. The right choice depends on latitude, project scale, and how much ongoing maintenance the system owner is realistically willing to perform. For utility and large commercial projects, fixed tilt is usually the default; for residential, off-grid, and higher-latitude installations, adjustable tilt is worth the added cost.

FAQ

How much energy can adjustable tilt actually gain over fixed tilt?

The gain depends heavily on latitude and how consistently the angle is adjusted — sites farther from the equator see a larger potential benefit than sites near it. The gain only materializes if the adjustment is actually performed on schedule; a neglected adjustable system performs no better than a well-designed fixed one.

Do adjustable tilt brackets need more maintenance than fixed brackets?

Yes. Beyond the seasonal angle changes themselves, the hinge, locking pin, and adjustment hardware should be inspected periodically for corrosion or loosening, especially in coastal or high-humidity environments — a fixed bracket has no equivalent moving parts to check.

Can adjustable tilt brackets be locked in one position permanently?

Yes, most adjustable brackets can simply be left at one position without ever being readjusted, effectively functioning as a fixed tilt system. Some projects choose adjustable hardware upfront for future flexibility even if they don't plan to adjust it regularly at first.
